DtReflectedDirectedEnergyFire Class Reference

Instances of DtReflectedDirectedEnergyFire represent Directed Energy Fire object simulated by remote applications. More...

Inheritance diagram for DtReflectedDirectedEnergyFire:

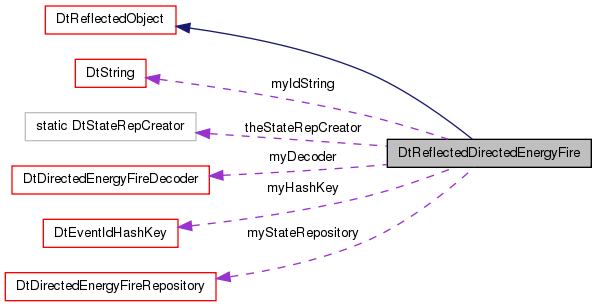

Collaboration diagram for DtReflectedDirectedEnergyFire:

Public Types
typedef DtDirectedEnergyFireRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create Dtdirected energy fireRepositories.

Public Member Functions
	DtReflectedDirectedEnergyFire (DtExerciseConn *conn, const DtEventId &eventId)
	Constructor.
virtual	~DtReflectedDirectedEnergyFire ()
	Destructor.
virtual DtDirectedEnergyFireRepository *	directedEnergyFireRep () const
	Get the directed energy fire's state repository.
virtual DtDirectedEnergyFireRepository *	defr () const
	Synonym for directedEnergyFireRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository through which you can inspect current state information.
virtual void	processStateMessage (const DtStateMsg &msg)
	Overrides the implementation of the base class.
virtual DtReflectedDirectedEnergyFire *	next () const
	Get the next remote directed energy fire.
virtual DtReflectedDirectedEnergyFire *	prev () const
	Get the previous remote directed energy fire.
virtual DtReflectedDirectedEnergyFire *	wrapNext () const
	Get the next remote directed energy fire.
virtual DtReflectedDirectedEnergyFire *	wrapPrev () const
	Get the previous remote directed energy fire.
virtual void	addPostUpdateCallback (DtDirectedEnergyFireCallbackFunction cb, void *userData)
	directed energy fire state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtDirectedEnergyFireCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the directed energy fire entityId - for DIS, it's the same as its DtEntityIdentifier.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedDirectedEnergyFire (const DtReflectedDirectedEnergyFire &)
	Copy constructor - not implemented.
DtReflectedDirectedEnergyFire &	operator= (const DtReflectedDirectedEnergyFire &)
	Assignment operator - not implemented.
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtEventIdHashKey	myHashKey
DtString	myIdString
DtDirectedEnergyFireRepository *	myStateRepository
DtDirectedEnergyFireDecoder	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedDirectedEnergyFire represent Directed Energy Fire object simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtDirectedEnergyFireRepository*(* DtReflectedDirectedEnergyFire::DtStateRepCreator)()

Function prototype for functions that create Dtdirected energy fireRepositories.

Constructor & Destructor Documentation

DtReflectedDirectedEnergyFire::DtReflectedDirectedEnergyFire	(	DtExerciseConn *	conn,
		const DtEventId &	eventId
	)

Constructor.

virtual DtReflectedDirectedEnergyFire::~DtReflectedDirectedEnergyFire ( )

virtual

Destructor.

DtReflectedDirectedEnergyFire::DtReflectedDirectedEnergyFire ( const DtReflectedDirectedEnergyFire &  )

protected

Copy constructor - not implemented.

Member Function Documentation

virtual void DtReflectedDirectedEnergyFire::addPostUpdateCallback ( DtDirectedEnergyFireCallbackFunction  cb, void *  userData  )

virtual

directed energy fire state callback registration/deregistration.

virtual DtDirectedEnergyFireRepository* DtReflectedDirectedEnergyFire::defr ( ) const

inlinevirtual

Synonym for directedEnergyFireRep().

virtual DtDirectedEnergyFireRepository* DtReflectedDirectedEnergyFire::directedEnergyFireRep ( ) const

inlinevirtual

Get the directed energy fire's state repository.

virtual const DtGlobalObjectDesignator& DtReflectedDirectedEnergyFire::globalId ( ) const

virtual

Get the directed energy fire entityId - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedDirectedEnergyFire::hashKey ( ) const

inlinevirtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedDirectedEnergyFire::idString ( ) const

inlinevirtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedDirectedEnergyFire* DtReflectedDirectedEnergyFire::next ( ) const

virtual

Get the next remote directed energy fire.

Reimplemented from DtListedObj.

DtReflectedDirectedEnergyFire& DtReflectedDirectedEnergyFire::operator= ( const DtReflectedDirectedEnergyFire &  )

protected

Assignment operator - not implemented.

virtual DtReflectedDirectedEnergyFire* DtReflectedDirectedEnergyFire::prev ( ) const

virtual

Get the previous remote directed energy fire.

Reimplemented from DtListedObj.

virtual void DtReflectedDirectedEnergyFire::processStateMessage ( const DtStateMsg &  msg )

virtual

Overrides the implementation of the base class.

Processes a directed energy fire PDU.

Reimplemented from DtReflectedObject.

virtual void DtReflectedDirectedEnergyFire::removePostUpdateCallback ( DtDirectedEnergyFireCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedDirectedEnergyFire::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedDirectedEnergyFire::stateRep ( ) const

inlinevirtual

Returns a pointer to the StateRepository through which you can inspect current state information.

Implementation for abstract base class.

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedDirectedEnergyFire::stateRepCreator ( void  )

static

virtual DtReflectedDirectedEnergyFire* DtReflectedDirectedEnergyFire::wrapNext ( ) const

virtual

Get the next remote directed energy fire.

If at the end, it will cycle back to the first remote directed energy fire.

Reimplemented from DtListedObj.

virtual DtReflectedDirectedEnergyFire* DtReflectedDirectedEnergyFire::wrapPrev ( ) const

virtual

Get the previous remote directed energy fire.

If at the beginning, it will cycle back to the last remote directed energy fire.

Reimplemented from DtListedObj.

Member Data Documentation

DtDirectedEnergyFireDecoder DtReflectedDirectedEnergyFire::myDecoder

protected

DtEventIdHashKey DtReflectedDirectedEnergyFire::myHashKey

protected

DtString DtReflectedDirectedEnergyFire::myIdString

protected

DtDirectedEnergyFireRepository* DtReflectedDirectedEnergyFire::myStateRepository

protected

DtStateRepCreator DtReflectedDirectedEnergyFire::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedDirectedEnergyFire.h
