DtDatatypeManager Class Reference

This class handles the conversion between a byte stream and an English readable view of the data in an OMT Tree. More...

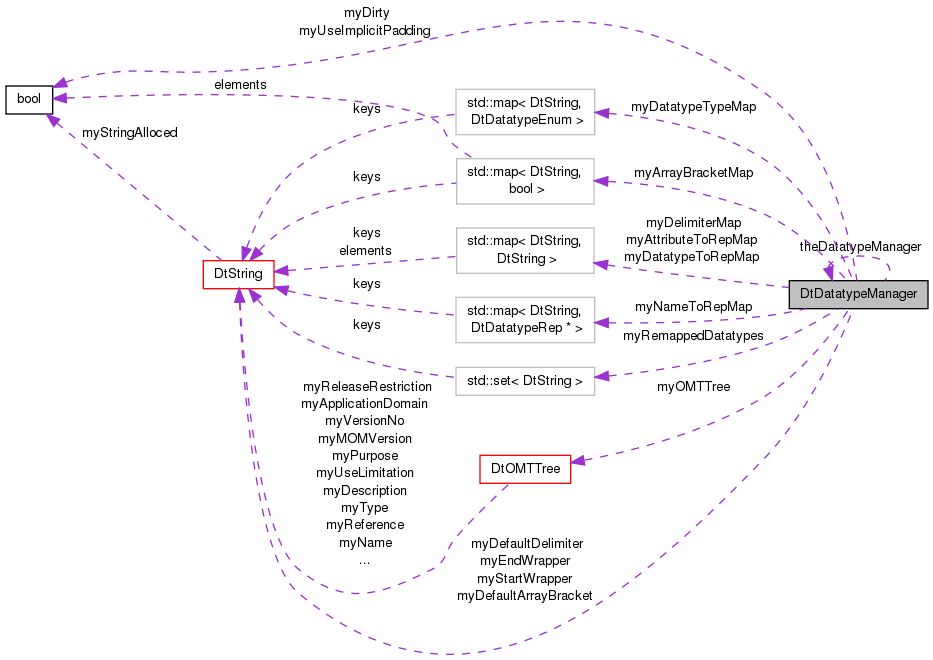

Collaboration diagram for DtDatatypeManager:

Public Types
enum	DtDatatypeEnum {   SIMPLE = 1, ENUMERATED, COMPLEX, ARRAY,   VARIANT, FIXED, DEFINED, DATATYPE_MAX }

Public Member Functions
	DtDatatypeManager ()
	constructor
virtual	~DtDatatypeManager ()
	destructor
virtual void	initOMTData (DtOMTTree *omtTree)
	Fills the datatype type tree with OMT information This function is required at initialization.
virtual DtOMTTree *	omtTree ()
virtual void	setImplicitPadding (bool enableImplicitPadding)
	Set whether to use implicit padding when construction datatypes.
virtual bool	isImplicitPaddingEnabled () const
virtual void	fillDefaultDatatypeRepList ()
	fills the simple database with the usual suspects.
virtual void	addDatatypeRep (DtDatatypeRep *)
virtual void	addDefinedDatatypeRep (DtDatatypeRep *)
virtual DtDatatypeRep *	getSimpleDatatypeRep (const DtString &datatypeName)
virtual std::map< DtString, DtDatatypeRep * >::iterator	getNameRepMapList ()
	get a list of all representations.
virtual std::map< DtString, DtDatatypeRep * >::iterator	getNameRepMapListEnd ()
virtual void	addDelimiterMap (const DtString &datatype, const DtString &delimiter)
	A delimiter is the divider between elements in a complex or fixed datatype.
virtual void	removeDelimiterMap (const DtString &datatype)
virtual void	setDefaultDelimiter (const DtString &str)
	if no delimiter is specified, this function uses this
virtual void	setArrayWrapper (const DtString &start, const DtString &end)
	If set, this will wrap complex values with the wrapper.
virtual DtString	getDelimiterMap (const DtString &datatypeName, bool *isAvailable=0)
	get the delimiter for this datatype or the default if its undefined
virtual std::map< DtString, DtString >::iterator	getDelimiterList ()
virtual std::map< DtString, DtString >::iterator	getDelimiterListEnd ()
virtual void	addArrayBracketMap (const DtString &datatype, bool valueIsBracketed)
	Specifies if values of the given datatype when found in an array are bracketed or not.
virtual void	removeArrayBracketMap (const DtString &datatype)
virtual void	setDefaultArrayBracket (bool valueIsBracketed)
	if no bracket is specified, array values are bracket as specified here.
virtual bool	getArrayBracketMap (const DtString &datatypeName, bool *isAvailable=0)
	get the array bracket setting for this datatype or the default if its undefined
virtual std::map< DtString, bool >::iterator	getArrayBracketList ()
virtual std::map< DtString, bool >::iterator	getArrayBracketListEnd ()
virtual void	readFile (DtString str)
	Read the datatype mapping file.
virtual void	writeFile (DtString str)
	Write out to the datatype mapping file.
virtual void	addRepMapping (const DtString &datatype, const DtString &rep)
virtual void	removeRepMapping (const DtString &datatype)
virtual void	addAttributeMapping (const DtString &datatype, const DtString &rep)
virtual void	removeAttributeMapping (const DtString &datatype)
virtual bool	modifyRepMapping (const DtString &datatype, const DtString &rep)
	Modify a mapping.
virtual std::map< DtString, DtString >::iterator	getRepMapList ()
	Get a list of all the Representation mappings.
virtual std::map< DtString, DtString >::iterator	getRepMapListEnd ()
virtual DtString	getFedNodeStringRep (const DtDatatypeFedNode *currFedNode, const void *value, int size, int &returnSize)
	Get the string representation from the datatype and the value The size input is the size that the network says the datatype is, but that gets modified to the actual size read.
virtual DtString	getStringRep (const DtString &datatypeName, const void *value, int size, int &returnSize)
virtual DtString	getStringRep (const DtOMTDatatypeNode &datatypeNode, const void *value, int size, int &returnSize)
virtual DtStringTree *	createStringTreeRep (const DtDatatypeFedNode *currFedNode, const void *value, int size, int &returnSize, unsigned int currentOffset=0, DtObjectHistory *=0)
	Creates a string tree from a datatype.
virtual DtStringTree *	createStringTreeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, const DtOMTNode *omtNode=0, unsigned int currentOffset=0, DtStringTree *strParentTree=0, DtObjectHistory *=0)
virtual DtStringTree *	createStringTreeRep (const DtOMTDatatypeNode &datatypeNode, const void *value, int size, int &returnSize, unsigned int currentOffset=0, DtStringTree *strParentTree=0, DtObjectHistory *=0)
virtual void	getValueFromStringRep (const DtString &datatypeName, const DtString &stringRep, std::vector< char > &result)
	The exact reverse of getStringRep.
virtual DtString	convertStringTreeToString (DtStringTree *, const DtString &delimiter)
	Flatten a string tree.
virtual DtDatatypeEnum	getDatatypeEnum (const DtString &datatypeName)
virtual bool	isDirty ()
	Indicates if manual changes outside of automatic processing defaults.
virtual void	setIsDirty (bool makeDirty)
	Set dirty flag to ignore or trigger status of manual changes.

Static Public Member Functions
static DtDatatypeManager *	defaultInstance ()
	returns a singleton datatype manager

Protected Types
typedef std::map< DtString, DtString >	DatatypeNameRepNameMap
typedef std::map< DtString, DtDatatypeRep * >	RepNamePtrMap

Protected Member Functions
	DtDatatypeManager (const DtDatatypeManager &orig)
	Copy Constructor - Not Implemented!
DtDatatypeManager &	operator= (const DtDatatypeManager &rhs)
	Assignment Operator - Not Implemented!
virtual void	checkOrphanMappings ()
virtual void	checkObjOrphans (DtObjectClassFedNode *objClass)
virtual void	checkIntOrphans (DtInteractionClassFedNode *intClass)
virtual void	getDefaultRep (const void *value, int size, int &returnSize, DtString &returnString)
	Helper functions for getStringRep and createStringTreeRep.
virtual void	getDatatypeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getAttributeRep (const DtString &attributeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getEnumRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getVariantRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getArrayRepBySize (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getArrayRepByCount (DtArrayDatatypeNode *arrayNode, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getArrayRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getValueFromDatatypeRep (const DtString &datatypeName, const DtString &stringRep, std::vector< char > &result)
	Helper functions for getValueFromStringRep.
virtual void	getValueFromArrayRep (const DtString &datatypeName, const DtString &stringRep, std::vector< char > &result)
virtual void	getValueFromComplexRep (const DtString &datatypeName, const DtString &stringRep, std::vector< char > &result)
virtual void	getValueFromFixedRep (const DtString &datatypeName, const DtString &stringRep, std::vector< char > &result)
virtual void	getValueFromEnumRep (const DtString &datatypeName, const DtString &stringRep, std::vector< char > &result)
virtual void	createComplexTreeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtStringTree *strTree, DtStringTree *strParentTree=0, unsigned int currentOffset=0, DtObjectHistory *=0)
	Helper functions for createStringTreeRep.
virtual void	createArrayTreeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtStringTree *strTree, DtStringTree *strParentTree=0, unsigned int currentOffset=0, DtObjectHistory *=0)
virtual void	createDefinedTreeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtStringTree *strTree, DtStringTree *strParentTree=0, unsigned int currentOffset=0, DtObjectHistory *=0)
virtual void	createVariantTreeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtStringTree *strTree, DtStringTree *strParentTree=0, unsigned int currentOffset=0, DtObjectHistory *=0)
virtual void	createFixedTreeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtStringTree *strTree, DtStringTree *strParentTree=0, unsigned int currentOffset=0, DtObjectHistory *=0)
virtual void	processMappings (DtlObjPtr &ptr)
	Helper function for the datatype Mapping file.
virtual int	getComplexDatatypeCount (DtComplexComponentNode *compNode, DtComplexDatatypeNode *parentNode, const void *value, int valueSize, int alreadyRead, const DtStringTree *strTree=0, const DtStringTree *parentTree=0)
	Complex and array datatypes have an undetermined amount of elements This function returns the correct element count.
virtual int	getArrayDatatypeCount (DtArrayDatatypeNode *arrayNode, const void *value, int valueSize, const DtStringTree *strTree=0, const DtStringTree *parentTree=0)
virtual int	byteAlignment (const DtString &datatype)
	Compute proper alignment for HLA evolved implicit padding.
virtual int	byteAlignmentFromRep (const DtString &datatype)
virtual int	byteAlignmentFixed (const DtString &datatype)
virtual int	byteAlignmentArray (const DtString &datatype)
virtual int	byteAlignmentVariant (const DtString &datatype)
virtual int	byteAlignmentComplex (const DtString &datatype)
virtual int	implicitPadding (unsigned int currentOffset, const DtString &datatypeName)

Protected Attributes
DtOMTTree *	myOMTTree
std::map< DtString, DtDatatypeEnum >	myDatatypeTypeMap
DatatypeNameRepNameMap	myDatatypeToRepMap
DatatypeNameRepNameMap	myAttributeToRepMap
std::set< DtString >	myRemappedDatatypes
RepNamePtrMap	myNameToRepMap
DtString	myDefaultDelimiter
std::map< DtString, DtString >	myDelimiterMap
DtString	myStartWrapper
DtString	myEndWrapper
DtString	myDefaultArrayBracket
std::map< DtString, bool >	myArrayBracketMap
bool	myUseImplicitPadding
bool	myDirty

Static Protected Attributes
static DtDatatypeManager *	theDatatypeManager
	Protected member data.

Detailed Description

This class handles the conversion between a byte stream and an English readable view of the data in an OMT Tree.

Member Typedef Documentation

typedef std::map<DtString,DtString> DtDatatypeManager::DatatypeNameRepNameMap

protected

typedef std::map<DtString,DtDatatypeRep*> DtDatatypeManager::RepNamePtrMap

protected

Member Enumeration Documentation

enum DtDatatypeManager::DtDatatypeEnum

Enumerator:

SIMPLE
ENUMERATED	A basic datatype such as int or bool.
COMPLEX	An Enumeration that maps an integer to a string value.
ARRAY	A collection of different data types in one.
VARIANT	A collection of the same datatype in one.
FIXED	A datatype that could be of a different type at runtime.
DEFINED	A fixed set of a collection of different data types.
DATATYPE_MAX	An INTERNALLY defined set of different data types.

Constructor & Destructor Documentation

DtDatatypeManager::DtDatatypeManager

(

)

constructor

virtual DtDatatypeManager::~DtDatatypeManager ( )

virtual

destructor

DtDatatypeManager::DtDatatypeManager ( const DtDatatypeManager &  orig )

protected

Copy Constructor - Not Implemented!

Member Function Documentation

virtual void DtDatatypeManager::addArrayBracketMap ( const DtString &  datatype, bool  valueIsBracketed  )

virtual

Specifies if values of the given datatype when found in an array are bracketed or not.

For example, an array of integer values 1,2,3,4 would be "[1][2][3][4]" whereas an array of unbracketed characters a,b,c,d would be "abcd"

virtual void DtDatatypeManager::addAttributeMapping ( const DtString &  datatype, const DtString &  rep  )

virtual

virtual void DtDatatypeManager::addDatatypeRep ( DtDatatypeRep *  )

virtual

virtual void DtDatatypeManager::addDefinedDatatypeRep ( DtDatatypeRep *  )

virtual

virtual void DtDatatypeManager::addDelimiterMap ( const DtString &  datatype, const DtString &  delimiter  )

virtual

A delimiter is the divider between elements in a complex or fixed datatype.

like this: 123:456:100

virtual void DtDatatypeManager::addRepMapping ( const DtString &  datatype, const DtString &  rep  )

virtual

virtual int DtDatatypeManager::byteAlignment ( const DtString &  datatype )

protectedvirtual

Compute proper alignment for HLA evolved implicit padding.

virtual int DtDatatypeManager::byteAlignmentArray ( const DtString &  datatype )

protectedvirtual

virtual int DtDatatypeManager::byteAlignmentComplex ( const DtString &  datatype )

protectedvirtual

virtual int DtDatatypeManager::byteAlignmentFixed ( const DtString &  datatype )

protectedvirtual

virtual int DtDatatypeManager::byteAlignmentFromRep ( const DtString &  datatype )

protectedvirtual

virtual int DtDatatypeManager::byteAlignmentVariant ( const DtString &  datatype )

protectedvirtual

virtual void DtDatatypeManager::checkIntOrphans ( DtInteractionClassFedNode *  intClass )

protectedvirtual

virtual void DtDatatypeManager::checkObjOrphans ( DtObjectClassFedNode *  objClass )

protectedvirtual

virtual void DtDatatypeManager::checkOrphanMappings ( )

protectedvirtual

virtual DtString DtDatatypeManager::convertStringTreeToString ( DtStringTree *  , const DtString &  delimiter  )

virtual

Flatten a string tree.

This basically converts any function created by createStringTreeRep to the same result as getStringRep Delimiter specifies the character(s) separating components of the datatype.

virtual void DtDatatypeManager::createArrayTreeRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtStringTree *  strTree, DtStringTree *  strParentTree = 0, unsigned int  currentOffset = 0, DtObjectHistory *  = 0  )

protectedvirtual

virtual void DtDatatypeManager::createComplexTreeRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtStringTree *  strTree, DtStringTree *  strParentTree = 0, unsigned int  currentOffset = 0, DtObjectHistory *  = 0  )

protectedvirtual

Helper functions for createStringTreeRep.

virtual void DtDatatypeManager::createDefinedTreeRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtStringTree *  strTree, DtStringTree *  strParentTree = 0, unsigned int  currentOffset = 0, DtObjectHistory *  = 0  )

protectedvirtual

virtual void DtDatatypeManager::createFixedTreeRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtStringTree *  strTree, DtStringTree *  strParentTree = 0, unsigned int  currentOffset = 0, DtObjectHistory *  = 0  )

protectedvirtual

virtual DtStringTree* DtDatatypeManager::createStringTreeRep ( const DtDatatypeFedNode *  currFedNode, const void *  value, int  size, int &  returnSize, unsigned int  currentOffset = 0, DtObjectHistory *  = 0  )

virtual

Creates a string tree from a datatype.

This can be a single string if this is a simple datatype, or a more elaborate structure on more complex datatype. Note that this is a 'create' function and the caller is responsible for deleting the string tree

Parameters

datatypeName	The Name of the datatype that is defined in value
value	A series of bytes from the network.
size	The total size of bytes in value
returnSize	This gets filled with the actual number of bytes read. If there is a problem and the number of bytes is too many, this returns -1.

virtual DtStringTree* DtDatatypeManager::createStringTreeRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, const DtOMTNode *  omtNode = 0, unsigned int  currentOffset = 0, DtStringTree *  strParentTree = 0, DtObjectHistory *  = 0  )

virtual

virtual DtStringTree* DtDatatypeManager::createStringTreeRep ( const DtOMTDatatypeNode &  datatypeNode, const void *  value, int  size, int &  returnSize, unsigned int  currentOffset = 0, DtStringTree *  strParentTree = 0, DtObjectHistory *  = 0  )

virtual

virtual void DtDatatypeManager::createVariantTreeRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtStringTree *  strTree, DtStringTree *  strParentTree = 0, unsigned int  currentOffset = 0, DtObjectHistory *  = 0  )

protectedvirtual

static DtDatatypeManager* DtDatatypeManager::defaultInstance ( )

static

returns a singleton datatype manager

virtual void DtDatatypeManager::fillDefaultDatatypeRepList ( )

virtual

fills the simple database with the usual suspects.

virtual std::map<DtString,bool>::iterator DtDatatypeManager::getArrayBracketList ( )

virtual

virtual std::map<DtString,bool>::iterator DtDatatypeManager::getArrayBracketListEnd ( )

virtual

virtual bool DtDatatypeManager::getArrayBracketMap ( const DtString &  datatypeName, bool *  isAvailable = 0  )

virtual

get the array bracket setting for this datatype or the default if its undefined

virtual int DtDatatypeManager::getArrayDatatypeCount ( DtArrayDatatypeNode *  arrayNode, const void *  value, int  valueSize, const DtStringTree *  strTree = 0, const DtStringTree *  parentTree = 0  )

protectedvirtual

virtual void DtDatatypeManager::getArrayRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

virtual void DtDatatypeManager::getArrayRepByCount ( DtArrayDatatypeNode *  arrayNode, const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

virtual void DtDatatypeManager::getArrayRepBySize ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

virtual void DtDatatypeManager::getAttributeRep ( const DtString &  attributeName, const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

virtual int DtDatatypeManager::getComplexDatatypeCount ( DtComplexComponentNode *  compNode, DtComplexDatatypeNode *  parentNode, const void *  value, int  valueSize, int  alreadyRead, const DtStringTree *  strTree = 0, const DtStringTree *  parentTree = 0  )

protectedvirtual

Complex and array datatypes have an undetermined amount of elements This function returns the correct element count.

Parameters

parentTree

A filled string tree.

virtual DtDatatypeEnum DtDatatypeManager::getDatatypeEnum ( const DtString &  datatypeName )

virtual

virtual void DtDatatypeManager::getDatatypeRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

virtual void DtDatatypeManager::getDefaultRep ( const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

Helper functions for getStringRep and createStringTreeRep.

virtual std::map<DtString,DtString>::iterator DtDatatypeManager::getDelimiterList ( )

virtual

virtual std::map<DtString,DtString>::iterator DtDatatypeManager::getDelimiterListEnd ( )

virtual

virtual DtString DtDatatypeManager::getDelimiterMap ( const DtString &  datatypeName, bool *  isAvailable = 0  )

virtual

get the delimiter for this datatype or the default if its undefined

virtual void DtDatatypeManager::getEnumRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

virtual DtString DtDatatypeManager::getFedNodeStringRep ( const DtDatatypeFedNode *  currFedNode, const void *  value, int  size, int &  returnSize  )

virtual

Get the string representation from the datatype and the value The size input is the size that the network says the datatype is, but that gets modified to the actual size read.

Parameters

datatypeName	The Name of the datatype that is defined in value
value	A series of bytes from the network.
size	The total size of bytes in value
returnSize	This gets filled with the actual number of bytes read. If there is a problem and the number of bytes is too many, this returns -1.

virtual std::map<DtString,DtDatatypeRep*>::iterator DtDatatypeManager::getNameRepMapList ( )

virtual

get a list of all representations.

virtual std::map<DtString,DtDatatypeRep*>::iterator DtDatatypeManager::getNameRepMapListEnd ( )

virtual

virtual std::map<DtString,DtString>::iterator DtDatatypeManager::getRepMapList ( )

virtual

Get a list of all the Representation mappings.

virtual std::map<DtString,DtString>::iterator DtDatatypeManager::getRepMapListEnd ( )

virtual

virtual DtDatatypeRep* DtDatatypeManager::getSimpleDatatypeRep ( const DtString &  datatypeName )

virtual

virtual DtString DtDatatypeManager::getStringRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize  )

virtual

virtual DtString DtDatatypeManager::getStringRep ( const DtOMTDatatypeNode &  datatypeNode, const void *  value, int  size, int &  returnSize  )

virtual

virtual void DtDatatypeManager::getValueFromArrayRep ( const DtString &  datatypeName, const DtString &  stringRep, std::vector< char > &  result  )

protectedvirtual

virtual void DtDatatypeManager::getValueFromComplexRep ( const DtString &  datatypeName, const DtString &  stringRep, std::vector< char > &  result  )

protectedvirtual

virtual void DtDatatypeManager::getValueFromDatatypeRep ( const DtString &  datatypeName, const DtString &  stringRep, std::vector< char > &  result  )

protectedvirtual

Helper functions for getValueFromStringRep.

virtual void DtDatatypeManager::getValueFromEnumRep ( const DtString &  datatypeName, const DtString &  stringRep, std::vector< char > &  result  )

protectedvirtual

virtual void DtDatatypeManager::getValueFromFixedRep ( const DtString &  datatypeName, const DtString &  stringRep, std::vector< char > &  result  )

protectedvirtual

virtual void DtDatatypeManager::getValueFromStringRep ( const DtString &  datatypeName, const DtString &  stringRep, std::vector< char > &  result  )

virtual

The exact reverse of getStringRep.

This function takes a StringRep and converts it to a byte value. As well as it can.

Parameters

datatypeName	The Name of the datatype that is defined in value
stringRep	The string representation of the datatype

virtual void DtDatatypeManager::getVariantRep ( const DtString &  datatypeName, const void *  value, int  size, int &  returnSize, DtString &  returnString  )

protectedvirtual

virtual int DtDatatypeManager::implicitPadding ( unsigned int  currentOffset, const DtString &  datatypeName  )

protectedvirtual

virtual void DtDatatypeManager::initOMTData ( DtOMTTree *  omtTree )

virtual

Fills the datatype type tree with OMT information This function is required at initialization.

virtual bool DtDatatypeManager::isDirty ( )

virtual

Indicates if manual changes outside of automatic processing defaults.

virtual bool DtDatatypeManager::isImplicitPaddingEnabled ( ) const

virtual

virtual bool DtDatatypeManager::modifyRepMapping ( const DtString &  datatype, const DtString &  rep  )

virtual

Modify a mapping.

Do not do anything if the mapping does not exist returns true if a mapping is modified, false otherwise

virtual DtOMTTree* DtDatatypeManager::omtTree ( )

inlinevirtual

DtDatatypeManager& DtDatatypeManager::operator= ( const DtDatatypeManager &  rhs )

protected

Assignment Operator - Not Implemented!

virtual void DtDatatypeManager::processMappings ( DtlObjPtr &  ptr )

protectedvirtual

Helper function for the datatype Mapping file.

virtual void DtDatatypeManager::readFile ( DtString  str )

virtual

Read the datatype mapping file.

virtual void DtDatatypeManager::removeArrayBracketMap ( const DtString &  datatype )

virtual

virtual void DtDatatypeManager::removeAttributeMapping ( const DtString &  datatype )

virtual

virtual void DtDatatypeManager::removeDelimiterMap ( const DtString &  datatype )

virtual

virtual void DtDatatypeManager::removeRepMapping ( const DtString &  datatype )

virtual

virtual void DtDatatypeManager::setArrayWrapper ( const DtString &  start, const DtString &  end  )

virtual

If set, this will wrap complex values with the wrapper.

Allows for things like this: [x,y,z] (if the wrapper is "[","]")

virtual void DtDatatypeManager::setDefaultArrayBracket ( bool  valueIsBracketed )

virtual

if no bracket is specified, array values are bracket as specified here.

virtual void DtDatatypeManager::setDefaultDelimiter ( const DtString &  str )

virtual

if no delimiter is specified, this function uses this

virtual void DtDatatypeManager::setImplicitPadding ( bool  enableImplicitPadding )

virtual

Set whether to use implicit padding when construction datatypes.

virtual void DtDatatypeManager::setIsDirty ( bool  makeDirty )

virtual

Set dirty flag to ignore or trigger status of manual changes.

virtual void DtDatatypeManager::writeFile ( DtString  str )

virtual

Write out to the datatype mapping file.

Member Data Documentation

std::map<DtString,bool> DtDatatypeManager::myArrayBracketMap

protected

DatatypeNameRepNameMap DtDatatypeManager::myAttributeToRepMap

protected

DatatypeNameRepNameMap DtDatatypeManager::myDatatypeToRepMap

protected

std::map<DtString,DtDatatypeEnum> DtDatatypeManager::myDatatypeTypeMap

protected

DtString DtDatatypeManager::myDefaultArrayBracket

protected

DtString DtDatatypeManager::myDefaultDelimiter

protected

std::map<DtString,DtString> DtDatatypeManager::myDelimiterMap

protected

bool DtDatatypeManager::myDirty

protected

DtString DtDatatypeManager::myEndWrapper

protected

RepNamePtrMap DtDatatypeManager::myNameToRepMap

protected

DtOMTTree* DtDatatypeManager::myOMTTree

protected

std::set<DtString> DtDatatypeManager::myRemappedDatatypes

protected

DtString DtDatatypeManager::myStartWrapper

protected

bool DtDatatypeManager::myUseImplicitPadding

protected

DtDatatypeManager* DtDatatypeManager::theDatatypeManager

staticprotected

Protected member data.

---

The documentation for this class was generated from the following file:

• datatypeManager.h
