DtInterClassDesc Class Reference

Instances of DtInterClassDesc are used to represent HLA Object and Interaction classes. More...

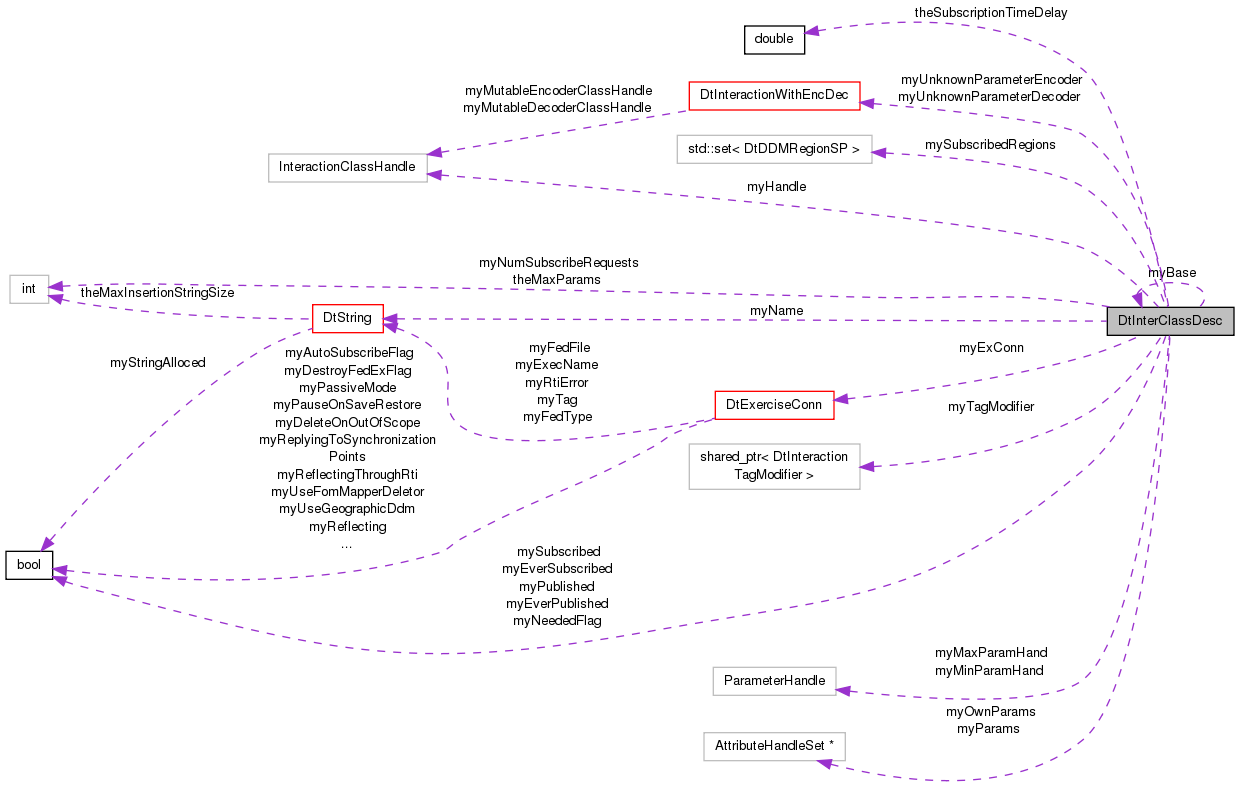

Collaboration diagram for DtInterClassDesc:

Public Types
typedef void(*	DtParameterEncoder )(const DtInteractionWithEncDec &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)
	Attribute encoding function declaration.
typedef void(*	DtParameterDecoder )(DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)

Public Member Functions
	DtInterClassDesc (const char *className, DtInterClassDesc *base, RTI::InteractionClassHandle handle, DtExerciseConn *exConn)
	constructor
virtual	~DtInterClassDesc ()
	destructor
virtual void	addParam (const char *paramName)
	Add a parameter (Used when reading FED file).
virtual RTI::InteractionClassHandle	handle () const
	Get the object's class handle.
virtual const char *	name () const
	Get the object's class name.
virtual const DtInterClassDesc *	baseClass () const
	Return a pointer to the base class's descriptor, NULL if none.
virtual DtInterClassDesc *	baseClass ()
	Return a pointer to the base class's descriptor, NULL if none.
virtual int	isOfClass (RTI::InteractionClassHandle hand) const
	Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise.
virtual int	numParameters () const
	Get the number of parameters associated with this object.
virtual RTI::ParameterHandle	parameterHandleByName (const char *paramName)
	Returns the Parameter handle for this Parameter name.
virtual DtString	parameterNameByHandle (const RTI::ParameterHandle &hand)
	Returns a string holding the name of the Parameter handle.
virtual int	minParamHandle () const
	Returns minimum/maximum parameter handle for the class.
virtual int	maxParamHandle () const
virtual const RTI::AttributeHandleSet &	paramHandleSet () const
	Get the set of valid parameter handles for this class.
virtual const RTI::AttributeHandleSet &	ownParamHandles () const
	Get the set of non-inherited parameter handles for this class.
virtual void	publish ()
	Publish the class, and register start and stopUpdates callbacks.
virtual void	unpublish ()
	Unpublish the class, and deregister start and stopUpdates callbacks.
virtual void	subscribe ()
	Subscribe to the class.
virtual void	subscribe (DtDDMRegionSP region)
	Subscribe with region.
virtual void	passiveSubscribe ()
	Subscribe passively to the class.
virtual void	unsubscribe ()
	Unsubscribe to the class.
virtual void	unsubscribe (DtDDMRegionSP region)
	Unsubscribe to the class with region.
virtual bool	published () const
	Returns true if the class is published, false otherwise.
virtual bool	subscribed () const
	Returns true if the class is subscribed, false otherwise.
virtual DtInterClassDesc *	firstSubscribed ()
	Return the class descriptor for the first subscribed ancestor including this class.
virtual DtVrlRtiAmbassador *	rtiAmb ()
	Get my RTI ambassador.
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise.
virtual bool	everPublished () const
	Return true if we have ever published the class using DtInterClassDesc::publish, false otherwise.
virtual bool	everSubscribed () const
	Return true if we have ever subscribed to the class using DtInterClassDesc::subscribe, false otherwise.
virtual void	setUserTagModifier (DtInteractionTagModifierSP modifier)
virtual DtInteractionTagModifierSP	userTagModifier ()
virtual void	enableUnknownParameters ()
	allows all unknown Parameters to be encoded or decoded in this class.
virtual void	setUnknownParameterDecoder (DtParameterDecoder decoder)
	Set a decoder to be called for this object class for any Parameter received in an update that doesn't have a decoder.
virtual void	setUnknownParameterEncoder (DtParameterEncoder encoder)
	Set an encoder to be called for this object class for any Parameter that doesn't have an encoder set for it.
virtual DtParameterEncoder	unknownParameterEncoder ()
	Returns the unknown Parameter encoder. Returns null if not set.
virtual DtParameterDecoder	unknownParameterDecoder ()
	Returns the unknown Parameter decoder. Returns null if not set.

Static Public Member Functions
static void	setMaxParameters (int num)
	Set/Get maximum number of allowable parameters for an interaction.
static int	maxParameters ()
static void	setSubscriptionTimeDelay (double delay)
	Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98.

Protected Member Functions
virtual void	processStartInters (RTI::InteractionClassHandle hand)
	Callback for handling startInters RTI callback.
virtual void	processStopInters (RTI::InteractionClassHandle hand)
	Callback for handling stopInters RTI callback.
	DtInterClassDesc (const DtInterClassDesc &orig)
	copy constructor – Not Implemented
DtInterClassDesc &	operator= (const DtInterClassDesc &orig)
	assignment operator – Not Implemented

Static Protected Member Functions
static void	startIntersCb (RTI::InteractionClassHandle hand, void *usr)
	Callback for handling startInters RTI callback.
static void	stopIntersCb (RTI::InteractionClassHandle hand, void *usr)
	Callback for handling stopInters RTI callback.

Protected Attributes
DtString	myName
RTI::InteractionClassHandle	myHandle
RTI::AttributeHandleSet *	myParams
RTI::AttributeHandleSet *	myOwnParams
DtInterClassDesc *	myBase
DtExerciseConn *	myExConn
bool	myNeededFlag
bool	myPublished
bool	mySubscribed
bool	myEverPublished
bool	myEverSubscribed
RTI::ParameterHandle	myMinParamHand
RTI::ParameterHandle	myMaxParamHand
int	myNumSubscribeRequests
DtInteractionTagModifierSP	myTagModifier
std::set< DtDDMRegionSP >	mySubscribedRegions
DtParameterEncoder	myUnknownParameterEncoder
DtParameterDecoder	myUnknownParameterDecoder

Static Protected Attributes
static int	theMaxParams
static double	theSubscriptionTimeDelay

Detailed Description

Instances of DtInterClassDesc are used to represent HLA Object and Interaction classes.

Member Typedef Documentation

typedef void(* DtInterClassDesc::DtParameterDecoder)(DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)

typedef void(* DtInterClassDesc::DtParameterEncoder)(const DtInteractionWithEncDec &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)

Attribute encoding function declaration.

Constructor & Destructor Documentation

DtInterClassDesc::DtInterClassDesc	(	const char *	className,
		DtInterClassDesc *	base,
		RTI::InteractionClassHandle	handle,
		DtExerciseConn *	exConn
	)

constructor

virtual DtInterClassDesc::~DtInterClassDesc ( )

virtual

destructor

DtInterClassDesc::DtInterClassDesc ( const DtInterClassDesc &  orig )

protected

copy constructor – Not Implemented

Member Function Documentation

virtual void DtInterClassDesc::addParam ( const char *  paramName )

virtual

Add a parameter (Used when reading FED file).

const DtInterClassDesc * DtInterClassDesc::baseClass ( ) const

inlinevirtual

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

DtInterClassDesc * DtInterClassDesc::baseClass ( )

inlinevirtual

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

virtual void DtInterClassDesc::enableUnknownParameters ( )

virtual

allows all unknown Parameters to be encoded or decoded in this class.

This is done by setting the unknown Parameter encoder/checker/decoder to the default value if and only if they have not been set yet. The values are: "DtGenericParameterEncoder::encodeGenericParameter" "DtGenericParameterDecoder::decodeGenericParameter"

virtual bool DtInterClassDesc::everPublished ( ) const

virtual

Return true if we have ever published the class using DtInterClassDesc::publish, false otherwise.

virtual bool DtInterClassDesc::everSubscribed ( ) const

virtual

Return true if we have ever subscribed to the class using DtInterClassDesc::subscribe, false otherwise.

virtual DtInterClassDesc* DtInterClassDesc::firstSubscribed ( )

virtual

Return the class descriptor for the first subscribed ancestor including this class.

Null is returned if no ancestor is subscribed.

RTI::InteractionClassHandle DtInterClassDesc::handle ( ) const

inlinevirtual

Get the object's class handle.

References myHandle.

Referenced by DtInteraction::interactionClassHandle().

virtual int DtInterClassDesc::isOfClass ( RTI::InteractionClassHandle  hand ) const

virtual

Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise.

int DtInterClassDesc::maxParameters ( )

inlinestatic

References theMaxParams.

virtual int DtInterClassDesc::maxParamHandle ( ) const

virtual

virtual int DtInterClassDesc::minParamHandle ( ) const

virtual

Returns minimum/maximum parameter handle for the class.

const char * DtInterClassDesc::name ( ) const

inlinevirtual

Get the object's class name.

References DtString::c_str(), and myName.

Referenced by DtInteraction::interactionClassName().

virtual bool DtInterClassDesc::neededByFederation ( ) const

virtual

Returns true if the interaction class is needed by the federation false otherwise.

int DtInterClassDesc::numParameters ( ) const

inlinevirtual

Get the number of parameters associated with this object.

References myParams.

Referenced by DtInteraction::numParameters().

DtInterClassDesc& DtInterClassDesc::operator= ( const DtInterClassDesc &  orig )

protected

assignment operator – Not Implemented

const RTI::AttributeHandleSet & DtInterClassDesc::ownParamHandles ( ) const

inlinevirtual

Get the set of non-inherited parameter handles for this class.

virtual RTI::ParameterHandle DtInterClassDesc::parameterHandleByName ( const char *  paramName )

virtual

Returns the Parameter handle for this Parameter name.

virtual DtString DtInterClassDesc::parameterNameByHandle ( const RTI::ParameterHandle &  hand )

virtual

Returns a string holding the name of the Parameter handle.

const RTI::AttributeHandleSet & DtInterClassDesc::paramHandleSet ( ) const

inlinevirtual

Get the set of valid parameter handles for this class.

Includes parameters inherited from base classes.

virtual void DtInterClassDesc::passiveSubscribe ( )

virtual

Subscribe passively to the class.

virtual void DtInterClassDesc::processStartInters ( RTI::InteractionClassHandle  hand )

protectedvirtual

Callback for handling startInters RTI callback.

virtual void DtInterClassDesc::processStopInters ( RTI::InteractionClassHandle  hand )

protectedvirtual

Callback for handling stopInters RTI callback.

virtual void DtInterClassDesc::publish ( )

virtual

Publish the class, and register start and stopUpdates callbacks.

virtual bool DtInterClassDesc::published ( ) const

virtual

Returns true if the class is published, false otherwise.

virtual DtVrlRtiAmbassador* DtInterClassDesc::rtiAmb ( )

virtual

Get my RTI ambassador.

void DtInterClassDesc::setMaxParameters ( int  num )

inlinestatic

Set/Get maximum number of allowable parameters for an interaction.

References theMaxParams.

void DtInterClassDesc::setSubscriptionTimeDelay ( double  delay )

inlinestatic

Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98.

If a delay is not used on Win98, DMSO RTI NG may miss subscribe messages and then fail to call discoverObjectInstance() when it's appropriate In most circumstances, you would never want to call this function.

References theSubscriptionTimeDelay.

virtual void DtInterClassDesc::setUnknownParameterDecoder ( DtParameterDecoder  decoder )

virtual

Set a decoder to be called for this object class for any Parameter received in an update that doesn't have a decoder.

virtual void DtInterClassDesc::setUnknownParameterEncoder ( DtParameterEncoder  encoder )

virtual

Set an encoder to be called for this object class for any Parameter that doesn't have an encoder set for it.

virtual void DtInterClassDesc::setUserTagModifier ( DtInteractionTagModifierSP  modifier )

virtual

static void DtInterClassDesc::startIntersCb ( RTI::InteractionClassHandle  hand, void *  usr  )

staticprotected

Callback for handling startInters RTI callback.

static void DtInterClassDesc::stopIntersCb ( RTI::InteractionClassHandle  hand, void *  usr  )

staticprotected

Callback for handling stopInters RTI callback.

virtual void DtInterClassDesc::subscribe ( )

virtual

Subscribe to the class.

virtual void DtInterClassDesc::subscribe ( DtDDMRegionSP  region )

virtual

Subscribe with region.

virtual bool DtInterClassDesc::subscribed ( ) const

virtual

Returns true if the class is subscribed, false otherwise.

virtual DtParameterDecoder DtInterClassDesc::unknownParameterDecoder ( )

virtual

Returns the unknown Parameter decoder. Returns null if not set.

virtual DtParameterEncoder DtInterClassDesc::unknownParameterEncoder ( )

virtual

Returns the unknown Parameter encoder. Returns null if not set.

virtual void DtInterClassDesc::unpublish ( )

virtual

Unpublish the class, and deregister start and stopUpdates callbacks.

virtual void DtInterClassDesc::unsubscribe ( )

virtual

Unsubscribe to the class.

virtual void DtInterClassDesc::unsubscribe ( DtDDMRegionSP  region )

virtual

Unsubscribe to the class with region.

virtual DtInteractionTagModifierSP DtInterClassDesc::userTagModifier ( )

virtual

Member Data Documentation

DtInterClassDesc* DtInterClassDesc::myBase

protected

Referenced by baseClass().

bool DtInterClassDesc::myEverPublished

protected

bool DtInterClassDesc::myEverSubscribed

protected

DtExerciseConn* DtInterClassDesc::myExConn

protected

RTI::InteractionClassHandle DtInterClassDesc::myHandle

protected

Referenced by handle().

RTI::ParameterHandle DtInterClassDesc::myMaxParamHand

protected

RTI::ParameterHandle DtInterClassDesc::myMinParamHand

protected

DtString DtInterClassDesc::myName

protected

Referenced by name().

bool DtInterClassDesc::myNeededFlag

protected

int DtInterClassDesc::myNumSubscribeRequests

protected

RTI::AttributeHandleSet* DtInterClassDesc::myOwnParams

protected

RTI::AttributeHandleSet* DtInterClassDesc::myParams

protected

Referenced by numParameters().

bool DtInterClassDesc::myPublished

protected

bool DtInterClassDesc::mySubscribed

protected

std::set<DtDDMRegionSP> DtInterClassDesc::mySubscribedRegions

protected

DtInteractionTagModifierSP DtInterClassDesc::myTagModifier

protected

DtParameterDecoder DtInterClassDesc::myUnknownParameterDecoder

protected

DtParameterEncoder DtInterClassDesc::myUnknownParameterEncoder

protected

int DtInterClassDesc::theMaxParams

staticprotected

Referenced by maxParameters(), and setMaxParameters().

double DtInterClassDesc::theSubscriptionTimeDelay

staticprotected

Referenced by setSubscriptionTimeDelay().

---

The documentation for this class was generated from the following file:

• interClassDesc.h
