DtReflectedUnderwaterAcousticsList Class Reference

Instances of DtReflectedUnderwaterAcousticsList manage a list of DtReflectedActiveSonar objects. More...

Inheritance diagram for DtReflectedUnderwaterAcousticsList:

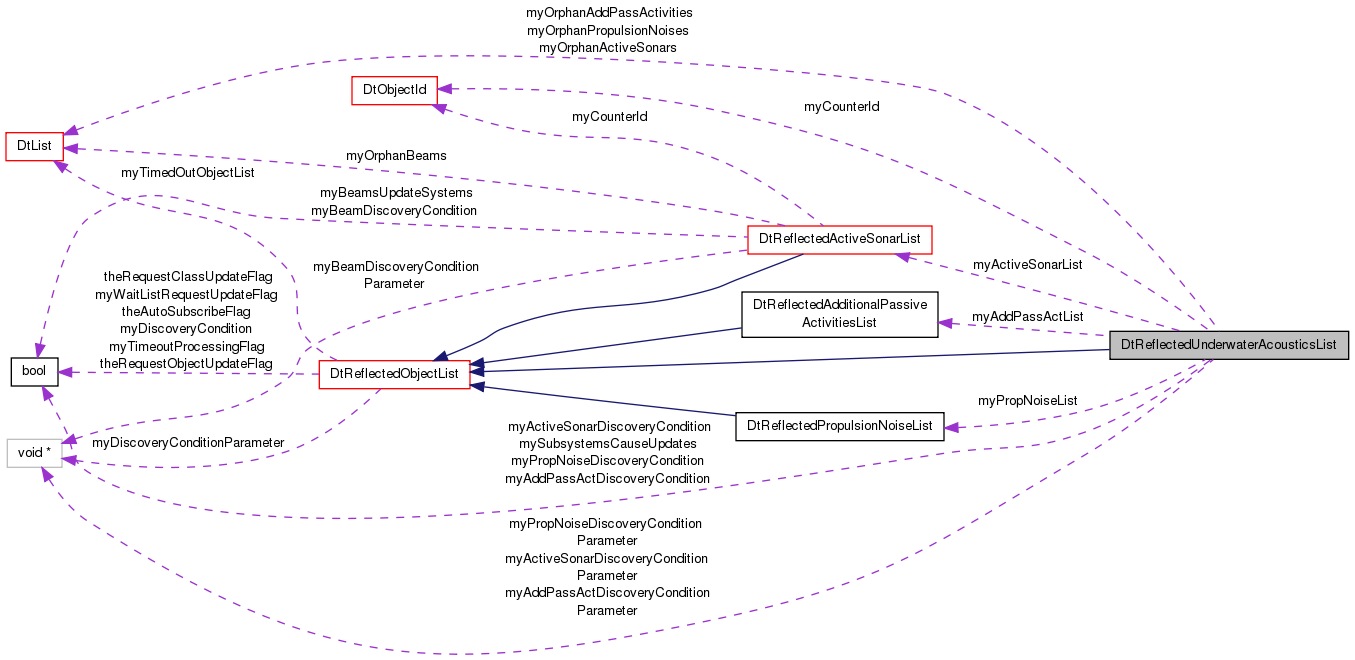

Collaboration diagram for DtReflectedUnderwaterAcousticsList:

Public Member Functions
	DtReflectedUnderwaterAcousticsList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag="")
	Constructor.
	DtReflectedUnderwaterAcousticsList (DtExerciseConn *exConn, const DtList *handleList, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag="")
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.
virtual	~DtReflectedUnderwaterAcousticsList ()
	Destructor.
virtual DtReflectedUnderwaterAcoustics *	lookup (RTI::ObjectHandle id)
	Look up by identifier.
virtual DtReflectedUnderwaterAcoustics *	lookupName (const DtGlobalObjectDesignator &objName)
	Lookup an underwater acoustics object from its host ID.
virtual DtReflectedUnderwaterAcoustics *	lookup (const DtGlobalObjectDesignator &hostId) const
	Lookup an underwater acoustics object from its host ID.
virtual DtReflectedUnderwaterAcoustics &	getUnderwaterAcoustics (const DtGlobalObjectDesignator &hostId)
	Get the underwater acoustics object for the given host ID.
virtual DtReflectedUnderwaterAcoustics *	first () const
	Get the first reflected object in the list.
virtual DtReflectedUnderwaterAcoustics *	last () const
	Get the last reflected object in the list.
virtual void	addUnderwaterAcousticsAdditionCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)
	ActiveSonar added callback registration.
virtual void	removeUnderwaterAcousticsAdditionCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)
	ActiveSonar added callback de-registration.
virtual void	addUnderwaterAcousticsRemovalCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)
	ActiveSonar removed callback registration.
virtual void	removeUnderwaterAcousticsRemovalCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)
	ActiveSonar removed callback de-registration.
virtual DtReflectedPropulsionNoiseList *	refPropNoiseList ()
	Returns a pointer to the reflected prop noise list that we are using internally to track our constituent prop noises.
virtual DtReflectedAdditionalPassiveActivitiesList *	refApaList ()
	Returns a pointer to the reflected APA list that we are using internally to track our constituent APAs.
virtual DtReflectedActiveSonarList *	refActiveSonarList ()
	Returns a pointer to the reflected active sonar list that we are using internally to track our constituent sonars.
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Over-rides DtReflectedObjectList::setDiscoveryCondition().
virtual void	clearDiscoveryCondition ()
	Overrides the DtReflectedObjectList::clearDiscoveryCondition.
virtual void	setPropNoiseDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Call this function to register a discovery condition on the prop noises of underwater acoustics objects.
virtual void	clearPropNoiseDiscoveryCondition ()
	Call this function to remove the previously registered discovery condition.
virtual bool	delayPropNoiseDiscovery (DtReflectedObject *propNoise, void *usr)
	The following function checks whether a prop noise should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedPropulsionNoiseList::setDiscoveryCondition() or DtReflectedPropulsionNoiseList::setSonarDiscoveryCondition().
virtual void	setApaDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Call this function to register a discovery condition on the APAs of underwater acoustics objects.
virtual void	clearApaDiscoveryCondition ()
	Call this function to remove the previously registered discovery condition.
virtual bool	delayApaDiscovery (DtReflectedObject *apa, void *usr)
	The following function checks whether an active sonar should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedActiveSonarSystemList::setDiscoveryCondition() or DtReflectedActiveSonarSystemList::setSonarDiscoveryCondition().
virtual void	setSonarDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Call this function to register a discovery condition on the active sonars of underwater acoustics objects.
virtual void	clearSonarDiscoveryCondition ()
	Call this function to remove the previously registered discovery condition.
virtual bool	delaySonarDiscovery (DtReflectedObject *sonar, void *usr)
	The following function checks whether an active sonar should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedActiveSonarSystemList::setDiscoveryCondition() or DtReflectedActiveSonarSystemList::setSonarDiscoveryCondition().
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor.
virtual	~DtReflectedObjectList ()
	destructor
virtual DtReflectedObject *	lookupObj (RTI::ObjectHandle id)
	Look up object by identifier.
virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3).
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list.
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects.
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn.
virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered.
virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object.
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration.
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration.
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects.
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs.
virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs.
virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed.
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period.
virtual DtTime	timeoutInterval ()
virtual void	setWaitlistRefreshPeriod (DtTime time)
	Set/Get the wait list refresh period.
virtual DtTime	waitlistRefreshPeriod ()
virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to.

Protected Member Functions
virtual void	processPropNoiseAddition (DtReflectedPropulsionNoise *propNoise)
	Called by similar callback functions registered with myPropNoiseList on prop nosie additions/removals.
virtual void	processPropNoiseUpdate (DtReflectedPropulsionNoise *propNoise)
virtual void	processPropNoiseRemoval (DtReflectedPropulsionNoise *propNoise)
virtual void	processAddPassActAddition (DtReflectedAdditionalPassiveActivities *apa)
	Called by similar callback functions registered with myAddPassActivitiesList on APA additions/removals.
virtual void	processAddPassActUpdate (DtReflectedAdditionalPassiveActivities *apa)
virtual void	processAddPassActRemoval (DtReflectedAdditionalPassiveActivities *apa)
virtual void	processActiveSonarAddition (DtReflectedActiveSonar *sonar)
	Called by similar callback functions registered with myActiveSonarList on active sonar additions/removals.
virtual void	processActiveSonarUpdate (DtReflectedActiveSonar *sonar)
virtual void	processActiveSonarRemoval (DtReflectedActiveSonar *sonar)
virtual void	resolveOrphans ()
	Check if any orphan sonars or APAs have non-NULL hostId.
virtual void	resolveOrphanedPropulsionNoises ()
	Resolve orphaned propulsion noises.
virtual void	resolveOrphanedAddPassActivities ()
	Resolve orphaned additional passive activities.
virtual void	resolveOrphanedActiveSonars ()
	Resolve orphaned active sonars.
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of virtual function.
virtual DtReflectedUnderwaterAcoustics *	newReflectedUnderwaterAcoustics (const DtGlobalObjectDesignator &hostId) const
	Create a remote ActiveSonar system object for the HLA object.
virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote transmitter has been added to the list.
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out.
DtReflectedPropulsionNoise *	propNoiseForUnderwaterAcoustics (DtReflectedUnderwaterAcoustics *underwaterAcoustics)
	Looks up the propulsion noise object for the given ua object.
Protected Member Functions inherited from DtReflectedObjectList
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote object on the network.
virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote object from the network.
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out.
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period.
virtual void	doRequestWaitListUpdates ()
	Request an update for any objects which have not met their discovery criteria yet.
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Remove the remote object from the list if found and delete it.
virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it.
virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out.
virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class.
virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className.
virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once.
void	emptyLists ()
	Empty the object list and the timeout list.
void	emptyCallbackLists ()
	Empty the callback lists.
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks.
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list.
virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within.
virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks.
virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectHandle id)
	Find object in waitList by identifier.
virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name.
void	unsubscribeRegions ()

Static Protected Member Functions
static void	propNoiseAdditionCb (DtReflectedPropulsionNoise *propNoise, void *usr)
	Callback functions registered with myPropNoiseList for prop noise additions, updates, and removals.
static void	propNoiseUpdateCb (DtReflectedPropulsionNoise *propNoise, void *usr)
static void	propNoiseRemovalCb (DtReflectedPropulsionNoise *propNoise, void *usr)
static void	addPassActAdditionCb (DtReflectedAdditionalPassiveActivities *apa, void *usr)
	Callback functions registered with myAddPassActivitiesList for APA additions, updates, and removals.
static void	addPassActUpdateCb (DtReflectedAdditionalPassiveActivities *apa, void *usr)
static void	addPassActRemovalCb (DtReflectedAdditionalPassiveActivities *apa, void *usr)
static void	activeSonarAdditionCb (DtReflectedActiveSonar *sonar, void *usr)
	Callback functions registered with myActiveSonarList for sonar additions, updates, and removals.
static void	activeSonarUpdateCb (DtReflectedActiveSonar *sonar, void *usr)
static void	activeSonarRemovalCb (DtReflectedActiveSonar *sonar, void *usr)
static void	resolveOrphansPostDrainCb (void *usr)
	Callback that calls resolveOrphans.
static bool	delayPropNoiseDiscoveryCondition (DtReflectedObject *propNoise, void *usr)
	The following discovery condition function gets set for propNoises when users register a discovery condition for either DtReflectedUnderwaterAcousticsList or its propulsion noise list.
static bool	delayApaDiscoveryCondition (DtReflectedObject *apa, void *usr)
	The following discovery condition function gets set for APAs when users register a discovery condition for either DtReflectedUnderwaterAcousticsList or its APA list.
static bool	delaySonarDiscoveryCondition (DtReflectedObject *sonar, void *usr)
	The following discovery condition function gets set for activeSonars when users register a discovery condition for either DtReflectedUnderwaterAcousticsList or its active sonar list.
Static Protected Member Functions inherited from DtReflectedObjectList
static void	discoverObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject().
static void	removeObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject().
static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject *obj, void *usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect().
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts.
static void	doRequestWaitListUpdatesPostDrainCb (void *usr)
	Calls doRequestWaitListUpdates.
static void	postUpdateCb (DtReflectedObject *obj, void *usr)
	Calls checkDiscoveryCondition.

Protected Attributes
DtObjectId	myCounterId
DtList	myOrphanPropulsionNoises
	used for generating dummy obj ids
DtReflectedPropulsionNoiseList	myPropNoiseList
void *	myPropNoiseDiscoveryConditionParameter
DtDiscoveryCondition	myPropNoiseDiscoveryCondition
DtList	myOrphanAddPassActivities
DtReflectedAdditionalPassiveActivitiesList	myAddPassActList
void *	myAddPassActDiscoveryConditionParameter
DtDiscoveryCondition	myAddPassActDiscoveryCondition
DtList	myOrphanActiveSonars
DtReflectedActiveSonarList	myActiveSonarList
void *	myActiveSonarDiscoveryConditionParameter
DtDiscoveryCondition	myActiveSonarDiscoveryCondition
bool	mySubsystemsCauseUpdates
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtRefHlaObjectMap	myObjectList
DtHashList	myObjectListByName
DtRefHlaObjectMap	myWaitList
DtList	myTimedOutObjectList
std::vector < RTI::ObjectClassHandle >	myHandleList
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
bool	myWaitListRequestUpdateFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
DtTime	myWaitlistTime
DtTime	myWaitlistRefreshPeriod
DtDDMRegionSet	mySubscribedRegions
DtString	myUpdateRateTag

Private Member Functions
	DtReflectedUnderwaterAcousticsList (const DtReflectedUnderwaterAcousticsList &orig)
	Copy constructor not implemented - cannot be copied.
DtReflectedUnderwaterAcousticsList &	operator= (const DtReflectedUnderwaterAcousticsList &orig)
	Assignment operator not implemented - cannot be copied.

Additional Inherited Members
Static Public Member Functions inherited from DtReflectedObjectList
static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages.
static bool	autoSubscribeFlag ()
static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to.
static bool	requestClassUpdateFlag ()
static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it.
static bool	requestObjectUpdateFlag ()
static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects().
Static Protected Attributes inherited from DtReflectedObjectList
static bool	theAutoSubscribeFlag
static bool	theRequestClassUpdateFlag
static bool	theRequestObjectUpdateFlag

Detailed Description

Instances of DtReflectedUnderwaterAcousticsList manage a list of DtReflectedActiveSonar objects.

Constructor & Destructor Documentation

DtReflectedUnderwaterAcousticsList::DtReflectedUnderwaterAcousticsList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = ""
	)

Constructor.

DtReflectedUnderwaterAcousticsList::DtReflectedUnderwaterAcousticsList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = ""
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedUnderwaterAcousticsList::~DtReflectedUnderwaterAcousticsList ( )

virtual

Destructor.

DtReflectedUnderwaterAcousticsList::DtReflectedUnderwaterAcousticsList ( const DtReflectedUnderwaterAcousticsList &  orig )

private

Copy constructor not implemented - cannot be copied.

Member Function Documentation

static void DtReflectedUnderwaterAcousticsList::activeSonarAdditionCb ( DtReflectedActiveSonar *  sonar, void *  usr  )

staticprotected

Callback functions registered with myActiveSonarList for sonar additions, updates, and removals.

Calls processActiveSonarAddition/Update/Removal.

static void DtReflectedUnderwaterAcousticsList::activeSonarRemovalCb ( DtReflectedActiveSonar *  sonar, void *  usr  )

staticprotected

static void DtReflectedUnderwaterAcousticsList::activeSonarUpdateCb ( DtReflectedActiveSonar *  sonar, void *  usr  )

staticprotected

static void DtReflectedUnderwaterAcousticsList::addPassActAdditionCb ( DtReflectedAdditionalPassiveActivities *  apa, void *  usr  )

staticprotected

Callback functions registered with myAddPassActivitiesList for APA additions, updates, and removals.

Calls processAddPassActAddition/Update/Removal.

static void DtReflectedUnderwaterAcousticsList::addPassActRemovalCb ( DtReflectedAdditionalPassiveActivities *  apa, void *  usr  )

staticprotected

static void DtReflectedUnderwaterAcousticsList::addPassActUpdateCb ( DtReflectedAdditionalPassiveActivities *  apa, void *  usr  )

staticprotected

virtual void DtReflectedUnderwaterAcousticsList::addUnderwaterAcousticsAdditionCallback ( DtUnderwaterAcousticsCallbackFunction  cb, void *  userData  )

virtual

ActiveSonar added callback registration.

virtual void DtReflectedUnderwaterAcousticsList::addUnderwaterAcousticsRemovalCallback ( DtUnderwaterAcousticsCallbackFunction  cb, void *  userData  )

virtual

ActiveSonar removed callback registration.

virtual void DtReflectedUnderwaterAcousticsList::clearApaDiscoveryCondition ( )

virtual

Call this function to remove the previously registered discovery condition.

virtual void DtReflectedUnderwaterAcousticsList::clearDiscoveryCondition ( )

virtual

Overrides the DtReflectedObjectList::clearDiscoveryCondition.

This function clears the discovery condition on the underwater acoustics objects, active sonars, propulsion systems, and APAs.

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedUnderwaterAcousticsList::clearPropNoiseDiscoveryCondition ( )

virtual

Call this function to remove the previously registered discovery condition.

virtual void DtReflectedUnderwaterAcousticsList::clearSonarDiscoveryCondition ( )

virtual

Call this function to remove the previously registered discovery condition.

virtual bool DtReflectedUnderwaterAcousticsList::delayApaDiscovery ( DtReflectedObject *  apa, void *  usr  )

virtual

The following function checks whether an active sonar should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedActiveSonarSystemList::setDiscoveryCondition() or DtReflectedActiveSonarSystemList::setSonarDiscoveryCondition().

static bool DtReflectedUnderwaterAcousticsList::delayApaDiscoveryCondition ( DtReflectedObject *  apa, void *  usr  )

staticprotected

The following discovery condition function gets set for APAs when users register a discovery condition for either DtReflectedUnderwaterAcousticsList or its APA list.

Calls DtReflectedUnderwaterAcousticsList::delayApaDiscovery()

virtual bool DtReflectedUnderwaterAcousticsList::delayPropNoiseDiscovery ( DtReflectedObject *  propNoise, void *  usr  )

virtual

The following function checks whether a prop noise should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedPropulsionNoiseList::setDiscoveryCondition() or DtReflectedPropulsionNoiseList::setSonarDiscoveryCondition().

static bool DtReflectedUnderwaterAcousticsList::delayPropNoiseDiscoveryCondition ( DtReflectedObject *  propNoise, void *  usr  )

staticprotected

The following discovery condition function gets set for propNoises when users register a discovery condition for either DtReflectedUnderwaterAcousticsList or its propulsion noise list.

Calls DtReflectedUnderwaterAcousticsList::delayPropNoiseDiscovery()

virtual bool DtReflectedUnderwaterAcousticsList::delaySonarDiscovery ( DtReflectedObject *  sonar, void *  usr  )

virtual

The following function checks whether an active sonar should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedActiveSonarSystemList::setDiscoveryCondition() or DtReflectedActiveSonarSystemList::setSonarDiscoveryCondition().

static bool DtReflectedUnderwaterAcousticsList::delaySonarDiscoveryCondition ( DtReflectedObject *  sonar, void *  usr  )

staticprotected

The following discovery condition function gets set for activeSonars when users register a discovery condition for either DtReflectedUnderwaterAcousticsList or its active sonar list.

Calls DtReflectedUnderwaterAcousticsList::delaySonarDiscovery()

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::first ( ) const

virtual

Get the first reflected object in the list.

virtual DtReflectedUnderwaterAcoustics& DtReflectedUnderwaterAcousticsList::getUnderwaterAcoustics ( const DtGlobalObjectDesignator &  hostId )

virtual

Get the underwater acoustics object for the given host ID.

Creates the object if one does not already exist.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::last ( ) const

virtual

Get the last reflected object in the list.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::lookup ( RTI::ObjectHandle  id )

virtual

Look up by identifier.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::lookup ( const DtGlobalObjectDesignator &  hostId ) const

virtual

Lookup an underwater acoustics object from its host ID.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::lookupName ( const DtGlobalObjectDesignator &  objName )

virtual

Lookup an underwater acoustics object from its host ID.

virtual DtReflectedObject* DtReflectedUnderwaterAcousticsList::newReflectedObject ( DtHlaObject *  obj ) const

protectedvirtual

Override of virtual function.

Returns NULL, newReflectedUnderwaterAcoustics does actual creation.

Implements DtReflectedObjectList.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::newReflectedUnderwaterAcoustics ( const DtGlobalObjectDesignator &  hostId ) const

protectedvirtual

Create a remote ActiveSonar system object for the HLA object.

Caller is responsible for deletion.

virtual void DtReflectedUnderwaterAcousticsList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called from processDiscoverObject() after a remote transmitter has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on addition. obj will be an instance of a class derived from DtReflectedObj.

Reimplemented from DtReflectedObjectList.

DtReflectedUnderwaterAcousticsList& DtReflectedUnderwaterAcousticsList::operator= ( const DtReflectedUnderwaterAcousticsList &  orig )

private

Assignment operator not implemented - cannot be copied.

virtual void DtReflectedUnderwaterAcousticsList::processActiveSonarAddition ( DtReflectedActiveSonar *  sonar )

protectedvirtual

Called by similar callback functions registered with myActiveSonarList on active sonar additions/removals.

Addition function adds the active sonar to the set of orphan active sonars (since we don't know what system he's part of), the removal function removes the sonar's state rep from its underwater acoustics SR. Update function calls the active sonars' update callbacks if activeSonarsCauseUpdates == true in the reflected ua list constructor.

virtual void DtReflectedUnderwaterAcousticsList::processActiveSonarRemoval ( DtReflectedActiveSonar *  sonar )

protectedvirtual

virtual void DtReflectedUnderwaterAcousticsList::processActiveSonarUpdate ( DtReflectedActiveSonar *  sonar )

protectedvirtual

virtual void DtReflectedUnderwaterAcousticsList::processAddPassActAddition ( DtReflectedAdditionalPassiveActivities *  apa )

protectedvirtual

Called by similar callback functions registered with myAddPassActivitiesList on APA additions/removals.

Addition function adds the APA to the set of orphan APAs (since we don't know what system he's part of), the removal function removes the APA's state rep from its underwater acoustics SR. Update function calls the APAs' update callbacks if subsystemsCauseUpdates is true in the reflected ua list constructor.

virtual void DtReflectedUnderwaterAcousticsList::processAddPassActRemoval ( DtReflectedAdditionalPassiveActivities *  apa )

protectedvirtual

virtual void DtReflectedUnderwaterAcousticsList::processAddPassActUpdate ( DtReflectedAdditionalPassiveActivities *  apa )

protectedvirtual

virtual void DtReflectedUnderwaterAcousticsList::processPropNoiseAddition ( DtReflectedPropulsionNoise *  propNoise )

protectedvirtual

Called by similar callback functions registered with myPropNoiseList on prop nosie additions/removals.

Addition function adds the prop noise to the set of orphan prop noises (since we don't know what system he's part of), the removal function removes the prop noise's state rep from its underwater acoustics SR. Update function calls the prop noises' update callbacks if subsystemsCauseUpdates is true in the reflected ua list constructor.

virtual void DtReflectedUnderwaterAcousticsList::processPropNoiseRemoval ( DtReflectedPropulsionNoise *  propNoise )

protectedvirtual

virtual void DtReflectedUnderwaterAcousticsList::processPropNoiseUpdate ( DtReflectedPropulsionNoise *  propNoise )

protectedvirtual

static void DtReflectedUnderwaterAcousticsList::propNoiseAdditionCb ( DtReflectedPropulsionNoise *  propNoise, void *  usr  )

staticprotected

Callback functions registered with myPropNoiseList for prop noise additions, updates, and removals.

Calls processPropNoiseAddition/Update/Removal.

DtReflectedPropulsionNoise* DtReflectedUnderwaterAcousticsList::propNoiseForUnderwaterAcoustics ( DtReflectedUnderwaterAcoustics *  underwaterAcoustics )

protected

Looks up the propulsion noise object for the given ua object.

static void DtReflectedUnderwaterAcousticsList::propNoiseRemovalCb ( DtReflectedPropulsionNoise *  propNoise, void *  usr  )

staticprotected

static void DtReflectedUnderwaterAcousticsList::propNoiseUpdateCb ( DtReflectedPropulsionNoise *  propNoise, void *  usr  )

staticprotected

virtual DtReflectedActiveSonarList* DtReflectedUnderwaterAcousticsList::refActiveSonarList ( )

virtual

Returns a pointer to the reflected active sonar list that we are using internally to track our constituent sonars.

Normally, you do not need to access this list. Instead, you should find out the state of a sonar by going through the parent DtReflectedUnderwaterAcoustics, and its DtUnderwaterAcousticsStateRepository (through which you can get a list of DtActiveSonarStateRepositories). This function, however, may be used in conjunction with ownership management. If you want to take ownership of some attributes of a sonar object, use this function to grab the sonar list, find the appropriate sonar's DtHlaObject, and pass it to the DtActiveSonarPublisher's constructor.

virtual DtReflectedAdditionalPassiveActivitiesList* DtReflectedUnderwaterAcousticsList::refApaList ( )

virtual

Returns a pointer to the reflected APA list that we are using internally to track our constituent APAs.

Normally, you do not need to access this list. Instead, you should find out the state of an APA by going through the parent DtReflectedUnderwaterAcoustics, and its DtUnderwaterAcousticsStateRepository (through which you can get a list of DtAdditionalPassiveActivitiesRepositories). This function, however, may be used in conjunction with ownership management. If you want to take ownership of some attributes of an APA, use this function to grab the APA list, find the appropriate APA's DtHlaObject, and pass it to the DtAdditionalPassiveActivitiesPublisher's constructor.

virtual DtReflectedPropulsionNoiseList* DtReflectedUnderwaterAcousticsList::refPropNoiseList ( )

virtual

Returns a pointer to the reflected prop noise list that we are using internally to track our constituent prop noises.

Normally, you do not need to access this list. Instead, you should find out the state of a prop noise by going through the parent DtReflectedUnderwaterAcoustics, and its DtUnderwaterAcousticsStateRepository (through which you can get a list of DtPropulsionNoiseStateRepositories). This function, however, may be used in conjunction with ownership management. If you want to take ownership of some attributes of a prop noise, use this function to grab the prop noise list, find the appropriate prop noise's DtHlaObject, and pass it to the DtPropulsionNoisePublisher's constructor.

virtual void DtReflectedUnderwaterAcousticsList::removeUnderwaterAcousticsAdditionCallback ( DtUnderwaterAcousticsCallbackFunction  cb, void *  userData  )

virtual

ActiveSonar added callback de-registration.

virtual void DtReflectedUnderwaterAcousticsList::removeUnderwaterAcousticsRemovalCallback ( DtUnderwaterAcousticsCallbackFunction  cb, void *  userData  )

virtual

ActiveSonar removed callback de-registration.

virtual void DtReflectedUnderwaterAcousticsList::resolveOrphanedActiveSonars ( )

protectedvirtual

Resolve orphaned active sonars.

virtual void DtReflectedUnderwaterAcousticsList::resolveOrphanedAddPassActivities ( )

protectedvirtual

Resolve orphaned additional passive activities.

virtual void DtReflectedUnderwaterAcousticsList::resolveOrphanedPropulsionNoises ( )

protectedvirtual

Resolve orphaned propulsion noises.

virtual void DtReflectedUnderwaterAcousticsList::resolveOrphans ( )

protectedvirtual

Check if any orphan sonars or APAs have non-NULL hostId.

If so, add them to their appropriate underwater acoustics object (creating one if it doesn't exist), and delete them from orphan list.

static void DtReflectedUnderwaterAcousticsList::resolveOrphansPostDrainCb ( void *  usr )

staticprotected

Callback that calls resolveOrphans.

virtual void DtReflectedUnderwaterAcousticsList::setApaDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Call this function to register a discovery condition on the APAs of underwater acoustics objects.

Generally, it will be preferable to call this function rather than calling setDiscoveryCondition() directly on the APA list. (Calling setDiscoveryCondition() directly will over-ride the mechanism by which APA discoveries are delayed when a user registers a discovery condition on DtReflectedAddPassAct – See comment above).

virtual void DtReflectedUnderwaterAcousticsList::setDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Over-rides DtReflectedObjectList::setDiscoveryCondition().

This function checks that ActiveSonar system objects satisfy the given criteria before getting discovered and added to the list (the discovery of sonars belonging to the system will also be delayed until the after the system is discovered)

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedUnderwaterAcousticsList::setPropNoiseDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Call this function to register a discovery condition on the prop noises of underwater acoustics objects.

Generally, it will be preferable to call this function rather than calling setDiscoveryCondition() directly on the prop noise list. (Calling setDiscoveryCondition() directly will over-ride the mechanism by which prop noise discoveries are delayed when a user registers a discovery condition on DtReflectedPropulsionNoise – See comment above).

virtual void DtReflectedUnderwaterAcousticsList::setSonarDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Call this function to register a discovery condition on the active sonars of underwater acoustics objects.

Generally, it will be preferable to call this function rather than calling setDiscoveryCondition() directly on the active sonar list. (Calling setDiscoveryCondition() directly will over-ride the mechanism by which active sonar discoveries are delayed when a user registers a discovery condition on DtReflectedActiveSonarSystem – See comment above).

virtual bool DtReflectedUnderwaterAcousticsList::shouldBeTimedOut ( DtReflectedObject *  object )

protectedvirtual

Returns whether or not the object should be timed out.

Assumes that timeout processing is enabled. Can't use base version since we don't want to time out systems with live objects.

Reimplemented from DtReflectedObjectList.

Member Data Documentation

DtDiscoveryCondition DtReflectedUnderwaterAcousticsList::myActiveSonarDiscoveryCondition

protected

void* DtReflectedUnderwaterAcousticsList::myActiveSonarDiscoveryConditionParameter

protected

DtReflectedActiveSonarList DtReflectedUnderwaterAcousticsList::myActiveSonarList

protected

DtDiscoveryCondition DtReflectedUnderwaterAcousticsList::myAddPassActDiscoveryCondition

protected

void* DtReflectedUnderwaterAcousticsList::myAddPassActDiscoveryConditionParameter

protected

DtReflectedAdditionalPassiveActivitiesList DtReflectedUnderwaterAcousticsList::myAddPassActList

protected

DtObjectId DtReflectedUnderwaterAcousticsList::myCounterId

mutableprotected

DtList DtReflectedUnderwaterAcousticsList::myOrphanActiveSonars

protected

DtList DtReflectedUnderwaterAcousticsList::myOrphanAddPassActivities

protected

DtList DtReflectedUnderwaterAcousticsList::myOrphanPropulsionNoises

protected

used for generating dummy obj ids

DtDiscoveryCondition DtReflectedUnderwaterAcousticsList::myPropNoiseDiscoveryCondition

protected

void* DtReflectedUnderwaterAcousticsList::myPropNoiseDiscoveryConditionParameter

protected

DtReflectedPropulsionNoiseList DtReflectedUnderwaterAcousticsList::myPropNoiseList

protected

bool DtReflectedUnderwaterAcousticsList::mySubsystemsCauseUpdates

protected

---

The documentation for this class was generated from the following file:

• reflectedUnderwaterAcousticsListHLA.h
