VR-Link API Documentation for DIS
|
Represents Events in DIS. More...

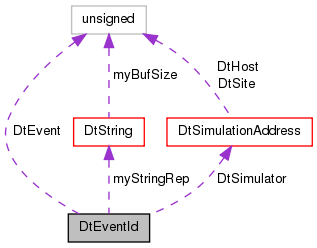

Collaboration diagram for DtEventId:Public Member Functions | |
| DtEventId (const char *str) | |
| Constructs a DtEventId instance from a string in the form: "2:4:5" (Site/Host/EventNum) | |
| DtEventId (int site, int host, int eventNum) | |
| Constructor. | |
| DtEventId (DtNetEventId netId) | |
| Constructs an EventId from a DIS network structure. | |
| DtEventId () | |
| Constructs a default EventId. | |
| ~DtEventId () | |
| Destructor. | |
| void | init (int site, int host, int eventNum) |
| Provided for backwards compatibility. | |
| void | setFromNet (DtNetEventId netId) |
| same as DtEventId(DtNetEventId) | |
| operator DtNetEventId () const | |
| int | site () const |
| Sets the SiteID. | |
| void | setSite (int site) |
| Gets the SiteID. | |
| int | host () const |
| Sets the HostID, also know as the application ID. | |
| void | setHost (int host) |
| Gets the HostID, also know as the application ID. | |
| int | eventNum () const |
| Sets the Event Number. | |
| void | setEventNum (int eventNum) |
| Gets the Event Number. | |
| const char * | string () const |
| returns a string representation of this class | |
| int | operator== (const DtEventId &otherGuy) const |
| int | operator!= (const DtEventId &otherGuy) const |
Static Public Member Functions | |
| static const DtEventId & | nullId () |
| returns an empty string | |
Public Attributes | |
| DtSimulationAddress | DtSimulator |
| Public for backwards compatibility, will be removed in the future. | |
| DtU16 | DtEvent |
| Public for backwards compatibility, will be removed in the future. | |
| DtString | myStringRep |
| Public for backwards compatibility, will be removed in the future. | |
Represents Events in DIS.
Events take the form of DtSimulationAddress:eventNum. EventIDs are used to match WeaponFire and Detonation Events as well as changes in EmitterSystems. Please consult the DIS standard for more details.
| DtEventId::DtEventId | ( | const char * | str | ) |
Constructs a DtEventId instance from a string in the form: "2:4:5" (Site/Host/EventNum)
| DtEventId::DtEventId | ( | int | site, |
| int | host, | ||
| int | eventNum | ||
| ) |
Constructor.
| DtEventId::DtEventId | ( | DtNetEventId | netId | ) |
Constructs an EventId from a DIS network structure.
| DtEventId::DtEventId | ( | ) |
Constructs a default EventId.
| DtEventId::~DtEventId | ( | ) |
Destructor.
| int DtEventId::eventNum | ( | ) | const |
Sets the Event Number.
| int DtEventId::host | ( | ) | const |
Sets the HostID, also know as the application ID.
| void DtEventId::init | ( | int | site, |
| int | host, | ||
| int | eventNum | ||
| ) |
Provided for backwards compatibility.
|
static |
returns an empty string
| DtEventId::operator DtNetEventId | ( | ) | const |
| int DtEventId::operator!= | ( | const DtEventId & | otherGuy | ) | const |
| int DtEventId::operator== | ( | const DtEventId & | otherGuy | ) | const |
| void DtEventId::setEventNum | ( | int | eventNum | ) |
Gets the Event Number.
| void DtEventId::setFromNet | ( | DtNetEventId | netId | ) |
same as DtEventId(DtNetEventId)
| void DtEventId::setHost | ( | int | host | ) |
Gets the HostID, also know as the application ID.
| void DtEventId::setSite | ( | int | site | ) |
Gets the SiteID.
| int DtEventId::site | ( | ) | const |
Sets the SiteID.
| const char* DtEventId::string | ( | ) | const |
returns a string representation of this class
| DtU16 DtEventId::DtEvent |
Public for backwards compatibility, will be removed in the future.
| DtSimulationAddress DtEventId::DtSimulator |
Public for backwards compatibility, will be removed in the future.
| DtString DtEventId::myStringRep |
Public for backwards compatibility, will be removed in the future.
