DtIntercomGroupAsgmtRec Class Reference

Instances of DtIntercomGroupAsgmtRec are used to contain the information in the group assignment parameter record used by the intercom control PDU class. More...

Inheritance diagram for DtIntercomGroupAsgmtRec:

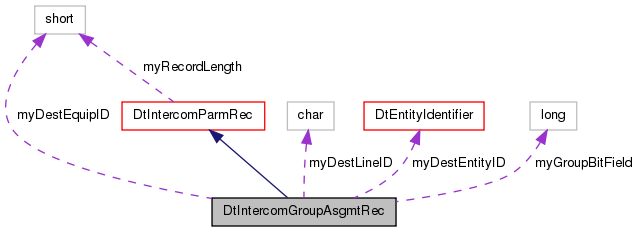

Collaboration diagram for DtIntercomGroupAsgmtRec:

Public Member Functions
	DtIntercomGroupAsgmtRec ()
	Constructors.
	DtIntercomGroupAsgmtRec (const DtIntercomGroupAsgmtRec &orig)
virtual	~DtIntercomGroupAsgmtRec ()
	Destructor.
DtIntercomGroupAsgmtRec &	operator= (const DtIntercomGroupAsgmtRec &orig)
	Assignment operators.
DtIntercomGroupAsgmtRec &	operator= (const DtNetIntercomGroupAsgmtRec &orig)
virtual void	setGroupBitField (DtU32 bitField)
	Set/Get the group bit field.
virtual DtU32	groupBitField () const
virtual void	setDestEntityID (const DtEntityIdentifier &entityID)
	Set/Get the destination entity identifier.
virtual const DtEntityIdentifier &	destEntityID () const
virtual void	setDestEquipID (DtU16 equipID)
	Set/Get the destination equipment ID.
virtual DtU16	destEquipID () const
virtual void	setDestLineID (DtU8 lineID)
	Set/Get the destination line ID.
virtual DtU8	destLineID () const
virtual void	print () const
	Print this record.
virtual void	printDataToStream (std::ostream &stream) const
	Print this record to a stream.
virtual void	unloadNetRecord (const DtNetIntercomGroupAsgmtRec &record)
	Load/Unload data from a packet record.
virtual void	loadNetRecord (DtNetIntercomGroupAsgmtRec &record) const
Public Member Functions inherited from DtIntercomParmRec
virtual	~DtIntercomParmRec ()
	Destructor.
virtual DtIntercomCtlRecType	recordType () const
	Get the record type.
virtual DtU16	recordLength () const
	Get the record length.

Protected Attributes
DtU32	myGroupBitField
DtEntityIdentifier	myDestEntityID
DtU16	myDestEquipID
DtU8	myDestLineID
Protected Attributes inherited from DtIntercomParmRec
DtIntercomCtlRecType	myRecordType
	Data members:
DtU16	myRecordLength

Additional Inherited Members
Protected Member Functions inherited from DtIntercomParmRec
	DtIntercomParmRec ()
	Constructors.
	DtIntercomParmRec (const DtIntercomParmRec &orig)
	DtIntercomParmRec (DtIntercomCtlRecType recordType, int recordLength)
DtIntercomParmRec &	operator= (const DtIntercomParmRec &orig)
	Assignment operator.

Detailed Description

Instances of DtIntercomGroupAsgmtRec are used to contain the information in the group assignment parameter record used by the intercom control PDU class.

Constructor & Destructor Documentation

DtIntercomGroupAsgmtRec::DtIntercomGroupAsgmtRec

(

)

Constructors.

DtIntercomGroupAsgmtRec::DtIntercomGroupAsgmtRec

(

const DtIntercomGroupAsgmtRec &

orig

)

virtual DtIntercomGroupAsgmtRec::~DtIntercomGroupAsgmtRec ( )

virtual

Destructor.

Member Function Documentation

virtual const DtEntityIdentifier& DtIntercomGroupAsgmtRec::destEntityID ( ) const

virtual

virtual DtU16 DtIntercomGroupAsgmtRec::destEquipID ( ) const

virtual

virtual DtU8 DtIntercomGroupAsgmtRec::destLineID ( ) const

virtual

virtual DtU32 DtIntercomGroupAsgmtRec::groupBitField ( ) const

virtual

virtual void DtIntercomGroupAsgmtRec::loadNetRecord ( DtNetIntercomGroupAsgmtRec &  record ) const

virtual

DtIntercomGroupAsgmtRec& DtIntercomGroupAsgmtRec::operator=

(

const DtIntercomGroupAsgmtRec &

orig

)

Assignment operators.

DtIntercomGroupAsgmtRec& DtIntercomGroupAsgmtRec::operator=

(

const DtNetIntercomGroupAsgmtRec &

orig

)

virtual void DtIntercomGroupAsgmtRec::print ( ) const

virtual

Print this record.

Reimplemented from DtIntercomParmRec.

virtual void DtIntercomGroupAsgmtRec::printDataToStream ( std::ostream &  stream ) const

virtual

Print this record to a stream.

Reimplemented from DtIntercomParmRec.

virtual void DtIntercomGroupAsgmtRec::setDestEntityID ( const DtEntityIdentifier &  entityID )

virtual

Set/Get the destination entity identifier.

virtual void DtIntercomGroupAsgmtRec::setDestEquipID ( DtU16  equipID )

virtual

Set/Get the destination equipment ID.

virtual void DtIntercomGroupAsgmtRec::setDestLineID ( DtU8  lineID )

virtual

Set/Get the destination line ID.

virtual void DtIntercomGroupAsgmtRec::setGroupBitField ( DtU32  bitField )

virtual

Set/Get the group bit field.

virtual void DtIntercomGroupAsgmtRec::unloadNetRecord ( const DtNetIntercomGroupAsgmtRec &  record )

virtual

Load/Unload data from a packet record.

Member Data Documentation

DtEntityIdentifier DtIntercomGroupAsgmtRec::myDestEntityID

protected

DtU16 DtIntercomGroupAsgmtRec::myDestEquipID

protected

DtU8 DtIntercomGroupAsgmtRec::myDestLineID

protected

DtU32 DtIntercomGroupAsgmtRec::myGroupBitField

protected

---

The documentation for this class was generated from the following file:

• intercomGroupAsgmtRec.h
