Instances of DtReflectedAdditionalPassiveActivities are used to represent a simulated EmbeddedSystem.UnderwaterAcousticsEmission.AdditionalPassiveActivities object reflected across a network. More...

Inheritance diagram for DtReflectedAdditionalPassiveActivities:

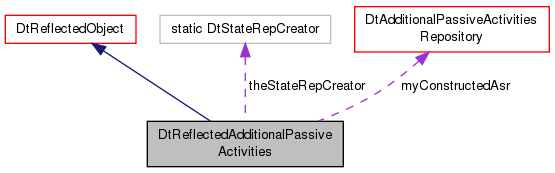

Collaboration diagram for DtReflectedAdditionalPassiveActivities:

Public Types
typedef DtAdditionalPassiveActivitiesRepository (	DtStateRepCreator )()
	Function prototype for functions that create a DtAdditionalPassiveActivitiesRepository.
Public Types inherited from DtReflectedObject
typedef DtStateRepository (	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories.

Public Member Functions
	DtReflectedAdditionalPassiveActivities (DtHlaObject obj, DtExerciseConn exConn)
	Constructor.
virtual	~DtReflectedAdditionalPassiveActivities ()
	Destructor.
virtual DtAdditionalPassiveActivitiesRepository *	additionalPassiveActivitiesRep () const
	Returns the AdditionalPassiveActivities's state repository.
virtual DtAdditionalPassiveActivitiesRepository *	asr () const
	Shorter version of additionalPassiveActivitiesRep().
virtual DtReflectedAdditionalPassiveActivities *	next () const
	Returns the next reflected AdditionalPassiveActivities in the DtReflectedAdditionalPassiveActivitiesList.
virtual DtReflectedAdditionalPassiveActivities *	prev () const
	Returns the previous reflected AdditionalPassiveActivities in the DtReflectedAdditionalPassiveActivitiesList.
virtual DtReflectedAdditionalPassiveActivities *	wrapNext () const
	Returns the next reflected AdditionalPassiveActivities.
virtual DtReflectedAdditionalPassiveActivities *	wrapPrev () const
	Returns the previous reflected AdditionalPassiveActivities.
virtual void	addPostUpdateCallback (DtAdditionalPassiveActivitiesCallbackFunction cb, void *userData)
	Add a callback that is called when the DtReflectedAdditionalPassiveActivities is updated.
virtual void	removePostUpdateCallback (DtAdditionalPassiveActivitiesCallbackFunction cb, void *userData)
	Remove the callback that is called when the DtReflectedAdditionalPassiveActivities is updated.
virtual void	setAsr (DtAdditionalPassiveActivitiesRepository *asr)
	Set APA state repository.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn conn, DtStateRepository stateRep)
	Primary constructor.
	DtReflectedObject (DtHlaObject obj, DtExerciseConn conn, DtBaseStateRepCreator creator)
	Older constructor.
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor.
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR.
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject).
virtual const DtObjectId &	objectId () const
	Get the HLA object's id.
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID).
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID).
virtual const DtString &	name () const
	Get the HLA object name.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
void	setHlaObject (DtHlaObject obj, DtHlaStateDecoder decoder=NULL)
	Start reflecting this object, using this decoder.
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object.
void	detachHlaObject ()
	Ends managing of current HLA object.
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update.

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Set the function to be called for creating state repositories.

Protected Member Functions
	DtReflectedAdditionalPassiveActivities (const DtReflectedAdditionalPassiveActivities &orig)
	Copy Constructor not implemented.
DtReflectedAdditionalPassiveActivities &	operator= (const DtReflectedAdditionalPassiveActivities &orig)
	Assignment operator not implemented.
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtAdditionalPassiveActivitiesRepository *	myConstructedAsr
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
bool	myRequestCbRegistered
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
	The function called to create state repositories.

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	requestUpdatePostDrainCb (void *usr)
	Calls requestUpdate.
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject obj, void usr)
	Callback from HlaObject to process post update callbacks.

Detailed Description

Instances of DtReflectedAdditionalPassiveActivities are used to represent a simulated EmbeddedSystem.UnderwaterAcousticsEmission.AdditionalPassiveActivities object reflected across a network.

Member Typedef Documentation

typedef DtAdditionalPassiveActivitiesRepository*(* DtReflectedAdditionalPassiveActivities::DtStateRepCreator)()

Function prototype for functions that create a DtAdditionalPassiveActivitiesRepository.

Constructor & Destructor Documentation

DtReflectedAdditionalPassiveActivities::DtReflectedAdditionalPassiveActivities	(	DtHlaObject *	obj,
		DtExerciseConn *	exConn
	)

Constructor.

virtual DtReflectedAdditionalPassiveActivities::~DtReflectedAdditionalPassiveActivities ( )

virtual

Destructor.

DtReflectedAdditionalPassiveActivities::DtReflectedAdditionalPassiveActivities ( const DtReflectedAdditionalPassiveActivities & orig )

protected

Copy Constructor not implemented.

Member Function Documentation

DtAdditionalPassiveActivitiesRepository * DtReflectedAdditionalPassiveActivities::additionalPassiveActivitiesRep ( ) const

inlinevirtual

Returns the AdditionalPassiveActivities's state repository.

References DtReflectedObject::myStateRep.

virtual void DtReflectedAdditionalPassiveActivities::addPostUpdateCallback	(	DtAdditionalPassiveActivitiesCallbackFunction	cb,
		void *	userData
	)

virtual

Add a callback that is called when the DtReflectedAdditionalPassiveActivities is updated.

DtAdditionalPassiveActivitiesRepository * DtReflectedAdditionalPassiveActivities::asr ( ) const

inlinevirtual

Shorter version of additionalPassiveActivitiesRep().

References DtReflectedObject::myStateRep.

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::next ( ) const

virtual

Returns the next reflected AdditionalPassiveActivities in the DtReflectedAdditionalPassiveActivitiesList.

DtReflectedAdditionalPassiveActivities& DtReflectedAdditionalPassiveActivities::operator= ( const DtReflectedAdditionalPassiveActivities & orig )

protected

Assignment operator not implemented.

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::prev ( ) const

virtual

Returns the previous reflected AdditionalPassiveActivities in the DtReflectedAdditionalPassiveActivitiesList.

virtual void DtReflectedAdditionalPassiveActivities::removePostUpdateCallback	(	DtAdditionalPassiveActivitiesCallbackFunction	cb,
		void *	userData
	)

virtual

Remove the callback that is called when the DtReflectedAdditionalPassiveActivities is updated.

virtual void DtReflectedAdditionalPassiveActivities::setAsr ( DtAdditionalPassiveActivitiesRepository * asr )

virtual

Set APA state repository.

Only necessary when you want to use something other than the default, which is created internally.

static DtStateRepCreator DtReflectedAdditionalPassiveActivities::setStateRepCreator ( DtStateRepCreator creator )

static

Set the function to be called for creating state repositories.

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::wrapNext ( ) const

virtual

Returns the next reflected AdditionalPassiveActivities.

Will cycle back to the first remote AdditionalPassiveActivities in the DtReflectedAdditionalPassiveActivitiesList.

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::wrapPrev ( ) const

virtual

Returns the previous reflected AdditionalPassiveActivities.

Will cycle back to the first remote AdditionalPassiveActivities in the DtReflectedAdditionalPassiveActivitiesList.

Member Data Documentation

DtAdditionalPassiveActivitiesRepository* DtReflectedAdditionalPassiveActivities::myConstructedAsr

protected

DtStateRepCreator DtReflectedAdditionalPassiveActivities::theStateRepCreator

staticprotected

The function called to create state repositories.

The documentation for this class was generated from the following file:

reflectedAdditionalPassiveActivitiesHLA.h
