DtVrlFederateAmbassador Class Reference

Inheritance diagram for DtVrlFederateAmbassador:

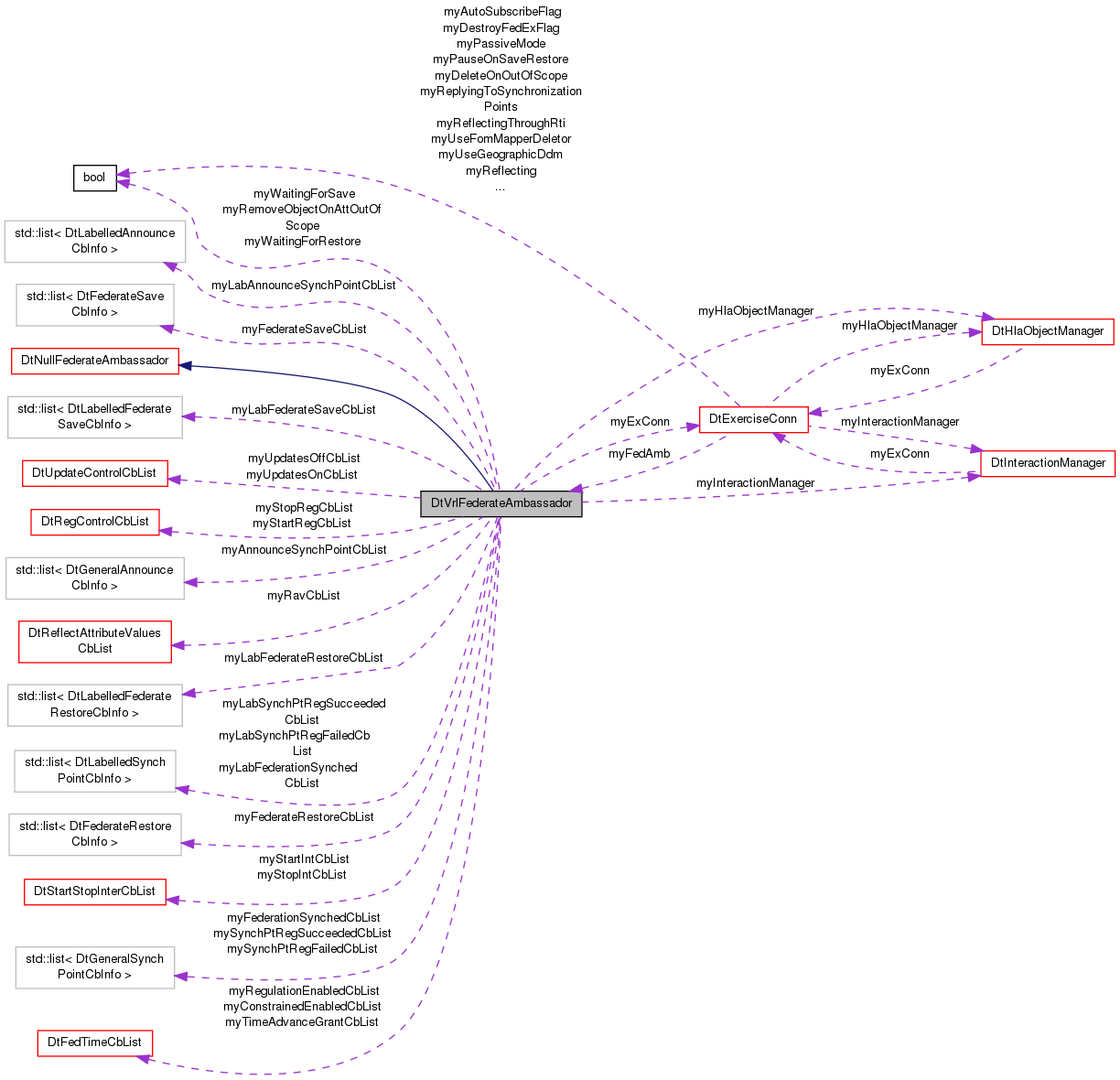

Collaboration diagram for DtVrlFederateAmbassador:

Classes
struct	DtFederateRestoreCbInfo
struct	DtFederateSaveCbInfo
struct	DtGeneralAnnounceCbInfo
struct	DtGeneralSynchPointCbInfo
struct	DtLabelledAnnounceCbInfo
struct	DtLabelledFederateRestoreCbInfo
struct	DtLabelledFederateSaveCbInfo
struct	DtLabelledSynchPointCbInfo
struct	DtScopeChangeCallbackData

Public Member Functions
	DtVrlFederateAmbassador ()
	default constructor
virtual	~DtVrlFederateAmbassador () throw ( RTI::FederateInternalError )
	destructor
virtual void	init (DtExerciseConn *exConn, DtHlaObjectManager *hlaObjMgr, DtInteractionManager *interMgr)
	Initialize the ambassador.
virtual void	addReflectAttributeValuesCb (RTI::ObjectHandle id, DtReflectAttributeValuesCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's reflectAttributeValues service is invoked.
virtual void	removeReflectAttributeValuesCb (RTI::ObjectHandle id, DtReflectAttributeValuesCb cb, void *usr)
virtual void	addDiscoverObjectCb (RTI::ObjectClassHandle hand, DtDiscoverObjectCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's discoverObject service is invoked.
virtual void	removeDiscoverObjectCb (RTI::ObjectClassHandle hand, DtDiscoverObjectCb cb, void *usr)
virtual void	addRemoveObjectCb (RTI::ObjectHandle id, DtRemoveObjectCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's removeObject service is invoked.
virtual void	removeRemoveObjectCb (RTI::ObjectHandle id, DtRemoveObjectCb cb, void *usr)
virtual void	addStartRegCb (RTI::ObjectClassHandle hand, DtStartRegCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's startRegistration service is invoked.
virtual void	removeStartRegCb (RTI::ObjectClassHandle hand, DtStartRegCb cb, void *usr)
virtual void	addStopRegCb (RTI::ObjectClassHandle hand, DtStopRegCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's stopReg service is invoked.
virtual void	removeStopRegCb (RTI::ObjectClassHandle hand, DtStopRegCb cb, void *usr)
virtual void	addUpdatesOnCb (RTI::ObjectHandle hand, DtUpdatesOnCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOn service is invoked.
virtual void	removeUpdatesOnCb (RTI::ObjectHandle hand, DtUpdatesOnCb cb, void *usr)
virtual void	addUpdatesOffCb (RTI::ObjectHandle hand, DtUpdatesOffCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOff service is invoked.
virtual void	removeUpdatesOffCb (RTI::ObjectHandle hand, DtUpdatesOffCb cb, void *usr)
virtual void	addStartInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's startInteractionGeneration service is invoked.
virtual void	removeStartInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
virtual void	addStopInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's stopInteractionGeneration service is invoked.
virtual void	removeStopInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
virtual void	addReceiveInteractionCb (RTI::InteractionClassHandle hand, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add/Remove (register/deregister) function to be called when the RTI's receiveInteraction service is invoked.
virtual void	removeReceiveInteractionCb (RTI::InteractionClassHandle hand, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
virtual void	addTimeAdvanceGrantCb (DtFedTimeCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's TimeAdvanceGrant service is invoked.
virtual void	removeTimeAdvanceGrantCb (DtFedTimeCb cb, void *usr)
virtual void	addTimeRegulationEnabledCb (DtFedTimeCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's TimeRegulationEnabled service is invoked.
virtual void	removeTimeRegulationEnabledCb (DtFedTimeCb cb, void *usr)
virtual void	addTimeConstrainedEnabledCb (DtFedTimeCb cb, void *usr)
	Add/Remove (register/deregister) function to be called when the RTI's TimeConstrainedEnabled service is invoked.
virtual void	removeTimeConstrainedEnabledCb (DtFedTimeCb cb, void *usr)
virtual void	setRemoveObjectOnAttOutOfScope (bool remove)
virtual bool	removeObjectOnAttOutOfScope () const
virtual bool	waitingForSaveOrRestore () const
virtual void	timeAdvanceGrant (const RTI::FedTime &theTime) throw ( RTI::InvalidFederationTime, RTI::TimeAdvanceWasNotInProgress, RTI::FederateInternalError )
	The functions below should probably be protected, but they need to be called by various VR-Link classes to implement the setReflecting() idea, when reflectingThroughRti is true.
virtual void	timeRegulationEnabled (const RTI::FedTime &theTime) throw ( RTI::InvalidFederationTime, RTI::EnableTimeRegulationWasNotPending, RTI::FederateInternalError )
	! Time Management Services //!
virtual void	timeConstrainedEnabled (const RTI::FedTime &theTime) throw ( RTI::InvalidFederationTime, RTI::EnableTimeConstrainedWasNotPending, RTI::FederateInternalError )
	supplied C4
virtual void	startRegistrationForObjectClass (RTI::ObjectClassHandle theClass) throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError )
	! Declaration Management Services //!
virtual void	stopRegistrationForObjectClass (RTI::ObjectClassHandle theClass) throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError )
virtual void	turnInteractionsOn (RTI::InteractionClassHandle theHandle) throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError )
virtual void	turnInteractionsOff (RTI::InteractionClassHandle theHandle) throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError )
virtual void	discoverObjectInstance (RTI::ObjectHandle theObject, RTI::ObjectClassHandle theObjectClass, const char *theObjectName) throw ( RTI::CouldNotDiscover, RTI::ObjectClassNotKnown, RTI::FederateInternalError )
	! Object Management Services //!
virtual void	reflectAttributeValues (RTI::ObjectHandle theObject, const RTI::AttributeHandleValuePairSet &theAttributes, const RTI::FedTime &theTime, const char *theTag, RTI::EventRetractionHandle theHandle) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::InvalidFederationTime, RTI::FederateInternalError )
	supplied C1
virtual void	reflectAttributeValues (RTI::ObjectHandle theObject, const RTI::AttributeHandleValuePairSet &theAttributes, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::FederateInternalError)
	supplied C4
virtual void	receiveInteraction (RTI::InteractionClassHandle theInteraction, const RTI::ParameterHandleValuePairSet &theParameters, const RTI::FedTime &theTime, const char *theTag, RTI::EventRetractionHandle theHandle) throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError )
	4.6
virtual void	receiveInteraction (RTI::InteractionClassHandle theInteraction, const RTI::ParameterHandleValuePairSet &theParameters, const char *theTag) throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::FederateInternalError )
	supplied C4
virtual void	removeObjectInstance (RTI::ObjectHandle theObject, const RTI::FedTime &theTime, const char *theTag, RTI::EventRetractionHandle theHandle) throw ( RTI::ObjectNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError )
	supplied C1
virtual void	removeObjectInstance (RTI::ObjectHandle theObject, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::FederateInternalError )
	supplied C4
virtual void	attributesInScope (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)
	supplied C4
virtual void	attributesOutOfScope (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)
	supplied C4
virtual void	provideAttributeValueUpdate (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	turnUpdatesOnForObjectInstance (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	turnUpdatesOffForObjectInstance (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	requestAttributeOwnershipAssumption (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &offeredAttributes, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError )
	Ownership Management Services.
virtual void	attributeOwnershipDivestitureNotification (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &releasedAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::AttributeDivestitureWasNotRequested, RTI::FederateInternalError )
	supplied C4
virtual void	attributeOwnershipAcquisitionNotification (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &securedAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAcquisitionWasNotRequested, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError )
	supplied C4
virtual void	attributeOwnershipUnavailable (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotRequested, RTI::FederateInternalError )
	supplied C4
virtual void	requestAttributeOwnershipRelease (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &candidateAttributes, const char *theTag) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )
	supplied C4
virtual void	confirmAttributeOwnershipAcquisitionCancellation (RTI::ObjectHandle theObject, const RTI::AttributeHandleSet &theAttributes) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotCanceled, RTI::FederateInternalError )
	supplied C4
virtual void	informAttributeOwnership (RTI::ObjectHandle theObject, RTI::AttributeHandle theAttribute, RTI::FederateHandle theOwner) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError )
	supplied C1
virtual void	attributeIsNotOwned (RTI::ObjectHandle theObject, RTI::AttributeHandle theAttribute) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError )
	supplied C1
virtual void	attributeOwnedByRTI (RTI::ObjectHandle theObject, RTI::AttributeHandle theAttribute) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)
	supplied C1
virtual void	synchronizationPointRegistrationSucceeded (const char *label) throw ( RTI::FederateInternalError )
	sync points
virtual void	synchronizationPointRegistrationFailed (const char *label) throw ( RTI::FederateInternalError )
virtual void	federationSynchronized (const char *label) throw ( RTI::FederateInternalError )
virtual void	announceSynchronizationPoint (const char *label, const char *tag) throw ( RTI::FederateInternalError )
virtual void	addSynchPointRegSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
	Methods to add/remove user callbacks for sync point callbacks.
virtual void	addSynchPointRegSucceededCb (DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegSucceededCb (DtSynchPointCb func, void *usr)
virtual void	addSynchPointRegFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	addSynchPointRegFailedCb (DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	removeSynchPointRegFailedCb (DtSynchPointCb func, void *usr)
virtual void	addFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	addFederationSynchedCb (DtSynchPointCb func, void *usr)
virtual void	removeFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void	removeFederationSynchedCb (DtSynchPointCb func, void *usr)
virtual void	addAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
virtual void	addAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
virtual void	removeAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
virtual void	removeAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
virtual void	addFederateSaveCb (const DtString &label, DtFederateSaveCb func, void *usr)
	Methods to add/remove user callbacks for federation save callbacks.
virtual void	addFederateSaveCb (DtFederateSaveCb func, void *usr)
	Methods to add/remove user callbacks for federation save callbacks.
virtual void	removeFederateSaveCb (const DtString &label, DtFederateSaveCb func, void *usr)
	Methods to add/remove user callbacks for federation save callbacks.
virtual void	removeFederateSaveCb (DtFederateSaveCb func, void *usr)
	Methods to add/remove user callbacks for federation save callbacks.
virtual void	addFederateRestoreCb (const DtString &label, DtFederateRestoreCb func, void *usr)
	Methods to add/remove user callbacks for federation restore callbacks.
virtual void	addFederateRestoreCb (DtFederateRestoreCb func, void *usr)
	Methods to add/remove user callbacks for federation restore callbacks.
virtual void	removeFederateRestoreCb (const DtString &label, DtFederateRestoreCb func, void *usr)
	Methods to add/remove user callbacks for federation restore callbacks.
virtual void	removeFederateRestoreCb (DtFederateRestoreCb func, void *usr)
	Methods to add/remove user callbacks for federation restore callbacks.
virtual void	initiateFederateSave (const char *label) throw ( RTI::UnableToPerformSave, RTI::FederateInternalError )
virtual void	federationSaved () throw ( RTI::FederateInternalError)
virtual void	federationNotSaved () throw ( RTI::FederateInternalError )
virtual void	initiateFederateRestore (const char *label, RTI::FederateHandle handle) throw ( RTI::SpecifiedSaveLabelDoesNotExist, RTI::CouldNotRestore, RTI::FederateInternalError)
virtual void	federationRestored () throw ( RTI::FederateInternalError)
Public Member Functions inherited from DtNullFederateAmbassador
	DtNullFederateAmbassador ()
	Default constructor.
virtual	~DtNullFederateAmbassador () throw ( RTI::FederateInternalError )
	Destructor.
virtual void	requestFederationRestoreSucceeded (const char *label) throw ( RTI::FederateInternalError )
virtual void	requestFederationRestoreFailed (const char *label, const char *reason) throw ( RTI::FederateInternalError)
virtual void	federationRestoreBegun () throw ( RTI::FederateInternalError )
virtual void	federationNotRestored () throw ( RTI::FederateInternalError )
virtual void	requestRetraction (RTI::EventRetractionHandle theHandle) throw ( RTI::EventNotKnown, RTI::FederateInternalError )

Static Public Member Functions
static DtVrlFederateAmbassador *	create ()
	returns a new DtVrlFedAmbassador

Protected Member Functions
	DtVrlFederateAmbassador (const DtVrlFederateAmbassador &src)
	copy constructor - not implemented.
DtVrlFederateAmbassador &	operator= (const DtVrlFederateAmbassador &src)
	assignment operator - not implemented.
virtual const RTI::Region *	getRegionFromAttributes (const RTI::AttributeHandleValuePairSet &theAttributes) const
virtual const RTI::Region *	getRegionFromParameters (const RTI::ParameterHandleValuePairSet &theAttributes) const
virtual void	processAttributesOutOfScope (RTI::ObjectHandle handle)
virtual void	applyFedsSynchedCallbacks (const char *label)
	Utility functions.
virtual void	applyRegistrationSucceededCallbacks (const char *label)
virtual void	applyRegistrationFailedCallbacks (const char *label)
virtual bool	applyAnnounceCallbacks (const char *label, const char *tag)
	Return true if any are applied (i.e., don't auto-reply)
Protected Member Functions inherited from DtNullFederateAmbassador
	DtNullFederateAmbassador (const DtNullFederateAmbassador &src)
	Copy constructor (not implemented)
DtNullFederateAmbassador &	operator= (const DtNullFederateAmbassador &src)
	Assignment operator (not implemented)

Static Protected Member Functions
static void	attributesOutOfScopeCb (void *usr)

Protected Attributes
DtExerciseConn *	myExConn
DtInteractionManager *	myInteractionManager
DtHlaObjectManager *	myHlaObjectManager
DtReflectAttributeValuesCbList	myRavCbList
DtUpdatesOnCbList	myUpdatesOnCbList
DtUpdatesOffCbList	myUpdatesOffCbList
DtStartRegCbList	myStartRegCbList
DtStopRegCbList	myStopRegCbList
DtStartStopInterCbList	myStartIntCbList
DtStartStopInterCbList	myStopIntCbList
DtFedTimeCbList	myTimeAdvanceGrantCbList
DtFedTimeCbList	myRegulationEnabledCbList
DtFedTimeCbList	myConstrainedEnabledCbList
std::list< DtFederateSaveCbInfo >	myFederateSaveCbList
	Lists for specific callbacks registered with VR-Link.
std::list < DtLabelledFederateSaveCbInfo >	myLabFederateSaveCbList
std::list < DtFederateRestoreCbInfo >	myFederateRestoreCbList
std::list < DtLabelledFederateRestoreCbInfo >	myLabFederateRestoreCbList
std::list < DtLabelledSynchPointCbInfo >	myLabSynchPtRegSucceededCbList
std::list < DtLabelledSynchPointCbInfo >	myLabSynchPtRegFailedCbList
std::list < DtLabelledSynchPointCbInfo >	myLabFederationSynchedCbList
std::list < DtLabelledAnnounceCbInfo >	myLabAnnounceSynchPointCbList
std::list < DtGeneralSynchPointCbInfo >	mySynchPtRegSucceededCbList
std::list < DtGeneralSynchPointCbInfo >	mySynchPtRegFailedCbList
std::list < DtGeneralSynchPointCbInfo >	myFederationSynchedCbList
std::list < DtGeneralAnnounceCbInfo >	myAnnounceSynchPointCbList
bool	myRemoveObjectOnAttOutOfScope
bool	myWaitingForSave
bool	myWaitingForRestore

Constructor & Destructor Documentation

DtVrlFederateAmbassador::DtVrlFederateAmbassador

(

)

default constructor

virtual DtVrlFederateAmbassador::~DtVrlFederateAmbassador ( ) throw ( RTI::FederateInternalError )

virtual

destructor

DtVrlFederateAmbassador::DtVrlFederateAmbassador ( const DtVrlFederateAmbassador &  src )

protected

copy constructor - not implemented.

Member Function Documentation

virtual void DtVrlFederateAmbassador::addAnnounceSynchPointCb ( const DtString &  label, DtAnnounceSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::addAnnounceSynchPointCb ( DtAnnounceSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::addDiscoverObjectCb ( RTI::ObjectClassHandle  hand, DtDiscoverObjectCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's discoverObject service is invoked.

virtual void DtVrlFederateAmbassador::addFederateRestoreCb ( const DtString &  label, DtFederateRestoreCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation restore callbacks.

virtual void DtVrlFederateAmbassador::addFederateRestoreCb ( DtFederateRestoreCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation restore callbacks.

virtual void DtVrlFederateAmbassador::addFederateSaveCb ( const DtString &  label, DtFederateSaveCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation save callbacks.

virtual void DtVrlFederateAmbassador::addFederateSaveCb ( DtFederateSaveCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation save callbacks.

virtual void DtVrlFederateAmbassador::addFederationSynchedCb ( const DtString &  label, DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::addFederationSynchedCb ( DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::addReceiveInteractionCb ( RTI::InteractionClassHandle  hand, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's receiveInteraction service is invoked.

virtual void DtVrlFederateAmbassador::addReflectAttributeValuesCb ( RTI::ObjectHandle  id, DtReflectAttributeValuesCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's reflectAttributeValues service is invoked.

virtual void DtVrlFederateAmbassador::addRemoveObjectCb ( RTI::ObjectHandle  id, DtRemoveObjectCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's removeObject service is invoked.

virtual void DtVrlFederateAmbassador::addStartInteractionsCb ( RTI::InteractionClassHandle  hand, DtStartStopInterCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's startInteractionGeneration service is invoked.

virtual void DtVrlFederateAmbassador::addStartRegCb ( RTI::ObjectClassHandle  hand, DtStartRegCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's startRegistration service is invoked.

virtual void DtVrlFederateAmbassador::addStopInteractionsCb ( RTI::InteractionClassHandle  hand, DtStartStopInterCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's stopInteractionGeneration service is invoked.

virtual void DtVrlFederateAmbassador::addStopRegCb ( RTI::ObjectClassHandle  hand, DtStopRegCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's stopReg service is invoked.

virtual void DtVrlFederateAmbassador::addSynchPointRegFailedCb ( const DtString &  label, DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::addSynchPointRegFailedCb ( DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::addSynchPointRegSucceededCb ( const DtString &  label, DtSynchPointCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for sync point callbacks.

virtual void DtVrlFederateAmbassador::addSynchPointRegSucceededCb ( DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::addTimeAdvanceGrantCb ( DtFedTimeCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's TimeAdvanceGrant service is invoked.

virtual void DtVrlFederateAmbassador::addTimeConstrainedEnabledCb ( DtFedTimeCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's TimeConstrainedEnabled service is invoked.

virtual void DtVrlFederateAmbassador::addTimeRegulationEnabledCb ( DtFedTimeCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's TimeRegulationEnabled service is invoked.

virtual void DtVrlFederateAmbassador::addUpdatesOffCb ( RTI::ObjectHandle  hand, DtUpdatesOffCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOff service is invoked.

virtual void DtVrlFederateAmbassador::addUpdatesOnCb ( RTI::ObjectHandle  hand, DtUpdatesOnCb  cb, void *  usr  )

virtual

Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOn service is invoked.

virtual void DtVrlFederateAmbassador::announceSynchronizationPoint ( const char *  label, const char *  tag  ) throw ( RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

virtual bool DtVrlFederateAmbassador::applyAnnounceCallbacks ( const char *  label, const char *  tag  )

protectedvirtual

Return true if any are applied (i.e., don't auto-reply)

virtual void DtVrlFederateAmbassador::applyFedsSynchedCallbacks ( const char *  label )

protectedvirtual

Utility functions.

virtual void DtVrlFederateAmbassador::applyRegistrationFailedCallbacks ( const char *  label )

protectedvirtual

virtual void DtVrlFederateAmbassador::applyRegistrationSucceededCallbacks ( const char *  label )

protectedvirtual

virtual void DtVrlFederateAmbassador::attributeIsNotOwned ( RTI::ObjectHandle  theObject, RTI::AttributeHandle  theAttribute  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError )

virtual

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnedByRTI ( RTI::ObjectHandle  theObject, RTI::AttributeHandle  theAttribute  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)

virtual

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipAcquisitionNotification ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  securedAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAcquisitionWasNotRequested, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipDivestitureNotification ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  releasedAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::AttributeDivestitureWasNotRequested, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipUnavailable ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  theAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotRequested, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributesInScope ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  theAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributesOutOfScope ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  theAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError)

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

static void DtVrlFederateAmbassador::attributesOutOfScopeCb ( void *  usr )

staticprotected

virtual void DtVrlFederateAmbassador::confirmAttributeOwnershipAcquisitionCancellation ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  theAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotCanceled, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

static DtVrlFederateAmbassador* DtVrlFederateAmbassador::create ( )

static

returns a new DtVrlFedAmbassador

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::discoverObjectInstance ( RTI::ObjectHandle  theObject, RTI::ObjectClassHandle  theObjectClass, const char *  theObjectName  ) throw ( RTI::CouldNotDiscover, RTI::ObjectClassNotKnown, RTI::FederateInternalError )

virtual

! Object Management Services //!

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationNotSaved ( ) throw ( RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationRestored ( ) throw ( RTI::FederateInternalError)

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationSaved ( ) throw ( RTI::FederateInternalError)

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationSynchronized ( const char *  label ) throw ( RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

virtual const RTI::Region* DtVrlFederateAmbassador::getRegionFromAttributes ( const RTI::AttributeHandleValuePairSet &  theAttributes ) const

protectedvirtual

virtual const RTI::Region* DtVrlFederateAmbassador::getRegionFromParameters ( const RTI::ParameterHandleValuePairSet &  theAttributes ) const

protectedvirtual

virtual void DtVrlFederateAmbassador::informAttributeOwnership ( RTI::ObjectHandle  theObject, RTI::AttributeHandle  theAttribute, RTI::FederateHandle  theOwner  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateInternalError )

virtual

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::init ( DtExerciseConn *  exConn, DtHlaObjectManager *  hlaObjMgr, DtInteractionManager *  interMgr  )

virtual

Initialize the ambassador.

Needs to be called after construction.

virtual void DtVrlFederateAmbassador::initiateFederateRestore ( const char *  label, RTI::FederateHandle  handle  ) throw ( RTI::SpecifiedSaveLabelDoesNotExist, RTI::CouldNotRestore, RTI::FederateInternalError)

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::initiateFederateSave ( const char *  label ) throw ( RTI::UnableToPerformSave, RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

DtVrlFederateAmbassador& DtVrlFederateAmbassador::operator= ( const DtVrlFederateAmbassador &  src )

protected

assignment operator - not implemented.

virtual void DtVrlFederateAmbassador::processAttributesOutOfScope ( RTI::ObjectHandle  handle )

protectedvirtual

virtual void DtVrlFederateAmbassador::provideAttributeValueUpdate ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  theAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction, const RTI::ParameterHandleValuePairSet &  theParameters, const RTI::FedTime &  theTime, const char *  theTag, RTI::EventRetractionHandle  theHandle  ) throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError )

virtual

4.6

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction, const RTI::ParameterHandleValuePairSet &  theParameters, const char *  theTag  ) throw ( RTI::InteractionClassNotKnown, RTI::InteractionParameterNotKnown, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleValuePairSet &  theAttributes, const RTI::FedTime &  theTime, const char *  theTag, RTI::EventRetractionHandle  theHandle  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::InvalidFederationTime, RTI::FederateInternalError )

virtual

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleValuePairSet &  theAttributes, const char *  theTag  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::FederateOwnsAttributes, RTI::FederateInternalError)

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::removeAnnounceSynchPointCb ( const DtString &  label, DtAnnounceSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeAnnounceSynchPointCb ( DtAnnounceSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeDiscoverObjectCb ( RTI::ObjectClassHandle  hand, DtDiscoverObjectCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeFederateRestoreCb ( const DtString &  label, DtFederateRestoreCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation restore callbacks.

virtual void DtVrlFederateAmbassador::removeFederateRestoreCb ( DtFederateRestoreCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation restore callbacks.

virtual void DtVrlFederateAmbassador::removeFederateSaveCb ( const DtString &  label, DtFederateSaveCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation save callbacks.

virtual void DtVrlFederateAmbassador::removeFederateSaveCb ( DtFederateSaveCb  func, void *  usr  )

virtual

Methods to add/remove user callbacks for federation save callbacks.

virtual void DtVrlFederateAmbassador::removeFederationSynchedCb ( const DtString &  label, DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeFederationSynchedCb ( DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeObjectInstance ( RTI::ObjectHandle  theObject, const RTI::FedTime &  theTime, const char *  theTag, RTI::EventRetractionHandle  theHandle  ) throw ( RTI::ObjectNotKnown, RTI::InvalidFederationTime, RTI::FederateInternalError )

virtual

supplied C1

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::removeObjectInstance ( RTI::ObjectHandle  theObject, const char *  theTag  ) throw ( RTI::ObjectNotKnown, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual bool DtVrlFederateAmbassador::removeObjectOnAttOutOfScope ( ) const

virtual

virtual void DtVrlFederateAmbassador::removeReceiveInteractionCb ( RTI::InteractionClassHandle  hand, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

virtual

virtual void DtVrlFederateAmbassador::removeReflectAttributeValuesCb ( RTI::ObjectHandle  id, DtReflectAttributeValuesCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeRemoveObjectCb ( RTI::ObjectHandle  id, DtRemoveObjectCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeStartInteractionsCb ( RTI::InteractionClassHandle  hand, DtStartStopInterCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeStartRegCb ( RTI::ObjectClassHandle  hand, DtStartRegCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeStopInteractionsCb ( RTI::InteractionClassHandle  hand, DtStartStopInterCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeStopRegCb ( RTI::ObjectClassHandle  hand, DtStopRegCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeSynchPointRegFailedCb ( const DtString &  label, DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeSynchPointRegFailedCb ( DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeSynchPointRegSucceededCb ( const DtString &  label, DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeSynchPointRegSucceededCb ( DtSynchPointCb  func, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeTimeAdvanceGrantCb ( DtFedTimeCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeTimeConstrainedEnabledCb ( DtFedTimeCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeTimeRegulationEnabledCb ( DtFedTimeCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeUpdatesOffCb ( RTI::ObjectHandle  hand, DtUpdatesOffCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::removeUpdatesOnCb ( RTI::ObjectHandle  hand, DtUpdatesOnCb  cb, void *  usr  )

virtual

virtual void DtVrlFederateAmbassador::requestAttributeOwnershipAssumption ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  offeredAttributes, const char *  theTag  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError )

virtual

Ownership Management Services.

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::requestAttributeOwnershipRelease ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  candidateAttributes, const char *  theTag  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::setRemoveObjectOnAttOutOfScope ( bool  remove )

virtual

virtual void DtVrlFederateAmbassador::startRegistrationForObjectClass ( RTI::ObjectClassHandle  theClass ) throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError )

virtual

! Declaration Management Services //!

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::stopRegistrationForObjectClass ( RTI::ObjectClassHandle  theClass ) throw ( RTI::ObjectClassNotPublished, RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::synchronizationPointRegistrationFailed ( const char *  label ) throw ( RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::synchronizationPointRegistrationSucceeded ( const char *  label ) throw ( RTI::FederateInternalError )

virtual

sync points

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeAdvanceGrant ( const RTI::FedTime &  theTime ) throw ( RTI::InvalidFederationTime, RTI::TimeAdvanceWasNotInProgress, RTI::FederateInternalError )

virtual

The functions below should probably be protected, but they need to be called by various VR-Link classes to implement the setReflecting() idea, when reflectingThroughRti is true.

Other users should not call these functions directly. Overridden versions of RTI service calls.

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeConstrainedEnabled ( const RTI::FedTime &  theTime ) throw ( RTI::InvalidFederationTime, RTI::EnableTimeConstrainedWasNotPending, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeRegulationEnabled ( const RTI::FedTime &  theTime ) throw ( RTI::InvalidFederationTime, RTI::EnableTimeRegulationWasNotPending, RTI::FederateInternalError )

virtual

! Time Management Services //!

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnInteractionsOff ( RTI::InteractionClassHandle  theHandle ) throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnInteractionsOn ( RTI::InteractionClassHandle  theHandle ) throw ( RTI::InteractionClassNotPublished, RTI::FederateInternalError )

virtual

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnUpdatesOffForObjectInstance ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  theAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnUpdatesOnForObjectInstance ( RTI::ObjectHandle  theObject, const RTI::AttributeHandleSet &  theAttributes  ) throw ( RTI::ObjectNotKnown, RTI::AttributeNotOwned, RTI::FederateInternalError )

virtual

supplied C4

Reimplemented from DtNullFederateAmbassador.

virtual bool DtVrlFederateAmbassador::waitingForSaveOrRestore ( ) const

virtual

Member Data Documentation

std::list<DtGeneralAnnounceCbInfo> DtVrlFederateAmbassador::myAnnounceSynchPointCbList

protected

DtFedTimeCbList DtVrlFederateAmbassador::myConstrainedEnabledCbList

protected

DtExerciseConn* DtVrlFederateAmbassador::myExConn

protected

std::list<DtFederateRestoreCbInfo> DtVrlFederateAmbassador::myFederateRestoreCbList

protected

std::list<DtFederateSaveCbInfo> DtVrlFederateAmbassador::myFederateSaveCbList

protected

Lists for specific callbacks registered with VR-Link.

std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::myFederationSynchedCbList

protected

DtHlaObjectManager* DtVrlFederateAmbassador::myHlaObjectManager

protected

DtInteractionManager* DtVrlFederateAmbassador::myInteractionManager

protected

std::list<DtLabelledAnnounceCbInfo> DtVrlFederateAmbassador::myLabAnnounceSynchPointCbList

protected

std::list<DtLabelledFederateRestoreCbInfo> DtVrlFederateAmbassador::myLabFederateRestoreCbList

protected

std::list<DtLabelledFederateSaveCbInfo> DtVrlFederateAmbassador::myLabFederateSaveCbList

protected

std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabFederationSynchedCbList

protected

std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabSynchPtRegFailedCbList

protected

std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabSynchPtRegSucceededCbList

protected

DtReflectAttributeValuesCbList DtVrlFederateAmbassador::myRavCbList

protected

DtFedTimeCbList DtVrlFederateAmbassador::myRegulationEnabledCbList

protected

bool DtVrlFederateAmbassador::myRemoveObjectOnAttOutOfScope

protected

DtStartStopInterCbList DtVrlFederateAmbassador::myStartIntCbList

protected

DtStartRegCbList DtVrlFederateAmbassador::myStartRegCbList

protected

DtStartStopInterCbList DtVrlFederateAmbassador::myStopIntCbList

protected

DtStopRegCbList DtVrlFederateAmbassador::myStopRegCbList

protected

std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::mySynchPtRegFailedCbList

protected

std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::mySynchPtRegSucceededCbList

protected

DtFedTimeCbList DtVrlFederateAmbassador::myTimeAdvanceGrantCbList

protected

DtUpdatesOffCbList DtVrlFederateAmbassador::myUpdatesOffCbList

protected

DtUpdatesOnCbList DtVrlFederateAmbassador::myUpdatesOnCbList

protected

bool DtVrlFederateAmbassador::myWaitingForRestore

protected

bool DtVrlFederateAmbassador::myWaitingForSave

protected

---

The documentation for this class was generated from the following file:

• vrlFederateAmbassador13.h
