DtReflectedAdditionalPassiveActivities Class Reference

Instances of DtReflectedAdditionalPassiveActivities represent APA object simulated by remote applications. More...

Inheritance diagram for DtReflectedAdditionalPassiveActivities:

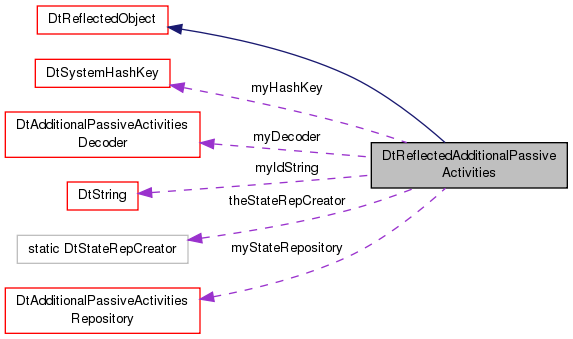

Collaboration diagram for DtReflectedAdditionalPassiveActivities:

Public Types
typedef DtAdditionalPassiveActivitiesRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtAdditionalPassiveActivitiesRepositories.

Public Member Functions
	DtReflectedAdditionalPassiveActivities (DtExerciseConn *conn, const DtGlobalObjectDesignator &hostEntity, int apaParamIndex)
	Constructor.
virtual	~DtReflectedAdditionalPassiveActivities ()
	Destructor.
virtual DtAdditionalPassiveActivitiesRepository *	additionalPassiveActivitiesRep () const
	Get the APA's state repository.
virtual DtAdditionalPassiveActivitiesRepository *	asr () const
	Synonym for additionalPassiveActivitiesRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository through which you can inspect current state information.
virtual DtAdditionalPassiveActivitiesDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages.
virtual void	processStateMessage (const DtStateMsg &msg)
	Overrides the implementation of the base class.
virtual DtReflectedAdditionalPassiveActivities *	next () const
	Get the next APA.
virtual DtReflectedAdditionalPassiveActivities *	prev () const
	Get the previous APA.
virtual DtReflectedAdditionalPassiveActivities *	wrapNext () const
	Get the next APA.
virtual DtReflectedAdditionalPassiveActivities *	wrapPrev () const
	Get the previous APA.
virtual void	addPostUpdateCallback (DtApaCallbackFunction cb, void *userData)
	APA state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtApaCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the APA entityId.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator ()

Protected Member Functions
	DtReflectedAdditionalPassiveActivities (const DtReflectedAdditionalPassiveActivities &)
	Copy constructor - not implemented.
DtReflectedAdditionalPassiveActivities &	operator= (const DtReflectedAdditionalPassiveActivities &)
	Assignment operator - not implemented.
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtSystemHashKey	myHashKey
DtString	myIdString
DtAdditionalPassiveActivitiesRepository *	myStateRepository
DtAdditionalPassiveActivitiesDecoder	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedAdditionalPassiveActivities represent APA object simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtAdditionalPassiveActivitiesRepository*(* DtReflectedAdditionalPassiveActivities::DtStateRepCreator)()

Function prototype for functions that create DtAdditionalPassiveActivitiesRepositories.

Constructor & Destructor Documentation

DtReflectedAdditionalPassiveActivities::DtReflectedAdditionalPassiveActivities	(	DtExerciseConn *	conn,
		const DtGlobalObjectDesignator &	hostEntity,
		int	apaParamIndex
	)

Constructor.

virtual DtReflectedAdditionalPassiveActivities::~DtReflectedAdditionalPassiveActivities ( )

virtual

Destructor.

DtReflectedAdditionalPassiveActivities::DtReflectedAdditionalPassiveActivities ( const DtReflectedAdditionalPassiveActivities &  )

protected

Copy constructor - not implemented.

Member Function Documentation

virtual DtAdditionalPassiveActivitiesRepository* DtReflectedAdditionalPassiveActivities::additionalPassiveActivitiesRep ( ) const

inlinevirtual

Get the APA's state repository.

virtual void DtReflectedAdditionalPassiveActivities::addPostUpdateCallback ( DtApaCallbackFunction  cb, void *  userData  )

virtual

APA state callback registration/deregistration.

virtual DtAdditionalPassiveActivitiesRepository* DtReflectedAdditionalPassiveActivities::asr ( ) const

inlinevirtual

Synonym for additionalPassiveActivitiesRep().

virtual DtAdditionalPassiveActivitiesDecoder* DtReflectedAdditionalPassiveActivities::decoder ( )

inlinevirtual

Returns a pointer to the Decoder being used to decode state messages.

virtual const DtGlobalObjectDesignator& DtReflectedAdditionalPassiveActivities::globalId ( ) const

virtual

Get the APA entityId.

For DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedAdditionalPassiveActivities::hashKey ( ) const

inlinevirtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedAdditionalPassiveActivities::idString ( ) const

inlinevirtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::next ( ) const

virtual

Get the next APA.

Reimplemented from DtListedObj.

DtReflectedAdditionalPassiveActivities& DtReflectedAdditionalPassiveActivities::operator= ( const DtReflectedAdditionalPassiveActivities &  )

protected

Assignment operator - not implemented.

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::prev ( ) const

virtual

Get the previous APA.

Reimplemented from DtListedObj.

virtual void DtReflectedAdditionalPassiveActivities::processStateMessage ( const DtStateMsg &  msg )

virtual

Overrides the implementation of the base class.

Processes an Underwater Acoustic PDU.

Reimplemented from DtReflectedObject.

virtual void DtReflectedAdditionalPassiveActivities::removePostUpdateCallback ( DtApaCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedAdditionalPassiveActivities::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedAdditionalPassiveActivities::stateRep ( ) const

inlinevirtual

Returns a pointer to the StateRepository through which you can inspect current state information.

Implementation for abstract base class.

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedAdditionalPassiveActivities::stateRepCreator ( )

static

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::wrapNext ( ) const

virtual

Get the next APA.

If at the end, it will cycle back to the first APA.

Reimplemented from DtListedObj.

virtual DtReflectedAdditionalPassiveActivities* DtReflectedAdditionalPassiveActivities::wrapPrev ( ) const

virtual

Get the previous APA.

If at the beginning, it will cycle back to the last APA.

Reimplemented from DtListedObj.

Member Data Documentation

DtAdditionalPassiveActivitiesDecoder DtReflectedAdditionalPassiveActivities::myDecoder

protected

DtSystemHashKey DtReflectedAdditionalPassiveActivities::myHashKey

protected

DtString DtReflectedAdditionalPassiveActivities::myIdString

protected

DtAdditionalPassiveActivitiesRepository* DtReflectedAdditionalPassiveActivities::myStateRepository

protected

DtStateRepCreator DtReflectedAdditionalPassiveActivities::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedAdditionalPassiveActivitiesDIS.h
