DtReflectedObjectList Class Reference

Instances of DtReflectedObjectList are lists of instances of classes derived from DtReflectedObject. More...

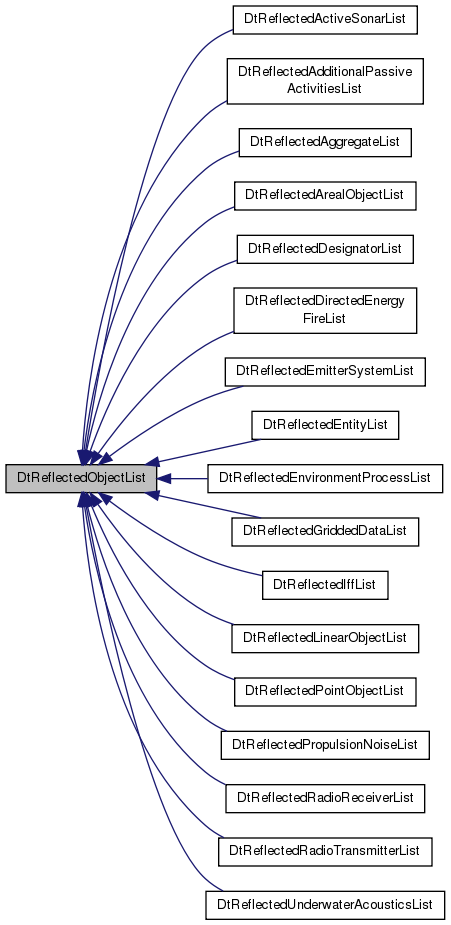

Inheritance diagram for DtReflectedObjectList:

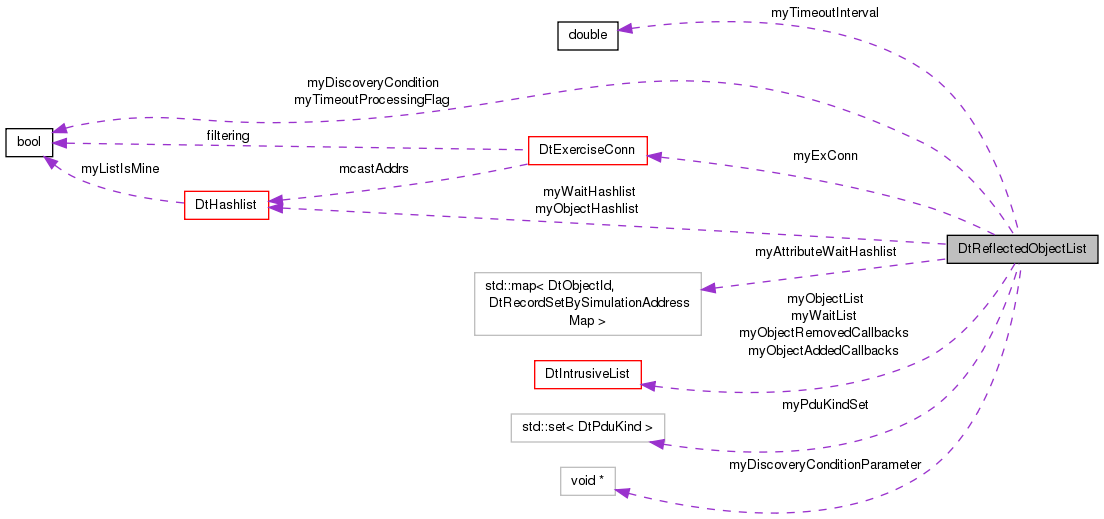

Collaboration diagram for DtReflectedObjectList:

Public Member Functions
	DtReflectedObjectList (DtExerciseConn *exConn)
	Constructor.
virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete
virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU.
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list.
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects.
virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object.
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn.
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration.
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration.
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print () const
	Print the SRs of all objects.
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs.
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period.
virtual DtTime	timeoutInterval ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref.
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition.
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Remove the remote object from the list if found and delete it.
virtual void	removeObject (DtReflectedObject *obj)
	This is the same as removeAndDelete, it exists to maintain equality with HLA objects.

Protected Member Functions
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)=0
	Create a new object from a state message.
virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message.
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period.
virtual void	objectAdded (DtReflectedObject *object)
	Called after a remote object has been added to the list.
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out.
void	emptyLists ()
	Empty the object list and the timeout list.
void	emptyCallbackLists ()
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks.
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)=0
	Get a hash key from a state message.
virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set.
virtual int	acceptPdu (const DtStateMsg &) const
	Determines if a PDU should be processed or not.
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within.
virtual void	processAttributePduCb (DtAttributeInteraction *inter)
virtual void	processAttributePduRecordSet (const DtAttributeRecordSet &recordSet, const DtSimulationAddress &simAddr, DtReflectedObject *obj=0)
virtual void	processAttributePduWaitListCb (DtReflectedObject *obj)
virtual void	deleteRecordSetBySimulationAddressMap (DtRecordSetBySimulationAddressMap &recordSetMap, const DtSimulationAddress &simAddr=DtSimulationAddress()) const

Static Protected Member Functions
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts.
static void	processAttributePduCb (DtAttributeInteraction *inter, void *usr)
static void	processAttributePduWaitListCb (DtReflectedObject *obj, void *userData)

Protected Attributes
DtExerciseConn *	myExConn
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtIntrusiveList	myObjectList
DtIntrusiveList	myWaitList
DtHashlist	myObjectHashlist
DtHashlist	myWaitHashlist
DtAttributesByObjectIdMap	myAttributeWaitHashlist
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
std::set< DtPduKind >	myPduKindSet

Private Member Functions
	DtReflectedObjectList (const DtReflectedObjectList &orig)
	copy constructor – not implemented
DtReflectedObjectList &	operator= (const DtReflectedObjectList &orig)
	assignment operator – not implemented

Detailed Description

Instances of DtReflectedObjectList are lists of instances of classes derived from DtReflectedObject.

A DtReflectedObjectList manages the comings and goings of its reflected objects based on discoveries and removes received from the exercise connection.

Constructor & Destructor Documentation

DtReflectedObjectList::DtReflectedObjectList

(

DtExerciseConn *

exConn

)

Constructor.

virtual DtReflectedObjectList::~DtReflectedObjectList ( )

virtual

destructor Warning: makes non-virtual call to removeAndDelete

DtReflectedObjectList::DtReflectedObjectList ( const DtReflectedObjectList &  orig )

private

copy constructor – not implemented

Member Function Documentation

virtual int DtReflectedObjectList::acceptPdu ( const DtStateMsg &  ) const

protectedvirtual

Determines if a PDU should be processed or not.

Right now, this function returns 1.

Reimplemented in DtReflectedAdditionalPassiveActivitiesList, DtReflectedActiveSonarList, DtReflectedPropulsionNoiseList, DtReflectedDesignatorList, DtReflectedDirectedEnergyFireList, DtReflectedArealObjectList, DtReflectedLinearObjectList, and DtReflectedPointObjectList.

virtual void DtReflectedObjectList::addObjectAdditionCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

Object added callback registration/deregistration.

virtual void DtReflectedObjectList::addObjectRemovalCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

Object removed callback registration/deregistration.

virtual void DtReflectedObjectList::clearDiscoveryCondition ( )

virtual

Unregisters the checker function set in setDiscoverCondition.

If there is none set, this has no effect.

virtual int DtReflectedObjectList::count ( ) const

virtual

Get number of objects.

virtual void DtReflectedObjectList::deleteRecordSetBySimulationAddressMap ( DtRecordSetBySimulationAddressMap &  recordSetMap, const DtSimulationAddress &  simAddr = DtSimulationAddress()  ) const

protectedvirtual

virtual void DtReflectedObjectList::doTimeouts ( )

protectedvirtual

Remove any remote objects which have not been updated during the timeout period.

Gets called automatically by a postDrainCallback registered by the constructor. Users should not need to call this.

static void DtReflectedObjectList::doTimeoutsPostDrainCb ( void *  usr )

staticprotected

Calls doTimeouts.

void DtReflectedObjectList::emptyCallbackLists ( )

protected

void DtReflectedObjectList::emptyLists ( )

protected

Empty the object list and the timeout list.

Non-virtual since meant to be called from destructor. Warning: makes non-virtual call to removeAndDelete

virtual DtExerciseConn* DtReflectedObjectList::exerciseConn ( ) const

virtual

Get my exerciseConn.

virtual DtReflectedObject* DtReflectedObjectList::firstObj ( ) const

virtual

Get the first/last object in the list.

virtual DtBaseHashKey* DtReflectedObjectList::hashKeyFromAttributeRecordSet ( const DtAttributeRecordSet &  recordSet )

protectedvirtual

Get a hash key from an attribute record set.

virtual const DtBaseHashKey& DtReflectedObjectList::hashKeyFromStateMessage ( const DtStateMsg *  msg )

protectedpure virtual

Get a hash key from a state message.

Implemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedActiveSonarList, DtReflectedDesignatorList, DtReflectedDirectedEnergyFireList, DtReflectedRadioTransmitterList, DtReflectedArealObjectList, DtReflectedLinearObjectList, DtReflectedPointObjectList, DtReflectedAggregateList, DtReflectedRadioReceiverList, DtReflectedGriddedDataList, DtReflectedEnvironmentProcessList, DtReflectedPropulsionNoiseList, and DtReflectedUnderwaterAcousticsList.

virtual void DtReflectedObjectList::initializeAttributePduKindsOfInterest ( const std::set< DtPduKind > &  pduKinds )

virtual

This initializes which PDU kinds will be processed when receiving an Attribute PDU.

virtual DtReflectedObject* DtReflectedObjectList::lastObj ( ) const

virtual

virtual DtReflectedObject* DtReflectedObjectList::lookupObj ( const DtBaseHashKey &  key ) const

virtual

Search for an object.

virtual DtReflectedObject* DtReflectedObjectList::newReflectedObj ( const DtStateMsg &  msg )

protectedpure virtual

Create a new object from a state message.

Implemented in DtReflectedEntityList, DtReflectedIffList, DtReflectedEmitterSystemList, DtReflectedAggregateList, DtReflectedRadioTransmitterList, DtReflectedRadioReceiverList, DtReflectedGriddedDataList, DtReflectedUnderwaterAcousticsList, DtReflectedEnvironmentProcessList, DtReflectedPropulsionNoiseList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedActiveSonarList, DtReflectedDesignatorList, DtReflectedDirectedEnergyFireList, DtReflectedArealObjectList, DtReflectedLinearObjectList, and DtReflectedPointObjectList.

virtual void DtReflectedObjectList::objectAdded ( DtReflectedObject *  object )

protectedvirtual

Called after a remote object has been added to the list.

Defaults to do nothing. Subclasses can override this function to add functionality on addition.

Reimplemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedActiveSonarList, DtReflectedDesignatorList, DtReflectedDirectedEnergyFireList, DtReflectedAggregateList, DtReflectedArealObjectList, DtReflectedLinearObjectList, DtReflectedPointObjectList, DtReflectedRadioTransmitterList, DtReflectedPropulsionNoiseList, DtReflectedRadioReceiverList, DtReflectedGriddedDataList, DtReflectedEnvironmentProcessList, and DtReflectedUnderwaterAcousticsList.

DtReflectedObjectList& DtReflectedObjectList::operator= ( const DtReflectedObjectList &  orig )

private

assignment operator – not implemented

virtual void DtReflectedObjectList::print ( ) const

virtual

Print the SRs of all objects.

Reimplemented in DtReflectedAdditionalPassiveActivitiesList, DtReflectedActiveSonarList, DtReflectedDesignatorList, DtReflectedUnderwaterAcousticsList, DtReflectedDirectedEnergyFireList, DtReflectedPropulsionNoiseList, DtReflectedArealObjectList, DtReflectedLinearObjectList, and DtReflectedPointObjectList.

static void DtReflectedObjectList::processAttributePduCb ( DtAttributeInteraction *  inter, void *  usr  )

staticprotected

virtual void DtReflectedObjectList::processAttributePduCb ( DtAttributeInteraction *  inter )

protectedvirtual

Reimplemented in DtReflectedEmitterSystemList.

virtual void DtReflectedObjectList::processAttributePduRecordSet ( const DtAttributeRecordSet &  recordSet, const DtSimulationAddress &  simAddr, DtReflectedObject *  obj = 0  )

protectedvirtual

static void DtReflectedObjectList::processAttributePduWaitListCb ( DtReflectedObject *  obj, void *  userData  )

staticprotected

virtual void DtReflectedObjectList::processAttributePduWaitListCb ( DtReflectedObject *  obj )

protectedvirtual

virtual void DtReflectedObjectList::processObjectAdditionCallbacks ( DtReflectedObject *  object )

protectedvirtual

Process object addition/removal callbacks.

virtual void DtReflectedObjectList::processObjectRemovalCallbacks ( DtReflectedObject *  object )

protectedvirtual

virtual DtReflectedObject* DtReflectedObjectList::processStateMessage ( const DtStateMsg &  msg )

protectedvirtual

Process an incoming state message.

Reimplemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedActiveSonarList, DtReflectedAggregateList, DtReflectedDesignatorList, DtReflectedRadioTransmitterList, DtReflectedRadioReceiverList, DtReflectedDirectedEnergyFireList, DtReflectedGriddedDataList, DtReflectedEnvironmentProcessList, DtReflectedArealObjectList, DtReflectedLinearObjectList, and DtReflectedPointObjectList.

virtual bool DtReflectedObjectList::readyToAdd ( DtReflectedObject *  obj )

protectedvirtual

Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within.

virtual void DtReflectedObjectList::removeAndDelete ( DtReflectedObject *  obj, char *  msg = NULL  )

virtual

Remove the remote object from the list if found and delete it.

Prints a message on deletion if specified.

Reimplemented in DtReflectedIffList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedActiveSonarList, DtReflectedDesignatorList, DtReflectedDirectedEnergyFireList, DtReflectedArealObjectList, DtReflectedLinearObjectList, and DtReflectedPointObjectList.

virtual void DtReflectedObjectList::removeObject ( DtReflectedObject *  obj )

virtual

This is the same as removeAndDelete, it exists to maintain equality with HLA objects.

virtual void DtReflectedObjectList::removeObjectAdditionCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedObjectList::removeObjectRemovalCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedObjectList::setDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Set the checker function which will determine when an object gets discovered and put into the ref.

obj. list.

virtual void DtReflectedObjectList::setTimeoutInterval ( DtTime  time )

virtual

Set/Get the remote object timeout period.

virtual void DtReflectedObjectList::setTimeoutProcessing ( bool  onOff )

virtual

Set whether or not timeout processing occurs.

Defaults to On.

virtual bool DtReflectedObjectList::shouldBeTimedOut ( DtReflectedObject *  object )

protectedvirtual

Returns whether or not the object should be timed out.

Assumes that timeout processing is enabled.

virtual DtTime DtReflectedObjectList::timeoutInterval ( )

virtual

Member Data Documentation

DtAttributesByObjectIdMap DtReflectedObjectList::myAttributeWaitHashlist

protected

DtDiscoveryCondition DtReflectedObjectList::myDiscoveryCondition

protected

void* DtReflectedObjectList::myDiscoveryConditionParameter

protected

DtExerciseConn* DtReflectedObjectList::myExConn

protected

DtIntrusiveList DtReflectedObjectList::myObjectAddedCallbacks

protected

DtHashlist DtReflectedObjectList::myObjectHashlist

protected

DtIntrusiveList DtReflectedObjectList::myObjectList

protected

DtIntrusiveList DtReflectedObjectList::myObjectRemovedCallbacks

protected

std::set<DtPduKind> DtReflectedObjectList::myPduKindSet

protected

DtTime DtReflectedObjectList::myTimeoutInterval

protected

bool DtReflectedObjectList::myTimeoutProcessingFlag

protected

DtHashlist DtReflectedObjectList::myWaitHashlist

protected

DtIntrusiveList DtReflectedObjectList::myWaitList

protected

---

The documentation for this class was generated from the following file:

• reflectedObjectListDIS.h
