DtStandardVariableRecord Class Reference

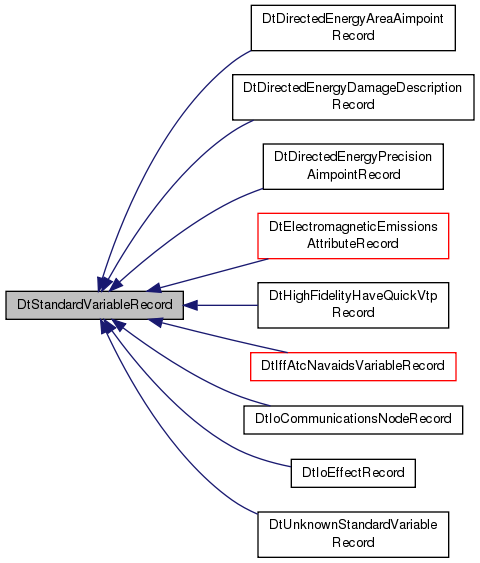

Inheritance diagram for DtStandardVariableRecord:

Collaboration diagram for DtStandardVariableRecord:

Public Member Functions
	DtStandardVariableRecord ()
	Constructor.
virtual	~DtStandardVariableRecord ()
	Destructor.
virtual bool	operator== (const DtStandardVariableRecord &other)=0
	Equals operator.
virtual unsigned int	recordType () const =0
	Setters and Getters for Record Type.
virtual void	setRecordType (unsigned int recordType)=0
virtual unsigned int	recordLength () const =0
	Setters and Getters for Record Length.
virtual void	setRecordLength (unsigned int recordLength)=0
virtual void	printData () const
	Prints the data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const =0
	Prints the data to the specified stream.
virtual void	writeRecord (void *addr) const =0
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)=0
	Sets the record from Network Representation from the given location.
virtual unsigned	unpaddedNetsize () const =0
	This is the network size of the record without padding.
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes)
virtual DtStandardVariableRecord *	clone () const =0
	Clone.
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Protected Attributes
DtSimulationAddress	myOriginatingSimulationAddress

Constructor & Destructor Documentation

DtStandardVariableRecord::DtStandardVariableRecord

(

)

Constructor.

virtual DtStandardVariableRecord::~DtStandardVariableRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtStandardVariableRecord::clone ( ) const

pure virtual

Clone.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, DtUnknownStandardVariableRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, and DtIffSquitterEventDrivenReportRecord.

virtual unsigned int DtStandardVariableRecord::netSize ( )

virtual

Returns the size of the network representation (including padding bytes)

Reimplemented in DtIffAtcNavaidsVariableRecord.

virtual bool DtStandardVariableRecord::operator== ( const DtStandardVariableRecord &  other )

pure virtual

Equals operator.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, DtUnknownStandardVariableRecord, and DtIffSquitterEventDrivenReportRecord.

virtual const DtSimulationAddress& DtStandardVariableRecord::originatingSimulationAddress ( ) const

virtual

virtual void DtStandardVariableRecord::printData ( ) const

virtual

Prints the data to DtInfo.

virtual void DtStandardVariableRecord::printDataToStream ( std::ostream &  stream ) const

pure virtual

Prints the data to the specified stream.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtIoEffectRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, DtIffCryptoControlRecord, DtUnknownStandardVariableRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, and DtIffSquitterEventDrivenReportRecord.

virtual unsigned int DtStandardVariableRecord::recordLength ( ) const

pure virtual

Setters and Getters for Record Length.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtIffSquitterEventDrivenReportRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual unsigned int DtStandardVariableRecord::recordType ( ) const

pure virtual

Setters and Getters for Record Type.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtIffSquitterEventDrivenReportRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

pure virtual

Sets the record from Network Representation from the given location.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtIffSquitterEventDrivenReportRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::setOriginatingSimulationAddress ( const DtSimulationAddress &  )

virtual

virtual void DtStandardVariableRecord::setRecordLength ( unsigned int  recordLength )

pure virtual

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtIffSquitterEventDrivenReportRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::setRecordType ( unsigned int  recordType )

pure virtual

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtIffSquitterEventDrivenReportRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual unsigned DtStandardVariableRecord::unpaddedNetsize ( ) const

pure virtual

This is the network size of the record without padding.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtIffSquitterEventDrivenReportRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::writeRecord ( void *  addr ) const

pure virtual

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, DtIffCryptoControlRecord, DtIffAntennaLocationRecord, DtIffBasicInteractiveRecord, DtIffGICBRecord, DtIffInteractiveBasicMode5Record, DtIffInteractiveBasicModeSRecord, DtIffInteractiveMode4ReplyRecord, DtIffInteractiveMode5ReplyRecord, DtIffMode5TransponderLocationRecord, DtIffSquitterAirbornePositionReportRecord, DtIffSquitterAirborneVelocityReportRecord, DtIffSquitterIdentificationReportRecord, DtIffSquitterSurfacePositionReportRecord, DtIffTransponderLocationErrorRecord, DtIffSquitterEventDrivenReportRecord, and DtUnknownStandardVariableRecord.

Member Data Documentation

DtSimulationAddress DtStandardVariableRecord::myOriginatingSimulationAddress

protected

---

The documentation for this class was generated from the following file:

• standardVariableRecord.h
