DtSubscribeStrategy Class Reference

This is the DtSubscribeStrategy class. It is the abstract base class for all derived interaction subscribe strategies. More...

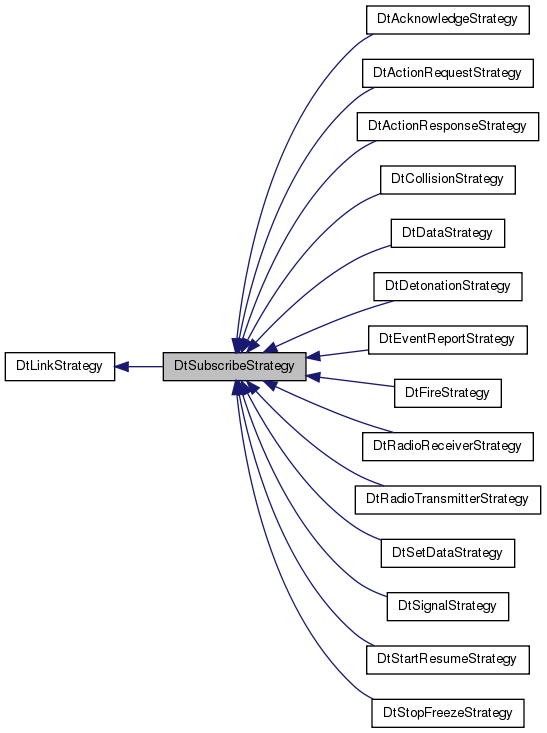

Inheritance diagram for DtSubscribeStrategy:

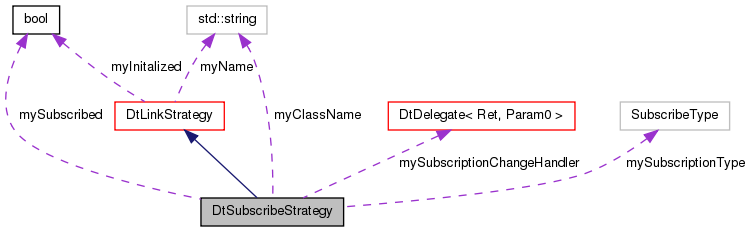

Collaboration diagram for DtSubscribeStrategy:

Public Member Functions
	DtSubscribeStrategy (std::string name, DtManagedInterface *link, std::string subscribeClassName, SubscribeMessage::SubscribeType subscribeType)
	constructor takes name
virtual	~DtSubscribeStrategy ()
	destructor
virtual void	shutdown ()
	Shutdown the strategy.
void	handleSubscriptionChange (DtMessage *msg)
Public Member Functions inherited from DtLinkStrategy
	DtLinkStrategy (std::string name, DtManagedInterface *link)
	constructor takes name
virtual	~DtLinkStrategy ()
	destructor
std::string	name ()
	Get the name of the strategy.
virtual bool	init ()=0
	Initialize the strategy.
virtual void	tick ()
	Tick the strategy to give it some CPU time.
virtual void	addChildStrategy (DtLinkStrategy *strategy)
	Functions for adding, removing or finding any child strategies This is typically used for the initialization strategy that "owns" all the other strategies.
virtual bool	removeChildStrategy (std::string name)
virtual DtLinkStrategy *	findStrategy (std::string name)

Protected Member Functions
virtual void	addVrlCallback (DtExerciseConn *exConn)=0
	Add/Remove VR-Link C++ Interaction Callback.
virtual void	removeVrlCallback (DtExerciseConn *exConn)=0

Protected Attributes
DtMessageDelegate *	mySubscriptionChangeHandler
bool	mySubscribed
std::string	myClassName
SubscribeMessage::SubscribeType	mySubscriptionType
Protected Attributes inherited from DtLinkStrategy
DtManagedInterface *	myManagedInterface
std::string	myName
bool	myInitalized
std::list< DtLinkStrategy * >	myChildStrategies

Detailed Description

This is the DtSubscribeStrategy class. It is the abstract base class for all derived interaction subscribe strategies.

Constructor & Destructor Documentation

DtSubscribeStrategy::DtSubscribeStrategy	(	std::string	name,
		DtManagedInterface *	link,
		std::string	subscribeClassName,
		SubscribeMessage::SubscribeType	subscribeType
	)

constructor takes name

virtual DtSubscribeStrategy::~DtSubscribeStrategy ( )

virtual

destructor

Member Function Documentation

virtual void DtSubscribeStrategy::addVrlCallback ( DtExerciseConn *  exConn )

protectedpure virtual

Add/Remove VR-Link C++ Interaction Callback.

Implemented in DtAcknowledgeStrategy, DtActionRequestStrategy, DtActionResponseStrategy, DtCollisionStrategy, DtDataStrategy, DtEventReportStrategy, DtSetDataStrategy, DtStartResumeStrategy, DtStopFreezeStrategy, DtDetonationStrategy, DtRadioReceiverStrategy, DtRadioTransmitterStrategy, DtSignalStrategy, and DtFireStrategy.

void DtSubscribeStrategy::handleSubscriptionChange

(

DtMessage *

msg

)

Reimplemented in DtAcknowledgeStrategy.

virtual void DtSubscribeStrategy::removeVrlCallback ( DtExerciseConn *  exConn )

protectedpure virtual

Implemented in DtAcknowledgeStrategy, DtActionRequestStrategy, DtActionResponseStrategy, DtCollisionStrategy, DtDataStrategy, DtEventReportStrategy, DtSetDataStrategy, DtStartResumeStrategy, DtStopFreezeStrategy, DtDetonationStrategy, DtRadioReceiverStrategy, DtRadioTransmitterStrategy, DtSignalStrategy, and DtFireStrategy.

virtual void DtSubscribeStrategy::shutdown ( )

virtual

Shutdown the strategy.

Reimplemented from DtLinkStrategy.

Reimplemented in DtAcknowledgeStrategy, DtActionRequestStrategy, DtActionResponseStrategy, DtCollisionStrategy, DtDataStrategy, DtEventReportStrategy, DtSetDataStrategy, DtStartResumeStrategy, DtStopFreezeStrategy, DtDetonationStrategy, DtRadioReceiverStrategy, DtRadioTransmitterStrategy, DtSignalStrategy, and DtFireStrategy.

Member Data Documentation

std::string DtSubscribeStrategy::myClassName

protected

bool DtSubscribeStrategy::mySubscribed

protected

DtMessageDelegate* DtSubscribeStrategy::mySubscriptionChangeHandler

protected

SubscribeMessage::SubscribeType DtSubscribeStrategy::mySubscriptionType

protected

---

The documentation for this class was generated from the following file:

• subscribeStrategy.h
