DtInteraction Class Reference

DtInteraction is an abstract base class for representing HLA interactions (or events) (as opposed to HLA objects). More...

Inheritance diagram for DtInteraction:

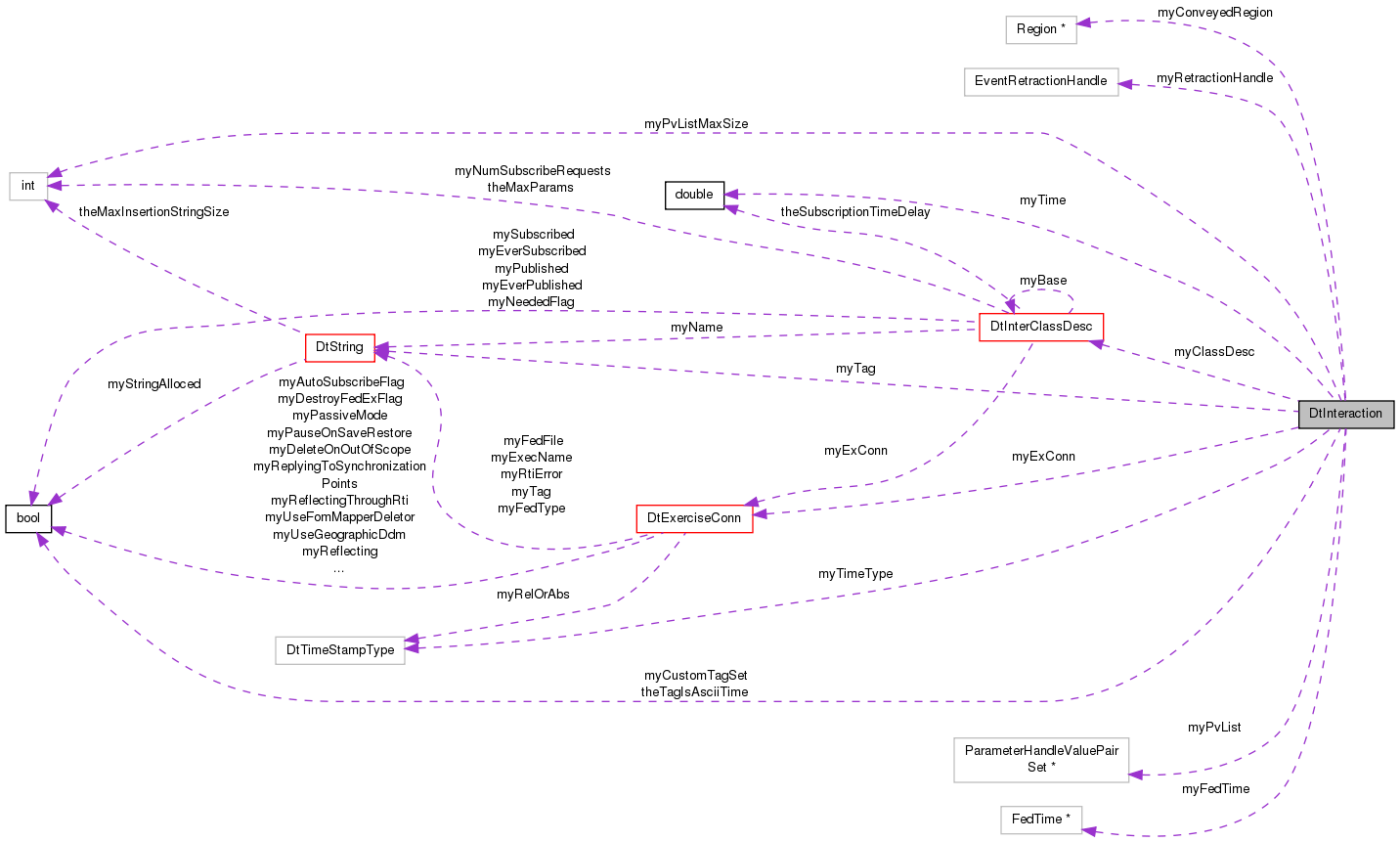

Collaboration diagram for DtInteraction:

Public Member Functions
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
virtual const RTI::ParameterHandleValuePairSet &	phvps () const =0
	Get the parameter handle value pair set for the interaction.
virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)=0
	Set contents from a parameter handle value pair set.
virtual void	setExConn (DtExerciseConn *exConn, DtInterClassDesc *classDesc=0)
	Sets the interaction's ExerciseConn and class descriptor.
virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc.
virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc.
virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc.
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise.
virtual void	print () const
	Print the interaction's host rep data, including header.
virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream.
virtual void	printHeader () const
	Print the header info.
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream.
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the stream.
virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters.
virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream.
virtual const char *	name () const =0
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection.
virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction.
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not.
virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag.
virtual void	setTag (const DtString &tag)
	Set the user-defined tag.
virtual const DtString &	tag () const
	Get the user-defined tag.
virtual const RTI::Region *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message.
virtual void	setConveyedRegion (const RTI::Region *region)
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time.
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions.
virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.
virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle.
virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle.

Static Public Member Functions
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp.
static bool	tagIsAsciiTime ()
static void	addCallback (DtExerciseConn *conn, const std::set< DtString > *classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes.
static void	removeCallback (DtExerciseConn *conn, const std::set< DtString > *classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
static void	addCallback (DtExerciseConn *conn, const char *className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class.
static void	removeCallback (DtExerciseConn *conn, const char *className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Member Functions
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use.
virtual RTI::ParameterHandleValuePairSet *	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps.
DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors).

Protected Attributes
DtInterClassDesc *	myClassDesc
DtExerciseConn *	myExConn
DtTime	myTime
DtTimeStampType	myTimeType
DtString	myTag
RTI::ParameterHandleValuePairSet *	myPvList
int	myPvListMaxSize
RTI::FedTime *	myFedTime
RTI::EventRetractionHandle	myRetractionHandle
const RTI::Region *	myConveyedRegion
bool	myCustomTagSet

Static Protected Attributes
static bool	theTagIsAsciiTime

Detailed Description

DtInteraction is an abstract base class for representing HLA interactions (or events) (as opposed to HLA objects).

Examples

• Listen
• Talk

Constructor & Destructor Documentation

DtInteraction::DtInteraction

(

)

default constructor

virtual DtInteraction::~DtInteraction ( )

virtual

destructor

DtInteraction::DtInteraction

(

const DtInteraction &

orig

)

copy constructor

Member Function Documentation

static void DtInteraction::addCallback ( DtExerciseConn *  conn, const std::set< DtString > *  classes, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes.

static void DtInteraction::addCallback ( DtExerciseConn *  conn, const char *  className, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

Can be used instead of above for a single class.

DtInterClassDesc * DtInteraction::classDesc ( ) const

inlinevirtual

Get the current class descriptor we're using for this interaction.

References myClassDesc.

virtual const RTI::Region* DtInteraction::conveyedRegion ( ) const

virtual

Get & Set the conveyed region of the reflected state message.

The region is only valid during the processing of the interaction callback. If the region information is needed after the callback it must be copied. If the region is NULL, there was not a conveyed region

virtual bool DtInteraction::customTagSet ( ) const

virtual

Get whether a custom tag has been set on the interaction or not.

RTI::EventRetractionHandle DtInteraction::eventRetractionHandle ( ) const

inlinevirtual

Get the event retraction handle. For more info see setEventRetractionHandle.

References myRetractionHandle.

DtExerciseConn * DtInteraction::exerciseConn ( ) const

inlinevirtual

Get the current exercise connection.

References myExConn.

virtual const RTI::FedTime* DtInteraction::fedTime ( ) const

virtual

When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.

If not you can compute time sent using timeStamp()

virtual DtTime DtInteraction::guessTimeValid ( DtTime  referenceTime ) const

virtual

Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.

RTI::InteractionClassHandle DtInteraction::interactionClassHandle ( ) const

inlinevirtual

Get the interaction class handle. Returns 0 if no classDesc.

References DtInterClassDesc::handle(), and myClassDesc.

char * DtInteraction::interactionClassName ( ) const

inlinevirtual

Get the interaction class name. Returns NULL if no classDesc.

References myClassDesc, and DtInterClassDesc::name().

virtual const char* DtInteraction::interactionClassToUse ( DtExerciseConn *  exConn ) const

protectedvirtual

Returns the FOM interaction class name to use.

Default implementation is to ask the fomMapper.

Reimplemented in TestSimpleInteraction, DtL16RadioSignalInteraction, TestInteraction, DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtVmfRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtRttabRadioSignalInteraction, and DtRttReplyRadioSignalInteraction.

virtual const char* DtInteraction::name ( ) const

pure virtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implemented in DtSignalInteraction, DtDetonationInteraction, DtLinearObjectTransaction, DtFireInteraction, DtPointObjectTransaction, DtAttributeChangeReqInter, DtDataQueryInteraction, DtAttributeChangeResInter, DtRecordRInteraction, DtCreateObjReqInter, DtServiceRequestInteraction, DtTransferControlInteraction, DtResupplyOfferInteraction, DtStopFreezeInteraction, DtArealObjectTransaction, DtResupplyRecInteraction, DtStartResumeInteraction, DtCollisionInteraction, DtUnknownInteraction, DtSetRecordInteraction, TestSimpleInteraction, DtEnvironmentObjectTransaction, DtRemoveObjectRequestInter, DtAcknowledgeInteraction, DtActionRequestToObjInter, DtActionResponseInteraction, DtActionRequestInteraction, DtCommentInteraction, DtDataInteraction, DtEventReportInteraction, DtRepairCompleteInteraction, DtRepairResponseInteraction, DtSetDataInteraction, DtRemoveEntityInteraction, DtCreateEntityInteraction, DtRemoveObjectResultInter, DtResupplyCancelInteraction, DtCreateObjectResultInter, DtActionResponseFromObjInter, TestInteraction, DtAcousticTransientInteraction, DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtL16RadioSignalInteraction, DtRttReplyRadioSignalInteraction, DtVmfRadioSignalInteraction, and DtRttabRadioSignalInteraction.

virtual bool DtInteraction::neededByFederation ( ) const

virtual

Returns true if the interaction class is needed by the federation false otherwise.

Returns false if no classDesc.

int DtInteraction::numParameters ( ) const

inlinevirtual

Get the number of parameters. Returns 0 if no classDesc.

References myClassDesc, and DtInterClassDesc::numParameters().

DtInteraction& DtInteraction::operator=

(

const DtInteraction &

orig

)

assignment operator

virtual const RTI::ParameterHandleValuePairSet& DtInteraction::phvps ( ) const

pure virtual

Get the parameter handle value pair set for the interaction.

Implemented in DtInteractionWithEncDec, TestSimpleInteraction, and DtUnknownInteraction.

virtual void DtInteraction::print ( ) const

virtual

Print the interaction's host rep data, including header.

void DtInteraction::printData ( ) const

inlinevirtual

Print the interaction's data to DtInfo.

Reimplemented in DtPointObjectTransaction, TestSimpleInteraction, DtUnknownInteraction, DtAcousticTransientInteraction, DtLinearObjectTransaction, TestInteraction, DtResupplyOfferInteraction, DtDetonationInteraction, DtServiceRequestInteraction, DtSignalInteraction, DtResupplyRecInteraction, DtDataInteraction, DtEventReportInteraction, DtCommentInteraction, DtRemoveObjectRequestInter, DtActionRequestToObjInter, DtActionResponseInteraction, DtAttributeChangeReqInter, DtDataQueryInteraction, DtRemoveObjectResultInter, DtRepairCompleteInteraction, DtRepairResponseInteraction, DtResupplyCancelInteraction, DtSetDataInteraction, DtActionRequestInteraction, DtArealObjectTransaction, DtCreateObjectResultInter, DtRemoveEntityInteraction, DtStartResumeInteraction, DtAttributeChangeResInter, DtCollisionInteraction, DtCreateEntityInteraction, DtFireInteraction, DtAcknowledgeInteraction, DtActionResponseFromObjInter, DtEnvironmentObjectTransaction, DtRecordRInteraction, DtCreateObjReqInter, DtTransferControlInteraction, DtStopFreezeInteraction, DtInteractionWithData, DtSetRecordInteraction, and MyFireInteraction.

void DtInteraction::printDataToStream ( std::ostream &  stream ) const

inlinevirtual

Print the interaction's data to the stream.

Reimplemented in DtPointObjectTransaction, DtAcousticTransientInteraction, DtLinearObjectTransaction, DtDetonationInteraction, DtResupplyOfferInteraction, DtServiceRequestInteraction, DtSignalInteraction, DtResupplyRecInteraction, DtDataInteraction, DtEventReportInteraction, DtCommentInteraction, DtRemoveObjectRequestInter, DtActionRequestToObjInter, DtActionResponseInteraction, DtAttributeChangeReqInter, DtDataQueryInteraction, DtRemoveObjectResultInter, DtRepairCompleteInteraction, DtRepairResponseInteraction, DtResupplyCancelInteraction, DtSetDataInteraction, DtActionRequestInteraction, DtArealObjectTransaction, DtCreateObjectResultInter, DtRemoveEntityInteraction, DtStartResumeInteraction, DtAttributeChangeResInter, DtCollisionInteraction, DtCreateEntityInteraction, DtFireInteraction, DtAcknowledgeInteraction, DtActionResponseFromObjInter, DtEnvironmentObjectTransaction, DtRecordRInteraction, DtCreateObjReqInter, DtTransferControlInteraction, DtStopFreezeInteraction, DtInteractionWithData, DtSetRecordInteraction, DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtL16RadioSignalInteraction, DtRttReplyRadioSignalInteraction, DtVmfRadioSignalInteraction, and DtRttabRadioSignalInteraction.

void DtInteraction::printDataToString ( DtString &  buff ) const

inlinevirtual

Print the interaction's data to the string provided.

Reimplemented in DtDetonationInteraction, and DtFireInteraction.

virtual void DtInteraction::printHeader ( ) const

virtual

Print the header info.

virtual void DtInteraction::printHeaderToStream ( std::ostream &  stream ) const

virtual

Print the header info to a stream.

virtual void DtInteraction::printParams ( bool  withHex ) const

virtual

Print the header followed by the interaction's parameters.

virtual void DtInteraction::printParamsToStream ( std::ostream &  stream, bool  withHex  ) const

virtual

Print the header followed by the interaction's parameters to a stream.

virtual void DtInteraction::printToStream ( std::ostream &  stream ) const

virtual

Print the interaction to a stream.

virtual RTI::ParameterHandleValuePairSet* DtInteraction::privPvList ( ) const

protectedvirtual

Returns a pointer to a private pvList that can be used as a return value by phvps.

It's guaranteed to be able to fit at least numParameters() parameters.

static void DtInteraction::removeCallback ( DtExerciseConn *  conn, const std::set< DtString > *  classes, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

static void DtInteraction::removeCallback ( DtExerciseConn *  conn, const char *  className, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

DtInteraction * DtInteraction::self ( ) const

inlineprotected

Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors).

This should be used sparingly since it bypasses the const protection. Note: This is essentially like an operator and is non-virtual since can't override based on return type. Allows derived classes to also define this member.

virtual void DtInteraction::setConveyedRegion ( const RTI::Region *  region )

virtual

virtual void DtInteraction::setCustomTag ( const DtString &  a_tag )

virtual

Set the user-defined tag.

void DtInteraction::setEventRetractionHandle ( const RTI::EventRetractionHandle &  handle )

inlinevirtual

Get/Set the EventRetractionHandle.

This value is set if the interaction is sent with TSO. If not this value is undefined.

References myRetractionHandle.

virtual void DtInteraction::setExConn ( DtExerciseConn *  exConn, DtInterClassDesc *  classDesc = 0  )

virtual

Sets the interaction's ExerciseConn and class descriptor.

If classDesc is NULL, derived class's versions choose a reasonable default. Without being told what ExConn or class descriptor to use, many of the HLA-specific functions won't work properly. However, it is usually not necessary for application code to call this function, since it is called by DtExerciseConn::send on the outgoing side, and by the DtInteractionFactory on the incoming side.

Reimplemented in DtUnknownInteraction, and DtInteractionWithEncDec.

virtual void DtInteraction::setFedTime ( const RTI::FedTime &  ft )

virtual

This is used for TSO interactions.

It is set with the value of clock()->simTime() before the interaction is sent. When an interaction is received, If its received with a FedTime this will be set.

virtual void DtInteraction::setFromPhvps ( const RTI::ParameterHandleValuePairSet &  pvList )

pure virtual

Set contents from a parameter handle value pair set.

Implemented in DtInteractionWithEncDec, TestSimpleInteraction, and DtUnknownInteraction.

virtual void DtInteraction::setTag ( const DtString &  tag )

virtual

Set the user-defined tag.

static void DtInteraction::setTagIsAsciiTime ( bool  val )

static

Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp.

virtual void DtInteraction::setTimeStamp ( DtTime  time, DtTimeStampType  type = DtTimeStampRelative  )

virtual

Set the time of validity of the message, and whether this represents relative or absolute time.

Time is in seconds, but only time modulo an hour is stored.

virtual const DtString& DtInteraction::tag ( ) const

virtual

Get the user-defined tag.

static bool DtInteraction::tagIsAsciiTime ( )

static

virtual DtTime DtInteraction::timeStamp ( ) const

virtual

Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.

virtual DtTimeStampType DtInteraction::timeStampType ( ) const

virtual

Return the type of the time stamp.

Member Data Documentation

DtInterClassDesc* DtInteraction::myClassDesc

protected

Referenced by classDesc(), interactionClassHandle(), interactionClassName(), and numParameters().

const RTI::Region* DtInteraction::myConveyedRegion

protected

bool DtInteraction::myCustomTagSet

protected

DtExerciseConn* DtInteraction::myExConn

protected

Referenced by exerciseConn().

RTI::FedTime* DtInteraction::myFedTime

protected

RTI::ParameterHandleValuePairSet* DtInteraction::myPvList

protected

int DtInteraction::myPvListMaxSize

protected

RTI::EventRetractionHandle DtInteraction::myRetractionHandle

protected

Referenced by eventRetractionHandle(), and setEventRetractionHandle().

DtString DtInteraction::myTag

protected

DtTime DtInteraction::myTime

protected

DtTimeStampType DtInteraction::myTimeType

protected

bool DtInteraction::theTagIsAsciiTime

staticprotected

---

The documentation for this class was generated from the following file:

• interactionHLA.h
