DtRadarForceDimension Class Reference

Inheritance diagram for DtRadarForceDimension:

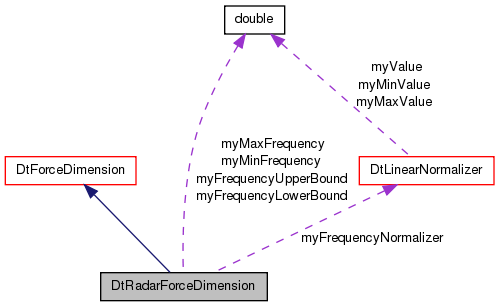

Collaboration diagram for DtRadarForceDimension:

Public Member Functions
	DtRadarForceDimension (DtExerciseConn *exConn)
virtual	~DtRadarForceDimension ()
virtual void	setMinFrequency (double min)
virtual void	setMaxFrequency (double max)
virtual void	setFrequencyLowerBound (double value)
virtual void	setFrequencyUpperBound (double value)
virtual double	minFrequency () const
virtual double	maxFrequency () const
virtual double	frequencyLowerBound () const
virtual double	frequencyUpperBound () const
Public Member Functions inherited from DtForceDimension
	DtForceDimension (DtExerciseConn *exConn)
virtual	~DtForceDimension ()
virtual void	setMinForce (int min)
virtual void	setMaxForce (int max)
virtual void	setForce (int value)
virtual int	minForce () const
virtual int	maxForce () const
virtual int	force () const
Public Member Functions inherited from DtDDMRegion
	DtDDMRegion (DtExerciseConn *exConn)
	Constructor that creates empty shell.
	DtDDMRegion (DtExerciseConn *exConn, const std::vector< DtString > &dimensionNameVector)
	Constructor that uses specified dimensions to create RTI region.
virtual	~DtDDMRegion ()
	Destructor.
virtual void	init (const std::vector< DtString > &dimensionNameVector)
	Initialize the dimensions and create the RTI region.
virtual void	initializeDimensions (const std::vector< DtString > &dimensionNameVector)
	Initializes the specified dimensions.
virtual void	initializeDimensions (const RTI::DimensionHandleSet &dimHandles)
	Initialize the internal mapping using the specified dimension handles.
virtual void	setUpperBound (const DtString &dimensionName, unsigned long upperBound)
	This method sets the upper bound of dimension, specified by dimensionName, to the normalized value specified by upperBound.
virtual void	setLowerBound (const DtString &dimensionName, unsigned long lowerBound)
	This method sets the lower bound of the dimension, specified by dimensionName, to the normalized value specified by lowerBound.
virtual void	setDimensionBounds (const DtString &dimensionName, unsigned long lowerBound, unsigned long upperBound)
	This method sets the lower and upper bounds of the dimension, specified by dimensionName, to the normalized value specified by bounds.
virtual void	notifyRtiOfUpdate ()
	Notify the RTI of changes to the region's extents This function will only act if a dimension has actually changed.
virtual void	addAttributeHandle (RTI::AttributeHandle handle)
	Add an attribute to the handle to the attributes associated with this region.
virtual void	addAttributeHandle (const DtString &objClassName, const DtString &attrName)
	Add an attribute to the handle to the attributes associated with this region.
virtual const RTI::AttributeHandleSet &	attributeHandles () const
	Retrieve the attribute handle set associated with this region.
virtual int	attributeHandleCount () const
	Number of attributes associated with this region.
virtual bool	hasAttributeHandles () const
	Indicates if attributes have been associated with this region.
virtual RTI::RegionHandle	regionHandle ()
	Access to the RTI region representation.
virtual const RTI::RegionHandle	regionHandle () const
	Access to the RTI region representation.

Protected Attributes
double	myMinFrequency
double	myMaxFrequency
double	myFrequencyLowerBound
double	myFrequencyUpperBound
DtLinearNormalizer	myFrequencyNormalizer
Protected Attributes inherited from DtForceDimension
int	myMinForce
int	myMaxForce
int	myForce
DtEnumNormalizer	myForceNormalizer
Protected Attributes inherited from DtDDMRegion
RTI::RegionHandle	myRegionHandle
DtVrlRtiAmbassador *	myRtiAmb
std::map< DtString, DtDimensionHandleBoundsStruct >	myDimensionMap
DtExerciseConn *	myExConn
RTI::AttributeHandleSet *	myAttributeHandles

Additional Inherited Members
Protected Member Functions inherited from DtDDMRegion
virtual void	createRegion ()
	Utility function that actually creates the region and stores the handle.
	DtDDMRegion (const DtDDMRegion &orig)
	Copy constructor – Not implemented – not allowed.
DtDDMRegion &	operator= (const DtDDMRegion &orig)
	Assignment operator. Not implemented – not assignable.

Constructor & Destructor Documentation

DtRadarForceDimension::DtRadarForceDimension

(

DtExerciseConn *

exConn

)

virtual DtRadarForceDimension::~DtRadarForceDimension ( )

virtual

Member Function Documentation

virtual double DtRadarForceDimension::frequencyLowerBound ( ) const

virtual

virtual double DtRadarForceDimension::frequencyUpperBound ( ) const

virtual

virtual double DtRadarForceDimension::maxFrequency ( ) const

virtual

virtual double DtRadarForceDimension::minFrequency ( ) const

virtual

virtual void DtRadarForceDimension::setFrequencyLowerBound ( double  value )

virtual

virtual void DtRadarForceDimension::setFrequencyUpperBound ( double  value )

virtual

virtual void DtRadarForceDimension::setMaxFrequency ( double  max )

virtual

virtual void DtRadarForceDimension::setMinFrequency ( double  min )

virtual

Member Data Documentation

double DtRadarForceDimension::myFrequencyLowerBound

protected

DtLinearNormalizer DtRadarForceDimension::myFrequencyNormalizer

protected

double DtRadarForceDimension::myFrequencyUpperBound

protected

double DtRadarForceDimension::myMaxFrequency

protected

double DtRadarForceDimension::myMinFrequency

protected

---

The documentation for this class was generated from the following file:

• radForceDim.h
