DtEnvironmentalGaussianPuffRecord Class Reference

DtEnvironmentalGaussianPuffRecord implements the Environmental geometry record type "Gaussian Puff Record." See Enumerated Bit Values document, section 12.3.4.15. More...

Inheritance diagram for DtEnvironmentalGaussianPuffRecord:

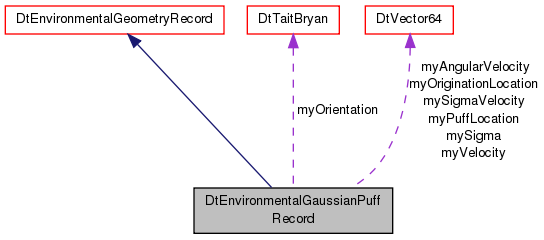

Collaboration diagram for DtEnvironmentalGaussianPuffRecord:

Public Member Functions
	DtEnvironmentalGaussianPuffRecord ()
	Constructor.
	DtEnvironmentalGaussianPuffRecord (const DtEnvironmentalGaussianPuffRecord &orig)
	Copy constructor.
const DtEnvironmentalGaussianPuffRecord &	operator= (const DtEnvironmentalGaussianPuffRecord &orig)
	Assignment Operator.
virtual	~DtEnvironmentalGaussianPuffRecord ()
	Destructor.
virtual DtEnvironmentalRecord *	clone () const
	Clone.
virtual void	setPuffLocation (const DtVector &puffLocation)
	Set/get puff location.
virtual const DtVector &	puffLocation () const
virtual void	setOriginationLocation (const DtVector &originationLocation)
	Set/get location of origination.
virtual const DtVector &	originationLocation () const
virtual void	setSigma (const DtVector &sigma)
	Set/get sigma (x, y, z)
virtual const DtVector &	sigma () const
virtual void	setSigmaVelocity (const DtVector &sigmaVelocity)
	Set/get the rate of change for sigma (x, y, z)
virtual const DtVector &	sigmaVelocity () const
virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/get orientation.
virtual const DtTaitBryan &	orientation () const
virtual void	setVelocity (const DtVector &velocity)
	Set/get velocity.
virtual const DtVector &	velocity () const
virtual void	setAngularVelocity (const DtVector &angularVelocity)
	Set/get angular velocity.
virtual const DtVector &	angularVelocity () const
virtual void	setCentroidHeight (DtFloat32 centroidHeight)
virtual DtFloat32	centroidHeight () const
virtual bool	createNetworkRepresentation ()
	create the network representation for this record.
const DtNetEnvironmentalGaussianPuffRecord *	puffNetRep () const
	returns the network representation of the environmental record
DtNetEnvironmentalGaussianPuffRecord *	puffNetRep ()
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer, int protocolVersion)
	used by the PDU class to fill in the network representation
virtual int	netRepSize () const
	returns the size of the net representation, in bytes.
Public Member Functions inherited from DtEnvironmentalGeometryRecord
	DtEnvironmentalGeometryRecord ()
	Constructor.
	DtEnvironmentalGeometryRecord (const DtEnvironmentalGeometryRecord &orig)
	Copy constructor.
const DtEnvironmentalGeometryRecord &	operator= (const DtEnvironmentalGeometryRecord &orig)
	Assignment Operator.
virtual	~DtEnvironmentalGeometryRecord ()
	Destructor.
virtual void	setHasState (bool hasState)
	Set/get a flag to indicate whether or not a state record is associated with this geometry record.
virtual bool	hasState () const
Public Member Functions inherited from DtEnvironmentalRecord
	DtEnvironmentalRecord ()
	Constructor.
	DtEnvironmentalRecord (const DtEnvironmentalRecord &orig)
	Copy constructor.
const DtEnvironmentalRecord &	operator= (const DtEnvironmentalRecord &orig)
	Assignment operator.
virtual	~DtEnvironmentalRecord ()
	Destructor.
virtual void	setType (DtU32 type)
virtual DtU32	type () const
virtual void	setLength (DtU16 length)
virtual DtU16	length () const
virtual void	setIndex (DtU8 index)
virtual DtU8	index () const
const DtNetEnvironmentalRecord *	netRep () const
	returns the network representation of the environmental record
DtNetEnvironmentalRecord *	netRep ()

Protected Member Functions
DtEnvironmentalGaussianPuffRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function.

Protected Attributes
DtVector	myPuffLocation
DtVector	myOriginationLocation
DtVector	mySigma
DtVector	mySigmaVelocity
DtTaitBryan	myOrientation
DtVector	myVelocity
DtVector	myAngularVelocity
Protected Attributes inherited from DtEnvironmentalGeometryRecord
bool	myHasState
Protected Attributes inherited from DtEnvironmentalRecord
DtNetEnvironmentalRecord *	myNetRep

Detailed Description

DtEnvironmentalGaussianPuffRecord implements the Environmental geometry record type "Gaussian Puff Record." See Enumerated Bit Values document, section 12.3.4.15.

Constructor & Destructor Documentation

DtEnvironmentalGaussianPuffRecord::DtEnvironmentalGaussianPuffRecord

(

)

Constructor.

DtEnvironmentalGaussianPuffRecord::DtEnvironmentalGaussianPuffRecord

(

const DtEnvironmentalGaussianPuffRecord &

orig

)

Copy constructor.

virtual DtEnvironmentalGaussianPuffRecord::~DtEnvironmentalGaussianPuffRecord ( )

virtual

Destructor.

Member Function Documentation

virtual const DtVector& DtEnvironmentalGaussianPuffRecord::angularVelocity ( ) const

virtual

virtual DtFloat32 DtEnvironmentalGaussianPuffRecord::centroidHeight ( ) const

virtual

virtual DtEnvironmentalRecord* DtEnvironmentalGaussianPuffRecord::clone ( ) const

virtual

Clone.

Reimplemented from DtEnvironmentalGeometryRecord.

virtual bool DtEnvironmentalGaussianPuffRecord::createNetworkRepresentation ( )

virtual

create the network representation for this record.

Reimplemented from DtEnvironmentalRecord.

virtual int DtEnvironmentalGaussianPuffRecord::netRepSize ( ) const

virtual

returns the size of the net representation, in bytes.

Reimplemented from DtEnvironmentalRecord.

const DtEnvironmentalGaussianPuffRecord& DtEnvironmentalGaussianPuffRecord::operator=

(

const DtEnvironmentalGaussianPuffRecord &

orig

)

Assignment Operator.

virtual const DtTaitBryan& DtEnvironmentalGaussianPuffRecord::orientation ( ) const

virtual

virtual const DtVector& DtEnvironmentalGaussianPuffRecord::originationLocation ( ) const

virtual

virtual const DtVector& DtEnvironmentalGaussianPuffRecord::puffLocation ( ) const

virtual

const DtNetEnvironmentalGaussianPuffRecord* DtEnvironmentalGaussianPuffRecord::puffNetRep

(

)

const

returns the network representation of the environmental record

DtNetEnvironmentalGaussianPuffRecord* DtEnvironmentalGaussianPuffRecord::puffNetRep

(

)

DtEnvironmentalGaussianPuffRecord* DtEnvironmentalGaussianPuffRecord::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalGaussianPuffRecord::setAngularVelocity ( const DtVector &  angularVelocity )

virtual

Set/get angular velocity.

virtual void DtEnvironmentalGaussianPuffRecord::setCentroidHeight ( DtFloat32  centroidHeight )

virtual

virtual void DtEnvironmentalGaussianPuffRecord::setFromNet ( const DtNetEnvironmentalRecord &  buffer, int  protocolVersion  )

virtual

used by the PDU class to fill in the network representation

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalGaussianPuffRecord::setOrientation ( const DtTaitBryan &  orientation )

virtual

Set/get orientation.

virtual void DtEnvironmentalGaussianPuffRecord::setOriginationLocation ( const DtVector &  originationLocation )

virtual

Set/get location of origination.

virtual void DtEnvironmentalGaussianPuffRecord::setPuffLocation ( const DtVector &  puffLocation )

virtual

Set/get puff location.

virtual void DtEnvironmentalGaussianPuffRecord::setSigma ( const DtVector &  sigma )

virtual

Set/get sigma (x, y, z)

virtual void DtEnvironmentalGaussianPuffRecord::setSigmaVelocity ( const DtVector &  sigmaVelocity )

virtual

Set/get the rate of change for sigma (x, y, z)

virtual void DtEnvironmentalGaussianPuffRecord::setVelocity ( const DtVector &  velocity )

virtual

Set/get velocity.

virtual const DtVector& DtEnvironmentalGaussianPuffRecord::sigma ( ) const

virtual

virtual const DtVector& DtEnvironmentalGaussianPuffRecord::sigmaVelocity ( ) const

virtual

virtual const DtVector& DtEnvironmentalGaussianPuffRecord::velocity ( ) const

virtual

Member Data Documentation

DtVector DtEnvironmentalGaussianPuffRecord::myAngularVelocity

protected

DtTaitBryan DtEnvironmentalGaussianPuffRecord::myOrientation

protected

DtVector DtEnvironmentalGaussianPuffRecord::myOriginationLocation

protected

DtVector DtEnvironmentalGaussianPuffRecord::myPuffLocation

protected

DtVector DtEnvironmentalGaussianPuffRecord::mySigma

protected

DtVector DtEnvironmentalGaussianPuffRecord::mySigmaVelocity

protected

DtVector DtEnvironmentalGaussianPuffRecord::myVelocity

protected

---

The documentation for this class was generated from the following file:

• environmentalGaussianPuffRecord.h
