DtDIGuyCustomPduEncoder Class Reference

Inheritance diagram for DtDIGuyCustomPduEncoder:

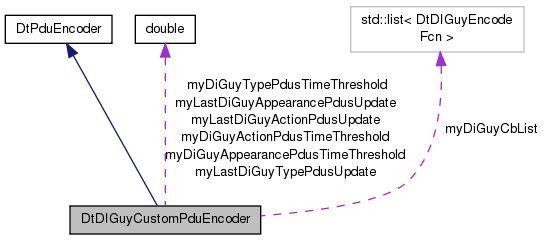

Collaboration diagram for DtDIGuyCustomPduEncoder:

Public Member Functions
virtual DtPduEncoder *	clone () const
	DtDIGuyCustomPduEncoder ()
	CTOR.
virtual	~DtDIGuyCustomPduEncoder ()
	Virtual DTOR.
virtual void	addDiGuyEncoder (DtDIGuyEncodeFcn info)
	Add/Remove an encoder for DI Guy Attributes.
virtual void	removeDiGuyEncoder (const DtDIGuyEncodeFcn &info)
virtual void	clearEncoders ()
virtual void	encodeAndSendPdus (DtExerciseConn *exConn, const DtEntityStateRepository &stateRep, DtEntityStateRepository *asSeenByRemote)
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders.
virtual void	setDiGuyTypeTimeThreshold (DtTime time)
	Set the DIGuy Type time threshold for sending a PDU.
virtual DtTime	diGuyTypeTimeThreshold () const
	Return the DIGuy Type time threshold.
virtual void	setDiGuyAppearanceTimeThreshold (DtTime time)
	Set the DIGuy Appearance time threshold for sending a PDU.
virtual DtTime	diGuyAppearanceTimeThreshold () const
	Return the DIGuy Appearance time threshold.
virtual void	setDiGuyActionTimeThreshold (DtTime time)
	Set the DIGuy Action time threshold for sending a PDU.
virtual DtTime	diGuyActionTimeThreshold () const
	Return the DIGuy Action time threshold.
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual void	setDiGuyTypeUpdate (DtTime time)
virtual DtTime	diGuyTypeUpdate () const
virtual void	setDiGuyAppearanceUpdate (DtTime time)
virtual DtTime	diGuyAppearanceUpdate () const
virtual void	setDiGuyActionUpdate (DtTime time)
virtual DtTime	diGuyActionUpdate () const

Static Protected Member Functions
static DtPdu *	encodeDiGuyActionPdu (const DtEntityStateRepository &stateRep, DtEntityStateRepository *asSeenByRemote, DtClock *theClock, DtDIGuyCustomPduEncoder *encoder)
static DtPdu *	encodeDiGuyAppearancePdu (const DtEntityStateRepository &stateRep, DtEntityStateRepository *asSeenByRemote, DtClock *theClock, DtDIGuyCustomPduEncoder *encoder)
static DtPdu *	encodeDiGuyTypePdu (const DtEntityStateRepository &stateRep, DtEntityStateRepository *asSeenByRemote, DtClock *theClock, DtDIGuyCustomPduEncoder *encoder)

Protected Attributes
std::list< DtDIGuyEncodeFcn >	myDiGuyCbList
DtTime	myDiGuyTypePdusTimeThreshold
DtTime	myDiGuyAppearancePdusTimeThreshold
DtTime	myDiGuyActionPdusTimeThreshold
DtTime	myLastDiGuyActionPdusUpdate
DtTime	myLastDiGuyTypePdusUpdate
DtTime	myLastDiGuyAppearancePdusUpdate

Constructor & Destructor Documentation

DtDIGuyCustomPduEncoder::DtDIGuyCustomPduEncoder

(

)

CTOR.

virtual DtDIGuyCustomPduEncoder::~DtDIGuyCustomPduEncoder ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void DtDIGuyCustomPduEncoder::addDiGuyEncoder ( DtDIGuyEncodeFcn  info )

virtual

Add/Remove an encoder for DI Guy Attributes.

You should have one encoder for each type of PDU that you want to send. All the encoders will be called when encodeAndSendPDus is accessed.

virtual void DtDIGuyCustomPduEncoder::clearEncoders ( )

virtual

virtual DtPduEncoder* DtDIGuyCustomPduEncoder::clone ( ) const

virtual

Implements DtPduEncoder.

virtual DtTime DtDIGuyCustomPduEncoder::diGuyActionTimeThreshold ( ) const

virtual

Return the DIGuy Action time threshold.

virtual DtTime DtDIGuyCustomPduEncoder::diGuyActionUpdate ( ) const

protectedvirtual

virtual DtTime DtDIGuyCustomPduEncoder::diGuyAppearanceTimeThreshold ( ) const

virtual

Return the DIGuy Appearance time threshold.

virtual DtTime DtDIGuyCustomPduEncoder::diGuyAppearanceUpdate ( ) const

protectedvirtual

virtual DtTime DtDIGuyCustomPduEncoder::diGuyTypeTimeThreshold ( ) const

virtual

Return the DIGuy Type time threshold.

virtual DtTime DtDIGuyCustomPduEncoder::diGuyTypeUpdate ( ) const

protectedvirtual

virtual void DtDIGuyCustomPduEncoder::encode ( DtPdu *  pdu )

virtual

This is a dummy method for backwards compatibility with DIS encoders.

Implements DtPduEncoder.

virtual void DtDIGuyCustomPduEncoder::encodeAndSendPdus ( DtExerciseConn *  exConn, const DtEntityStateRepository &  stateRep, DtEntityStateRepository *  asSeenByRemote  )

virtual

static DtPdu* DtDIGuyCustomPduEncoder::encodeDiGuyActionPdu ( const DtEntityStateRepository &  stateRep, DtEntityStateRepository *  asSeenByRemote, DtClock *  theClock, DtDIGuyCustomPduEncoder *  encoder  )

staticprotected

static DtPdu* DtDIGuyCustomPduEncoder::encodeDiGuyAppearancePdu ( const DtEntityStateRepository &  stateRep, DtEntityStateRepository *  asSeenByRemote, DtClock *  theClock, DtDIGuyCustomPduEncoder *  encoder  )

staticprotected

static DtPdu* DtDIGuyCustomPduEncoder::encodeDiGuyTypePdu ( const DtEntityStateRepository &  stateRep, DtEntityStateRepository *  asSeenByRemote, DtClock *  theClock, DtDIGuyCustomPduEncoder *  encoder  )

staticprotected

virtual void DtDIGuyCustomPduEncoder::removeDiGuyEncoder ( const DtDIGuyEncodeFcn &  info )

virtual

virtual void DtDIGuyCustomPduEncoder::setDiGuyActionTimeThreshold ( DtTime  time )

virtual

Set the DIGuy Action time threshold for sending a PDU.

virtual void DtDIGuyCustomPduEncoder::setDiGuyActionUpdate ( DtTime  time )

protectedvirtual

virtual void DtDIGuyCustomPduEncoder::setDiGuyAppearanceTimeThreshold ( DtTime  time )

virtual

Set the DIGuy Appearance time threshold for sending a PDU.

virtual void DtDIGuyCustomPduEncoder::setDiGuyAppearanceUpdate ( DtTime  time )

protectedvirtual

virtual void DtDIGuyCustomPduEncoder::setDiGuyTypeTimeThreshold ( DtTime  time )

virtual

Set the DIGuy Type time threshold for sending a PDU.

virtual void DtDIGuyCustomPduEncoder::setDiGuyTypeUpdate ( DtTime  time )

protectedvirtual

Member Data Documentation

DtTime DtDIGuyCustomPduEncoder::myDiGuyActionPdusTimeThreshold

protected

DtTime DtDIGuyCustomPduEncoder::myDiGuyAppearancePdusTimeThreshold

protected

std::list<DtDIGuyEncodeFcn> DtDIGuyCustomPduEncoder::myDiGuyCbList

protected

DtTime DtDIGuyCustomPduEncoder::myDiGuyTypePdusTimeThreshold

protected

DtTime DtDIGuyCustomPduEncoder::myLastDiGuyActionPdusUpdate

protected

DtTime DtDIGuyCustomPduEncoder::myLastDiGuyAppearancePdusUpdate

protected

DtTime DtDIGuyCustomPduEncoder::myLastDiGuyTypePdusUpdate

protected

---

The documentation for this class was generated from the following file:

• diGuyCustomPduEncoder.h
