DtDesignatorRepository Class Reference

class DtDesignatorRepository: More...

Inheritance diagram for DtDesignatorRepository:

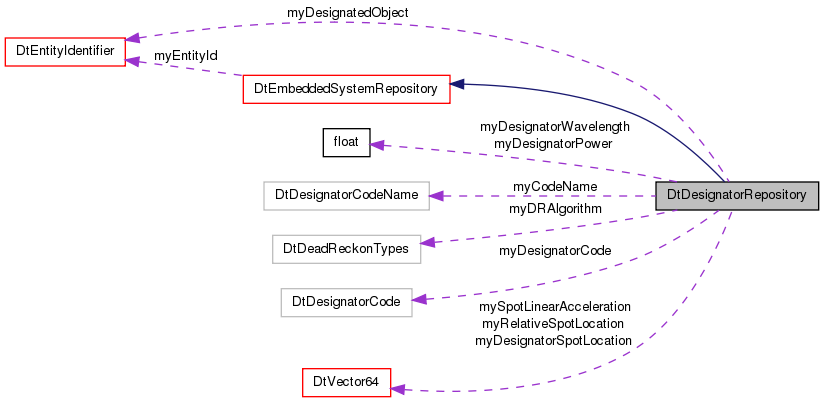

Collaboration diagram for DtDesignatorRepository:

Public Member Functions
	DtDesignatorRepository ()
	default constructor
virtual	~DtDesignatorRepository ()
	destructor
	DtDesignatorRepository (const DtDesignatorRepository &orig)
	copy constructor
DtDesignatorRepository &	operator= (const DtDesignatorRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual void	setCodeName (const DtDesignatorCodeName &name)
	Set/Get the code name.
virtual const DtDesignatorCodeName &	codeName () const
virtual void	setDesignatedObject (const DtGlobalObjectDesignator &name)
	Set/Get the designated object name.
virtual const DtGlobalObjectDesignator &	designatedObject () const
virtual void	setDesignatorCode (const DtDesignatorCode &code)
	Set/Get the designator code.
virtual const DtDesignatorCode &	designatorCode () const
virtual void	setDesignatorId (const DtGlobalObjectDesignator &id)
	In the RPR FOM this is the same as the HOST ID, except for FOM Versions < 6.0.
virtual const DtGlobalObjectDesignator &	designatorId () const
virtual void	setDesignatorPower (DtFloat32 power)
	Set/Get the designator power.
virtual DtFloat32	designatorPower () const
virtual void	setDesignatorSpotLocation (const DtVector &location)
	Set/Get the designator spot location.
virtual const DtVector &	designatorSpotLocation () const
virtual void	setDesignatorWavelength (DtFloat32 wavelength)
	Set/Get the designator wavelength.
virtual DtFloat32	designatorWavelength () const
virtual void	setDRAlgorithm (DtDeadReckonTypes algorithm)
	Set/Get the dead reckoning algorithm.
virtual DtDeadReckonTypes	dRAlgorithm () const
virtual void	setRelativeSpotLocation (const DtVector &location)
	Set/Get the relative spot location.
virtual const DtVector &	relativeSpotLocation () const
virtual void	setSpotLinearAcceleration (const DtVector &acceleration)
	Set/Get the spot linear acceleration.
virtual const DtVector &	spotLinearAcceleration () const
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity.
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtDesignatorRepository *	create ()

Protected Attributes
DtDesignatorCodeName	myCodeName
DtGlobalObjectDesignator	myDesignatedObject
DtDesignatorCode	myDesignatorCode
DtFloat32	myDesignatorPower
DtVector	myDesignatorSpotLocation
DtFloat32	myDesignatorWavelength
DtDeadReckonTypes	myDRAlgorithm
DtVector	myRelativeSpotLocation
DtVector	mySpotLinearAcceleration
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtVector32	myRelativePosition

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap
Static Public Attributes inherited from DtStateRepository
static bool	theAllowCoupledPdusFlag

Detailed Description

class DtDesignatorRepository:

Instances of DtDesignatorRepository are used to store state data for designator objects in both HLA and DIS environments.

Constructor & Destructor Documentation

DtDesignatorRepository::DtDesignatorRepository

(

)

default constructor

virtual DtDesignatorRepository::~DtDesignatorRepository ( )

virtual

destructor

DtDesignatorRepository::DtDesignatorRepository

(

const DtDesignatorRepository &

orig

)

copy constructor

Member Function Documentation

virtual DtStateRepository* DtDesignatorRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

virtual const DtDesignatorCodeName& DtDesignatorRepository::codeName ( ) const

virtual

static DtDesignatorRepository* DtDesignatorRepository::create ( )

static

Reimplemented from DtEmbeddedSystemRepository.

virtual const DtGlobalObjectDesignator& DtDesignatorRepository::designatedObject ( ) const

virtual

virtual const DtDesignatorCode& DtDesignatorRepository::designatorCode ( ) const

virtual

virtual const DtGlobalObjectDesignator& DtDesignatorRepository::designatorId ( ) const

virtual

virtual DtFloat32 DtDesignatorRepository::designatorPower ( ) const

virtual

virtual const DtVector& DtDesignatorRepository::designatorSpotLocation ( ) const

virtual

virtual DtFloat32 DtDesignatorRepository::designatorWavelength ( ) const

virtual

virtual DtDeadReckonTypes DtDesignatorRepository::dRAlgorithm ( ) const

virtual

DtDesignatorRepository& DtDesignatorRepository::operator=

(

const DtDesignatorRepository &

orig

)

assignment operator

virtual void DtDesignatorRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtDesignatorRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual const DtVector& DtDesignatorRepository::relativeSpotLocation ( ) const

virtual

virtual void DtDesignatorRepository::setCodeName ( const DtDesignatorCodeName &  name )

virtual

Set/Get the code name.

virtual void DtDesignatorRepository::setDesignatedObject ( const DtGlobalObjectDesignator &  name )

virtual

Set/Get the designated object name.

virtual void DtDesignatorRepository::setDesignatorCode ( const DtDesignatorCode &  code )

virtual

Set/Get the designator code.

virtual void DtDesignatorRepository::setDesignatorId ( const DtGlobalObjectDesignator &  id )

virtual

In the RPR FOM this is the same as the HOST ID, except for FOM Versions < 6.0.

virtual void DtDesignatorRepository::setDesignatorPower ( DtFloat32  power )

virtual

Set/Get the designator power.

virtual void DtDesignatorRepository::setDesignatorSpotLocation ( const DtVector &  location )

virtual

Set/Get the designator spot location.

virtual void DtDesignatorRepository::setDesignatorWavelength ( DtFloat32  wavelength )

virtual

Set/Get the designator wavelength.

virtual void DtDesignatorRepository::setDRAlgorithm ( DtDeadReckonTypes  algorithm )

virtual

Set/Get the dead reckoning algorithm.

virtual void DtDesignatorRepository::setRelativeSpotLocation ( const DtVector &  location )

virtual

Set/Get the relative spot location.

virtual void DtDesignatorRepository::setSpotLinearAcceleration ( const DtVector &  acceleration )

virtual

Set/Get the spot linear acceleration.

virtual const DtVector& DtDesignatorRepository::spotLinearAcceleration ( ) const

virtual

Member Data Documentation

DtDesignatorCodeName DtDesignatorRepository::myCodeName

protected

DtGlobalObjectDesignator DtDesignatorRepository::myDesignatedObject

protected

DtDesignatorCode DtDesignatorRepository::myDesignatorCode

protected

DtFloat32 DtDesignatorRepository::myDesignatorPower

protected

DtVector DtDesignatorRepository::myDesignatorSpotLocation

protected

DtFloat32 DtDesignatorRepository::myDesignatorWavelength

protected

DtDeadReckonTypes DtDesignatorRepository::myDRAlgorithm

protected

DtVector DtDesignatorRepository::myRelativeSpotLocation

protected

DtVector DtDesignatorRepository::mySpotLinearAcceleration

protected

---

The documentation for this class was generated from the following file:

• designatorRepository.h
