DtDirectedEnergyFireRepository Class Reference

Instances of DtDirectedEnergyFireRepository are used to store the state of firing a directed energy weapon. More...

Inheritance diagram for DtDirectedEnergyFireRepository:

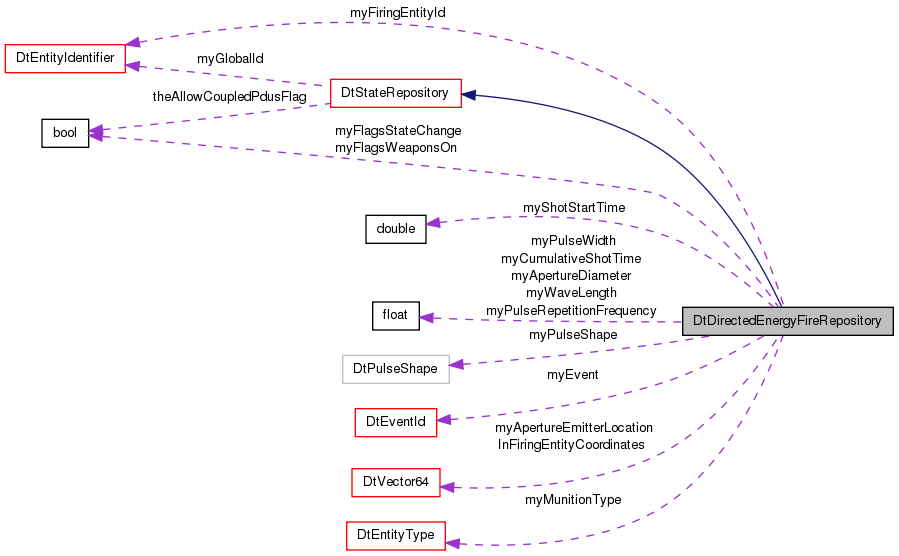

Collaboration diagram for DtDirectedEnergyFireRepository:

Public Member Functions
	DtDirectedEnergyFireRepository ()
	default constructor
	DtDirectedEnergyFireRepository (const DtDirectedEnergyFireRepository &orig)
	copy constructor
virtual	~DtDirectedEnergyFireRepository ()
	destructor
DtDirectedEnergyFireRepository &	operator= (const DtDirectedEnergyFireRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setFiringEntityId (const DtEntityIdentifier &id)
	Set the firing entity identifier.
virtual const DtEntityIdentifier &	firingEntityId () const
virtual const DtEventID &	eventId () const
virtual void	setEventId (const DtEventID &id)
virtual const DtEntityType &	munitionType () const
virtual void	setMunitionType (const DtEntityType &munitionType)
virtual const DtTime	shotStartTime () const
virtual void	setShotStartTime (DtTime shotStartTime)
virtual float	cumulativeShotTime () const
virtual void	setCumulativeShotTime (float cumulativeShotTime)
virtual const DtVector &	location () const
virtual void	setLocation (const DtVector &location)
virtual float	apertureDiameter () const
virtual void	setApertureDiameter (float apertureDiameter)
virtual float	waveLength () const
virtual void	setWaveLength (float waveLength)
virtual float	pulseRepetitionFrequency () const
virtual void	setPulseRepetitionFrequency (float pulseRepetitionFrequency)
virtual float	pulseWidth () const
virtual void	setPulseWidth (float pulseWidth)
virtual bool	weaponsOn () const
virtual void	setWeaponsOn (bool onOff)
virtual bool	stateChange () const
virtual void	setStateChange (bool stateChangeOrUpdateDueToHeartbeatTimer)
virtual DtPulseShape	pulseShape () const
virtual void	setPulseShape (DtPulseShape pulseShape)
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print state data to the specified stream.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtDirectedEnergyFireRepository *	create ()

Protected Attributes
DtEntityIdentifier	myFiringEntityId
DtEventID	myEvent
DtEntityType	myMunitionType
DtTime	myShotStartTime
float	myCumulativeShotTime
DtVector	myApertureEmitterLocationInFiringEntityCoordinates
float	myApertureDiameter
float	myWaveLength
float	myPulseRepetitionFrequency
float	myPulseWidth
bool	myFlagsWeaponsOn
bool	myFlagsStateChange
DtPulseShape	myPulseShape

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap
Static Public Attributes inherited from DtStateRepository
static bool	theAllowCoupledPdusFlag

Detailed Description

Instances of DtDirectedEnergyFireRepository are used to store the state of firing a directed energy weapon.

Constructor & Destructor Documentation

DtDirectedEnergyFireRepository::DtDirectedEnergyFireRepository

(

)

default constructor

DtDirectedEnergyFireRepository::DtDirectedEnergyFireRepository

(

const DtDirectedEnergyFireRepository &

orig

)

copy constructor

virtual DtDirectedEnergyFireRepository::~DtDirectedEnergyFireRepository ( )

virtual

destructor

Member Function Documentation

virtual float DtDirectedEnergyFireRepository::apertureDiameter ( ) const

virtual

Returns

Aperture Diameter

virtual DtStateRepository* DtDirectedEnergyFireRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

static DtDirectedEnergyFireRepository* DtDirectedEnergyFireRepository::create ( )

static

virtual float DtDirectedEnergyFireRepository::cumulativeShotTime ( ) const

virtual

Returns

Cumulative Shot Time

virtual const DtEventID& DtDirectedEnergyFireRepository::eventId ( ) const

virtual

Returns

Event ID

virtual const DtEntityIdentifier& DtDirectedEnergyFireRepository::firingEntityId ( ) const

virtual

virtual const DtVector& DtDirectedEnergyFireRepository::location ( ) const

virtual

Returns

Location

virtual const DtEntityType& DtDirectedEnergyFireRepository::munitionType ( ) const

virtual

Returns

Munition Type

DtDirectedEnergyFireRepository& DtDirectedEnergyFireRepository::operator=

(

const DtDirectedEnergyFireRepository &

orig

)

assignment operator

virtual void DtDirectedEnergyFireRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtStateRepository.

virtual void DtDirectedEnergyFireRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print state data to the specified stream.

Reimplemented from DtStateRepository.

virtual float DtDirectedEnergyFireRepository::pulseRepetitionFrequency ( ) const

virtual

Returns

Pulse Repetition Frequency

virtual DtPulseShape DtDirectedEnergyFireRepository::pulseShape ( ) const

virtual

Returns

Pulse Shape

virtual float DtDirectedEnergyFireRepository::pulseWidth ( ) const

virtual

Returns

Pulse Width

virtual void DtDirectedEnergyFireRepository::setApertureDiameter ( float  apertureDiameter )

virtual

Parameters

Aperture

Diameter

virtual void DtDirectedEnergyFireRepository::setCumulativeShotTime ( float  cumulativeShotTime )

virtual

Parameters

Cumulative

Shot Time

virtual void DtDirectedEnergyFireRepository::setEventId ( const DtEventID &  id )

virtual

Parameters

Event

ID

virtual void DtDirectedEnergyFireRepository::setFiringEntityId ( const DtEntityIdentifier &  id )

virtual

Set the firing entity identifier.

virtual void DtDirectedEnergyFireRepository::setLocation ( const DtVector &  location )

virtual

Parameters

Location

virtual void DtDirectedEnergyFireRepository::setMunitionType ( const DtEntityType &  munitionType )

virtual

Parameters

Munition

Type

virtual void DtDirectedEnergyFireRepository::setPulseRepetitionFrequency ( float  pulseRepetitionFrequency )

virtual

Parameters

Pulse

Repetition Frequency

virtual void DtDirectedEnergyFireRepository::setPulseShape ( DtPulseShape  pulseShape )

virtual

Parameters

Pulse

Shape

virtual void DtDirectedEnergyFireRepository::setPulseWidth ( float  pulseWidth )

virtual

Parameters

Pulse

Width

virtual void DtDirectedEnergyFireRepository::setShotStartTime ( DtTime  shotStartTime )

virtual

Parameters

Shot	Start Time

virtual void DtDirectedEnergyFireRepository::setStateChange ( bool  stateChangeOrUpdateDueToHeartbeatTimer )

virtual

Parameters

Flags

State Change True means State Change. False means Update Due to Heartbeat Timer

virtual void DtDirectedEnergyFireRepository::setWaveLength ( float  waveLength )

virtual

Parameters

Wave

Length

virtual void DtDirectedEnergyFireRepository::setWeaponsOn ( bool  onOff )

virtual

Parameters

Flags

WeaponsOn

virtual const DtTime DtDirectedEnergyFireRepository::shotStartTime ( ) const

virtual

Returns

Shot Start Time

virtual bool DtDirectedEnergyFireRepository::stateChange ( ) const

virtual

Returns

Flags State Change True means State Change. False means Update Due to Heartbeat Timer

virtual float DtDirectedEnergyFireRepository::waveLength ( ) const

virtual

Returns

Wave Length

virtual bool DtDirectedEnergyFireRepository::weaponsOn ( ) const

virtual

Returns

Flags WeaponsOn

Member Data Documentation

float DtDirectedEnergyFireRepository::myApertureDiameter

protected

DtVector DtDirectedEnergyFireRepository::myApertureEmitterLocationInFiringEntityCoordinates

protected

float DtDirectedEnergyFireRepository::myCumulativeShotTime

protected

DtEventID DtDirectedEnergyFireRepository::myEvent

protected

DtEntityIdentifier DtDirectedEnergyFireRepository::myFiringEntityId

protected

bool DtDirectedEnergyFireRepository::myFlagsStateChange

protected

bool DtDirectedEnergyFireRepository::myFlagsWeaponsOn

protected

DtEntityType DtDirectedEnergyFireRepository::myMunitionType

protected

float DtDirectedEnergyFireRepository::myPulseRepetitionFrequency

protected

DtPulseShape DtDirectedEnergyFireRepository::myPulseShape

protected

float DtDirectedEnergyFireRepository::myPulseWidth

protected

DtTime DtDirectedEnergyFireRepository::myShotStartTime

protected

float DtDirectedEnergyFireRepository::myWaveLength

protected

---

The documentation for this class was generated from the following file:

• directedEnergyFireRepository.h
