DtEnvironmentObjectRepository Class Reference

Instances of DtEnvironmentObjectRepository are used to maintain state information needed by environment entities. More...

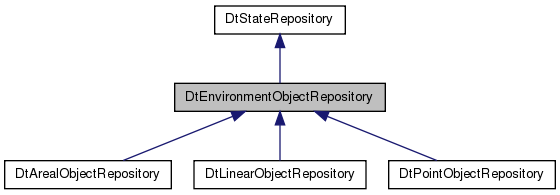

Inheritance diagram for DtEnvironmentObjectRepository:

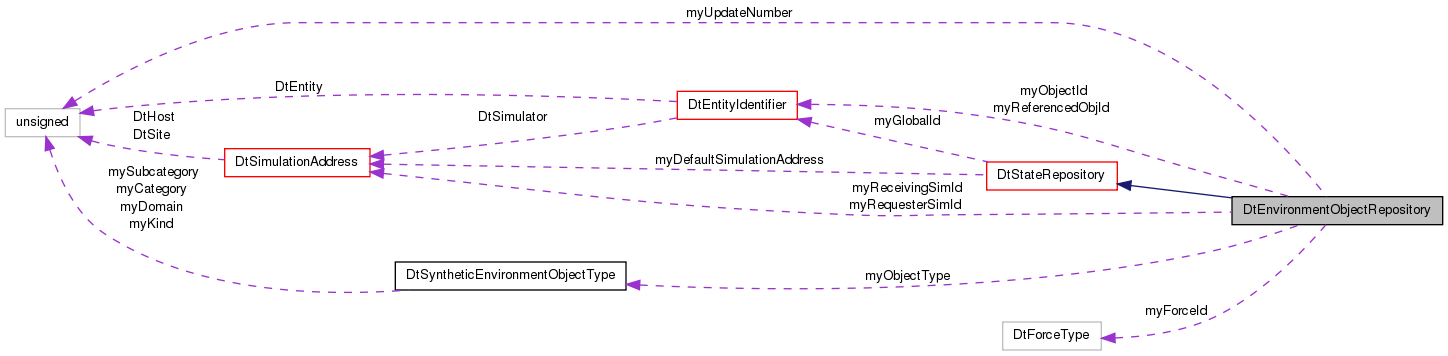

Collaboration diagram for DtEnvironmentObjectRepository:

Public Member Functions
	DtEnvironmentObjectRepository ()
	CTOR.
	DtEnvironmentObjectRepository (const DtEnvironmentObjectRepository &orig)
	Copy CTOR.
virtual	~DtEnvironmentObjectRepository ()
	DTOR.
DtEnvironmentObjectRepository &	operator= (const DtEnvironmentObjectRepository &orig)
	Assignment operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setObjectId (const DtEntityIdentifier &identifier)
	Set/Get Environment Object ID.
virtual const DtEntityIdentifier &	objectId () const
virtual void	setReferencedObjectId (const DtGlobalObjectDesignator &rtiObject)
	Set/Get Referenced Object ID.
virtual const DtGlobalObjectDesignator &	referencedObjectId () const
virtual void	setUpdateNumber (DtU16 num)
	Set/Get Update Number.
virtual DtU16	updateNumber () const
virtual void	setForceId (const DtForceType value)
	Set/Get Force ID.
virtual DtForceType	forceId () const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get Object Type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
virtual void	setRequesterSimId (const DtSimulationAddress &addr)
	Set/Get Requester Simulation ID.
virtual const DtSimulationAddress	requesterSimId () const
virtual void	setReceivingSimId (const DtSimulationAddress &addr)
	Set/Get Receiving Simulation ID.
virtual const DtSimulationAddress	receivingSimId () const
virtual void	printData () const
	Prints data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Prints data to the specified stream.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtEnvironmentObjectRepository *	create ()

Protected Attributes
DtEntityIdentifier	myObjectId
DtGlobalObjectDesignator	myReferencedObjId
DtU16	myUpdateNumber
DtForceType	myForceId
DtSyntheticEnvironmentObjectType	myObjectType
DtSimulationAddress	myRequesterSimId
DtSimulationAddress	myReceivingSimId

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap
Static Public Attributes inherited from DtStateRepository
static bool	theAllowCoupledPdusFlag

Detailed Description

Instances of DtEnvironmentObjectRepository are used to maintain state information needed by environment entities.

Constructor & Destructor Documentation

DtEnvironmentObjectRepository::DtEnvironmentObjectRepository

(

)

CTOR.

DtEnvironmentObjectRepository::DtEnvironmentObjectRepository

(

const DtEnvironmentObjectRepository &

orig

)

Copy CTOR.

virtual DtEnvironmentObjectRepository::~DtEnvironmentObjectRepository ( )

virtual

DTOR.

Member Function Documentation

virtual DtStateRepository* DtEnvironmentObjectRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

Reimplemented in DtLinearObjectRepository, DtPointObjectRepository, and DtArealObjectRepository.

static DtEnvironmentObjectRepository* DtEnvironmentObjectRepository::create ( )

static

Reimplemented in DtLinearObjectRepository, DtPointObjectRepository, and DtArealObjectRepository.

virtual DtForceType DtEnvironmentObjectRepository::forceId ( ) const

virtual

virtual const DtEntityIdentifier& DtEnvironmentObjectRepository::objectId ( ) const

virtual

virtual const DtSyntheticEnvironmentObjectType& DtEnvironmentObjectRepository::objectType ( ) const

virtual

DtEnvironmentObjectRepository& DtEnvironmentObjectRepository::operator=

(

const DtEnvironmentObjectRepository &

orig

)

Assignment operator.

virtual void DtEnvironmentObjectRepository::printData ( ) const

virtual

Prints data to DtInfo.

Reimplemented from DtStateRepository.

Reimplemented in DtPointObjectRepository, DtArealObjectRepository, and DtLinearObjectRepository.

virtual void DtEnvironmentObjectRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints data to the specified stream.

Reimplemented from DtStateRepository.

Reimplemented in DtPointObjectRepository, DtArealObjectRepository, and DtLinearObjectRepository.

virtual const DtSimulationAddress DtEnvironmentObjectRepository::receivingSimId ( ) const

virtual

virtual const DtGlobalObjectDesignator& DtEnvironmentObjectRepository::referencedObjectId ( ) const

virtual

virtual const DtSimulationAddress DtEnvironmentObjectRepository::requesterSimId ( ) const

virtual

virtual void DtEnvironmentObjectRepository::setForceId ( const DtForceType  value )

virtual

Set/Get Force ID.

virtual void DtEnvironmentObjectRepository::setObjectId ( const DtEntityIdentifier &  identifier )

virtual

Set/Get Environment Object ID.

virtual void DtEnvironmentObjectRepository::setObjectType ( const DtSyntheticEnvironmentObjectType &  type )

virtual

Set/Get Object Type.

virtual void DtEnvironmentObjectRepository::setReceivingSimId ( const DtSimulationAddress &  addr )

virtual

Set/Get Receiving Simulation ID.

virtual void DtEnvironmentObjectRepository::setReferencedObjectId ( const DtGlobalObjectDesignator &  rtiObject )

virtual

Set/Get Referenced Object ID.

virtual void DtEnvironmentObjectRepository::setRequesterSimId ( const DtSimulationAddress &  addr )

virtual

Set/Get Requester Simulation ID.

virtual void DtEnvironmentObjectRepository::setUpdateNumber ( DtU16  num )

virtual

Set/Get Update Number.

virtual DtU16 DtEnvironmentObjectRepository::updateNumber ( ) const

virtual

Member Data Documentation

DtForceType DtEnvironmentObjectRepository::myForceId

protected

DtEntityIdentifier DtEnvironmentObjectRepository::myObjectId

protected

DtSyntheticEnvironmentObjectType DtEnvironmentObjectRepository::myObjectType

protected

DtSimulationAddress DtEnvironmentObjectRepository::myReceivingSimId

protected

DtGlobalObjectDesignator DtEnvironmentObjectRepository::myReferencedObjId

protected

DtSimulationAddress DtEnvironmentObjectRepository::myRequesterSimId

protected

DtU16 DtEnvironmentObjectRepository::myUpdateNumber

protected

---

The documentation for this class was generated from the following file:

• environmentObjectRepository.h
