DtIffAtcNavaidsDataCommunications Class Reference

DtIffAtcNavaidsDataCommunications is a class which contains layer of the IFF/ATC/NAVAIDS PDU. More...

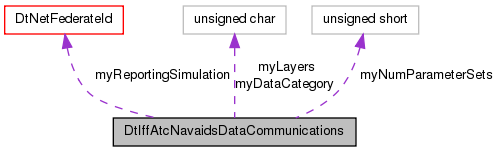

Collaboration diagram for DtIffAtcNavaidsDataCommunications:

Public Member Functions
	DtIffAtcNavaidsDataCommunications ()
	Constructors.
	DtIffAtcNavaidsDataCommunications (const DtIffAtcNavaidsDataCommunications &orig)
DtIffAtcNavaidsDataCommunications &	operator= (const DtIffAtcNavaidsDataCommunications &orig)
	Assignment operators.
DtIffAtcNavaidsDataCommunications &	operator= (const DtNetIffAtcNavaidsPduLayer5 &orig)
virtual	~DtIffAtcNavaidsDataCommunications ()
	Destructor.
virtual void	setReportingSimulation (DtSimulationAddress value)
	Set/Get reportingSimulation.
virtual DtSimulationAddress	reportingSimulation () const
virtual void	setAvailableLayers (DtU8 value)
	Set/Get availableLayers.
virtual DtU8	availableLayers () const
virtual void	setDataCategory (DtIffAtcNavaidsDataCategory value)
	Set/Get dataCategory.
virtual DtIffAtcNavaidsDataCategory	dataCategory () const
virtual void	setNumParameterSets (DtU16)
	Get the number of parameter sets.
virtual DtU16	numParameterSets () const
virtual void	print () const
	Print the information contained in the record.
virtual void	printDataToStream (std::ostream &stream) const
	Print the information to a stream.
virtual void	unloadNetRecord (const DtNetIffAtcNavaidsPduLayer5 &record)
	Load/Unload data from a packet record.
virtual void	loadNetRecord (DtNetIffAtcNavaidsPduLayer5 &record) const

Protected Attributes
DtNetFederateId	myReportingSimulation
	Data members:
DtNetU8	myLayers
DtNetU8	myDataCategory
DtU16	myNumParameterSets

Detailed Description

DtIffAtcNavaidsDataCommunications is a class which contains layer of the IFF/ATC/NAVAIDS PDU.

Constructor & Destructor Documentation

DtIffAtcNavaidsDataCommunications::DtIffAtcNavaidsDataCommunications

(

)

Constructors.

DtIffAtcNavaidsDataCommunications::DtIffAtcNavaidsDataCommunications

(

const DtIffAtcNavaidsDataCommunications &

orig

)

virtual DtIffAtcNavaidsDataCommunications::~DtIffAtcNavaidsDataCommunications ( )

virtual

Destructor.

Member Function Documentation

virtual DtU8 DtIffAtcNavaidsDataCommunications::availableLayers ( ) const

virtual

virtual DtIffAtcNavaidsDataCategory DtIffAtcNavaidsDataCommunications::dataCategory ( ) const

virtual

virtual void DtIffAtcNavaidsDataCommunications::loadNetRecord ( DtNetIffAtcNavaidsPduLayer5 &  record ) const

virtual

virtual DtU16 DtIffAtcNavaidsDataCommunications::numParameterSets ( ) const

virtual

DtIffAtcNavaidsDataCommunications& DtIffAtcNavaidsDataCommunications::operator=

(

const DtIffAtcNavaidsDataCommunications &

orig

)

Assignment operators.

DtIffAtcNavaidsDataCommunications& DtIffAtcNavaidsDataCommunications::operator=

(

const DtNetIffAtcNavaidsPduLayer5 &

orig

)

virtual void DtIffAtcNavaidsDataCommunications::print ( ) const

virtual

Print the information contained in the record.

virtual void DtIffAtcNavaidsDataCommunications::printDataToStream ( std::ostream &  stream ) const

virtual

Print the information to a stream.

virtual DtSimulationAddress DtIffAtcNavaidsDataCommunications::reportingSimulation ( ) const

virtual

virtual void DtIffAtcNavaidsDataCommunications::setAvailableLayers ( DtU8  value )

virtual

Set/Get availableLayers.

virtual void DtIffAtcNavaidsDataCommunications::setDataCategory ( DtIffAtcNavaidsDataCategory  value )

virtual

Set/Get dataCategory.

virtual void DtIffAtcNavaidsDataCommunications::setNumParameterSets ( DtU16  )

virtual

Get the number of parameter sets.

virtual void DtIffAtcNavaidsDataCommunications::setReportingSimulation ( DtSimulationAddress  value )

virtual

Set/Get reportingSimulation.

virtual void DtIffAtcNavaidsDataCommunications::unloadNetRecord ( const DtNetIffAtcNavaidsPduLayer5 &  record )

virtual

Load/Unload data from a packet record.

Member Data Documentation

DtNetU8 DtIffAtcNavaidsDataCommunications::myDataCategory

protected

DtNetU8 DtIffAtcNavaidsDataCommunications::myLayers

protected

DtU16 DtIffAtcNavaidsDataCommunications::myNumParameterSets

protected

DtNetFederateId DtIffAtcNavaidsDataCommunications::myReportingSimulation

protected

Data members:

---

The documentation for this class was generated from the following file:

• iffAtcNavaidsDataCommunications.h
