Instances of DtUnderwaterAcousticsEmissionStateRepository are used to store state data for EmbeddedSystem.UnderwaterAcousticsEmission objects. More...

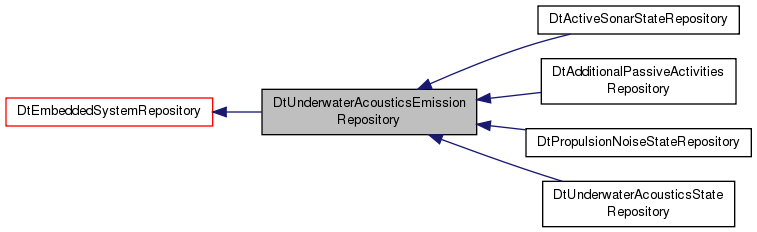

Inheritance diagram for DtUnderwaterAcousticsEmissionRepository:

Collaboration diagram for DtUnderwaterAcousticsEmissionRepository:

Public Member Functions
	DtUnderwaterAcousticsEmissionRepository ()
	Constructor.
virtual	~DtUnderwaterAcousticsEmissionRepository ()
	Destructor.
	DtUnderwaterAcousticsEmissionRepository (const DtUnderwaterAcousticsEmissionRepository &orig)
	Copy Constructor.
DtUnderwaterAcousticsEmissionRepository &	operator= (const DtUnderwaterAcousticsEmissionRepository &orig)
	Assignment Operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual void	setEventIdentifier (const DtEventId &val)
	Set the EventIdentifier.
virtual const DtEventId &	eventIdentifier () const
	Get the EventIdentifier.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity.
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtUnderwaterAcousticsEmissionRepository *	create ()
	Create a DtUnderwaterAcousticsEmissionStateRepository.

Protected Attributes
DtEventId	myEventIdentifier
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtVector32	myRelativePosition

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap
Static Public Attributes inherited from DtStateRepository
static bool	theAllowCoupledPdusFlag

Detailed Description

Instances of DtUnderwaterAcousticsEmissionStateRepository are used to store state data for EmbeddedSystem.UnderwaterAcousticsEmission objects.

Constructor & Destructor Documentation

DtUnderwaterAcousticsEmissionRepository::DtUnderwaterAcousticsEmissionRepository ( )

Constructor.

virtual DtUnderwaterAcousticsEmissionRepository::~DtUnderwaterAcousticsEmissionRepository ( )

virtual

Destructor.

DtUnderwaterAcousticsEmissionRepository::DtUnderwaterAcousticsEmissionRepository ( const DtUnderwaterAcousticsEmissionRepository & orig )

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtUnderwaterAcousticsEmissionRepository::clone ( bool copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, and DtAdditionalPassiveActivitiesRepository.

static DtUnderwaterAcousticsEmissionRepository* DtUnderwaterAcousticsEmissionRepository::create ( )

static

Create a DtUnderwaterAcousticsEmissionStateRepository.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, and DtActiveSonarStateRepository.

virtual const DtEventId& DtUnderwaterAcousticsEmissionRepository::eventIdentifier ( ) const

virtual

Get the EventIdentifier.

DtUnderwaterAcousticsEmissionRepository& DtUnderwaterAcousticsEmissionRepository::operator= ( const DtUnderwaterAcousticsEmissionRepository & orig )

Assignment Operator.

virtual void DtUnderwaterAcousticsEmissionRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, and DtAdditionalPassiveActivitiesRepository.

virtual void DtUnderwaterAcousticsEmissionRepository::printDataToStream ( std::ostream & stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, and DtAdditionalPassiveActivitiesRepository.

virtual void DtUnderwaterAcousticsEmissionRepository::setEventIdentifier ( const DtEventId & val )
