DtElectromagneticEmissionsAttributeRecord Class Reference

This Class is pure virtual and defines the interface for ElectroMagnetic Emissions records. More...

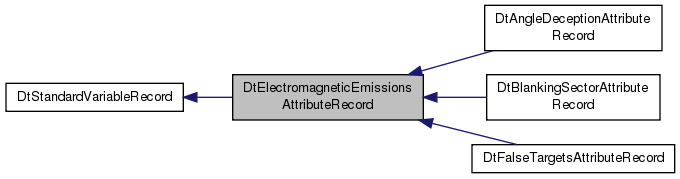

Inheritance diagram for DtElectromagneticEmissionsAttributeRecord:

Collaboration diagram for DtElectromagneticEmissionsAttributeRecord:

Public Member Functions
virtual unsigned int	emitterNumber () const =0
	Setters and Getters for Emitter Number.
virtual void	setEmitterNumber (unsigned int emitterNumber)=0
virtual unsigned int	beamNumber () const =0
	Setters and Getters for Beam Number.
virtual void	setBeamNumber (unsigned int beamNumber)=0
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor.
virtual	~DtStandardVariableRecord ()
	Destructor.
virtual bool	operator== (const DtStandardVariableRecord &other)=0
	Equals operator.
virtual unsigned int	recordType () const =0
	Setters and Getters for Record Type.
virtual void	setRecordType (unsigned int recordType)=0
virtual unsigned int	recordLength () const =0
	Setters and Getters for Record Length.
virtual void	setRecordLength (unsigned int recordLength)=0
virtual void	printData () const
	Prints the data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const =0
	Prints the data to the specified stream.
virtual void	writeRecord (void *addr) const =0
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)=0
	Sets the record from Network Representation from the given location.
virtual unsigned	unpaddedNetsize () const =0
	This is the network size of the record without padding.
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes)
virtual DtStandardVariableRecord *	clone () const =0
	Clone.

Detailed Description

This Class is pure virtual and defines the interface for ElectroMagnetic Emissions records.

it is primarily used to identify which object in a reflected list a record or record set applies to.

Member Function Documentation

virtual unsigned int DtElectromagneticEmissionsAttributeRecord::beamNumber ( ) const

pure virtual

Setters and Getters for Beam Number.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, and DtBlankingSectorAttributeRecord.

virtual unsigned int DtElectromagneticEmissionsAttributeRecord::emitterNumber ( ) const

pure virtual

Setters and Getters for Emitter Number.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, and DtBlankingSectorAttributeRecord.

virtual void DtElectromagneticEmissionsAttributeRecord::setBeamNumber ( unsigned int  beamNumber )

pure virtual

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, and DtBlankingSectorAttributeRecord.

virtual void DtElectromagneticEmissionsAttributeRecord::setEmitterNumber ( unsigned int  emitterNumber )

pure virtual

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, and DtBlankingSectorAttributeRecord.

---

The documentation for this class was generated from the following file:

• electromagneticEmissionsAttributeRecord.h
