Instances of DtEnvironmentalProcessPdu are used to send information about environmental effects and processes. More...

Inheritance diagram for DtEnvironmentalProcessPdu:

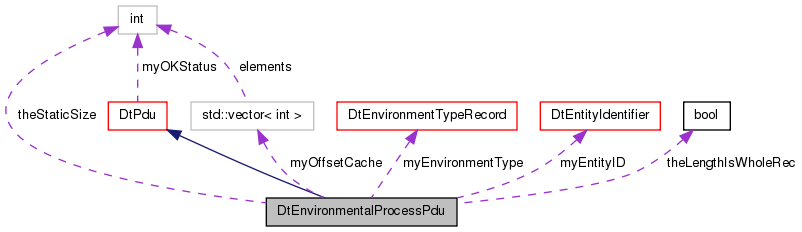

Collaboration diagram for DtEnvironmentalProcessPdu:

Public Member Functions
	DtEnvironmentalProcessPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	CTOR.
	DtEnvironmentalProcessPdu (const DtNetEnvironmentalProcessPdu initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)
	CTOR.
	DtEnvironmentalProcessPdu (const DtEnvironmentalProcessPdu &orig)
	Copy CTOR.
virtual	~DtEnvironmentalProcessPdu ()
	Virtual DTOR.
DtEnvironmentalProcessPdu &	operator= (const DtEnvironmentalProcessPdu &orig)
	Assignment operator.
virtual void	setEnvironmentalProcessID (const DtEntityIdentifier &entity)
	Set/Get originating environmental process ID.
virtual const DtEntityIdentifier &	environmentalProcessID () const
virtual void	setEnvironmentType (const DtEnvironmentTypeRecord &type)
	Set/Get environment type.
virtual const DtEnvironmentTypeRecord &	environmentType () const
virtual void	setModelType (DtEnvironmentalModelType value)
	Set/Get the model type.
virtual DtEnvironmentalModelType	modelType () const
virtual void	setEnvironmentalStatus (DtU8 value)
	Set/Get the environmental status (as an 8-bit value).
virtual DtU8	environmentalStatus () const
virtual void	setEnvironmentalStatusBit (DtEnvironmentalStatusBit bit, bool value)
	Set/Get an environmental status bit.
virtual bool	environmentalStatusBit (DtEnvironmentalStatusBit bit) const
virtual bool	setNumberOfEnvironmentalRecords (DtU16 newNumberOfRecords)
	Set/Get number of environment records.
virtual DtU16	numberOfEnvironmentalRecords () const
virtual void	setSequenceNumber (DtU16 value)
	Set/Get sequence number.
virtual DtU16	sequenceNumber () const
virtual bool	setRecordBitSize (int recordIndex, int newRecordBitSize)
	Set the size of an environmental record in bits.
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
virtual void	setEnvironmentalRecord (int index, const DtEnvironmentalRecord &envRecord)
	This sets the index'th record to the values in the envRecord supplied.
virtual DtNetEnvironmentalRecord *	recordPointer (int recordIndex) const
	Get a pointer to an environmental record.
virtual int	numberOfGeometryRecords () const
	The following functions are accessors and mutators based on assumptions about what types of environment records we'll have.
virtual DtEnvironmentalRecordType	geometryRecordType (int index) const
	This returns the type of the geometry record with the index specified.
virtual DtEnvironmentalRecordType	stateRecordType (int index) const
	This returns the type of the state record associated with the geometry record with the index specified.
virtual bool	getGeometryRecord (int index, DtEnvironmentalGeometryRecord &geometryRecord) const
	This returns a reference to the nth geometry record.
virtual bool	getStateRecord (int index, DtEnvironmentalRecord &stateRecord) const
	This returns a reference to the state record associated with the nth geometry record.
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length.
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header.
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header.
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header.
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference.
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference.
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header.
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header.
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled.
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled.
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header.
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header.
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header.
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header.
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header.
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header.
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header.
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header.
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header.
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header.
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header.
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex.
virtual void	encode ()
	Encode method.
virtual void	decode (DtPduFactory *pduFactory)
	Decode method.
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state.
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called.
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size, bool skipSizeChanged=false)
	Changes the size of the message.
virtual void	insertBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep.
virtual void	insertBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated address.
virtual void	deleteBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes at the indicated offset in the net rep.
virtual void	deleteBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes starting at the indicated address.
virtual void	clearAll ()
	Zeros out all bytes in the network representation.
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)
	Create a DtEnvironmentalProcessPdu.
static void	addCallback (DtExerciseConn conn, DtEnvironmentalProcessPduCb cb, void usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn conn, DtEnvironmentalProcessPduCb cb, void usr)
static void	setLengthIsWholeEnvRec (bool lengthMode)
	Methods to set the static variable theLengthIsWholeRec.
static bool	lengthIsWholeEnvRec ()

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
DtNetEnvironmentalProcessPdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtEnvironmentalProcessPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.
virtual int	recordOffset (int recordIndex) const
	Returns an offset in bytes from the beginning of the variable length data region to the beginning of a particular record.
virtual void	invalidateCache ()
void	verifyRecDataSize ()
	Checks the size of the stated length of all environment records, and compares it with the actual length of the PDU, to check for the incorrect lengths of records.
Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor.
virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus.
virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed.
virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg.
virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily.
virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size.
virtual void	clearData ()
	zeros out all bytes after the PDU header.
virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu.
virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater.
virtual bool	isLVCApplicable () const
virtual bool	isCEIApplicable () const
virtual bool	isFTIApplicable () const
virtual bool	isDTIApplicable () const
virtual bool	isRAIApplicable () const
virtual bool	isIAIApplicable () const
virtual bool	isISMApplicable () const
virtual bool	isAIIApplicable () const

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtEnvironmentTypeRecord	myEnvironmentType
std::vector< int >	myOffsetCache
Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder
DtPduDecoder *	myDecoder
int	myOKStatus
Protected Attributes inherited from DtBaseMsg
void *	myNetMsg
void *	myInternalBuff
int	myIntBuffSize
int	myMsgSize

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero data bytes.
static bool	theLengthIsWholeRec

Detailed Description

Instances of DtEnvironmentalProcessPdu are used to send information about environmental effects and processes.

Constructor & Destructor Documentation

DtEnvironmentalProcessPdu::DtEnvironmentalProcessPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

CTOR.

DtEnvironmentalProcessPdu::DtEnvironmentalProcessPdu	(	const DtNetEnvironmentalProcessPdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

CTOR.

DtEnvironmentalProcessPdu::DtEnvironmentalProcessPdu ( const DtEnvironmentalProcessPdu & orig )

Copy CTOR.

virtual DtEnvironmentalProcessPdu::~DtEnvironmentalProcessPdu ( )

virtual

Virtual DTOR.

Member Function Documentation

static void DtEnvironmentalProcessPdu::addCallback	(	DtExerciseConn *	conn,
		DtEnvironmentalProcessPduCb	cb,
		void *	usr
	)

static

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtEnvironmentalProcessPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

static

Create a DtEnvironmentalProcessPdu.

Caller is responsible for deletion.

virtual const DtEntityIdentifier& DtEnvironmentalProcessPdu::environmentalProcessID ( ) const

virtual

virtual DtU8 DtEnvironmentalProcessPdu::environmentalStatus ( ) const

virtual

virtual bool DtEnvironmentalProcessPdu::environmentalStatusBit ( DtEnvironmentalStatusBit bit ) const

virtual

virtual const DtEnvironmentTypeRecord& DtEnvironmentalProcessPdu::environmentType ( ) const

virtual

virtual DtEnvironmentalRecordType DtEnvironmentalProcessPdu::geometryRecordType ( int index ) const

virtual

This returns the type of the geometry record with the index specified.

virtual bool DtEnvironmentalProcessPdu::getGeometryRecord	(	int	index,
		DtEnvironmentalGeometryRecord &	geometryRecord
	)		const

virtual

This returns a reference to the nth geometry record.

The user must supply a DtEnvironmentalRecord of the correct type (use geometryRecordType() first(!)) because it is that class that knows how to convert the network representation in the PDU into the DtEnvironmentalRecord (host) representation,

virtual bool DtEnvironmentalProcessPdu::getStateRecord	(	int	index,
		DtEnvironmentalRecord &	stateRecord
	)		const

virtual

This returns a reference to the state record associated with the nth geometry record.

The user must supply a DtEnvironmentalRecord of the correct type (use stateRecordType() first(!)) because it is that class that knows how to convert the network representation in the PDU into the DtEnvironmentalRecord (host) representation,

virtual DtPduKind DtEnvironmentalProcessPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual void DtEnvironmentalProcessPdu::invalidateCache ( )

protectedvirtual

static bool DtEnvironmentalProcessPdu::lengthIsWholeEnvRec ( )

static

virtual DtEnvironmentalModelType DtEnvironmentalProcessPdu::modelType ( ) const

virtual

DtNetEnvironmentalProcessPdu* DtEnvironmentalProcessPdu::netPduStruct ( ) const

protected

Casts the netPdu element to our network struct.

Non-virtual since you can't override based on return type.

virtual DtU16 DtEnvironmentalProcessPdu::numberOfEnvironmentalRecords ( ) const

virtual

virtual int DtEnvironmentalProcessPdu::numberOfGeometryRecords ( ) const

virtual

The following functions are accessors and mutators based on assumptions about what types of environment records we'll have.

Note that these functions assume that you have one geometry record possibly followed by a single state record If you have more than one state record per geometry record, then you should use recordPointer and cast to the correct type instead. 'myType' lets you know what type of record it is: values larger than 0x0000FFFF values are DtEnvironmentalGeometryRecord, otherwise it is a DtEnvironmentalRecord. The enumeration document establishes the convention that geometry types use the high order 2 bytes of the type field, while state types use the lower two. Assuming that convention is followed, this returns the number of geometry records in the PDU

DtEnvironmentalProcessPdu& DtEnvironmentalProcessPdu::operator= ( const DtEnvironmentalProcessPdu & orig )

Assignment operator.

virtual void DtEnvironmentalProcessPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtEnvironmentalProcessPdu::printDataToStream ( std::ostream & stream ) const

virtual

Reimplemented from DtPdu.

virtual int DtEnvironmentalProcessPdu::recordOffset ( int recordIndex ) const

protectedvirtual

Returns an offset in bytes from the beginning of the variable length data region to the beginning of a particular record.

virtual DtNetEnvironmentalRecord* DtEnvironmentalProcessPdu::recordPointer ( int recordIndex ) const

virtual

Get a pointer to an environmental record.

Returns false if the record index is out of range.

static void DtEnvironmentalProcessPdu::removeCallback	(	DtExerciseConn *	conn,
		DtEnvironmentalProcessPduCb	cb,
		void *	usr
	)

static

DtEnvironmentalProcessPdu* DtEnvironmentalProcessPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non virtual since you can't override based on return type.

virtual DtU16 DtEnvironmentalProcessPdu::sequenceNumber ( ) const

virtual

virtual void DtEnvironmentalProcessPdu::setEnvironmentalProcessID ( const DtEntityIdentifier & entity )

virtual

Set/Get originating environmental process ID.

virtual void DtEnvironmentalProcessPdu::setEnvironmentalRecord	(	int	index,
		const DtEnvironmentalRecord &	envRecord
	)

virtual

This sets the index'th record to the values in the envRecord supplied.

virtual void DtEnvironmentalProcessPdu::setEnvironmentalStatus ( DtU8 value )

virtual

Set/Get the environmental status (as an 8-bit value).

virtual void DtEnvironmentalProcessPdu::setEnvironmentalStatusBit	(	DtEnvironmentalStatusBit	bit,
		bool	value
	)

virtual

Set/Get an environmental status bit.

virtual void DtEnvironmentalProcessPdu::setEnvironmentType ( const DtEnvironmentTypeRecord & type )

virtual

Set/Get environment type.

static void DtEnvironmentalProcessPdu::setLengthIsWholeEnvRec ( bool lengthMode )

static

Methods to set the static variable theLengthIsWholeRec.

This only works on DIS Versions 6 or lower. In DIS Version 7, theLengthIsWholeRec is ignored, and the length is always the entire record.

If theLengthIsWholeRec = false, then DtNetEnviornmentalRecord.myLength will contain the length (in bits) of the entire DtNetEnvironmentalRecord. If theLengthIsWholeRec = true, the DtNetEnvironmentalRecord.myLength will contain the length (in bits) of the VariantData part of DtNetEnvironmentalRecord.

theLengthIsWholeRec = false by default

virtual void DtEnvironmentalProcessPdu::setModelType ( DtEnvironmentalModelType value )

virtual

Set/Get the model type.

virtual bool DtEnvironmentalProcessPdu::setNumberOfEnvironmentalRecords ( DtU16 newNumberOfRecords )

virtual

Set/Get number of environment records.

virtual bool DtEnvironmentalProcessPdu::setRecordBitSize	(	int	recordIndex,
		int	newRecordBitSize
	)

virtual

Set the size of an environmental record in bits.

Returns false if the size is invalid. If lengthIsWholeEnvRec is true or DIS Version is 7 or higher, the size is expected to be the full record length including the record header. If lengthIsWholeEnvRec is false or DIS Version is less than 7, the size is expected to be the length of the record minus the length of the record header.

virtual void DtEnvironmentalProcessPdu::setSequenceNumber ( DtU16 value )

virtual

Set/Get sequence number.

virtual DtEnvironmentalRecordType DtEnvironmentalProcessPdu::stateRecordType ( int index ) const

virtual

This returns the type of the state record associated with the geometry record with the index specified.

0 is returned if there is no state record associated with the index'th geometry record.

virtual char* DtEnvironmentalProcessPdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

void DtEnvironmentalProcessPdu::verifyRecDataSize ( )

protected

Checks the size of the stated length of all environment records, and compares it with the actual length of the PDU, to check for the incorrect lengths of records.

It will set the static of the PDU to "Not OK" if a mismatch is detected. This method is not virtual as it is called from the constructor.

Member Data Documentation

DtEntityIdentifier DtEnvironmentalProcessPdu::myEntityID

protected

Temporary objects for reference returns.

DtEnvironmentTypeRecord DtEnvironmentalProcessPdu::myEnvironmentType

protected

std::vector<int> DtEnvironmentalProcessPdu::myOffsetCache

mutableprotected

bool DtEnvironmentalProcessPdu::theLengthIsWholeRec

staticprotected

const int DtEnvironmentalProcessPdu::theStaticSize

staticprotected

Size of PDU with zero data bytes.

The documentation for this class was generated from the following file:

environmentalProcessPdu.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
