DtAttributeFedNode Class Reference

Represents an attribute inside a object class. More...

Inheritance diagram for DtAttributeFedNode:

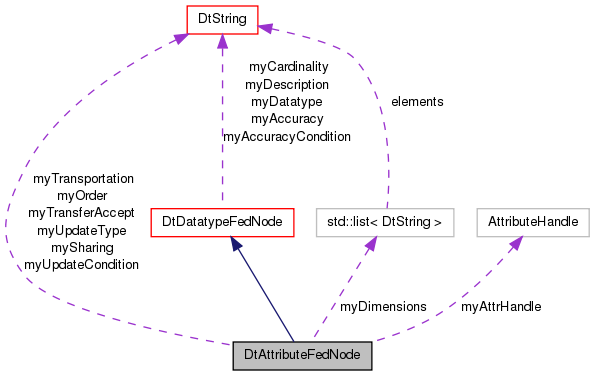

Collaboration diagram for DtAttributeFedNode:

Public Member Functions
	DtAttributeFedNode ()
	Default Constructor.
	DtAttributeFedNode (DtFedNode *)
	Constructor that includes a parent node.
virtual	~DtAttributeFedNode ()
	Destructor.
	DtAttributeFedNode (const DtAttributeFedNode &orig)
	Copy Constructor.
DtAttributeFedNode &	operator= (const DtAttributeFedNode &rhs)
	Assignment Operator.
virtual void	setAttributeHandle (RTI::AttributeHandle)
	Set/Get Attribute Handle information.
virtual const RTI::AttributeHandle	getAttributeHandle () const
virtual void	setUpdateType (const DtString &)
virtual const DtString &	getUpdateType () const
virtual void	setUpdateCondition (const DtString &)
virtual const DtString &	getUpdateCondition () const
virtual void	setTransferAccept (const DtString &)
virtual const DtString &	getTransferAccept () const
virtual void	setSharing (const DtString &)
virtual const DtString &	getSharing () const
virtual void	setTransportation (const DtString &)
virtual const DtString &	getTransportation () const
virtual void	setOrder (const DtString &)
virtual const DtString &	getOrder () const
virtual void	addDimension (const DtString &dimension)
	Get the list of Dimensions.
virtual const std::list < DtString > &	getDimensions () const
Public Member Functions inherited from DtDatatypeFedNode
	DtDatatypeFedNode ()
	The conditional determines the number in cardinality.
	DtDatatypeFedNode (DtFedNode *)
	Constructor that includes a parent node.
virtual	~DtDatatypeFedNode ()
	Destructor.
	DtDatatypeFedNode (const DtDatatypeFedNode &orig)
	Copy Constructor.
DtDatatypeFedNode &	operator= (const DtDatatypeFedNode &rhs)
	Assignment Operator.
virtual void	setDatatype (const DtString &)
virtual const DtString &	getDatatype () const
virtual void	setCardinality (const DtString &)
virtual const DtString &	getCardinality () const
virtual void	setAccuracy (const DtString &)
virtual const DtString &	getAccuracy () const
virtual void	setAccuracyCondition (const DtString &)
virtual const DtString &	getAccuracyCondition () const
virtual void	setDescription (const DtString &)
virtual const DtString &	getDescription () const
virtual DtCardinalityType	getCardinalityType () const
	The following functions are derivative information from the information above.
virtual int	getCardinalityMinimum () const
virtual int	getCardinalityMaximum () const
Public Member Functions inherited from DtFedNode
	DtFedNode ()
	Default Constructor.
	DtFedNode (DtFedNode *)
	Build this Node as a child in the tree.
virtual	~DtFedNode ()
	Destructor.
	DtFedNode (const DtFedNode &orig)
	Copy Constructor.
DtFedNode &	operator= (const DtFedNode &rhs)
	Assignment Operator.
bool	operator== (const DtFedNode &rhs)
virtual void	setParentObject (DtFedNode *)
	Set the parent, if you haven't done it in the constructor.
virtual DtFedNode *	getParentObject () const
	Get the parent.
virtual const DtString &	getFullName () const
	Get the full name of this node...
Public Member Functions inherited from DtOMTNode
	DtOMTNode ()
	Default Constructor.
virtual	~DtOMTNode ()
	Destructor.
	DtOMTNode (const DtOMTNode &orig)
	Copy Constructor.
DtOMTNode &	operator= (const DtOMTNode &rhs)
	Assignment Operator.
virtual void	setName (const DtString &)
virtual const DtString &	getName () const
virtual void	setUniqueName (const DtString &)
virtual const DtString &	getUniqueName () const
virtual void	setNote (const DtString &)
virtual const DtString &	getNote () const

Protected Attributes
RTI::AttributeHandle	myAttrHandle
DtString	myUpdateType
	The following are only used when filling this attribute with OMT information.
DtString	myUpdateCondition
DtString	myTransferAccept
DtString	mySharing
DtString	myTransportation
DtString	myOrder
std::list< DtString >	myDimensions
Protected Attributes inherited from DtDatatypeFedNode
DtString	myDatatype
	The following are only used when filling this attribute with OMT information.
DtString	myCardinality
DtString	myAccuracy
DtString	myAccuracyCondition
DtString	myDescription
DtCardinalityType	myCardinalityType
int	myCardinalityMinimum
int	myCardinalityMaximum
bool	myDirty
Protected Attributes inherited from DtFedNode
DtFedNode *	myParentObject
Protected Attributes inherited from DtOMTNode
DtString	myName
DtString	myNote
DtString	myUniqueName

Additional Inherited Members
Public Types inherited from DtDatatypeFedNode
enum	DtCardinalityType { DtFixed = 0, DtVariable, DtRange }
Protected Member Functions inherited from DtDatatypeFedNode
virtual void	setDerivedValues () const

Detailed Description

Represents an attribute inside a object class.

Constructor & Destructor Documentation

DtAttributeFedNode::DtAttributeFedNode

(

)

Default Constructor.

DtAttributeFedNode::DtAttributeFedNode ( DtFedNode *  )

explicit

Constructor that includes a parent node.

virtual DtAttributeFedNode::~DtAttributeFedNode ( )

virtual

Destructor.

DtAttributeFedNode::DtAttributeFedNode

(

const DtAttributeFedNode &

orig

)

Copy Constructor.

Member Function Documentation

virtual void DtAttributeFedNode::addDimension ( const DtString &  dimension )

virtual

Get the list of Dimensions.

virtual const RTI::AttributeHandle DtAttributeFedNode::getAttributeHandle ( ) const

virtual

virtual const std::list<DtString>& DtAttributeFedNode::getDimensions ( ) const

virtual

virtual const DtString& DtAttributeFedNode::getOrder ( ) const

virtual

virtual const DtString& DtAttributeFedNode::getSharing ( ) const

virtual

virtual const DtString& DtAttributeFedNode::getTransferAccept ( ) const

virtual

virtual const DtString& DtAttributeFedNode::getTransportation ( ) const

virtual

virtual const DtString& DtAttributeFedNode::getUpdateCondition ( ) const

virtual

virtual const DtString& DtAttributeFedNode::getUpdateType ( ) const

virtual

DtAttributeFedNode& DtAttributeFedNode::operator=

(

const DtAttributeFedNode &

rhs

)

Assignment Operator.

virtual void DtAttributeFedNode::setAttributeHandle ( RTI::AttributeHandle  )

virtual

Set/Get Attribute Handle information.

virtual void DtAttributeFedNode::setOrder ( const DtString &  )

virtual

virtual void DtAttributeFedNode::setSharing ( const DtString &  )

virtual

virtual void DtAttributeFedNode::setTransferAccept ( const DtString &  )

virtual

virtual void DtAttributeFedNode::setTransportation ( const DtString &  )

virtual

virtual void DtAttributeFedNode::setUpdateCondition ( const DtString &  )

virtual

virtual void DtAttributeFedNode::setUpdateType ( const DtString &  )

virtual

Member Data Documentation

RTI::AttributeHandle DtAttributeFedNode::myAttrHandle

protected

std::list<DtString> DtAttributeFedNode::myDimensions

protected

DtString DtAttributeFedNode::myOrder

protected

DtString DtAttributeFedNode::mySharing

protected

DtString DtAttributeFedNode::myTransferAccept

protected

DtString DtAttributeFedNode::myTransportation

protected

DtString DtAttributeFedNode::myUpdateCondition

protected

DtString DtAttributeFedNode::myUpdateType

protected

The following are only used when filling this attribute with OMT information.

---

The documentation for this class was generated from the following file:

• attributeFedNode.h
