DtBaseEmbeddedSystemDecoder Class Reference

class DtBaseEmbeddedSystemDecoder: More...

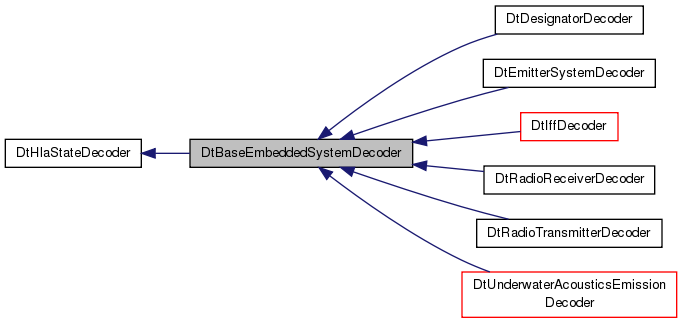

Inheritance diagram for DtBaseEmbeddedSystemDecoder:

Collaboration diagram for DtBaseEmbeddedSystemDecoder:

Public Member Functions
	DtBaseEmbeddedSystemDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	default constructor
virtual	~DtBaseEmbeddedSystemDecoder ()
	destructor
	DtBaseEmbeddedSystemDecoder (const DtBaseEmbeddedSystemDecoder &orig)
	copy constructor
DtBaseEmbeddedSystemDecoder &	operator= (const DtBaseEmbeddedSystemDecoder &orig)
	assignment operator
Public Member Functions inherited from DtHlaStateDecoder
	DtHlaStateDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	constructor
virtual	~DtHlaStateDecoder ()
	destructor
	DtHlaStateDecoder (const DtHlaStateDecoder &orig)
	copy constructor
DtHlaStateDecoder &	operator= (const DtHlaStateDecoder &orig)
	assignment operator
DtAttributeDecoder	addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func)
	Add/Remove a decoding function for the attribute specified by handle.
DtAttributeDecoder	removeDecoder (RTI::AttributeHandle h)
DtAttributeDecoder	addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true)
	Add/Remove a decoding function for the attribute specified by name.
DtAttributeDecoder	removeDecoder (char *attrName, bool complain=true)
virtual DtAttributeDecoder	decoder (const RTI::AttributeHandle &handle) const
	Get the attribute decoder for the specified handle.
virtual void	decode (const DtStateMsg &msg, DtStateRepository *stateRep) const
	Decode the state message into the state repository.
virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle.
virtual DtHlaStateDecoder *	clone () const
	Returns a new-ed clone of this object.
virtual DtHlaStateDecoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc.

Static Public Member Functions
static DtHlaStateDecoder *	create (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	Create a DtBaseEntityDecoder. Caller is responsible for deletion.
Static Public Member Functions inherited from DtHlaStateDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps.
static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length)
	Returns a pointer to the attribute data.
static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName)
	Gets the attribute data and checks the expected size.
static DtNetEventId *	eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index)
	Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data.

Protected Member Functions
void	addMyDecoders ()
	Add decoding functions for the attributes.
	DtDECLARE_EMBEDSYS_ATTR_DECODER (RelativePosition)
	Static decode<AttributeName> member functions.
	DtDECLARE_EMBEDSYS_ATTR_DECODER (EntityID)
	For versions <= 0.8.
	DtDECLARE_EMBEDSYS_ATTR_DECODER (HostObjectID)
	DtDECLARE_EMBEDSYS_ATTR_DECODER (EntityIdentifier)
	For versions > 0.8.
	DtDECLARE_EMBEDSYS_ATTR_DECODER (HostObjectIdentifier)
Protected Member Functions inherited from DtHlaStateDecoder
virtual void	decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const
	Decode the attribute at the specified index in the attribute handle pair set.
virtual void	copyDecFuncs (const DtHlaStateDecoder &orig)

Additional Inherited Members
Public Types inherited from DtHlaStateDecoder
typedef void(*	DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex)
	Attribute decoding function declaration.
Static Public Attributes inherited from DtHlaStateDecoder
static bool	theUseGetValuePointer
Protected Types inherited from DtHlaStateDecoder
typedef std::map < RTI::AttributeHandle, DtAttributeDecoder >	AttributeHandleDecoderMap
typedef std::map < RTI::AttributeHandle, bool >	AttributeHandleBoolMap
Protected Attributes inherited from DtHlaStateDecoder
DtExerciseConn *	myExConn
DtObjClassDesc *	myClassDesc
RTI::ObjectClassHandle	myHandle
AttributeHandleDecoderMap	myDecoderList
	myDecoderList is a map of decoders for each attribute registered to this state.

Detailed Description

class DtBaseEmbeddedSystemDecoder:

Instances of DtBaseEmbeddedSystemDecoder are used to decode a base embedded system state message into a state repository in an HLA (as opposed to DIS) environment.

Constructor & Destructor Documentation

DtBaseEmbeddedSystemDecoder::DtBaseEmbeddedSystemDecoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

default constructor

virtual DtBaseEmbeddedSystemDecoder::~DtBaseEmbeddedSystemDecoder ( )

virtual

destructor

DtBaseEmbeddedSystemDecoder::DtBaseEmbeddedSystemDecoder

(

const DtBaseEmbeddedSystemDecoder &

orig

)

copy constructor

Member Function Documentation

void DtBaseEmbeddedSystemDecoder::addMyDecoders ( )

protected

Add decoding functions for the attributes.

Note: Non-virtual since meant to be called from constructors to add decoders.

Reimplemented in DtRadioTransmitterDecoder, DtDesignatorDecoder, DtEmitterSystemDecoder, and DtRadioReceiverDecoder.

static DtHlaStateDecoder* DtBaseEmbeddedSystemDecoder::create ( DtExerciseConn *  exConn, DtObjClassDesc *  classDesc  )

static

Create a DtBaseEntityDecoder. Caller is responsible for deletion.

Reimplemented in DtIffDecoder, DtNatoIffDecoder, DtRRBIffDecoder, DtNatoIffTransponderDecoder, DtRadioTransmitterDecoder, DtDesignatorDecoder, DtEmitterSystemDecoder, DtRadioReceiverDecoder, DtSovietIffDecoder, DtAdditionalPassiveActivitiesDecoder, DtActiveSonarDecoder, DtPropulsionNoiseDecoder, and DtUnderwaterAcousticsEmissionDecoder.

DtBaseEmbeddedSystemDecoder::DtDECLARE_EMBEDSYS_ATTR_DECODER ( RelativePosition  )

protected

Static decode<AttributeName> member functions.

DtBaseEmbeddedSystemDecoder::DtDECLARE_EMBEDSYS_ATTR_DECODER ( EntityID  )

protected

For versions <= 0.8.

DtBaseEmbeddedSystemDecoder::DtDECLARE_EMBEDSYS_ATTR_DECODER ( HostObjectID  )

protected

DtBaseEmbeddedSystemDecoder::DtDECLARE_EMBEDSYS_ATTR_DECODER ( EntityIdentifier  )

protected

For versions > 0.8.

DtBaseEmbeddedSystemDecoder::DtDECLARE_EMBEDSYS_ATTR_DECODER ( HostObjectIdentifier  )

protected

DtBaseEmbeddedSystemDecoder& DtBaseEmbeddedSystemDecoder::operator=

(

const DtBaseEmbeddedSystemDecoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• baseEmbeddedSystemDecoder.h
