BeamStateMessage Class Reference

Inheritance diagram for BeamStateMessage:

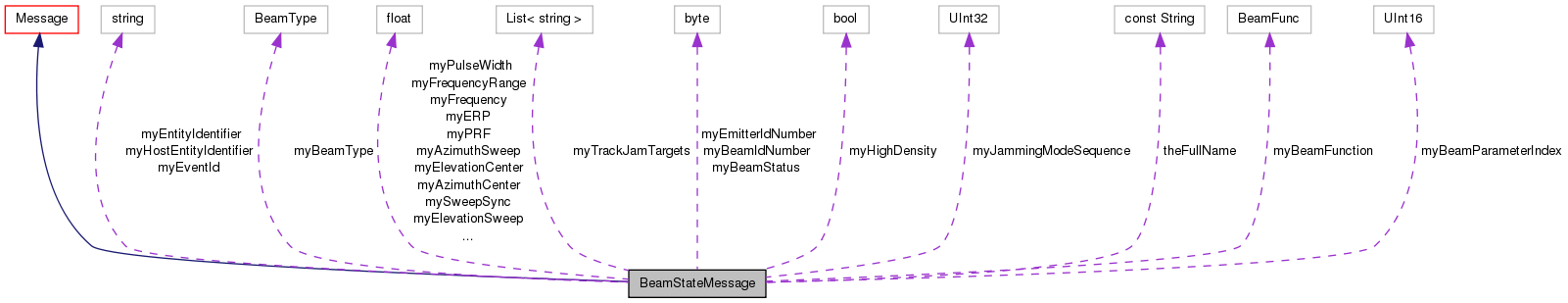

Collaboration diagram for BeamStateMessage:

Public Types
enum	BeamType { RegularBeam = -1, RadarBeam = 1, TrackBeam = 1, JamBeam = 0 }
enum	BeamFunc {   BeamFuncOther, BeamFuncSearch, BeamFuncHeightFinder, BeamFuncAcquisition,   BeamFuncTracking, BeamFuncAcquisitionAndTracking, BeamFuncCommandGuidance, BeamFuncIllumination,   BeamFuncRangeOnlyRadar, BeamFuncMissileBeacon, BeamFuncMissileFuze, BeamFuncActiveRadarMissileSeeker,   BeamFuncJammer = 12, BeamFuncIFF, BeamFuncNavWeather, BeamFuncMeteorological,   BeamFuncDataTransmission, BeamFuncNavDirectionalBeacon }

Public Member Functions
	BeamStateMessage ()
Public Member Functions inherited from Message
	Message ()
virtual Byte[]	encode ()

Public Attributes
const String	theFullName = "BeamStateMessage"

Protected Member Functions
override int	messageSize ()
override void	serialize (ref BinaryWriter writer)
override void	deserialize (ref BinaryReader reader)

Properties
static string	theName [get]
byte	beamIdNumber [get, set]
byte	emitterIdNumber [get, set]
string	entityIdentifier [get, set]
string	hostEntityIdentifier [get, set]
float	azimuthCenter [get, set]
float	azimuthSweep [get, set]
BeamFunc	beamFunction [get, set]
byte	beamStatus [get, set]
UInt16	beamParameterIndex [get, set]
float	elevationCenter [get, set]
float	elevationSweep [get, set]
float	ERP [get, set]
float	frequency [get, set]
float	frequencyRange [get, set]
float	PRF [get, set]
float	pulseWidth [get, set]
float	sweepSync [get, set]
UInt32	jammingModeSequence [get, set]
bool	highDensity [get, set]
BeamType	beamType [get, set]
List< string >	trackJamTargets [get, set]
string	eventId [get, set]
Properties inherited from Message
String	name [get]
double	timeStamp [get, set]

Static Private Member Functions
static	BeamStateMessage ()

Private Attributes
byte	myBeamIdNumber
byte	myEmitterIdNumber
string	myEntityIdentifier = ""
string	myHostEntityIdentifier = ""
float	myAzimuthCenter
float	myAzimuthSweep
BeamFunc	myBeamFunction
byte	myBeamStatus
UInt16	myBeamParameterIndex
float	myElevationCenter
float	myElevationSweep
float	myERP
float	myFrequency
float	myFrequencyRange
float	myPRF
float	myPulseWidth
float	mySweepSync
UInt32	myJammingModeSequence
bool	myHighDensity
BeamType	myBeamType
List< string >	myTrackJamTargets = new List<string>()
string	myEventId = ""

Additional Inherited Members
Static Public Member Functions inherited from Message
static Message	decode (ref Byte[] bytes)
Static Protected Member Functions inherited from Message
static Message	createMessage (ref byte[] b)
Protected Attributes inherited from Message
String	myName
double	myTimeStamp = -1.0
Type	myTypeInfo

Member Enumeration Documentation

enum BeamStateMessage.BeamFunc

Enumerator:

BeamFuncOther
BeamFuncSearch
BeamFuncHeightFinder
BeamFuncAcquisition
BeamFuncTracking
BeamFuncAcquisitionAndTracking
BeamFuncCommandGuidance
BeamFuncIllumination
BeamFuncRangeOnlyRadar
BeamFuncMissileBeacon
BeamFuncMissileFuze
BeamFuncActiveRadarMissileSeeker
BeamFuncJammer
BeamFuncIFF
BeamFuncNavWeather
BeamFuncMeteorological
BeamFuncDataTransmission
BeamFuncNavDirectionalBeacon

enum BeamStateMessage.BeamType

Enumerator:

RegularBeam
RadarBeam
TrackBeam
JamBeam

Constructor & Destructor Documentation

BeamStateMessage.BeamStateMessage ( )

inline

References Message.myName, and theFullName.

static BeamStateMessage.BeamStateMessage ( )

inlinestaticprivate

Member Function Documentation

override void BeamStateMessage.deserialize ( ref BinaryReader  reader )

inlineprotectedvirtual

Reimplemented from Message.

References myAzimuthCenter, myAzimuthSweep, myBeamFunction, myBeamIdNumber, myBeamParameterIndex, myBeamStatus, myBeamType, myElevationCenter, myElevationSweep, myEmitterIdNumber, myEntityIdentifier, myERP, myEventId, myFrequency, myFrequencyRange, myHighDensity, myHostEntityIdentifier, myJammingModeSequence, myPRF, myPulseWidth, mySweepSync, and myTrackJamTargets.

override int BeamStateMessage.messageSize ( )

inlineprotectedvirtual

Reimplemented from Message.

References myEntityIdentifier, myEventId, myHostEntityIdentifier, and myTrackJamTargets.

override void BeamStateMessage.serialize ( ref BinaryWriter  writer )

inlineprotectedvirtual

Reimplemented from Message.

References myAzimuthCenter, myAzimuthSweep, myBeamFunction, myBeamIdNumber, myBeamParameterIndex, myBeamStatus, myBeamType, myElevationCenter, myElevationSweep, myEmitterIdNumber, myEntityIdentifier, myERP, myEventId, myFrequency, myFrequencyRange, myHighDensity, myHostEntityIdentifier, myJammingModeSequence, myPRF, myPulseWidth, mySweepSync, and myTrackJamTargets.

Member Data Documentation

float BeamStateMessage.myAzimuthCenter

private

Referenced by deserialize(), and serialize().

float BeamStateMessage.myAzimuthSweep

private

Referenced by deserialize(), and serialize().

BeamFunc BeamStateMessage.myBeamFunction

private

Referenced by deserialize(), and serialize().

byte BeamStateMessage.myBeamIdNumber

private

Referenced by deserialize(), and serialize().

UInt16 BeamStateMessage.myBeamParameterIndex

private

Referenced by deserialize(), and serialize().

byte BeamStateMessage.myBeamStatus

private

Referenced by deserialize(), and serialize().

BeamType BeamStateMessage.myBeamType

private

Referenced by deserialize(), and serialize().

float BeamStateMessage.myElevationCenter

private

Referenced by deserialize(), and serialize().

float BeamStateMessage.myElevationSweep

private

Referenced by deserialize(), and serialize().

byte BeamStateMessage.myEmitterIdNumber

private

Referenced by deserialize(), and serialize().

string BeamStateMessage.myEntityIdentifier = ""

private

Referenced by deserialize(), messageSize(), and serialize().

float BeamStateMessage.myERP

private

Referenced by deserialize(), and serialize().

string BeamStateMessage.myEventId = ""

private

Referenced by deserialize(), messageSize(), and serialize().

float BeamStateMessage.myFrequency

private

Referenced by deserialize(), and serialize().

float BeamStateMessage.myFrequencyRange

private

Referenced by deserialize(), and serialize().

bool BeamStateMessage.myHighDensity

private

Referenced by deserialize(), and serialize().

string BeamStateMessage.myHostEntityIdentifier = ""

private

Referenced by deserialize(), messageSize(), and serialize().

UInt32 BeamStateMessage.myJammingModeSequence

private

Referenced by deserialize(), and serialize().

float BeamStateMessage.myPRF

private

Referenced by deserialize(), and serialize().

float BeamStateMessage.myPulseWidth

private

Referenced by deserialize(), and serialize().

float BeamStateMessage.mySweepSync

private

Referenced by deserialize(), and serialize().

List<string> BeamStateMessage.myTrackJamTargets = new List<string>()

private

Referenced by deserialize(), messageSize(), and serialize().

const String BeamStateMessage.theFullName = "BeamStateMessage"

Referenced by BeamStateMessage(), and makVrl.ExerciseConnection.sendSubscribe().

Property Documentation

float BeamStateMessage.azimuthCenter

getset

float BeamStateMessage.azimuthSweep

getset

BeamFunc BeamStateMessage.beamFunction

getset

byte BeamStateMessage.beamIdNumber

getset

UInt16 BeamStateMessage.beamParameterIndex

getset

byte BeamStateMessage.beamStatus

getset

BeamType BeamStateMessage.beamType

getset

float BeamStateMessage.elevationCenter

getset

float BeamStateMessage.elevationSweep

getset

byte BeamStateMessage.emitterIdNumber

getset

string BeamStateMessage.entityIdentifier

getset

float BeamStateMessage.ERP

getset

string BeamStateMessage.eventId

getset

float BeamStateMessage.frequency

getset

float BeamStateMessage.frequencyRange

getset

bool BeamStateMessage.highDensity

getset

string BeamStateMessage.hostEntityIdentifier

getset

UInt32 BeamStateMessage.jammingModeSequence

getset

float BeamStateMessage.PRF

getset

float BeamStateMessage.pulseWidth

getset

float BeamStateMessage.sweepSync

getset

string BeamStateMessage.theName

staticget

Referenced by makVrl.ReflectedBeamList.Dispose(), f18.f18.init(), and makVrl.ReflectedBeamList.ReflectedBeamList().

List<string> BeamStateMessage.trackJamTargets

getset

---

The documentation for this class was generated from the following file:

• beamState.cs
