makVrl.Vector2 Struct Reference

Represents a 2D vector using two single-precision floating-point numbers. More...

Inheritance diagram for makVrl.Vector2:

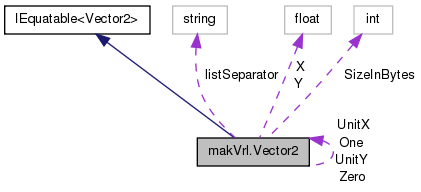

Collaboration diagram for makVrl.Vector2:

Public Member Functions
	Vector2 (float value)
	Constructs a new instance.
	Vector2 (float x, float y)
	Constructs a new Vector2.
	Vector2 (Vector2 v)
	Constructs a new Vector2 from the given Vector2.
	Vector2 (Vector3f v)
	Constructs a new Vector2 from the given Vector3.
	Vector2 (Vector4 v)
	Constructs a new Vector2 from the given Vector4.
void	Add (Vector2 right)
	Add the Vector passed as parameter to this instance.
void	Add (ref Vector2 right)
	Add the Vector passed as parameter to this instance.
void	Sub (Vector2 right)
	Subtract the Vector passed as parameter from this instance.
void	Sub (ref Vector2 right)
	Subtract the Vector passed as parameter from this instance.
void	Mult (float f)
	Multiply this instance by a scalar.
void	Div (float f)
	Divide this instance by a scalar.
Vector2	Normalized ()
	Returns a copy of the Vector2 scaled to unit length.
void	Normalize ()
	Scales the Vector2 to unit length.
void	NormalizeFast ()
	Scales the Vector2 to approximately unit length.
void	Scale (float sx, float sy)
	Scales the current Vector2 by the given amounts.
void	Scale (Vector2 scale)
	Scales this instance by the given parameter.
void	Scale (ref Vector2 scale)
	Scales this instance by the given parameter.
override string	ToString ()
	Returns a System.String that represents the current Vector2.
override int	GetHashCode ()
	Returns the hashcode for this instance.
override bool	Equals (object obj)
	Indicates whether this instance and a specified object are equal.
bool	Equals (Vector2 other)
	Indicates whether the current vector is equal to another vector.

Static Public Member Functions
static Vector2	Sub (Vector2 a, Vector2 b)
	Subtract one Vector from another
static void	Sub (ref Vector2 a, ref Vector2 b, out Vector2 result)
	Subtract one Vector from another
static Vector2	Mult (Vector2 a, float f)
	Multiply a vector and a scalar
static void	Mult (ref Vector2 a, float f, out Vector2 result)
	Multiply a vector and a scalar
static Vector2	Div (Vector2 a, float f)
	Divide a vector by a scalar
static void	Div (ref Vector2 a, float f, out Vector2 result)
	Divide a vector by a scalar
static Vector2	Add (Vector2 a, Vector2 b)
	Adds two vectors.
static void	Add (ref Vector2 a, ref Vector2 b, out Vector2 result)
	Adds two vectors.
static Vector2	Subtract (Vector2 a, Vector2 b)
	Subtract one Vector from another
static void	Subtract (ref Vector2 a, ref Vector2 b, out Vector2 result)
	Subtract one Vector from another
static Vector2	Multiply (Vector2 vector, float scale)
	Multiplies a vector by a scalar.
static void	Multiply (ref Vector2 vector, float scale, out Vector2 result)
	Multiplies a vector by a scalar.
static Vector2	Multiply (Vector2 vector, Vector2 scale)
	Multiplies a vector by the components a vector (scale).
static void	Multiply (ref Vector2 vector, ref Vector2 scale, out Vector2 result)
	Multiplies a vector by the components of a vector (scale).
static Vector2	Divide (Vector2 vector, float scale)
	Divides a vector by a scalar.
static void	Divide (ref Vector2 vector, float scale, out Vector2 result)
	Divides a vector by a scalar.
static Vector2	Divide (Vector2 vector, Vector2 scale)
	Divides a vector by the components of a vector (scale).
static void	Divide (ref Vector2 vector, ref Vector2 scale, out Vector2 result)
	Divide a vector by the components of a vector (scale).
static Vector2	ComponentMin (Vector2 a, Vector2 b)
	Calculate the component-wise minimum of two vectors
static void	ComponentMin (ref Vector2 a, ref Vector2 b, out Vector2 result)
	Calculate the component-wise minimum of two vectors
static Vector2	ComponentMax (Vector2 a, Vector2 b)
	Calculate the component-wise maximum of two vectors
static void	ComponentMax (ref Vector2 a, ref Vector2 b, out Vector2 result)
	Calculate the component-wise maximum of two vectors
static Vector2	Min (Vector2 left, Vector2 right)
	Returns the Vector3 with the minimum magnitude
static Vector2	Max (Vector2 left, Vector2 right)
	Returns the Vector3 with the minimum magnitude
static Vector2	Clamp (Vector2 vec, Vector2 min, Vector2 max)
	Clamp a vector to the given minimum and maximum vectors
static void	Clamp (ref Vector2 vec, ref Vector2 min, ref Vector2 max, out Vector2 result)
	Clamp a vector to the given minimum and maximum vectors
static Vector2	Normalize (Vector2 vec)
	Scale a vector to unit length
static void	Normalize (ref Vector2 vec, out Vector2 result)
	Scale a vector to unit length
static Vector2	NormalizeFast (Vector2 vec)
	Scale a vector to approximately unit length
static void	NormalizeFast (ref Vector2 vec, out Vector2 result)
	Scale a vector to approximately unit length
static float	Dot (Vector2 left, Vector2 right)
	Calculate the dot (scalar) product of two vectors
static void	Dot (ref Vector2 left, ref Vector2 right, out float result)
	Calculate the dot (scalar) product of two vectors
static float	PerpDot (Vector2 left, Vector2 right)
	Calculate the perpendicular dot (scalar) product of two vectors
static void	PerpDot (ref Vector2 left, ref Vector2 right, out float result)
	Calculate the perpendicular dot (scalar) product of two vectors
static Vector2	Lerp (Vector2 a, Vector2 b, float blend)
	Returns a new Vector that is the linear blend of the 2 given Vectors
static void	Lerp (ref Vector2 a, ref Vector2 b, float blend, out Vector2 result)
	Returns a new Vector that is the linear blend of the 2 given Vectors
static Vector2	BaryCentric (Vector2 a, Vector2 b, Vector2 c, float u, float v)
	Interpolate 3 Vectors using Barycentric coordinates
static void	BaryCentric (ref Vector2 a, ref Vector2 b, ref Vector2 c, float u, float v, out Vector2 result)
	Interpolate 3 Vectors using Barycentric coordinates
static Vector2	Transform (Vector2 vec, Quaternion quat)
	Transforms a vector by a quaternion rotation.
static void	Transform (ref Vector2 vec, ref Quaternion quat, out Vector2 result)
	Transforms a vector by a quaternion rotation.
static Vector2	operator+ (Vector2 left, Vector2 right)
	Adds the specified instances.
static Vector2	operator- (Vector2 left, Vector2 right)
	Subtracts the specified instances.
static Vector2	operator- (Vector2 vec)
	Negates the specified instance.
static Vector2	operator* (Vector2 vec, float scale)
	Multiplies the specified instance by a scalar.
static Vector2	operator* (float scale, Vector2 vec)
	Multiplies the specified instance by a scalar.
static Vector2	operator/ (Vector2 vec, float scale)
	Divides the specified instance by a scalar.
static bool	operator== (Vector2 left, Vector2 right)
	Compares the specified instances for equality.
static bool	operator!= (Vector2 left, Vector2 right)
	Compares the specified instances for inequality.

Public Attributes
float	X
	The X component of the Vector2.
float	Y
	The Y component of the Vector2.

Static Public Attributes
static readonly Vector2	UnitX = new Vector2(1, 0)
	Defines a unit-length Vector2 that points towards the X-axis.
static readonly Vector2	UnitY = new Vector2(0, 1)
	Defines a unit-length Vector2 that points towards the Y-axis.
static readonly Vector2	Zero = new Vector2(0, 0)
	Defines a zero-length Vector2.
static readonly Vector2	One = new Vector2(1, 1)
	Defines an instance with all components set to 1.
static readonly int	SizeInBytes = Marshal.SizeOf(new Vector2())
	Defines the size of the Vector2 struct in bytes.

Properties
float	this[int index] [get, set]
	Gets or sets the value at the index of the Vector.
float	Length [get]
	Gets the length (magnitude) of the vector.
float	LengthFast [get]
	Gets an approximation of the vector length (magnitude).
float	LengthSquared [get]
	Gets the square of the vector length (magnitude).
Vector2	PerpendicularRight [get]
	Gets the perpendicular vector on the right side of this vector.
Vector2	PerpendicularLeft [get]
	Gets the perpendicular vector on the left side of this vector.
Vector2	Yx [get, set]
	Gets or sets an makVrl.Vector2 with the Y and X components of this instance.

Static Private Attributes
static string	listSeparator = System.Globalization.CultureInfo.CurrentCulture.TextInfo.ListSeparator

Detailed Description

Represents a 2D vector using two single-precision floating-point numbers.

The Vector2 structure is suitable for interoperation with unmanaged code requiring two consecutive floats.

Constructor & Destructor Documentation

makVrl.Vector2.Vector2 ( float  value )

inline

Constructs a new instance.

Parameters

value

The value that will initialize this instance.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

Referenced by makVrl.Vector2.Add(), makVrl.Vector2.Divide(), makVrl.Vector2.Multiply(), makVrl.Vector2.Subtract(), and makVrl.Vector2.Transform().

makVrl.Vector2.Vector2 ( float  x, float  y  )

inline

Constructs a new Vector2.

Parameters

x	The x coordinate of the net Vector2.
y	The y coordinate of the net Vector2.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

makVrl.Vector2.Vector2 ( Vector2  v )

inline

Constructs a new Vector2 from the given Vector2.

Parameters

v	The Vector2 to copy components from.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

makVrl.Vector2.Vector2 ( Vector3f  v )

inline

Constructs a new Vector2 from the given Vector3.

Parameters

v	The Vector3 to copy components from. Z is discarded.

References makVrl.Vector2.X, makVrl.Vector3f.X, makVrl.Vector2.Y, and makVrl.Vector3f.Y.

makVrl.Vector2.Vector2 ( Vector4  v )

inline

Constructs a new Vector2 from the given Vector4.

Parameters

v	The Vector4 to copy components from. Z and W are discarded.

References makVrl.Vector4.X, makVrl.Vector2.X, makVrl.Vector4.Y, and makVrl.Vector2.Y.

Member Function Documentation

void makVrl.Vector2.Add ( Vector2  right )

inline

Add the Vector passed as parameter to this instance.

Parameters

right

Right operand. This parameter is only read from.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

Referenced by makVrl.Vector2.Add(), and makVrl.Vector2.BaryCentric().

void makVrl.Vector2.Add ( ref Vector2  right )

inline

Add the Vector passed as parameter to this instance.

Parameters

right

Right operand. This parameter is only read from.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.Add ( Vector2  a, Vector2  b  )

inlinestatic

Adds two vectors.

Parameters

a	Left operand.
b	Right operand.

Returns

Result of operation.

References makVrl.Vector2.Add().

static void makVrl.Vector2.Add ( ref Vector2  a, ref Vector2  b, out Vector2  result  )

inlinestatic

Adds two vectors.

Parameters

a	Left operand.
b	Right operand.
result	Result of operation.

References makVrl.Vector2.Vector2().

static Vector2 makVrl.Vector2.BaryCentric ( Vector2  a, Vector2  b, Vector2  c, float  u, float  v  )

inlinestatic

Interpolate 3 Vectors using Barycentric coordinates

Parameters

a	First input Vector
b	Second input Vector
c	Third input Vector
u	First Barycentric Coordinate
v	Second Barycentric Coordinate

Returns

a when u=v=0, b when u=1,v=0, c when u=0,v=1, and a linear combination of a,b,c otherwise

static void makVrl.Vector2.BaryCentric ( ref Vector2  a, ref Vector2  b, ref Vector2  c, float  u, float  v, out Vector2  result  )

inlinestatic

Interpolate 3 Vectors using Barycentric coordinates

Parameters

a	First input Vector.
b	Second input Vector.
c	Third input Vector.
u	First Barycentric Coordinate.
v	Second Barycentric Coordinate.
result	Output Vector. a when u=v=0, b when u=1,v=0, c when u=0,v=1, and a linear combination of a,b,c otherwise

References makVrl.Vector2.Add(), makVrl.Vector2.Multiply(), and makVrl.Vector2.Subtract().

static Vector2 makVrl.Vector2.Clamp ( Vector2  vec, Vector2  min, Vector2  max  )

inlinestatic

Clamp a vector to the given minimum and maximum vectors

Parameters

vec	Input vector
min	Minimum vector
max	Maximum vector

Returns

The clamped vector

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.Clamp ( ref Vector2  vec, ref Vector2  min, ref Vector2  max, out Vector2  result  )

inlinestatic

Clamp a vector to the given minimum and maximum vectors

Parameters

vec	Input vector
min	Minimum vector
max	Maximum vector
result	The clamped vector

References makVrl.Vector2.X.

static Vector2 makVrl.Vector2.ComponentMax ( Vector2  a, Vector2  b  )

inlinestatic

Calculate the component-wise maximum of two vectors

Parameters

a	First operand
b	Second operand

Returns

The component-wise maximum

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.ComponentMax ( ref Vector2  a, ref Vector2  b, out Vector2  result  )

inlinestatic

Calculate the component-wise maximum of two vectors

Parameters

a	First operand
b	Second operand
result	The component-wise maximum

References makVrl.Vector2.X.

static Vector2 makVrl.Vector2.ComponentMin ( Vector2  a, Vector2  b  )

inlinestatic

Calculate the component-wise minimum of two vectors

Parameters

a	First operand
b	Second operand

Returns

The component-wise minimum

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.ComponentMin ( ref Vector2  a, ref Vector2  b, out Vector2  result  )

inlinestatic

Calculate the component-wise minimum of two vectors

Parameters

a	First operand
b	Second operand
result	The component-wise minimum

References makVrl.Vector2.X.

void makVrl.Vector2.Div ( float  f )

inline

Divide this instance by a scalar.

Parameters

f	Scalar operand.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.Div ( Vector2  a, float  f  )

inlinestatic

Divide a vector by a scalar

Parameters

a	Vector operand
f	Scalar operand

Returns

Result of the division

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.Div ( ref Vector2  a, float  f, out Vector2  result  )

inlinestatic

Divide a vector by a scalar

Parameters

a	Vector operand
f	Scalar operand
result	Result of the division

static Vector2 makVrl.Vector2.Divide ( Vector2  vector, float  scale  )

inlinestatic

Divides a vector by a scalar.

Parameters

vector	Left operand.
scale	Right operand.

Returns

Result of the operation.

Referenced by makVrl.Vector2.Divide().

static void makVrl.Vector2.Divide ( ref Vector2  vector, float  scale, out Vector2  result  )

inlinestatic

Divides a vector by a scalar.

Parameters

vector	Left operand.
scale	Right operand.
result	Result of the operation.

References makVrl.Vector2.Multiply().

static Vector2 makVrl.Vector2.Divide ( Vector2  vector, Vector2  scale  )

inlinestatic

Divides a vector by the components of a vector (scale).

Parameters

vector	Left operand.
scale	Right operand.

Returns

Result of the operation.

References makVrl.Vector2.Divide().

static void makVrl.Vector2.Divide ( ref Vector2  vector, ref Vector2  scale, out Vector2  result  )

inlinestatic

Divide a vector by the components of a vector (scale).

Parameters

vector	Left operand.
scale	Right operand.
result	Result of the operation.

References makVrl.Vector2.Vector2().

static float makVrl.Vector2.Dot ( Vector2  left, Vector2  right  )

inlinestatic

Calculate the dot (scalar) product of two vectors

Parameters

left	First operand
right	Second operand

Returns

The dot product of the two inputs

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.Dot ( ref Vector2  left, ref Vector2  right, out float  result  )

inlinestatic

Calculate the dot (scalar) product of two vectors

Parameters

left	First operand
right	Second operand
result	The dot product of the two inputs

override bool makVrl.Vector2.Equals ( object  obj )

inline

Indicates whether this instance and a specified object are equal.

Parameters

obj	The object to compare to.

Returns

True if the instances are equal; false otherwise.

Referenced by makVrl.Vector2.operator!=(), and makVrl.Vector2.operator==().

bool makVrl.Vector2.Equals ( Vector2  other )

inline

Indicates whether the current vector is equal to another vector.

Parameters

other

A vector to compare with this vector.

Returns

true if the current vector is equal to the vector parameter; otherwise, false.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

override int makVrl.Vector2.GetHashCode ( )

inline

Returns the hashcode for this instance.

Returns

A System.Int32 containing the unique hashcode for this instance.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.Lerp ( Vector2  a, Vector2  b, float  blend  )

inlinestatic

Returns a new Vector that is the linear blend of the 2 given Vectors

Parameters

a	First input vector
b	Second input vector
blend	The blend factor. a when blend=0, b when blend=1.

Returns

a when blend=0, b when blend=1, and a linear combination otherwise

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.Lerp ( ref Vector2  a, ref Vector2  b, float  blend, out Vector2  result  )

inlinestatic

Returns a new Vector that is the linear blend of the 2 given Vectors

Parameters

a	First input vector
b	Second input vector
blend	The blend factor. a when blend=0, b when blend=1.
result	a when blend=0, b when blend=1, and a linear combination otherwise

References makVrl.Vector2.X.

static Vector2 makVrl.Vector2.Max ( Vector2  left, Vector2  right  )

inlinestatic

Returns the Vector3 with the minimum magnitude

Parameters

left	Left operand
right	Right operand

Returns

The minimum Vector3

References makVrl.Vector2.LengthSquared.

static Vector2 makVrl.Vector2.Min ( Vector2  left, Vector2  right  )

inlinestatic

Returns the Vector3 with the minimum magnitude

Parameters

left	Left operand
right	Right operand

Returns

The minimum Vector3

References makVrl.Vector2.LengthSquared.

void makVrl.Vector2.Mult ( float  f )

inline

Multiply this instance by a scalar.

Parameters

f	Scalar operand.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.Mult ( Vector2  a, float  f  )

inlinestatic

Multiply a vector and a scalar

Parameters

a	Vector operand
f	Scalar operand

Returns

Result of the multiplication

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.Mult ( ref Vector2  a, float  f, out Vector2  result  )

inlinestatic

Multiply a vector and a scalar

Parameters

a	Vector operand
f	Scalar operand
result	Result of the multiplication

static Vector2 makVrl.Vector2.Multiply ( Vector2  vector, float  scale  )

inlinestatic

Multiplies a vector by a scalar.

Parameters

vector	Left operand.
scale	Right operand.

Returns

Result of the operation.

Referenced by makVrl.Vector2.BaryCentric(), makVrl.Vector2.Divide(), and makVrl.Vector2.Multiply().

static void makVrl.Vector2.Multiply ( ref Vector2  vector, float  scale, out Vector2  result  )

inlinestatic

Multiplies a vector by a scalar.

Parameters

vector	Left operand.
scale	Right operand.
result	Result of the operation.

References makVrl.Vector2.Vector2().

static Vector2 makVrl.Vector2.Multiply ( Vector2  vector, Vector2  scale  )

inlinestatic

Multiplies a vector by the components a vector (scale).

Parameters

vector	Left operand.
scale	Right operand.

Returns

Result of the operation.

References makVrl.Vector2.Multiply().

static void makVrl.Vector2.Multiply ( ref Vector2  vector, ref Vector2  scale, out Vector2  result  )

inlinestatic

Multiplies a vector by the components of a vector (scale).

Parameters

vector	Left operand.
scale	Right operand.
result	Result of the operation.

References makVrl.Vector2.Vector2().

void makVrl.Vector2.Normalize ( )

inline

Scales the Vector2 to unit length.

References makVrl.Vector2.Length, makVrl.Vector2.X, and makVrl.Vector2.Y.

Referenced by makVrl.Vector2.Normalized().

static Vector2 makVrl.Vector2.Normalize ( Vector2  vec )

inlinestatic

Scale a vector to unit length

Parameters

vec	The input vector

Returns

The normalized vector

References makVrl.Vector2.Length, makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.Normalize ( ref Vector2  vec, out Vector2  result  )

inlinestatic

Scale a vector to unit length

Parameters

vec	The input vector
result	The normalized vector

Vector2 makVrl.Vector2.Normalized ( )

inline

Returns a copy of the Vector2 scaled to unit length.

Returns

References makVrl.Vector2.Normalize().

void makVrl.Vector2.NormalizeFast ( )

inline

Scales the Vector2 to approximately unit length.

References makVrl.MathHelper.InverseSqrtFast(), makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.NormalizeFast ( Vector2  vec )

inlinestatic

Scale a vector to approximately unit length

Parameters

vec	The input vector

Returns

The normalized vector

References makVrl.MathHelper.InverseSqrtFast(), makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.NormalizeFast ( ref Vector2  vec, out Vector2  result  )

inlinestatic

Scale a vector to approximately unit length

Parameters

vec	The input vector
result	The normalized vector

References makVrl.MathHelper.InverseSqrtFast().

static bool makVrl.Vector2.operator!= ( Vector2  left, Vector2  right  )

inlinestatic

Compares the specified instances for inequality.

Parameters

left	Left operand.
right	Right operand.

Returns

True if both instances are not equal; false otherwise.

References makVrl.Vector2.Equals().

static Vector2 makVrl.Vector2.operator* ( Vector2  vec, float  scale  )

inlinestatic

Multiplies the specified instance by a scalar.

Parameters

vec	Left operand.
scale	Right operand.

Returns

Result of multiplication.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.operator* ( float  scale, Vector2  vec  )

inlinestatic

Multiplies the specified instance by a scalar.

Parameters

scale	Left operand.
vec	Right operand.

Returns

Result of multiplication.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.operator+ ( Vector2  left, Vector2  right  )

inlinestatic

Adds the specified instances.

Parameters

left	Left operand.
right	Right operand.

Returns

Result of addition.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.operator- ( Vector2  left, Vector2  right  )

inlinestatic

Subtracts the specified instances.

Parameters

left	Left operand.
right	Right operand.

Returns

Result of subtraction.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.operator- ( Vector2  vec )

inlinestatic

Negates the specified instance.

Parameters

vec

Operand.

Returns

Result of negation.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.operator/ ( Vector2  vec, float  scale  )

inlinestatic

Divides the specified instance by a scalar.

Parameters

vec	Left operand
scale	Right operand

Returns

Result of the division.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static bool makVrl.Vector2.operator== ( Vector2  left, Vector2  right  )

inlinestatic

Compares the specified instances for equality.

Parameters

left	Left operand.
right	Right operand.

Returns

True if both instances are equal; false otherwise.

References makVrl.Vector2.Equals().

static float makVrl.Vector2.PerpDot ( Vector2  left, Vector2  right  )

inlinestatic

Calculate the perpendicular dot (scalar) product of two vectors

Parameters

left	First operand
right	Second operand

Returns

The perpendicular dot product of the two inputs

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.PerpDot ( ref Vector2  left, ref Vector2  right, out float  result  )

inlinestatic

Calculate the perpendicular dot (scalar) product of two vectors

Parameters

left	First operand
right	Second operand
result	The perpendicular dot product of the two inputs

void makVrl.Vector2.Scale ( float  sx, float  sy  )

inline

Scales the current Vector2 by the given amounts.

Parameters

sx	The scale of the X component.
sy	The scale of the Y component.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

void makVrl.Vector2.Scale ( Vector2  scale )

inline

Scales this instance by the given parameter.

Parameters

scale

The scaling of the individual components.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

void makVrl.Vector2.Scale ( ref Vector2  scale )

inline

Scales this instance by the given parameter.

Parameters

scale

The scaling of the individual components.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

void makVrl.Vector2.Sub ( Vector2  right )

inline

Subtract the Vector passed as parameter from this instance.

Parameters

right

Right operand. This parameter is only read from.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

void makVrl.Vector2.Sub ( ref Vector2  right )

inline

Subtract the Vector passed as parameter from this instance.

Parameters

right

Right operand. This parameter is only read from.

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.Sub ( Vector2  a, Vector2  b  )

inlinestatic

Subtract one Vector from another

Parameters

a	First operand
b	Second operand

Returns

Result of subtraction

References makVrl.Vector2.X, and makVrl.Vector2.Y.

static void makVrl.Vector2.Sub ( ref Vector2  a, ref Vector2  b, out Vector2  result  )

inlinestatic

Subtract one Vector from another

Parameters

a	First operand
b	Second operand
result	Result of subtraction

static Vector2 makVrl.Vector2.Subtract ( Vector2  a, Vector2  b  )

inlinestatic

Subtract one Vector from another

Parameters

a	First operand
b	Second operand

Returns

Result of subtraction

Referenced by makVrl.Vector2.BaryCentric().

static void makVrl.Vector2.Subtract ( ref Vector2  a, ref Vector2  b, out Vector2  result  )

inlinestatic

Subtract one Vector from another

Parameters

a	First operand
b	Second operand
result	Result of subtraction

References makVrl.Vector2.Vector2().

override string makVrl.Vector2.ToString ( )

inline

Returns a System.String that represents the current Vector2.

Returns

References makVrl.Vector2.listSeparator, makVrl.Vector2.X, and makVrl.Vector2.Y.

static Vector2 makVrl.Vector2.Transform ( Vector2  vec, Quaternion  quat  )

inlinestatic

Transforms a vector by a quaternion rotation.

Parameters

vec	The vector to transform.
quat	The quaternion to rotate the vector by.

Returns

The result of the operation.

static void makVrl.Vector2.Transform ( ref Vector2  vec, ref Quaternion  quat, out Vector2  result  )

inlinestatic

Transforms a vector by a quaternion rotation.

Parameters

vec	The vector to transform.
quat	The quaternion to rotate the vector by.
result	The result of the operation.

References makVrl.Quaternion.Invert(), makVrl.Quaternion.Multiply(), and makVrl.Vector2.Vector2().

Member Data Documentation

string makVrl.Vector2.listSeparator = System.Globalization.CultureInfo.CurrentCulture.TextInfo.ListSeparator

staticprivate

Referenced by makVrl.Vector2.ToString().

readonly Vector2 makVrl.Vector2.One = new Vector2(1, 1)

static

Defines an instance with all components set to 1.

readonly int makVrl.Vector2.SizeInBytes = Marshal.SizeOf(new Vector2())

static

Defines the size of the Vector2 struct in bytes.

readonly Vector2 makVrl.Vector2.UnitX = new Vector2(1, 0)

static

Defines a unit-length Vector2 that points towards the X-axis.

readonly Vector2 makVrl.Vector2.UnitY = new Vector2(0, 1)

static

Defines a unit-length Vector2 that points towards the Y-axis.

float makVrl.Vector2.X

The X component of the Vector2.

Referenced by makVrl.Vector2.Add(), makVrl.Vector2.Clamp(), makVrl.Vector2.ComponentMax(), makVrl.Vector2.ComponentMin(), makVrl.Vector2.Div(), makVrl.Vector2.Dot(), makVrl.Vector2.Equals(), makVrl.Vector2.GetHashCode(), makVrl.Vector2.Lerp(), makVrl.Vector2.Mult(), makVrl.Vector2.Normalize(), makVrl.Vector2.NormalizeFast(), makVrl.Vector2d.operator Vector2d(), makVrl.Vector2.operator*(), makVrl.Vector2.operator+(), makVrl.Vector2.operator-(), makVrl.Vector2.operator/(), makVrl.Vector2.PerpDot(), makVrl.Vector2.Scale(), makVrl.Vector2.Sub(), makVrl.Vector2.ToString(), makVrl.Vector2.Vector2(), makVrl.Vector3f.Vector3f(), and makVrl.Vector4.Vector4().

float makVrl.Vector2.Y

The Y component of the Vector2.

Referenced by makVrl.Vector2.Add(), makVrl.Vector2.Clamp(), makVrl.Vector2.ComponentMax(), makVrl.Vector2.ComponentMin(), makVrl.Vector2.Div(), makVrl.Vector2.Dot(), makVrl.Vector2.Equals(), makVrl.Vector2.GetHashCode(), makVrl.Vector2.Lerp(), makVrl.Vector2.Mult(), makVrl.Vector2.Normalize(), makVrl.Vector2.NormalizeFast(), makVrl.Vector2d.operator Vector2d(), makVrl.Vector2.operator*(), makVrl.Vector2.operator+(), makVrl.Vector2.operator-(), makVrl.Vector2.operator/(), makVrl.Vector2.PerpDot(), makVrl.Vector2.Scale(), makVrl.Vector2.Sub(), makVrl.Vector2.ToString(), makVrl.Vector2.Vector2(), makVrl.Vector3f.Vector3f(), and makVrl.Vector4.Vector4().

readonly Vector2 makVrl.Vector2.Zero = new Vector2(0, 0)

static

Defines a zero-length Vector2.

Property Documentation

float makVrl.Vector2.Length

get

Gets the length (magnitude) of the vector.

LengthFast

See Also

LengthSquared

Referenced by makVrl.Vector2.Normalize().

float makVrl.Vector2.LengthFast

get

Gets an approximation of the vector length (magnitude).

This property uses an approximation of the square root function to calculate vector magnitude, with an upper error bound of 0.001.

Length

See Also

LengthSquared

float makVrl.Vector2.LengthSquared

get

Gets the square of the vector length (magnitude).

This property avoids the costly square root operation required by the Length property. This makes it more suitable for comparisons.

Length

See Also

LengthFast

Referenced by makVrl.Vector2.Max(), and makVrl.Vector2.Min().

Vector2 makVrl.Vector2.PerpendicularLeft

get

Gets the perpendicular vector on the left side of this vector.

Vector2 makVrl.Vector2.PerpendicularRight

get

Gets the perpendicular vector on the right side of this vector.

float makVrl.Vector2.this[int index]

getset

Gets or sets the value at the index of the Vector.

Vector2 makVrl.Vector2.Yx

getset

Gets or sets an makVrl.Vector2 with the Y and X components of this instance.

---

The documentation for this struct was generated from the following file:

• Vector2.cs
