DtBasicFixedWingAircraftRecord Class Reference

Instances of DtBasicFixedWingAircraftRecord are used to contain the entity state and logistics information about an individual entity within a group of entities. More...

Inheritance diagram for DtBasicFixedWingAircraftRecord:

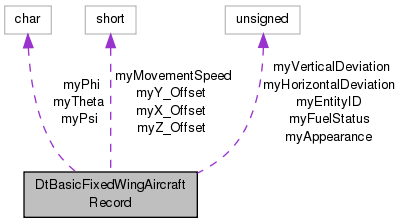

Collaboration diagram for DtBasicFixedWingAircraftRecord:

Public Member Functions
	DtBasicFixedWingAircraftRecord ()
	Constructors.
	DtBasicFixedWingAircraftRecord (const DtBasicFixedWingAircraftRecord &orig)
virtual	~DtBasicFixedWingAircraftRecord ()
	Destructor.
DtBasicFixedWingAircraftRecord &	operator= (const DtBasicFixedWingAircraftRecord &orig)
	Assignment operators.
DtBasicFixedWingAircraftRecord &	operator= (const DtNetBasicFixedWingAircraftRecord &orig)
virtual void	setEntityID (DtU16 value)
	Set/Get the entity ID.
virtual DtU16	entityID () const
virtual void	setX_Offset (DtInt16 value)
	Set/Get the entity location X offset.
virtual DtInt16	X_Offset () const
virtual void	setY_Offset (DtInt16 value)
	Set/Get the entity location Y offset.
virtual DtInt16	Y_Offset () const
virtual void	setZ_Offset (DtInt16 value)
	Set/Get the entity location Z offset.
virtual DtInt16	Z_Offset () const
virtual void	setAppearance (DtU32 app)
	Set/Get appearance (as a 32 bit integer).
virtual DtU32	appearance () const
virtual void	setAppearanceAttribute (const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set/Get appearance by attribute.
virtual DtAppearAttrVal	appearanceAttribute (const DtAppearAttribute attr) const
virtual void	setPsi (DtInt8 value)
	Set/Get the entity orientation psi.
virtual DtInt8	psi () const
virtual void	setTheta (DtInt8 value)
	Set/Get the entity orientation theta.
virtual DtInt8	theta () const
virtual void	setPhi (DtInt8 value)
	Set/Get the entity orientation phi.
virtual DtInt8	phi () const
virtual void	setFuelStatus (DtInt8 value)
	Set/Get the fuel status.
virtual DtInt8	fuelStatus () const
virtual void	setHorizontalDeviation (DtInt8 value)
	Set/Get the horizontal deviation.
virtual DtInt8	horizontalDeviation () const
virtual void	setVerticalDeviation (DtInt8 value)
	Set/Get the vertical deviation.
virtual DtInt8	verticalDeviation () const
virtual void	setMovementSpeed (DtInt16 value)
	Set/Get the movement speed.
virtual DtInt16	movementSpeed () const
virtual void	print () const
	Print this record.
virtual void	printDataToStream (std::ostream &stream) const
	Print this record to a stream.
virtual void	unloadBaseNetRecord (const DtNetBasicFixedWingAircraftRecord &record)
	Load/Unload data from a packet record.
virtual void	loadBaseNetRecord (DtNetBasicFixedWingAircraftRecord &record) const

Protected Attributes
DtU16	myEntityID
DtInt16	myX_Offset
DtInt16	myY_Offset
DtInt16	myZ_Offset
DtU32	myAppearance
DtInt8	myPsi
DtInt8	myTheta
DtInt8	myPhi
DtU8	myFuelStatus
DtU8	myHorizontalDeviation
DtU8	myVerticalDeviation
DtInt16	myMovementSpeed

Detailed Description

Instances of DtBasicFixedWingAircraftRecord are used to contain the entity state and logistics information about an individual entity within a group of entities.

Constructor & Destructor Documentation

DtBasicFixedWingAircraftRecord::DtBasicFixedWingAircraftRecord

(

)

Constructors.

DtBasicFixedWingAircraftRecord::DtBasicFixedWingAircraftRecord

(

const DtBasicFixedWingAircraftRecord &

orig

)

virtual DtBasicFixedWingAircraftRecord::~DtBasicFixedWingAircraftRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtU32 DtBasicFixedWingAircraftRecord::appearance ( ) const

virtual

virtual DtAppearAttrVal DtBasicFixedWingAircraftRecord::appearanceAttribute ( const DtAppearAttribute  attr ) const

virtual

virtual DtU16 DtBasicFixedWingAircraftRecord::entityID ( ) const

virtual

virtual DtInt8 DtBasicFixedWingAircraftRecord::fuelStatus ( ) const

virtual

virtual DtInt8 DtBasicFixedWingAircraftRecord::horizontalDeviation ( ) const

virtual

virtual void DtBasicFixedWingAircraftRecord::loadBaseNetRecord ( DtNetBasicFixedWingAircraftRecord &  record ) const

virtual

virtual DtInt16 DtBasicFixedWingAircraftRecord::movementSpeed ( ) const

virtual

DtBasicFixedWingAircraftRecord& DtBasicFixedWingAircraftRecord::operator=

(

const DtBasicFixedWingAircraftRecord &

orig

)

Assignment operators.

DtBasicFixedWingAircraftRecord& DtBasicFixedWingAircraftRecord::operator=

(

const DtNetBasicFixedWingAircraftRecord &

orig

)

virtual DtInt8 DtBasicFixedWingAircraftRecord::phi ( ) const

virtual

virtual void DtBasicFixedWingAircraftRecord::print ( ) const

virtual

Print this record.

Reimplemented in DtEnhancedFixedWingAircraftRecord.

virtual void DtBasicFixedWingAircraftRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Print this record to a stream.

Reimplemented in DtEnhancedFixedWingAircraftRecord.

virtual DtInt8 DtBasicFixedWingAircraftRecord::psi ( ) const

virtual

virtual void DtBasicFixedWingAircraftRecord::setAppearance ( DtU32  app )

virtual

Set/Get appearance (as a 32 bit integer).

virtual void DtBasicFixedWingAircraftRecord::setAppearanceAttribute ( const DtAppearAttribute  attr, const DtAppearAttrVal  val  )

virtual

Set/Get appearance by attribute.

virtual void DtBasicFixedWingAircraftRecord::setEntityID ( DtU16  value )

virtual

Set/Get the entity ID.

virtual void DtBasicFixedWingAircraftRecord::setFuelStatus ( DtInt8  value )

virtual

Set/Get the fuel status.

virtual void DtBasicFixedWingAircraftRecord::setHorizontalDeviation ( DtInt8  value )

virtual

Set/Get the horizontal deviation.

virtual void DtBasicFixedWingAircraftRecord::setMovementSpeed ( DtInt16  value )

virtual

Set/Get the movement speed.

virtual void DtBasicFixedWingAircraftRecord::setPhi ( DtInt8  value )

virtual

Set/Get the entity orientation phi.

virtual void DtBasicFixedWingAircraftRecord::setPsi ( DtInt8  value )

virtual

Set/Get the entity orientation psi.

virtual void DtBasicFixedWingAircraftRecord::setTheta ( DtInt8  value )

virtual

Set/Get the entity orientation theta.

virtual void DtBasicFixedWingAircraftRecord::setVerticalDeviation ( DtInt8  value )

virtual

Set/Get the vertical deviation.

virtual void DtBasicFixedWingAircraftRecord::setX_Offset ( DtInt16  value )

virtual

Set/Get the entity location X offset.

virtual void DtBasicFixedWingAircraftRecord::setY_Offset ( DtInt16  value )

virtual

Set/Get the entity location Y offset.

virtual void DtBasicFixedWingAircraftRecord::setZ_Offset ( DtInt16  value )

virtual

Set/Get the entity location Z offset.

virtual DtInt8 DtBasicFixedWingAircraftRecord::theta ( ) const

virtual

virtual void DtBasicFixedWingAircraftRecord::unloadBaseNetRecord ( const DtNetBasicFixedWingAircraftRecord &  record )

virtual

Load/Unload data from a packet record.

virtual DtInt8 DtBasicFixedWingAircraftRecord::verticalDeviation ( ) const

virtual

virtual DtInt16 DtBasicFixedWingAircraftRecord::X_Offset ( ) const

virtual

virtual DtInt16 DtBasicFixedWingAircraftRecord::Y_Offset ( ) const

virtual

virtual DtInt16 DtBasicFixedWingAircraftRecord::Z_Offset ( ) const

virtual

Member Data Documentation

DtU32 DtBasicFixedWingAircraftRecord::myAppearance

protected

DtU16 DtBasicFixedWingAircraftRecord::myEntityID

protected

DtU8 DtBasicFixedWingAircraftRecord::myFuelStatus

protected

DtU8 DtBasicFixedWingAircraftRecord::myHorizontalDeviation

protected

DtInt16 DtBasicFixedWingAircraftRecord::myMovementSpeed

protected

DtInt8 DtBasicFixedWingAircraftRecord::myPhi

protected

DtInt8 DtBasicFixedWingAircraftRecord::myPsi

protected

DtInt8 DtBasicFixedWingAircraftRecord::myTheta

protected

DtU8 DtBasicFixedWingAircraftRecord::myVerticalDeviation

protected

DtInt16 DtBasicFixedWingAircraftRecord::myX_Offset

protected

DtInt16 DtBasicFixedWingAircraftRecord::myY_Offset

protected

DtInt16 DtBasicFixedWingAircraftRecord::myZ_Offset

protected

---

The documentation for this class was generated from the following file:

• basicFixedWingAircraftRecord.h
