DtDetonationPdu Class Reference

DtDetonationPdu is used to represent the impact or detonation of a munition. More...

Inheritance diagram for DtDetonationPdu:

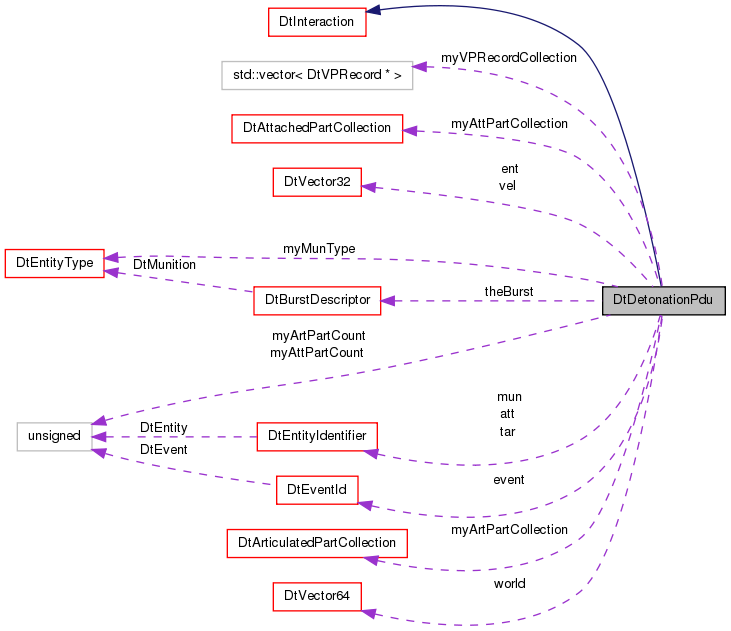

Collaboration diagram for DtDetonationPdu:

Public Types
enum	{ PduStaticSize = 104 }

Public Member Functions
	DtDetonationPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtNetDetonationPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	DtDetonationPdu (const DtEntityIdentifier &attacker, const DtEntityIdentifier &target, const DtEntityIdentifier &munition, const DtEventID &eventId, const DtVector32 &linVelocity, const DtVector &location, const DtBurstDescriptor &burst, const DtVector32 &entLocation, DtDetonationResult result, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtFireInteraction &fire, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Fills in common fields with data from Fire Interaction.
virtual	~DtDetonationPdu ()
	destructor
const DtObjectId &	attackerId () const
void	setAttackerId (const DtObjectId &id)
const DtObjectId &	targetId () const
void	setTargetId (const DtObjectId &id)
const DtObjectId &	munitionId () const
void	setMunitionId (const DtObjectId &id)
const DtEventID &	eventId () const
void	setEventId (const DtEventID &id)
const DtVector32 &	velocity () const
void	setVelocity (const DtVector32 &velocity)
const DtVector &	worldLocation () const
void	setWorldLocation (const DtVector &location)
const DtVector32 &	entityLocation () const
void	setEntityLocation (const DtVector32 &location)
DtDetonationResult	result () const
void	setResult (DtDetonationResult result)
DtDetonatorFuze	fuseType () const
void	setFuseType (DtDetonatorFuze fuse)
const DtEntityType &	munitionType () const
void	setMunitionType (const DtEntityType &munType)
int	quantity () const
void	setQuantity (int quant)
int	rate () const
void	setRate (int rate)
DtWarheadType	warheadType () const
void	setWarheadType (DtWarheadType type)
const DtBurstDescriptor &	burst () const
	NOT USED IN HLA.
void	setBurst (const DtBurstDescriptor &burst)
void	setArticulatedParts (const DtArticulatedPartCollection &apList)
const DtArticulatedPartCollection &	articulatedParts () const
DtArticulatedPartCollection &	articulatedParts ()
void	setAttachedParts (const DtAttachedPartCollection &apList)
const DtAttachedPartCollection &	attachedParts () const
DtAttachedPartCollection &	attachedParts ()
virtual void	printData () const
	Print the PDU's data (not including header).
virtual void	printDataToStream (std::ostream &stream) const
virtual void	printDataToString (DtString &str) const
virtual const std::vector < DtVPRecord * > *	variableParameterList () const
	Get the VP Records list.
virtual std::vector < DtVPRecord * > *	variableParameterList ()
	Get the VP Records list.
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor.
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor.
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator.
virtual	~DtPduWithAttributeRecordSets ()
	Destructor.
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets()
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo.
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream.
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record.
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record.
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier.
virtual void	clearAllRecordSets ()
	Removes all RecordSets.
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets.
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers.
virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier.
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier.
virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets.
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets.
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier.
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher).
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	encode ()
	Encode method.
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method.
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets.
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets.
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding.
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets.
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map.
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not)
virtual void	setAttributeStrategy (DtAttributePduStrategy strat)
virtual DtAttributePduStrategy	attributePduStrategy () const
virtual bool	shouldAttributePduBeCoupled () const
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer.
virtual DtTime	receivedTime () const
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length.
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header.
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header.
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header.
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference.
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference.
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header.
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header.
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled.
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled.
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header.
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header.
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header.
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header.
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header.
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header.
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header.
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header.
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header.
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header.
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header.
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex.
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state.
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called.
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size)
	Changes the size of the message.
virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself.
virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep.
virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address.
virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep.
virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address.
virtual void	clearAll ()
	Zeros out all bytes in the network representation.
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
static void	addCallback (DtExerciseConn *conn, DtDetonationInteractionCb cb, void *usr)
static void	removeCallback (DtExerciseConn *conn, DtDetonationInteractionCb cb, void *usr)

Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class.

Protected Attributes
DtObjectId	att
DtObjectId	tar
DtObjectId	mun
DtEventID	event
DtVector32	vel
DtVector32	ent
DtVector	world
DtBurstDescriptor	theBurst
DtEntityType	myMunType
unsigned	myArtPartCount
unsigned	myAttPartCount
DtArticulatedPartCollection	myArtPartCollection
DtAttachedPartCollection	myAttPartCollection
std::vector< DtVPRecord * >	myVPRecordCollection

Additional Inherited Members
Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

DtDetonationPdu is used to represent the impact or detonation of a munition.

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

Constructor & Destructor Documentation

DtDetonationPdu::DtDetonationPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

DtDetonationPdu::DtDetonationPdu	(	const DtNetDetonationPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

DtDetonationPdu::DtDetonationPdu	(	const DtEntityIdentifier &	attacker,
		const DtEntityIdentifier &	target,
		const DtEntityIdentifier &	munition,
		const DtEventID &	eventId,
		const DtVector32 &	linVelocity,
		const DtVector &	location,
		const DtBurstDescriptor &	burst,
		const DtVector32 &	entLocation,
		DtDetonationResult	result,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtDetonationPdu::DtDetonationPdu	(	const DtFireInteraction &	fire,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

Fills in common fields with data from Fire Interaction.

virtual DtDetonationPdu::~DtDetonationPdu ( )

virtual

destructor

Member Function Documentation

static void DtDetonationPdu::addCallback ( DtExerciseConn *  conn, DtDetonationInteractionCb  cb, void *  usr  )

static

const DtArticulatedPartCollection& DtDetonationPdu::articulatedParts

(

)

const

DtArticulatedPartCollection& DtDetonationPdu::articulatedParts

(

)

const DtAttachedPartCollection& DtDetonationPdu::attachedParts

(

)

const

DtAttachedPartCollection& DtDetonationPdu::attachedParts

(

)

const DtObjectId& DtDetonationPdu::attackerId

(

)

const

const DtBurstDescriptor& DtDetonationPdu::burst

(

)

const

NOT USED IN HLA.

static DtPdu* DtDetonationPdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

const DtVector32& DtDetonationPdu::entityLocation

(

)

const

const DtEventID& DtDetonationPdu::eventId

(

)

const

DtDetonatorFuze DtDetonationPdu::fuseType

(

)

const

DtPduKind DtDetonationPdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

References DtDetonationPduKind.

const DtObjectId& DtDetonationPdu::munitionId

(

)

const

const DtEntityType& DtDetonationPdu::munitionType

(

)

const

virtual void DtDetonationPdu::printData ( ) const

virtual

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented from DtPdu.

virtual void DtDetonationPdu::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtPdu.

virtual void DtDetonationPdu::printDataToString ( DtString &  str ) const

virtual

Reimplemented from DtPdu.

int DtDetonationPdu::quantity

(

)

const

int DtDetonationPdu::rate

(

)

const

static void DtDetonationPdu::removeCallback ( DtExerciseConn *  conn, DtDetonationInteractionCb  cb, void *  usr  )

static

DtDetonationResult DtDetonationPdu::result

(

)

const

void DtDetonationPdu::setArticulatedParts

(

const DtArticulatedPartCollection &

apList

)

void DtDetonationPdu::setAttachedParts

(

const DtAttachedPartCollection &

apList

)

void DtDetonationPdu::setAttackerId

(

const DtObjectId &

id

)

void DtDetonationPdu::setBurst

(

const DtBurstDescriptor &

burst

)

void DtDetonationPdu::setEntityLocation

(

const DtVector32 &

location

)

void DtDetonationPdu::setEventId

(

const DtEventID &

id

)

void DtDetonationPdu::setFuseType

(

DtDetonatorFuze

fuse

)

void DtDetonationPdu::setMunitionId

(

const DtObjectId &

id

)

void DtDetonationPdu::setMunitionType

(

const DtEntityType &

munType

)

void DtDetonationPdu::setQuantity

(

int

quant

)

void DtDetonationPdu::setRate

(

int

rate

)

void DtDetonationPdu::setResult

(

DtDetonationResult

result

)

void DtDetonationPdu::setTargetId

(

const DtObjectId &

id

)

void DtDetonationPdu::setVelocity

(

const DtVector32 &

velocity

)

void DtDetonationPdu::setWarheadType

(

DtWarheadType

type

)

void DtDetonationPdu::setWorldLocation

(

const DtVector &

location

)

const DtObjectId& DtDetonationPdu::targetId

(

)

const

const std::vector< DtVPRecord * > * DtDetonationPdu::variableParameterList ( ) const

inlinevirtual

Get the VP Records list.

This does not include articulated parts even though those are technically also VPs. Only available in DIS version 7 or higher.

References myVPRecordCollection.

std::vector< DtVPRecord * > * DtDetonationPdu::variableParameterList ( )

inlinevirtual

Get the VP Records list.

This does not include articulated parts even though those are technically also VPs. Only available in DIS version 7 or higher.

References myVPRecordCollection.

const DtVector32& DtDetonationPdu::velocity

(

)

const

DtWarheadType DtDetonationPdu::warheadType

(

)

const

const DtVector& DtDetonationPdu::worldLocation

(

)

const

Member Data Documentation

DtObjectId DtDetonationPdu::att

protected

DtVector32 DtDetonationPdu::ent

protected

DtEventID DtDetonationPdu::event

protected

DtObjectId DtDetonationPdu::mun

protected

DtArticulatedPartCollection DtDetonationPdu::myArtPartCollection

mutableprotected

unsigned DtDetonationPdu::myArtPartCount

protected

DtAttachedPartCollection DtDetonationPdu::myAttPartCollection

mutableprotected

unsigned DtDetonationPdu::myAttPartCount

protected

DtEntityType DtDetonationPdu::myMunType

protected

std::vector<DtVPRecord*> DtDetonationPdu::myVPRecordCollection

protected

Referenced by variableParameterList().

DtObjectId DtDetonationPdu::tar

protected

DtBurstDescriptor DtDetonationPdu::theBurst

protected

DtVector32 DtDetonationPdu::vel

protected

DtVector DtDetonationPdu::world

protected

---

The documentation for this class was generated from the following file:

• detonationPdu.h
