DtParallelExecutionContainer< Texec > Class Template Reference

DtParallelExecutionContainer is implementation of DtExecutionContainer which executes methods on all contained objects in parallel on multiple threads. More...

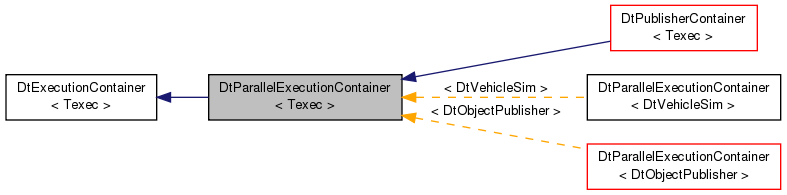

Inheritance diagram for DtParallelExecutionContainer< Texec >:

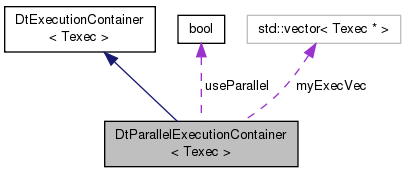

Collaboration diagram for DtParallelExecutionContainer< Texec >:

Classes
class	ExecutableItem
	This class is used by TBB to manage the work units to perform. More...

Public Types
typedef std::vector< Texec * >	PecContainerType
typedef PecContainerType::iterator	PecIteratorType

Public Member Functions
	DtParallelExecutionContainer (bool parallel=true)
	Default to parallel execution.
virtual	~DtParallelExecutionContainer ()
virtual void	add (Texec *item)
	Add a reference to the list.
virtual void	remove (Texec *item)
	Remove a reference from the list.
virtual void	clear ()
	Clear the list.
virtual bool	empty ()
	Returns true if the container is empty.
virtual unsigned int	count ()
	Returns the number of items in the container.
virtual void	deleteAndClear ()
	Delete all referenced objects and then clear the list.
virtual PecIteratorType	begin ()
	Iterators over the collection.
virtual PecIteratorType	end ()
virtual void	executeMethod (void(Texec::*theMethodPtr)())
	worker methods
virtual void	setParallel (bool parallel)
	The 'parallel' property determines if the methods are executed in parallel or serial.
virtual bool	isParallel () const

Protected Member Functions
virtual void	executeMethodParallel (void(Texec::*theMethodPtr)())
	Execute method on all contained objects in parallel using multiple threads.
virtual void	executeMethodSerial (void(Texec::*theMethodPtr)())
	For test and debug, a convenience to execute methods serially.
virtual void	beginParallel ()
	executed before entering a parallel section
virtual void	endParallel ()
	executed after leaving a parallel section

Protected Attributes
PecContainerType	myExecVec
	Contains pointers to published entities.

Private Attributes
bool	useParallel
	true if using parallel execution, false for serial

Detailed Description

template<class Texec>
class DtParallelExecutionContainer< Texec >

DtParallelExecutionContainer is implementation of DtExecutionContainer which executes methods on all contained objects in parallel on multiple threads.

Note that objects of this class are not themselves threadsafe, so you can't add items to, or remove items from the collection in different threads.

Member Typedef Documentation

template<class Texec>

typedef std::vector<Texec *> DtParallelExecutionContainer< Texec >::PecContainerType

template<class Texec>

typedef PecContainerType::iterator DtParallelExecutionContainer< Texec >::PecIteratorType

Constructor & Destructor Documentation

template<class Texec>

DtParallelExecutionContainer< Texec >::DtParallelExecutionContainer ( bool  parallel = true )

inline

Default to parallel execution.

template<class Texec>

virtual DtParallelExecutionContainer< Texec >::~DtParallelExecutionContainer ( )

inlinevirtual

Member Function Documentation

template<class Texec>

virtual void DtParallelExecutionContainer< Texec >::add ( Texec *  item )

inlinevirtual

Add a reference to the list.

Implements DtExecutionContainer< Texec >.

template<class Texec>

virtual PecIteratorType DtParallelExecutionContainer< Texec >::begin ( )

inlinevirtual

Iterators over the collection.

Referenced by DtParallelExecutionContainer< DtObjectPublisher >::remove().

template<class Texec>

virtual void DtParallelExecutionContainer< Texec >::beginParallel ( )

inlineprotectedvirtual

executed before entering a parallel section

template<class Texec>

virtual void DtParallelExecutionContainer< Texec >::clear ( )

inlinevirtual

Clear the list.

Implements DtExecutionContainer< Texec >.

template<class Texec>

virtual unsigned int DtParallelExecutionContainer< Texec >::count ( )

inlinevirtual

Returns the number of items in the container.

template<class Texec >

void DtParallelExecutionContainer< Texec >::deleteAndClear ( )

inlinevirtual

Delete all referenced objects and then clear the list.

Implements DtExecutionContainer< Texec >.

template<class Texec>

virtual bool DtParallelExecutionContainer< Texec >::empty ( )

inlinevirtual

Returns true if the container is empty.

template<class Texec>

virtual PecIteratorType DtParallelExecutionContainer< Texec >::end ( )

inlinevirtual

Referenced by DtParallelExecutionContainer< DtObjectPublisher >::remove().

template<class Texec>

virtual void DtParallelExecutionContainer< Texec >::endParallel ( )

inlineprotectedvirtual

executed after leaving a parallel section

template<class Texec>

void DtParallelExecutionContainer< Texec >::executeMethod ( void(Texec::*)()  theMethodPtr )

inlinevirtual

worker methods

Execute method on all contained objects.

Implements DtExecutionContainer< Texec >.

Referenced by DtPublisherContainer< DtObjectPublisher >::forceUpdate(), and DtPublisherContainer< DtObjectPublisher >::tick().

template<class Texec>

void DtParallelExecutionContainer< Texec >::executeMethodParallel ( void(Texec::*)()  theMethodPtr )

inlineprotectedvirtual

Execute method on all contained objects in parallel using multiple threads.

template<class Texec>

void DtParallelExecutionContainer< Texec >::executeMethodSerial ( void(Texec::*)()  theMethodPtr )

inlineprotectedvirtual

For test and debug, a convenience to execute methods serially.

template<class Texec>

virtual bool DtParallelExecutionContainer< Texec >::isParallel ( ) const

inlinevirtual

template<class Texec>

virtual void DtParallelExecutionContainer< Texec >::remove ( Texec *  item )

inlinevirtual

Remove a reference from the list.

Implements DtExecutionContainer< Texec >.

template<class Texec>

virtual void DtParallelExecutionContainer< Texec >::setParallel ( bool  parallel )

inlinevirtual

The 'parallel' property determines if the methods are executed in parallel or serial.

Member Data Documentation

template<class Texec>

PecContainerType DtParallelExecutionContainer< Texec >::myExecVec

protected

Contains pointers to published entities.

Referenced by DtParallelExecutionContainer< DtObjectPublisher >::add(), DtParallelExecutionContainer< DtObjectPublisher >::begin(), DtParallelExecutionContainer< DtObjectPublisher >::clear(), DtParallelExecutionContainer< DtObjectPublisher >::count(), DtParallelExecutionContainer< DtObjectPublisher >::empty(), DtParallelExecutionContainer< DtObjectPublisher >::end(), and DtParallelExecutionContainer< DtObjectPublisher >::remove().

template<class Texec>

bool DtParallelExecutionContainer< Texec >::useParallel

private

true if using parallel execution, false for serial

Referenced by DtParallelExecutionContainer< DtObjectPublisher >::isParallel(), and DtParallelExecutionContainer< DtObjectPublisher >::setParallel().

---

The documentation for this class was generated from the following file:

• parallelExecutionContainer.h
