DtReflectedArealObject Class Reference

Instances of DtReflectedArealObject represent Areal Objects simulated by remote applications. More...

Inheritance diagram for DtReflectedArealObject:

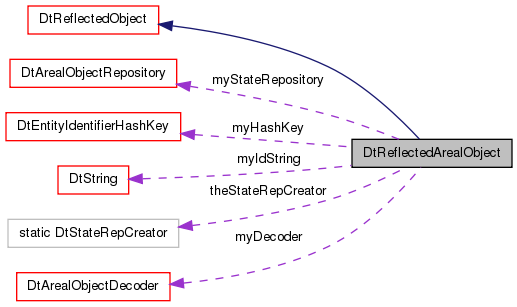

Collaboration diagram for DtReflectedArealObject:

Public Types
typedef DtArealObjectRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtArealObjectRepositories.

Public Member Functions
	DtReflectedArealObject (DtExerciseConn *conn, const DtEntityIdentifier &id)
	Constructor.
virtual	~DtReflectedArealObject ()
	Destructor.
virtual DtArealObjectRepository *	arealObjectStateRep () const
	Get the areal object's state repository.
virtual DtArealObjectRepository *	aosr () const
	Synonym for arealObjectStateRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository through which you can inspect current state information.
virtual void	processStateMessage (const DtStateMsg &msg)
	Overrides the implementation of the base class.
virtual DtReflectedArealObject *	next () const
	Get the next remote areal object.
virtual DtReflectedArealObject *	prev () const
	Get the previous remote areal object.
virtual DtReflectedArealObject *	wrapNext () const
	Get the next remote areal object.
virtual DtReflectedArealObject *	wrapPrev () const
	Get the previous remote areal object.
virtual void	addPostUpdateCallback (DtArealObjectCallbackFunction cb, void *usr)
	areal object state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtArealObjectCallbackFunction cb, void *usr)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the areal object entityId.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator ()

Protected Member Functions
	DtReflectedArealObject (const DtReflectedArealObject &)
	Copy constructor - not implemented.
DtReflectedArealObject &	operator= (const DtReflectedArealObject &)
	Assignment operator - not implemented.
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtEntityIdentifierHashKey	myHashKey
DtString	myIdString
DtArealObjectRepository *	myStateRepository
DtArealObjectDecoder *	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedArealObject represent Areal Objects simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtArealObjectRepository*(* DtReflectedArealObject::DtStateRepCreator)()

Function prototype for functions that create DtArealObjectRepositories.

Constructor & Destructor Documentation

DtReflectedArealObject::DtReflectedArealObject	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id
	)

Constructor.

virtual DtReflectedArealObject::~DtReflectedArealObject ( )

virtual

Destructor.

DtReflectedArealObject::DtReflectedArealObject ( const DtReflectedArealObject &  )

protected

Copy constructor - not implemented.

Member Function Documentation

virtual void DtReflectedArealObject::addPostUpdateCallback ( DtArealObjectCallbackFunction  cb, void *  usr  )

virtual

areal object state callback registration/deregistration.

virtual DtArealObjectRepository* DtReflectedArealObject::aosr ( ) const

inlinevirtual

Synonym for arealObjectStateRep().

virtual DtArealObjectRepository* DtReflectedArealObject::arealObjectStateRep ( ) const

inlinevirtual

Get the areal object's state repository.

virtual const DtGlobalObjectDesignator& DtReflectedArealObject::globalId ( ) const

virtual

Get the areal object entityId.

For DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedArealObject::hashKey ( ) const

inlinevirtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedArealObject::idString ( ) const

inlinevirtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedArealObject* DtReflectedArealObject::next ( ) const

virtual

Get the next remote areal object.

Reimplemented from DtListedObj.

DtReflectedArealObject& DtReflectedArealObject::operator= ( const DtReflectedArealObject &  )

protected

Assignment operator - not implemented.

virtual DtReflectedArealObject* DtReflectedArealObject::prev ( ) const

virtual

Get the previous remote areal object.

Reimplemented from DtListedObj.

virtual void DtReflectedArealObject::processStateMessage ( const DtStateMsg &  msg )

virtual

Overrides the implementation of the base class.

Processes an areal object PDU.

Reimplemented from DtReflectedObject.

virtual void DtReflectedArealObject::removePostUpdateCallback ( DtArealObjectCallbackFunction  cb, void *  usr  )

virtual

static void DtReflectedArealObject::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedArealObject::stateRep ( ) const

inlinevirtual

Returns a pointer to the StateRepository through which you can inspect current state information.

Implementation for abstract base class.

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedArealObject::stateRepCreator ( )

static

virtual DtReflectedArealObject* DtReflectedArealObject::wrapNext ( ) const

virtual

Get the next remote areal object.

If at the end, it will cycle back to the first remote areal object.

Reimplemented from DtListedObj.

virtual DtReflectedArealObject* DtReflectedArealObject::wrapPrev ( ) const

virtual

Get the previous remote areal object.

If at the beginning, it will cycle back to the last remote areal object.

Reimplemented from DtListedObj.

Member Data Documentation

DtArealObjectDecoder* DtReflectedArealObject::myDecoder

protected

DtEntityIdentifierHashKey DtReflectedArealObject::myHashKey

protected

DtString DtReflectedArealObject::myIdString

protected

DtArealObjectRepository* DtReflectedArealObject::myStateRepository

protected

DtStateRepCreator DtReflectedArealObject::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedArealObjectDIS.h
