DtReflectedLinearObject Class Reference

Instances of DtReflectedLinearObject represent Linear Object simulated by remote applications. More...

Inheritance diagram for DtReflectedLinearObject:

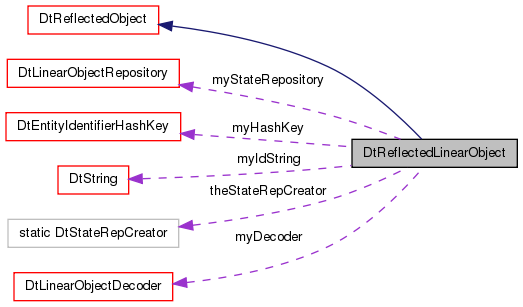

Collaboration diagram for DtReflectedLinearObject:

Public Types
typedef DtLinearObjectRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtLinearObjectRepositories.

Public Member Functions
	DtReflectedLinearObject (DtExerciseConn *conn, const DtEntityIdentifier &id)
	Constructor.
virtual	~DtReflectedLinearObject ()
	Destructor.
virtual DtLinearObjectRepository *	linearObjectStateRep () const
	Get the linear object's state repository.
virtual DtLinearObjectRepository *	losr () const
	Synonym for linearObjectStateRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository through which you can inspect current state information.
virtual void	processStateMessage (const DtStateMsg &msg)
	Overrides the implementation of the base class.
virtual DtReflectedLinearObject *	next () const
	Get the next remote linear object.
virtual DtReflectedLinearObject *	prev () const
	Get the previous remote linear object.
virtual DtReflectedLinearObject *	wrapNext () const
	Get the next remote linear object.
virtual DtReflectedLinearObject *	wrapPrev () const
	Get the previous remote linear object.
virtual void	addPostUpdateCallback (DtLinearObjectCallbackFunction cb, void *usr)
	linear object state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtLinearObjectCallbackFunction cb, void *usr)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the linear object entityId.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator ()

Protected Member Functions
	DtReflectedLinearObject (const DtReflectedLinearObject &)
	Copy constructor - not implemented.
DtReflectedLinearObject &	operator= (const DtReflectedLinearObject &)
	Assignment operator - not implemented.
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtEntityIdentifierHashKey	myHashKey
DtString	myIdString
DtLinearObjectRepository *	myStateRepository
DtLinearObjectDecoder *	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedLinearObject represent Linear Object simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtLinearObjectRepository*(* DtReflectedLinearObject::DtStateRepCreator)()

Function prototype for functions that create DtLinearObjectRepositories.

Constructor & Destructor Documentation

DtReflectedLinearObject::DtReflectedLinearObject	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id
	)

Constructor.

virtual DtReflectedLinearObject::~DtReflectedLinearObject ( )

virtual

Destructor.

DtReflectedLinearObject::DtReflectedLinearObject ( const DtReflectedLinearObject &  )

protected

Copy constructor - not implemented.

Member Function Documentation

virtual void DtReflectedLinearObject::addPostUpdateCallback ( DtLinearObjectCallbackFunction  cb, void *  usr  )

virtual

linear object state callback registration/deregistration.

virtual const DtGlobalObjectDesignator& DtReflectedLinearObject::globalId ( ) const

virtual

Get the linear object entityId.

For DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedLinearObject::hashKey ( ) const

inlinevirtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedLinearObject::idString ( ) const

inlinevirtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtLinearObjectRepository* DtReflectedLinearObject::linearObjectStateRep ( ) const

inlinevirtual

Get the linear object's state repository.

virtual DtLinearObjectRepository* DtReflectedLinearObject::losr ( ) const

inlinevirtual

Synonym for linearObjectStateRep().

virtual DtReflectedLinearObject* DtReflectedLinearObject::next ( ) const

virtual

Get the next remote linear object.

Reimplemented from DtListedObj.

DtReflectedLinearObject& DtReflectedLinearObject::operator= ( const DtReflectedLinearObject &  )

protected

Assignment operator - not implemented.

virtual DtReflectedLinearObject* DtReflectedLinearObject::prev ( ) const

virtual

Get the previous remote linear object.

Reimplemented from DtListedObj.

virtual void DtReflectedLinearObject::processStateMessage ( const DtStateMsg &  msg )

virtual

Overrides the implementation of the base class.

Processes a linear object PDU.

Reimplemented from DtReflectedObject.

virtual void DtReflectedLinearObject::removePostUpdateCallback ( DtLinearObjectCallbackFunction  cb, void *  usr  )

virtual

static void DtReflectedLinearObject::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedLinearObject::stateRep ( ) const

inlinevirtual

Returns a pointer to the StateRepository through which you can inspect current state information.

Implementation for abstract base class.

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedLinearObject::stateRepCreator ( )

static

virtual DtReflectedLinearObject* DtReflectedLinearObject::wrapNext ( ) const

virtual

Get the next remote linear object.

If at the end, it will cycle back to the first remote linear object.

Reimplemented from DtListedObj.

virtual DtReflectedLinearObject* DtReflectedLinearObject::wrapPrev ( ) const

virtual

Get the previous remote linear object.

If at the beginning, it will cycle back to the last remote linear object.

Reimplemented from DtListedObj.

Member Data Documentation

DtLinearObjectDecoder* DtReflectedLinearObject::myDecoder

protected

DtEntityIdentifierHashKey DtReflectedLinearObject::myHashKey

protected

DtString DtReflectedLinearObject::myIdString

protected

DtLinearObjectRepository* DtReflectedLinearObject::myStateRepository

protected

DtStateRepCreator DtReflectedLinearObject::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedLinearObjectDIS.h
