DtReflectedPointObject Class Reference

Instances of DtReflectedPointObject represent Point Object simulated by remote applications. More...

Inheritance diagram for DtReflectedPointObject:

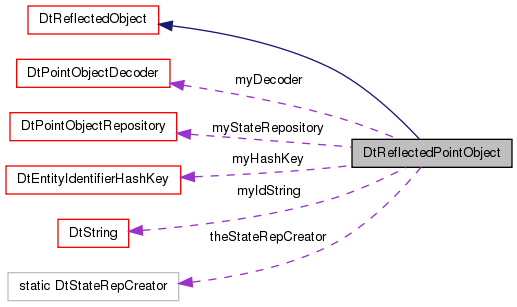

Collaboration diagram for DtReflectedPointObject:

Public Types
typedef DtPointObjectRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtPointObjectRepositories.

Public Member Functions
	DtReflectedPointObject (DtExerciseConn *conn, const DtEntityIdentifier &id)
	Constructor.
virtual	~DtReflectedPointObject ()
	Destructor.
virtual DtPointObjectRepository *	pointObjectStateRep () const
	Get the point object's state repository.
virtual DtPointObjectRepository *	posr () const
	Synonym for pointObjectStateRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository through which you can inspect current state information.
virtual void	processStateMessage (const DtStateMsg &msg)
	Overrides the implementation of the base class.
virtual DtReflectedPointObject *	next () const
	Get the next remote point object.
virtual DtReflectedPointObject *	prev () const
	Get the previous remote point object.
virtual DtReflectedPointObject *	wrapNext () const
	Get the next remote point object.
virtual DtReflectedPointObject *	wrapPrev () const
	Get the previous remote point object.
virtual void	addPostUpdateCallback (DtPointObjectCallbackFunction cb, void *usr)
	point object state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtPointObjectCallbackFunction cb, void *usr)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the point object entityId.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator ()

Protected Member Functions
	DtReflectedPointObject (const DtReflectedPointObject &)
	Copy constructor - not implemented.
DtReflectedPointObject &	operator= (const DtReflectedPointObject &)
	Assignment operator - not implemented.
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtEntityIdentifierHashKey	myHashKey
DtString	myIdString
DtPointObjectRepository *	myStateRepository
DtPointObjectDecoder *	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedPointObject represent Point Object simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtPointObjectRepository*(* DtReflectedPointObject::DtStateRepCreator)()

Function prototype for functions that create DtPointObjectRepositories.

Constructor & Destructor Documentation

DtReflectedPointObject::DtReflectedPointObject	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id
	)

Constructor.

virtual DtReflectedPointObject::~DtReflectedPointObject ( )

virtual

Destructor.

DtReflectedPointObject::DtReflectedPointObject ( const DtReflectedPointObject &  )

protected

Copy constructor - not implemented.

Member Function Documentation

virtual void DtReflectedPointObject::addPostUpdateCallback ( DtPointObjectCallbackFunction  cb, void *  usr  )

virtual

point object state callback registration/deregistration.

virtual const DtGlobalObjectDesignator& DtReflectedPointObject::globalId ( ) const

virtual

Get the point object entityId.

For DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedPointObject::hashKey ( ) const

inlinevirtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedPointObject::idString ( ) const

inlinevirtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedPointObject* DtReflectedPointObject::next ( ) const

virtual

Get the next remote point object.

Reimplemented from DtListedObj.

DtReflectedPointObject& DtReflectedPointObject::operator= ( const DtReflectedPointObject &  )

protected

Assignment operator - not implemented.

virtual DtPointObjectRepository* DtReflectedPointObject::pointObjectStateRep ( ) const

inlinevirtual

Get the point object's state repository.

virtual DtPointObjectRepository* DtReflectedPointObject::posr ( ) const

inlinevirtual

Synonym for pointObjectStateRep().

virtual DtReflectedPointObject* DtReflectedPointObject::prev ( ) const

virtual

Get the previous remote point object.

Reimplemented from DtListedObj.

virtual void DtReflectedPointObject::processStateMessage ( const DtStateMsg &  msg )

virtual

Overrides the implementation of the base class.

Processes a point object PDU.

Reimplemented from DtReflectedObject.

virtual void DtReflectedPointObject::removePostUpdateCallback ( DtPointObjectCallbackFunction  cb, void *  usr  )

virtual

static void DtReflectedPointObject::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedPointObject::stateRep ( ) const

inlinevirtual

Returns a pointer to the StateRepository through which you can inspect current state information.

Implementation for abstract base class.

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedPointObject::stateRepCreator ( )

static

virtual DtReflectedPointObject* DtReflectedPointObject::wrapNext ( ) const

virtual

Get the next remote point object.

If at the end, it will cycle back to the first remote point object.

Reimplemented from DtListedObj.

virtual DtReflectedPointObject* DtReflectedPointObject::wrapPrev ( ) const

virtual

Get the previous remote point object.

If at the beginning, it will cycle back to the last remote point object.

Reimplemented from DtListedObj.

Member Data Documentation

DtPointObjectDecoder* DtReflectedPointObject::myDecoder

protected

DtEntityIdentifierHashKey DtReflectedPointObject::myHashKey

protected

DtString DtReflectedPointObject::myIdString

protected

DtPointObjectRepository* DtReflectedPointObject::myStateRepository

protected

DtStateRepCreator DtReflectedPointObject::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedPointObjectDIS.h
