Instances of DtUnderwaterAcousticsEmissionStateRepository are used to store state data for EmbeddedSystem.UnderwaterAcousticsEmission objects. More...

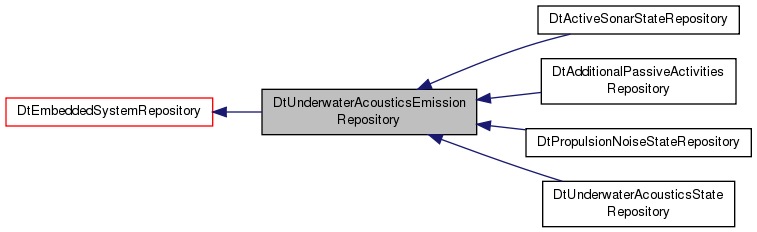

Inheritance diagram for DtUnderwaterAcousticsEmissionRepository:

Collaboration diagram for DtUnderwaterAcousticsEmissionRepository:

Public Member Functions
	DtUnderwaterAcousticsEmissionRepository ()
	Constructor.
virtual	~DtUnderwaterAcousticsEmissionRepository ()
	Destructor.
	DtUnderwaterAcousticsEmissionRepository (const DtUnderwaterAcousticsEmissionRepository &orig)
	Copy Constructor.
DtUnderwaterAcousticsEmissionRepository &	operator= (const DtUnderwaterAcousticsEmissionRepository &orig)
	Assignment Operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual void	setEventIdentifier (const DtEventId &val)
	Set the EventIdentifier.
virtual const DtEventId &	eventIdentifier () const
	Get the EventIdentifier.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity.
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7.
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector.
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set.
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set.
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet.
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet.
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet.
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them.
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet.
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet.
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set.
virtual void	addAttributeRecord (std::auto_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set.
virtual void	clearAttributeRecords ()
	Clear all records.
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names.
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

Static Public Member Functions
static DtUnderwaterAcousticsEmissionRepository *	create ()
	Create a DtUnderwaterAcousticsEmissionStateRepository.

Protected Attributes
DtEventId	myEventIdentifier
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtVector32	myRelativePosition

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtUnderwaterAcousticsEmissionStateRepository are used to store state data for EmbeddedSystem.UnderwaterAcousticsEmission objects.

Constructor & Destructor Documentation

DtUnderwaterAcousticsEmissionRepository::DtUnderwaterAcousticsEmissionRepository ( )

Constructor.

virtual DtUnderwaterAcousticsEmissionRepository::~DtUnderwaterAcousticsEmissionRepository ( )

virtual

Destructor.

DtUnderwaterAcousticsEmissionRepository::DtUnderwaterAcousticsEmissionRepository ( const DtUnderwaterAcousticsEmissionRepository & orig )

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtUnderwaterAcousticsEmissionRepository::clone ( bool copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, and DtAdditionalPassiveActivitiesRepository.

static DtUnderwaterAcousticsEmissionRepository* DtUnderwaterAcousticsEmissionRepository::create ( )

static

Create a DtUnderwaterAcousticsEmissionStateRepository.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, and DtActiveSonarStateRepository.

virtual const DtEventId& DtUnderwaterAcousticsEmissionRepository::eventIdentifier ( ) const

virtual

Get the EventIdentifier.

DtUnderwaterAcousticsEmissionRepository& DtUnderwaterAcousticsEmissionRepository::operator= ( const DtUnderwaterAcousticsEmissionRepository & orig )

Assignment Operator.

virtual void DtUnderwaterAcousticsEmissionRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, and DtAdditionalPassiveActivitiesRepository.

virtual void DtUnderwaterAcousticsEmissionRepository::printDataToStream ( std::ostream & stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, and DtAdditionalPassiveActivitiesRepository.

virtual void DtUnderwaterAcousticsEmissionRepository::setEventIdentifier ( const DtEventId & val )
