DtBlankingSectorAttributeRecord Class Reference

Inheritance diagram for DtBlankingSectorAttributeRecord:

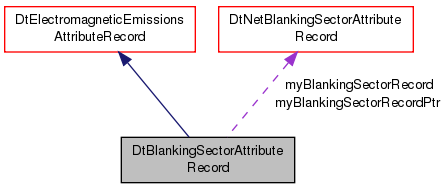

Collaboration diagram for DtBlankingSectorAttributeRecord:

Public Member Functions
	DtBlankingSectorAttributeRecord ()
	Constructor.
	DtBlankingSectorAttributeRecord (unsigned int emitterNumber, unsigned int beamNumber, DtEEAttributeStateIndicator stateIndicator, float leftAzimuth, float rightAzimuth, float lowerAzimuth, float upperAzimuth, float residualPower)
	Constructor.
	DtBlankingSectorAttributeRecord (const DtBlankingSectorAttributeRecord &orig)
	Copy Constructor.
	DtBlankingSectorAttributeRecord (const DtNetBlankingSectorAttributeRecord &orig)
	Copy Constructor.
	DtBlankingSectorAttributeRecord (void *ptr, unsigned int length)
	Net Constructor.
virtual DtBlankingSectorAttributeRecord &	operator= (const DtBlankingSectorAttributeRecord &other)
	Assignment operator.
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &record)
	Assignment operator.
virtual bool	operator== (const DtBlankingSectorAttributeRecord &other)
	Equals operator.
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator.
virtual unsigned int	recordType () const
	Setters and Getters for Record Type.
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type.
virtual unsigned int	recordLength () const
	Setters and Getters for Record Length.
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes.
virtual unsigned int	emitterNumber () const
	Setters and Getters for Emitter Number.
virtual void	setEmitterNumber (unsigned int emitterNumber)
virtual unsigned int	beamNumber () const
	Setters and Getters for Beam Number.
virtual void	setBeamNumber (unsigned int beamNumber)
virtual DtEEAttributeStateIndicator	stateIndicator () const
	Setters and Getters for State Indicator.
virtual void	setStateIndicator (DtEEAttributeStateIndicator stateIndicator)
virtual float	leftAzimuth () const
	Setters and Getters for Left Azimuth.
virtual void	setLeftAzimuth (float leftAzimuth)
virtual float	rightAzimuth () const
	Setters and Getters for Right Azimuth.
virtual void	setRightAzimuth (float rightAzimuth)
virtual float	lowerElevation () const
	Setters and Getters for Lower Elevation.
virtual void	setLowerElevation (float lowerElevation)
virtual float	upperElevation () const
	Setters and Getters for Upper Elevation.
virtual void	setUpperElevation (float upperElevation)
virtual float	residualPower () const
	Setters and Getters for Residual Power.
virtual void	setResidualPower (float residualPower)
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream.
virtual void	writeRecord (void *addr) const
	Writes the network representation to the given address.
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from an address and length. Retcode will be Valid if all goes well.
virtual unsigned int	unpaddedNetsize () const
	Returns the size of the network representation (without padding bytes)
virtual unsigned int	netSize () const
	This overrides netSize because this Record is a special case as it is of a fixed size and Will never require padding.
virtual DtStandardVariableRecord *	clone () const
	Clone.

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Create function used by Standard Variable Record Factory.

Protected Attributes
DtNetBlankingSectorAttributeRecord	myBlankingSectorRecord
DtNetBlankingSectorAttributeRecord *	myBlankingSectorRecordPtr

Constructor & Destructor Documentation

DtBlankingSectorAttributeRecord::DtBlankingSectorAttributeRecord

(

)

Constructor.

DtBlankingSectorAttributeRecord::DtBlankingSectorAttributeRecord	(	unsigned int	emitterNumber,
		unsigned int	beamNumber,
		DtEEAttributeStateIndicator	stateIndicator,
		float	leftAzimuth,
		float	rightAzimuth,
		float	lowerAzimuth,
		float	upperAzimuth,
		float	residualPower
	)

Constructor.

DtBlankingSectorAttributeRecord::DtBlankingSectorAttributeRecord

(

const DtBlankingSectorAttributeRecord &

orig

)

Copy Constructor.

DtBlankingSectorAttributeRecord::DtBlankingSectorAttributeRecord

(

const DtNetBlankingSectorAttributeRecord &

orig

)

Copy Constructor.

DtBlankingSectorAttributeRecord::DtBlankingSectorAttributeRecord	(	void *	ptr,
		unsigned int	length
	)

Net Constructor.

Member Function Documentation

virtual unsigned int DtBlankingSectorAttributeRecord::beamNumber ( ) const

virtual

Setters and Getters for Beam Number.

Implements DtElectromagneticEmissionsAttributeRecord.

virtual DtStandardVariableRecord* DtBlankingSectorAttributeRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtBlankingSectorAttributeRecord::create ( void *  addr, unsigned int  length  )

static

Create function used by Standard Variable Record Factory.

virtual unsigned int DtBlankingSectorAttributeRecord::emitterNumber ( ) const

virtual

Setters and Getters for Emitter Number.

Implements DtElectromagneticEmissionsAttributeRecord.

virtual float DtBlankingSectorAttributeRecord::leftAzimuth ( ) const

virtual

Setters and Getters for Left Azimuth.

virtual float DtBlankingSectorAttributeRecord::lowerElevation ( ) const

virtual

Setters and Getters for Lower Elevation.

virtual unsigned int DtBlankingSectorAttributeRecord::netSize ( ) const

virtual

This overrides netSize because this Record is a special case as it is of a fixed size and Will never require padding.

virtual DtBlankingSectorAttributeRecord& DtBlankingSectorAttributeRecord::operator= ( const DtBlankingSectorAttributeRecord &  other )

virtual

Assignment operator.

virtual DtStandardVariableRecord& DtBlankingSectorAttributeRecord::operator= ( const DtStandardVariableRecord &  record )

virtual

Assignment operator.

virtual bool DtBlankingSectorAttributeRecord::operator== ( const DtBlankingSectorAttributeRecord &  other )

virtual

Equals operator.

virtual bool DtBlankingSectorAttributeRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Implements DtStandardVariableRecord.

virtual void DtBlankingSectorAttributeRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtBlankingSectorAttributeRecord::recordLength ( ) const

virtual

Setters and Getters for Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtBlankingSectorAttributeRecord::recordType ( ) const

virtual

Setters and Getters for Record Type.

Implements DtStandardVariableRecord.

virtual float DtBlankingSectorAttributeRecord::residualPower ( ) const

virtual

Setters and Getters for Residual Power.

virtual float DtBlankingSectorAttributeRecord::rightAzimuth ( ) const

virtual

Setters and Getters for Right Azimuth.

virtual void DtBlankingSectorAttributeRecord::setBeamNumber ( unsigned int  beamNumber )

virtual

Implements DtElectromagneticEmissionsAttributeRecord.

virtual void DtBlankingSectorAttributeRecord::setEmitterNumber ( unsigned int  emitterNumber )

virtual

Implements DtElectromagneticEmissionsAttributeRecord.

virtual void DtBlankingSectorAttributeRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from an address and length. Retcode will be Valid if all goes well.

Implements DtStandardVariableRecord.

virtual void DtBlankingSectorAttributeRecord::setLeftAzimuth ( float  leftAzimuth )

virtual

virtual void DtBlankingSectorAttributeRecord::setLowerElevation ( float  lowerElevation )

virtual

virtual void DtBlankingSectorAttributeRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtBlankingSectorAttributeRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

virtual void DtBlankingSectorAttributeRecord::setResidualPower ( float  residualPower )

virtual

virtual void DtBlankingSectorAttributeRecord::setRightAzimuth ( float  rightAzimuth )

virtual

virtual void DtBlankingSectorAttributeRecord::setStateIndicator ( DtEEAttributeStateIndicator  stateIndicator )

virtual

virtual void DtBlankingSectorAttributeRecord::setUpperElevation ( float  upperElevation )

virtual

virtual DtEEAttributeStateIndicator DtBlankingSectorAttributeRecord::stateIndicator ( ) const

virtual

Setters and Getters for State Indicator.

virtual unsigned int DtBlankingSectorAttributeRecord::unpaddedNetsize ( ) const

virtual

Returns the size of the network representation (without padding bytes)

Implements DtStandardVariableRecord.

virtual float DtBlankingSectorAttributeRecord::upperElevation ( ) const

virtual

Setters and Getters for Upper Elevation.

virtual void DtBlankingSectorAttributeRecord::writeRecord ( void *  addr ) const

virtual

Writes the network representation to the given address.

The assumption is that this memory is allocated and is of the proper size.

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetBlankingSectorAttributeRecord DtBlankingSectorAttributeRecord::myBlankingSectorRecord

protected

DtNetBlankingSectorAttributeRecord* DtBlankingSectorAttributeRecord::myBlankingSectorRecordPtr

protected

---

The documentation for this class was generated from the following file:

• blankingSectorAttributeRecord.h
