DtEnvironmentObjectRepository Class Reference

Instances of DtEnvironmentObjectRepository are used to maintain state information needed by environment entities. More...

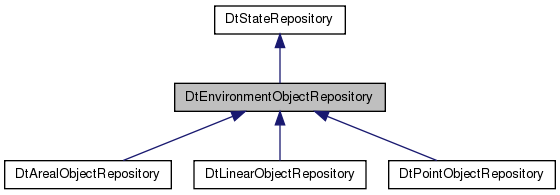

Inheritance diagram for DtEnvironmentObjectRepository:

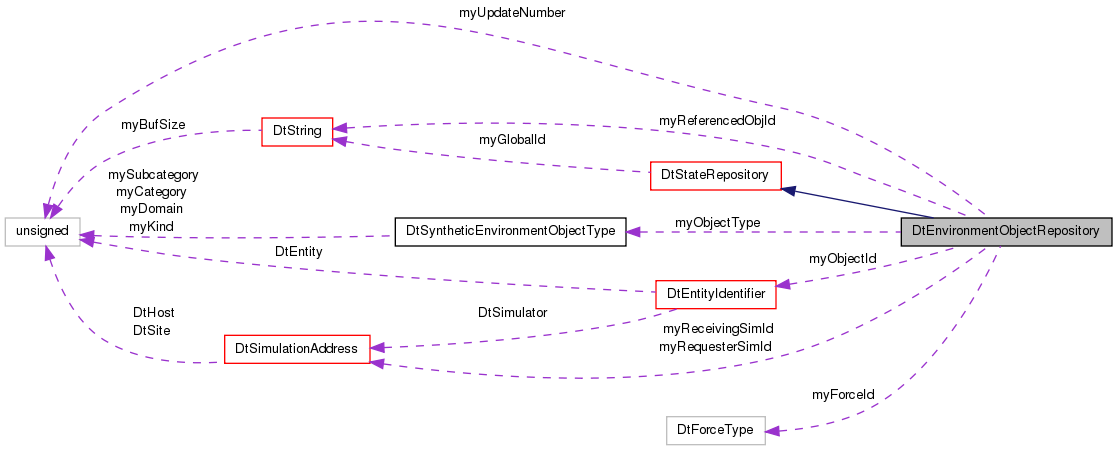

Collaboration diagram for DtEnvironmentObjectRepository:

Public Member Functions
	DtEnvironmentObjectRepository ()
	CTOR.
	DtEnvironmentObjectRepository (const DtEnvironmentObjectRepository &orig)
	Copy CTOR.
virtual	~DtEnvironmentObjectRepository ()
	DTOR.
DtEnvironmentObjectRepository &	operator= (const DtEnvironmentObjectRepository &orig)
	Assignment operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setObjectId (const DtEntityIdentifier &identifier)
	Set/Get Environment Object ID.
virtual const DtEntityIdentifier &	objectId () const
virtual void	setReferencedObjectId (const DtGlobalObjectDesignator &rtiObject)
	Set/Get Referenced Object ID.
virtual const DtGlobalObjectDesignator &	referencedObjectId () const
virtual void	setForceId (const DtForceType value)
	Set/Get Force ID.
virtual DtForceType	forceId () const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get Object Type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
virtual void	setRequesterSimId (const DtSimulationAddress &addr)
	Set/Get Requester Simulation ID.
virtual const DtSimulationAddress	requesterSimId () const
virtual void	setReceivingSimId (const DtSimulationAddress &addr)
	Set/Get Receiving Simulation ID.
virtual const DtSimulationAddress	receivingSimId () const
virtual void	printData () const
	Prints data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Prints data to the specified stream.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name.
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle.
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published.
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle.
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle.
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject.
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name.
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it.
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names.
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

Static Public Member Functions
static DtEnvironmentObjectRepository *	create ()
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes.

Protected Attributes
DtEntityIdentifier	myObjectId
DtGlobalObjectDesignator	myReferencedObjId
DtU16	myUpdateNumber
DtForceType	myForceId
DtSyntheticEnvironmentObjectType	myObjectType
DtSimulationAddress	myRequesterSimId
DtSimulationAddress	myReceivingSimId

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle.
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtEnvironmentObjectRepository are used to maintain state information needed by environment entities.

Constructor & Destructor Documentation

DtEnvironmentObjectRepository::DtEnvironmentObjectRepository

(

)

CTOR.

DtEnvironmentObjectRepository::DtEnvironmentObjectRepository

(

const DtEnvironmentObjectRepository &

orig

)

Copy CTOR.

virtual DtEnvironmentObjectRepository::~DtEnvironmentObjectRepository ( )

virtual

DTOR.

Member Function Documentation

virtual DtStateRepository* DtEnvironmentObjectRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

Reimplemented in DtLinearObjectRepository, DtPointObjectRepository, and DtArealObjectRepository.

static DtEnvironmentObjectRepository* DtEnvironmentObjectRepository::create ( )

static

Reimplemented in DtLinearObjectRepository, DtPointObjectRepository, and DtArealObjectRepository.

virtual DtForceType DtEnvironmentObjectRepository::forceId ( ) const

virtual

virtual const DtEntityIdentifier& DtEnvironmentObjectRepository::objectId ( ) const

virtual

virtual const DtSyntheticEnvironmentObjectType& DtEnvironmentObjectRepository::objectType ( ) const

virtual

DtEnvironmentObjectRepository& DtEnvironmentObjectRepository::operator=

(

const DtEnvironmentObjectRepository &

orig

)

Assignment operator.

virtual void DtEnvironmentObjectRepository::printData ( ) const

virtual

Prints data to DtInfo.

Reimplemented from DtStateRepository.

Reimplemented in DtPointObjectRepository, DtArealObjectRepository, and DtLinearObjectRepository.

virtual void DtEnvironmentObjectRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints data to the specified stream.

Reimplemented from DtStateRepository.

Reimplemented in DtPointObjectRepository, DtArealObjectRepository, and DtLinearObjectRepository.

virtual const DtSimulationAddress DtEnvironmentObjectRepository::receivingSimId ( ) const

virtual

virtual const DtGlobalObjectDesignator& DtEnvironmentObjectRepository::referencedObjectId ( ) const

virtual

virtual const DtSimulationAddress DtEnvironmentObjectRepository::requesterSimId ( ) const

virtual

virtual void DtEnvironmentObjectRepository::setForceId ( const DtForceType  value )

virtual

Set/Get Force ID.

virtual void DtEnvironmentObjectRepository::setObjectId ( const DtEntityIdentifier &  identifier )

virtual

Set/Get Environment Object ID.

virtual void DtEnvironmentObjectRepository::setObjectType ( const DtSyntheticEnvironmentObjectType &  type )

virtual

Set/Get Object Type.

virtual void DtEnvironmentObjectRepository::setReceivingSimId ( const DtSimulationAddress &  addr )

virtual

Set/Get Receiving Simulation ID.

virtual void DtEnvironmentObjectRepository::setReferencedObjectId ( const DtGlobalObjectDesignator &  rtiObject )

virtual

Set/Get Referenced Object ID.

virtual void DtEnvironmentObjectRepository::setRequesterSimId ( const DtSimulationAddress &  addr )

virtual

Set/Get Requester Simulation ID.

Member Data Documentation

DtForceType DtEnvironmentObjectRepository::myForceId

protected

DtEntityIdentifier DtEnvironmentObjectRepository::myObjectId

protected

DtSyntheticEnvironmentObjectType DtEnvironmentObjectRepository::myObjectType

protected

DtSimulationAddress DtEnvironmentObjectRepository::myReceivingSimId

protected

DtGlobalObjectDesignator DtEnvironmentObjectRepository::myReferencedObjId

protected

DtSimulationAddress DtEnvironmentObjectRepository::myRequesterSimId

protected

DtU16 DtEnvironmentObjectRepository::myUpdateNumber

protected

---

The documentation for this class was generated from the following file:

• environmentObjectRepository.h
