DtFalseTargetsAttributeRecord Class Reference

Inheritance diagram for DtFalseTargetsAttributeRecord:

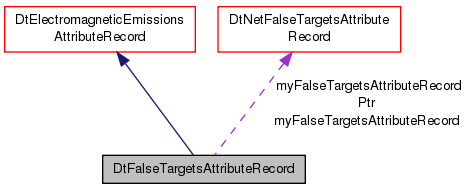

Collaboration diagram for DtFalseTargetsAttributeRecord:

Public Member Functions
	DtFalseTargetsAttributeRecord ()
	Constructor.
	DtFalseTargetsAttributeRecord (unsigned int emitterNumber, unsigned int beamNumber, DtEEAttributeStateIndicator stateIndicator, unsigned int falseTargetCount, float walkSpeed, float walkAcceleration, float maximumWalkDistance, float keepTime, float echoSpacing, float firstTargetOffset)
	Constructor.
	DtFalseTargetsAttributeRecord (const DtFalseTargetsAttributeRecord &orig)
	Copy Constructor.
	DtFalseTargetsAttributeRecord (const DtNetFalseTargetsAttributeRecord &netRecord)
	Copy Constructor.
	DtFalseTargetsAttributeRecord (void *ptr, unsigned int length)
	Net Constructor.
virtual DtFalseTargetsAttributeRecord &	operator= (const DtFalseTargetsAttributeRecord &other)
	Assignment operator.
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &record)
	Assignment operator.
virtual bool	operator== (const DtFalseTargetsAttributeRecord &other)
	Equals operator.
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator.
virtual unsigned int	recordType () const
	Setters and Getters for Record Type.
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type.
virtual unsigned int	recordLength () const
	Setters and Getters for Record Length.
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes.
virtual unsigned int	emitterNumber () const
	Setters and Getters for Emitter Number.
virtual void	setEmitterNumber (unsigned int emitterNumber)
virtual unsigned int	beamNumber () const
	Setters and Getters for Beam Number.
virtual void	setBeamNumber (unsigned int beamNumber)
virtual DtEEAttributeStateIndicator	stateIndicator () const
	Setters and Getters for State Indicator.
virtual void	setStateIndicator (DtEEAttributeStateIndicator stateIndicator)
virtual unsigned int	falseTargetCount () const
	Setters and Getters for False Target Count.
virtual void	setFalseTargetCount (unsigned int falseTargetCount)
virtual float	walkSpeed () const
	Setters and Getters for Walk Speed.
virtual void	setWalkSpeed (float walkSpeed)
virtual float	walkAcceleration () const
	Setters and Getters for Walk Acceleration.
virtual void	setWalkAcceleration (float walkAcceleration)
virtual float	maximumWalkDistance () const
	Setters and Getters for Maximum Walk Distance.
virtual void	setMaximumWalkDistance (float maximumWalkDistance)
virtual float	keepTime () const
	Setters and Getters for Keep Time.
virtual void	setKeepTime (float keepTime)
virtual float	echoSpacing () const
	Setters and Getters for Echo Spacing.
virtual void	setEchoSpacing (float echoSpacing)
virtual float	firstTargetOffset () const
	Setters and Getters for First Target Offset.
virtual void	setFirstTargetOffset (float firstTargetOffset)
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream.
virtual void	writeRecord (void *addr) const
	Writes the network representation to the given address.
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from an address and length. Retcode will be Valid if all goes well.
virtual unsigned int	unpaddedNetsize () const
	Returns the size of the network representation (without padding bytes)
virtual unsigned int	netSize () const
	This overrides netSize because this Record is a special case as it is of a fixed size and Will never require padding.
virtual DtStandardVariableRecord *	clone () const
	Clone.

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Create function used by Standard Variable Record Factory.

Protected Attributes
DtNetFalseTargetsAttributeRecord	myFalseTargetsAttributeRecord
DtNetFalseTargetsAttributeRecord *	myFalseTargetsAttributeRecordPtr

Constructor & Destructor Documentation

DtFalseTargetsAttributeRecord::DtFalseTargetsAttributeRecord

(

)

Constructor.

DtFalseTargetsAttributeRecord::DtFalseTargetsAttributeRecord	(	unsigned int	emitterNumber,
		unsigned int	beamNumber,
		DtEEAttributeStateIndicator	stateIndicator,
		unsigned int	falseTargetCount,
		float	walkSpeed,
		float	walkAcceleration,
		float	maximumWalkDistance,
		float	keepTime,
		float	echoSpacing,
		float	firstTargetOffset
	)

Constructor.

DtFalseTargetsAttributeRecord::DtFalseTargetsAttributeRecord

(

const DtFalseTargetsAttributeRecord &

orig

)

Copy Constructor.

DtFalseTargetsAttributeRecord::DtFalseTargetsAttributeRecord

(

const DtNetFalseTargetsAttributeRecord &

netRecord

)

Copy Constructor.

DtFalseTargetsAttributeRecord::DtFalseTargetsAttributeRecord	(	void *	ptr,
		unsigned int	length
	)

Net Constructor.

Member Function Documentation

virtual unsigned int DtFalseTargetsAttributeRecord::beamNumber ( ) const

virtual

Setters and Getters for Beam Number.

Implements DtElectromagneticEmissionsAttributeRecord.

virtual DtStandardVariableRecord* DtFalseTargetsAttributeRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtFalseTargetsAttributeRecord::create ( void *  addr, unsigned int  length  )

static

Create function used by Standard Variable Record Factory.

virtual float DtFalseTargetsAttributeRecord::echoSpacing ( ) const

virtual

Setters and Getters for Echo Spacing.

virtual unsigned int DtFalseTargetsAttributeRecord::emitterNumber ( ) const

virtual

Setters and Getters for Emitter Number.

Implements DtElectromagneticEmissionsAttributeRecord.

virtual unsigned int DtFalseTargetsAttributeRecord::falseTargetCount ( ) const

virtual

Setters and Getters for False Target Count.

virtual float DtFalseTargetsAttributeRecord::firstTargetOffset ( ) const

virtual

Setters and Getters for First Target Offset.

virtual float DtFalseTargetsAttributeRecord::keepTime ( ) const

virtual

Setters and Getters for Keep Time.

virtual float DtFalseTargetsAttributeRecord::maximumWalkDistance ( ) const

virtual

Setters and Getters for Maximum Walk Distance.

virtual unsigned int DtFalseTargetsAttributeRecord::netSize ( ) const

virtual

This overrides netSize because this Record is a special case as it is of a fixed size and Will never require padding.

virtual DtFalseTargetsAttributeRecord& DtFalseTargetsAttributeRecord::operator= ( const DtFalseTargetsAttributeRecord &  other )

virtual

Assignment operator.

virtual DtStandardVariableRecord& DtFalseTargetsAttributeRecord::operator= ( const DtStandardVariableRecord &  record )

virtual

Assignment operator.

virtual bool DtFalseTargetsAttributeRecord::operator== ( const DtFalseTargetsAttributeRecord &  other )

virtual

Equals operator.

virtual bool DtFalseTargetsAttributeRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Implements DtStandardVariableRecord.

virtual void DtFalseTargetsAttributeRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtFalseTargetsAttributeRecord::recordLength ( ) const

virtual

Setters and Getters for Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtFalseTargetsAttributeRecord::recordType ( ) const

virtual

Setters and Getters for Record Type.

Implements DtStandardVariableRecord.

virtual void DtFalseTargetsAttributeRecord::setBeamNumber ( unsigned int  beamNumber )

virtual

Implements DtElectromagneticEmissionsAttributeRecord.

virtual void DtFalseTargetsAttributeRecord::setEchoSpacing ( float  echoSpacing )

virtual

virtual void DtFalseTargetsAttributeRecord::setEmitterNumber ( unsigned int  emitterNumber )

virtual

Implements DtElectromagneticEmissionsAttributeRecord.

virtual void DtFalseTargetsAttributeRecord::setFalseTargetCount ( unsigned int  falseTargetCount )

virtual

virtual void DtFalseTargetsAttributeRecord::setFirstTargetOffset ( float  firstTargetOffset )

virtual

virtual void DtFalseTargetsAttributeRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from an address and length. Retcode will be Valid if all goes well.

Implements DtStandardVariableRecord.

virtual void DtFalseTargetsAttributeRecord::setKeepTime ( float  keepTime )

virtual

virtual void DtFalseTargetsAttributeRecord::setMaximumWalkDistance ( float  maximumWalkDistance )

virtual

virtual void DtFalseTargetsAttributeRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtFalseTargetsAttributeRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

virtual void DtFalseTargetsAttributeRecord::setStateIndicator ( DtEEAttributeStateIndicator  stateIndicator )

virtual

virtual void DtFalseTargetsAttributeRecord::setWalkAcceleration ( float  walkAcceleration )

virtual

virtual void DtFalseTargetsAttributeRecord::setWalkSpeed ( float  walkSpeed )

virtual

virtual DtEEAttributeStateIndicator DtFalseTargetsAttributeRecord::stateIndicator ( ) const

virtual

Setters and Getters for State Indicator.

virtual unsigned int DtFalseTargetsAttributeRecord::unpaddedNetsize ( ) const

virtual

Returns the size of the network representation (without padding bytes)

Implements DtStandardVariableRecord.

virtual float DtFalseTargetsAttributeRecord::walkAcceleration ( ) const

virtual

Setters and Getters for Walk Acceleration.

virtual float DtFalseTargetsAttributeRecord::walkSpeed ( ) const

virtual

Setters and Getters for Walk Speed.

virtual void DtFalseTargetsAttributeRecord::writeRecord ( void *  addr ) const

virtual

Writes the network representation to the given address.

The assumption is that this memory is allocated and is of the proper size.

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetFalseTargetsAttributeRecord DtFalseTargetsAttributeRecord::myFalseTargetsAttributeRecord

protected

DtNetFalseTargetsAttributeRecord* DtFalseTargetsAttributeRecord::myFalseTargetsAttributeRecordPtr

protected

---

The documentation for this class was generated from the following file:

• falseTargetsAttributeRecord.h
