Instances of DtFomMapper are used to provide FOM agility in VR-Link by mapping VR-Link classes and functionality to FOM classes, attributes and parameters. More...

Inheritance diagram for DtFomMapper:

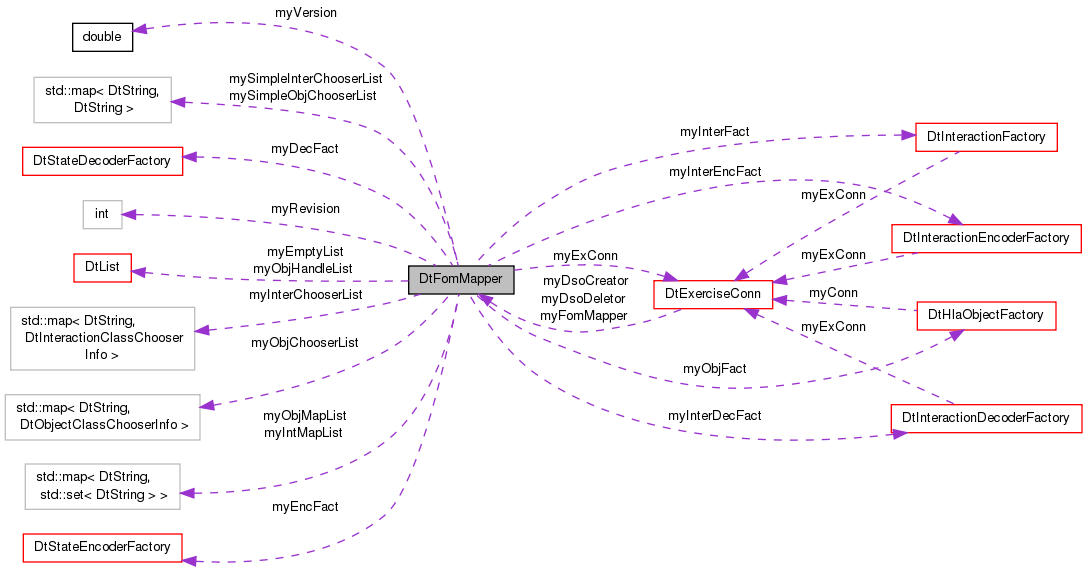

Collaboration diagram for DtFomMapper:

Classes
struct	DtInteractionClassChooserInfo
struct	DtObjectClassChooserInfo

Public Types
typedef char (	DtInteractionClassChooser )(DtExerciseConn *exConn, const DtInteraction &inter)
	A function that chooses an interaction class from the FOM based on the contents of a derived DtInteraction object.
typedef char (	DtInteractionClassChooserWithUsrData )(DtExerciseConn exConn, const DtInteraction &inter, void usr)
	Same as DtInteractionClassChooser but allows a user to specify a void* to be passed as user data.
typedef char (	DtObjectClassChooser )(const char vrlinkClassName, DtExerciseConn conn, void *fomClassSpecific)
	A function that chooses an object class from the FOM based based on the name of a C++ class derived from DtObjectPublisher and FOM class specific data deemed relevant by the publisher class (e.g.
typedef char (	DtObjectClassChooserWithUsrData )(const char vrlinkClassName, DtExerciseConn conn, void fomClassSpecific, void usr)
	Same as DtObjectClassChooser but allows a user to specify a void* to be passed as user data.
typedef std::map< DtString, std::set< DtString > >	DtStringSetMap

Public Member Functions
	DtFomMapper ()
	Default constructor.
virtual	~DtFomMapper ()
	destructor
virtual DtStateDecoderFactory *	setStateDecoderFactory (DtStateDecoderFactory *fact)
	Set/Get the current factory that can be used to create DtHlaStateDecoders.
virtual DtStateDecoderFactory *	stateDecoderFactory ()
virtual DtStateEncoderFactory *	setStateEncoderFactory (DtStateEncoderFactory *fact)
	Set/Get the current factory that can be used to create DtHlaStateEncoders.
virtual DtStateEncoderFactory *	stateEncoderFactory ()
virtual DtInteractionDecoderFactory *	setInteractionDecoderFactory (DtInteractionDecoderFactory *fact)
	Set/Get the current factory that can be used to create DtInteractionDecoders.
virtual DtInteractionDecoderFactory *	interactionDecoderFactory ()
virtual DtInteractionEncoderFactory *	setInteractionEncoderFactory (DtInteractionEncoderFactory *fact)
	Set/Get the current factory that can be used to create DtInteractionEncoders.
virtual DtInteractionEncoderFactory *	interactionEncoderFactory ()
virtual DtHlaObjectFactory *	setHlaObjectFactory (DtHlaObjectFactory *fact)
	Set/Get the current factory that can be used to create DtHlaObjects.
virtual DtHlaObjectFactory *	hlaObjectFactory ()
virtual DtInteractionFactory *	setInteractionFactory (DtInteractionFactory *fact)
	Set/Get the current factory that can be used to create DtInteractions.
virtual DtInteractionFactory *	interactionFactory ()
virtual void	setObjectClassToChoose (const char vrlinkClassName, const char fomClassName)
	Tell the FOM Mapper how to choose a FOM object class to use for objects being published by a particular kind of object publisher.
virtual void	setObjectClassChooser (const char *vrlinkClassName, DtObjectClassChooser chooser)
virtual void	setObjectClassChooser (const char vrlinkClassName, DtObjectClassChooserWithUsrData chooser, void usr)
virtual const char *	chooseObjectClass (const char vrlinkClassName, void fomClassSpecific=NULL) const
	Chooses an object class to represent an object managed by the C++ class named vrlinkClassName (which should be a class derived from DtObjectPublisher).
virtual void	setInteractionClassToChoose (const char vrlinkClassName, const char fomClassName)
	Tell the FOM Mapper how to choose a FOM interaction class to use for a particular kind of derived DtInteraction.
virtual void	setInteractionClassChooser (const char *vrlinkClassName, DtInteractionClassChooser chooser)
virtual void	setInteractionClassChooser (const char vrlinkClassName, DtInteractionClassChooserWithUsrData chooser, void usr)
virtual const char *	chooseInteractionClass (const DtInteraction &inter) const
	Chooses a FOM interaction class to be by a particular derived DtInteraction class named vrlinkClassName.
virtual void	setInteractionClasses (const char *vrlinkClassName, const std::set< DtString > &classes)
	Set/Get a list of names (char*) of FOM classes that can be decoded into the derived DtInteraction class whose name is name.
virtual const std::set < DtString > *	interactionClasses (const char *vrlinkClassName)
virtual void	setInteractionClass (const char vrlinkClassName, const char fomClassName)
	When there is only a single FOM class to be associated with a VR-Link interaction class, then there is no need to create a DtList.
virtual void	addInteractionClassName (const char vrlinkClassName, const char objClassName, bool includeSubclasses)
	Modify the list of names of FOM interactions that should be subscribed to by a particular subclass of VR-Link.
virtual void	removeInteractionClassName (const char vrlinkClassName, const char objClassName, bool includeSubclasses)
virtual void	setObjectClassNames (const char *vrlinkClassName, const std::set< DtString > &classes)
	Set/Get a list of names (char*) of FOM object classes that should be subscribed to by a particular subclass of VR-Link's DtReflectedObjectList.
virtual const std::set < DtString > *	objectClassNames (const char *vrlinkClassName)
virtual DtList *	objectClassHandles (const char *vrlinkClassName)
	Similar to objectClassNames, but returns a DtList of ObjectClassHandles instead.
virtual void	setObjectClass (const char vrlinkClassName, const char fomClassName)
	When there is only a single FOM class to be associated with a VR-Link DtReflectedObjectList class, then there is no need to create a DtList.
virtual void	addObjectClassName (const char vrlinkClassName, const char objClassName, bool includeSubclasses)
	Modify the list of names of FOM objects that should be subscribed to by a particular subclass of VR-Link.
virtual void	removeObjectClassName (const char vrlinkClassName, const char objClassName, bool includeSubclasses)
virtual void	init (DtExerciseConn *conn)=0
	Initialize the instance, once an exercise connection is available.
virtual void	setVersion (double vers)
	Returns the version number of the FOM, as passed to setVersion.
virtual double	version () const
virtual void	setRevision (int val)
	Sets the revision number of the FOM.
virtual int	revision () const
	Returns the revision number of the FOM.
virtual const DtObjectClassChooserInfo *	objectClassChooser (const char *vrlinkClassName) const
	Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtObjectPublisher using setObjectClassChooser.
virtual const DtInteractionClassChooserInfo *	interactionClassChooser (const char *vrlinkClassName) const
	Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtInteraction using setInteractionClassChooser.

Protected Member Functions
	DtFomMapper (const DtFomMapper &orig)
	copy constructor - not implemented.
DtFomMapper &	operator= (const DtFomMapper &orig)
	assignment operator - not implemented.

Protected Attributes
DtExerciseConn *	myExConn
DtStateDecoderFactory *	myDecFact
	Current factories and other objects.
DtStateEncoderFactory *	myEncFact
DtInteractionDecoderFactory *	myInterDecFact
DtInteractionEncoderFactory *	myInterEncFact
DtHlaObjectFactory *	myObjFact
DtInteractionFactory *	myInterFact
DtStringSetMap	myIntMapList
	Maps of the names of C++ classes derived from DtInteraction to sets of names of FOM classes.
DtStringSetMap	myObjMapList
	Maps of the names of C++ classes derived from DtReflectedObjectList to sets of names of FOM classes.
std::map< DtString, DtObjectClassChooserInfo >	myObjChooserList
	Maps names of C++ classes derived from DtObjectPublisher to DtObjectClassChoosers - functions that can choose an object class name from the FOM to use for the object.
std::map< DtString, DtString >	mySimpleObjChooserList
	Maps names of C++ classes derived from DtObjectPublisher to single FOM object class names.
std::map< DtString, DtInteractionClassChooserInfo >	myInterChooserList
	Maps names of C++ classes derived from DtInteraction to DtInteractionClassChoosers - functions that can choose an interaction class name from the FOM to use for the interaction.
std::map< DtString, DtString >	mySimpleInterChooserList
	Maps names of C++ classes derived from DtInteraction to single FOM object class names.
DtList	myObjHandleList
	The object returned by objectClassHandles.
DtList	myEmptyList
	Just an empty list to return when no class list has been registered for a particular VR-Link class.
double	myVersion
int	myRevision

Detailed Description

Instances of DtFomMapper are used to provide FOM agility in VR-Link by mapping VR-Link classes and functionality to FOM classes, attributes and parameters.

DtFomMapper is an abstract class. Most FOM Mappers (including DtRprFomMapper) are derived from DtEmptyFomMapper, and not directly from DtFomMapper.

Member Typedef Documentation

typedef char*(* DtFomMapper::DtInteractionClassChooser)(DtExerciseConn *exConn, const DtInteraction &inter)

A function that chooses an interaction class from the FOM based on the contents of a derived DtInteraction object.

typedef char*(* DtFomMapper::DtInteractionClassChooserWithUsrData)(DtExerciseConn *exConn, const DtInteraction &inter, void *usr)

Same as DtInteractionClassChooser but allows a user to specify a void* to be passed as user data.

The user data pointer is specified when the class chooser is registered.

typedef char*(* DtFomMapper::DtObjectClassChooser)(const char *vrlinkClassName, DtExerciseConn *conn, void *fomClassSpecific)

A function that chooses an object class from the FOM based based on the name of a C++ class derived from DtObjectPublisher and FOM class specific data deemed relevant by the publisher class (e.g.

entity type).

typedef char*(* DtFomMapper::DtObjectClassChooserWithUsrData)(const char *vrlinkClassName, DtExerciseConn *conn, void *fomClassSpecific, void *usr)

Same as DtObjectClassChooser but allows a user to specify a void* to be passed as user data.

The user data pointer is specified when the class chooser is registered.

typedef std::map<DtString, std::set<DtString> > DtFomMapper::DtStringSetMap

Constructor & Destructor Documentation

DtFomMapper::DtFomMapper ( )

Default constructor.

Typically, most initialization takes place within init(), which is called by DtExerciseConn's constructor.

virtual DtFomMapper::~DtFomMapper ( )

virtual

destructor

DtFomMapper::DtFomMapper ( const DtFomMapper & orig )

protected

copy constructor - not implemented.

Member Function Documentation

virtual void DtFomMapper::addInteractionClassName	(	const char *	vrlinkClassName,
		const char *	objClassName,
		bool	includeSubclasses
	)

virtual

Modify the list of names of FOM interactions that should be subscribed to by a particular subclass of VR-Link.

If includeSubclasses is set to true, this function will recurse through all child FOM classes of that type.

virtual void DtFomMapper::addObjectClassName	(	const char *	vrlinkClassName,
		const char *	objClassName,
		bool	includeSubclasses
	)

virtual

Modify the list of names of FOM objects that should be subscribed to by a particular subclass of VR-Link.

If includeSubclasses is set to true, this function will recurse through all child FOM classes of that type.

virtual const char* DtFomMapper::chooseInteractionClass ( const DtInteraction & inter ) const

virtual

Chooses a FOM interaction class to be by a particular derived DtInteraction class named vrlinkClassName.

virtual const char* DtFomMapper::chooseObjectClass	(	const char *	vrlinkClassName,
		void *	fomClassSpecific = `NULL`
	)		const

virtual

Chooses an object class to represent an object managed by the C++ class named vrlinkClassName (which should be a class derived from DtObjectPublisher).

fomClassSpecific is additional data deemed relevant to make the choice by the publisher class (e.g. entity type). It is passed as fomClassSpecific to a chooser function that has been registered with the FOM Mapper for this publisher type, if any.

virtual DtHlaObjectFactory* DtFomMapper::hlaObjectFactory ( )

virtual

virtual void DtFomMapper::init ( DtExerciseConn * conn )

pure virtual

Initialize the instance, once an exercise connection is available.

Must be overridden in subclasses.

Implemented in DtRprFomMapper, MyFomMapper, and DtEmptyFomMapper.

virtual const DtInteractionClassChooserInfo* DtFomMapper::interactionClassChooser ( const char * vrlinkClassName ) const

virtual

Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtInteraction using setInteractionClassChooser.

virtual const std::set<DtString>* DtFomMapper::interactionClasses ( const char * vrlinkClassName )

virtual

virtual DtInteractionDecoderFactory* DtFomMapper::interactionDecoderFactory ( )

virtual

virtual DtInteractionEncoderFactory* DtFomMapper::interactionEncoderFactory ( )

virtual

virtual DtInteractionFactory* DtFomMapper::interactionFactory ( )

virtual

virtual const DtObjectClassChooserInfo* DtFomMapper::objectClassChooser ( const char * vrlinkClassName ) const

virtual

Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtObjectPublisher using setObjectClassChooser.

virtual DtList* DtFomMapper::objectClassHandles ( const char * vrlinkClassName )

virtual

Similar to objectClassNames, but returns a DtList of ObjectClassHandles instead.

The returned list is owned by the DtFomMapper, and should not be deleted. In addition, it is only valid until the next call to this function. If using HLA 1.3 the ObjectClassHandles are returned cast as void * in the list If using HLA 1516 the list contains pointers to a valid RTI::ObjectClassHandle

virtual const std::set<DtString>* DtFomMapper::objectClassNames ( const char * vrlinkClassName )

virtual

DtFomMapper& DtFomMapper::operator= ( const DtFomMapper & orig )

protected

assignment operator - not implemented.

virtual void DtFomMapper::removeInteractionClassName	(	const char *	vrlinkClassName,
		const char *	objClassName,
		bool	includeSubclasses
	)

virtual

virtual void DtFomMapper::removeObjectClassName	(	const char *	vrlinkClassName,
		const char *	objClassName,
		bool	includeSubclasses
	)

virtual

virtual int DtFomMapper::revision ( ) const

virtual

Returns the revision number of the FOM.

A revision is defined as a particular way that the FOM Mapper translates a specific FOM. In general, it increases when we there is a bug in translation that cannot be fixed without breaking backwards compatibility. For this reason, it is recommended that one uses the latest revision number available for your specific FOM.

virtual DtHlaObjectFactory* DtFomMapper::setHlaObjectFactory ( DtHlaObjectFactory * fact )

virtual

Set/Get the current factory that can be used to create DtHlaObjects.

virtual void DtFomMapper::setInteractionClass	(	const char *	vrlinkClassName,
		const char *	fomClassName
	)

virtual

When there is only a single FOM class to be associated with a VR-Link interaction class, then there is no need to create a DtList.

Just use this:

virtual void DtFomMapper::setInteractionClassChooser	(	const char *	vrlinkClassName,
		DtInteractionClassChooser	chooser
	)

virtual

virtual void DtFomMapper::setInteractionClassChooser	(	const char *	vrlinkClassName,
		DtInteractionClassChooserWithUsrData	chooser,
		void *	usr
	)

virtual

virtual void DtFomMapper::setInteractionClasses	(	const char *	vrlinkClassName,
		const std::set< DtString > &	classes
	)

virtual

Set/Get a list of names (char*) of FOM classes that can be decoded into the derived DtInteraction class whose name is name.

These classes will be subscribed to, when you use a derived DtInteraction's addCallback function. The DtFomMapper copies the data in the list passed to setInteractionClasses, so the object can be deleted at the caller's leisure. The list returned by interactionClasses is owned by the DtFomMapper and shouldn't be deleted by the caller.

virtual void DtFomMapper::setInteractionClassToChoose	(	const char *	vrlinkClassName,
		const char *	fomClassName
	)

virtual

Tell the FOM Mapper how to choose a FOM interaction class to use for a particular kind of derived DtInteraction.

You can either associate a single FOM class name, or a FOM class choosing function with the name of a C++ class derived from DtInteraction.

virtual DtInteractionDecoderFactory* DtFomMapper::setInteractionDecoderFactory ( DtInteractionDecoderFactory * fact )

virtual

Set/Get the current factory that can be used to create DtInteractionDecoders.

virtual DtInteractionEncoderFactory* DtFomMapper::setInteractionEncoderFactory ( DtInteractionEncoderFactory * fact )

virtual

Set/Get the current factory that can be used to create DtInteractionEncoders.

virtual DtInteractionFactory* DtFomMapper::setInteractionFactory ( DtInteractionFactory * fact )

virtual

Set/Get the current factory that can be used to create DtInteractions.

virtual void DtFomMapper::setObjectClass	(	const char *	vrlinkClassName,
		const char *	fomClassName
	)

virtual

When there is only a single FOM class to be associated with a VR-Link DtReflectedObjectList class, then there is no need to create a DtList.

Just use this:

virtual void DtFomMapper::setObjectClassChooser	(	const char *	vrlinkClassName,
		DtObjectClassChooser	chooser
	)

virtual

virtual void DtFomMapper::setObjectClassChooser	(	const char *	vrlinkClassName,
		DtObjectClassChooserWithUsrData	chooser,
		void *	usr
	)

virtual

virtual void DtFomMapper::setObjectClassNames	(	const char *	vrlinkClassName,
		const std::set< DtString > &	classes
	)

virtual

Set/Get a list of names (char*) of FOM object classes that should be subscribed to by a particular subclass of VR-Link's DtReflectedObjectList.

vrlinkClassName is the name of the DtReflectedObjectList subclass for which you are creating a mapping. The DtFomMapper copies the data in the list passed to setObjectClassNames, so the object can be deleted at the caller's leisure. The list returned by objectClassNames is owned by the DtFomMapper and shouldn't be deleted by the caller.

virtual void DtFomMapper::setObjectClassToChoose	(	const char *	vrlinkClassName,
		const char *	fomClassName
	)

virtual

Tell the FOM Mapper how to choose a FOM object class to use for objects being published by a particular kind of object publisher.

You can either associate a single FOM class name, or a FOM class choosing function with the name of a C++ class derived from DtObjectPublisher.

virtual void DtFomMapper::setRevision ( int val )

virtual

Sets the revision number of the FOM.

A revision is defined as a particular way that the FOM Mapper translates the FOM. In general, it increases when we there is a bug in translation that cannot be fixed without breaking backwards compatibility. For this reason, it is recommended that one uses the latest revision number available for your specific FOM.

virtual DtStateDecoderFactory* DtFomMapper::setStateDecoderFactory ( DtStateDecoderFactory * fact )

virtual

Set/Get the current factory that can be used to create DtHlaStateDecoders.

virtual DtStateEncoderFactory* DtFomMapper::setStateEncoderFactory ( DtStateEncoderFactory * fact )

virtual

Set/Get the current factory that can be used to create DtHlaStateEncoders.

virtual void DtFomMapper::setVersion ( double vers )

virtual

Returns the version number of the FOM, as passed to setVersion.

A Version is defined as a specific type of FOM file. For example, RPR Version 2.0 Draft 17 is defined as version 2.0017. This can be used jointly with the revision to define both what the FOM being read is as well as how to interpret it.

virtual DtStateDecoderFactory* DtFomMapper::stateDecoderFactory ( )

virtual

virtual DtStateEncoderFactory* DtFomMapper::stateEncoderFactory ( )

virtual

virtual double DtFomMapper::version ( ) const

virtual

Member Data Documentation

DtStateDecoderFactory* DtFomMapper::myDecFact

protected

Current factories and other objects.

DtList DtFomMapper::myEmptyList

protected

Just an empty list to return when no class list has been registered for a particular VR-Link class.

DtStateEncoderFactory* DtFomMapper::myEncFact

protected

DtExerciseConn* DtFomMapper::myExConn

protected

std::map<DtString, DtInteractionClassChooserInfo> DtFomMapper::myInterChooserList

protected

Maps names of C++ classes derived from DtInteraction to DtInteractionClassChoosers - functions that can choose an interaction class name from the FOM to use for the interaction.

DtInteractionDecoderFactory* DtFomMapper::myInterDecFact

protected

DtInteractionEncoderFactory* DtFomMapper::myInterEncFact

protected

DtInteractionFactory* DtFomMapper::myInterFact

protected

DtStringSetMap DtFomMapper::myIntMapList

protected

Maps of the names of C++ classes derived from DtInteraction to sets of names of FOM classes.

std::map<DtString, DtObjectClassChooserInfo> DtFomMapper::myObjChooserList

protected

Maps names of C++ classes derived from DtObjectPublisher to DtObjectClassChoosers - functions that can choose an object class name from the FOM to use for the object.

DtHlaObjectFactory* DtFomMapper::myObjFact

protected

DtList DtFomMapper::myObjHandleList

protected

The object returned by objectClassHandles.

It is reused and overwritten each call.

DtStringSetMap DtFomMapper::myObjMapList

protected

Maps of the names of C++ classes derived from DtReflectedObjectList to sets of names of FOM classes.

int DtFomMapper::myRevision

protected

std::map<DtString, DtString> DtFomMapper::mySimpleInterChooserList

protected

Maps names of C++ classes derived from DtInteraction to single FOM object class names.

std::map<DtString, DtString> DtFomMapper::mySimpleObjChooserList

protected

Maps names of C++ classes derived from DtObjectPublisher to single FOM object class names.

double DtFomMapper::myVersion

protected

The documentation for this class was generated from the following file:

fomMapper.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
