DtPartialOwnershipHandler Class Reference

This class extends the default ownership handler and adds new callbacks to be activated whenever partial ownership has been transferred Only when full ownership is transferred will the default ownership handlers be called. More...

Inheritance diagram for DtPartialOwnershipHandler:

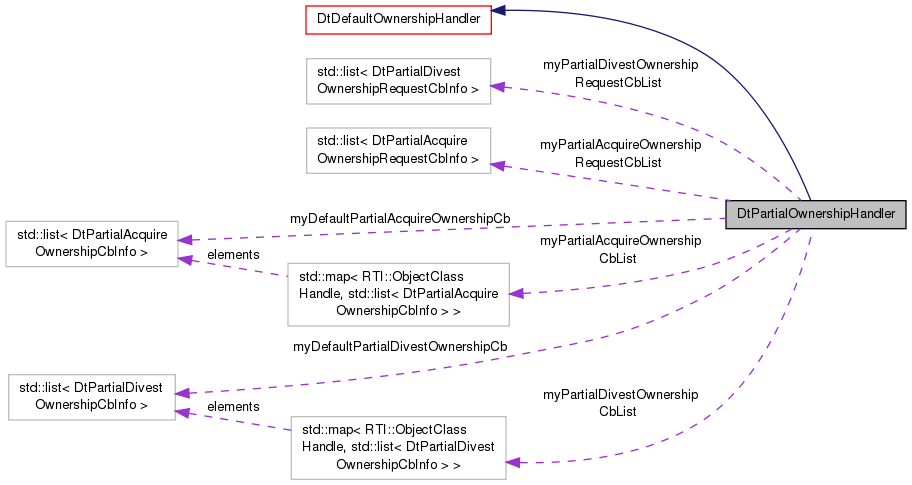

Collaboration diagram for DtPartialOwnershipHandler:

Public Member Functions
	DtPartialOwnershipHandler ()
	Constructor.
virtual	~DtPartialOwnershipHandler ()
	Destructor.
virtual DtOwnershipHandler *	clone () const
	Clone copy.
	DtPartialOwnershipHandler (const DtPartialOwnershipHandler &other)
	Copy constructor.
DtPartialOwnershipHandler &	operator= (const DtPartialOwnershipHandler &other)
	Assignment operator.
virtual void	gainOwnership (const RTI::AttributeHandleSet &set)
	Called whenever the local federate has acquired ownership of a set of attributes.
virtual void	loseOwnership (const RTI::AttributeHandleSet &set)
	Called whenever the local federate has lost ownership of a set of attributes.
virtual void	addPartialAcquireOwnershipCallback (DtPartialAcquireOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
	Callback for Acquiring ownership when only part of the object is acquired.
virtual void	removePartialAcquireOwnershipCallback (DtPartialAcquireOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
virtual void	addPartialDivestOwnershipCallback (DtPartialDivestOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
	Callback for divesting ownership when only part of the object is divested.
virtual void	removePartialDivestOwnershipCallback (DtPartialDivestOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
virtual void	addPartialAcquireOwnershipRequestCallback (DtPartialAcquireOwnershipRequestCb cb, void *usr)
	Callbacks for Acquiring ownership.
virtual void	removePartialAcquireOwnershipRequestCallback (DtPartialAcquireOwnershipRequestCb cb, void *usr)
virtual void	addPartialDivestOwnershipRequestCallback (DtPartialDivestOwnershipRequestCb cb, void *usr)
	Callbacks for divesting ownership.
virtual void	removePartialDivestOwnershipRequestCallback (DtPartialDivestOwnershipRequestCb cb, void *usr)
Public Member Functions inherited from DtDefaultOwnershipHandler
	DtDefaultOwnershipHandler ()
	Constructor.
virtual	~DtDefaultOwnershipHandler ()
	Destructor.
	DtDefaultOwnershipHandler (const DtDefaultOwnershipHandler &other)
	Copy constructor.
DtDefaultOwnershipHandler &	operator= (const DtDefaultOwnershipHandler &other)
	Assignment operator.
virtual void	setOwnershipAcquisitionAction (DtOwnershipAction)
	Set the default action when someone offers an object to acquire Your three options are, accept, deny, or send a callback to ask for this information.
virtual void	setOwnershipDivestitudeAction (DtOwnershipAction)
	Set the default action when someone requests your object to acquire Your three options are, accept, deny, or send a callback to ask for this information.
virtual void	addAcquireOwnershipCallback (DtAcquireOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
	Callback for Acquiring ownership.
virtual void	removeAcquireOwnershipCallback (DtAcquireOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
virtual void	addDivestOwnershipCallback (DtDivestOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
	Callback for divesting ownership.
virtual void	removeDivestOwnershipCallback (DtDivestOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
virtual void	addAcquireOwnershipRequestCallback (DtAcquireOwnershipRequestCb cb, void *usr)
	Callback for acquiring and divesting requests.
virtual void	removeAcquireOwnershipRequestCallback (DtAcquireOwnershipRequestCb cb, void *usr)
virtual void	addDivestOwnershipRequestCallback (DtDivestOwnershipRequestCb cb, void *usr)
virtual void	removeDivestOwnershipRequestCallback (DtDivestOwnershipRequestCb cb, void *usr)
virtual bool	requesteOwnershipRelease (const RTI::AttributeHandleSet &candidateAttributes, const char *theTag)
	Called as a result of the requestAttributeOwnershipRelease RTI service.
virtual void	requestAttributeOwnershipAssumption (const RTI::AttributeHandleSet &offeredAttributes, const char *theTag)
	Called as a result of the requestAttributeOwnershipAssumption RTI service.
Public Member Functions inherited from DtOwnershipHandler
	DtOwnershipHandler ()
	Constructor.
virtual	~DtOwnershipHandler ()
	Destructor.
	DtOwnershipHandler (const DtOwnershipHandler &other)
	Copy constructor.
DtOwnershipHandler &	operator= (const DtOwnershipHandler &other)
	Assignment operator.
virtual DtHlaObject *	hlaObject ()
	Returns a pointer to the DtHlaObject with which this instance has been registered.
virtual void	attributeOwnershipDivestitureNotification (const RTI::AttributeHandleSet &releasedAttributes)
	Called as a result of the attributeOwnershipDivestitureNotification RTI service.
virtual void	attributeOwnershipAcquisitionNotification (const RTI::AttributeHandleSet &securedAttributes)
	Called as a result of the attributeOwnershipAcquisitionNotification RTI service.
virtual void	confirmAttributeOwnershipAcquisitionCancellation (const RTI::AttributeHandleSet &attributes)
	Called as a result of the confirmAttributeOwnershipAcquisitionCancellation RTI service.

Protected Attributes
std::map < RTI::ObjectClassHandle, std::list < DtPartialAcquireOwnershipCbInfo > >	myPartialAcquireOwnershipCbList
std::map < RTI::ObjectClassHandle, std::list < DtPartialDivestOwnershipCbInfo > >	myPartialDivestOwnershipCbList
std::list < DtPartialAcquireOwnershipCbInfo >	myDefaultPartialAcquireOwnershipCb
std::list < DtPartialDivestOwnershipCbInfo >	myDefaultPartialDivestOwnershipCb
std::list < DtPartialAcquireOwnershipRequestCbInfo >	myPartialAcquireOwnershipRequestCbList
std::list < DtPartialDivestOwnershipRequestCbInfo >	myPartialDivestOwnershipRequestCbList
Protected Attributes inherited from DtDefaultOwnershipHandler
DtOwnershipAction	myAcquisitionAction
DtOwnershipAction	myDivestAction
std::map < RTI::ObjectClassHandle, std::list < DtAcquireOwnershipCbInfo > >	myAcquireOwnershipCbList
std::map < RTI::ObjectClassHandle, std::list < DtDivestOwnershipCbInfo > >	myDivestOwnershipCbList
std::list < DtAcquireOwnershipCbInfo >	myDefaultAcquireOwnershipCb
std::list < DtDivestOwnershipCbInfo >	myDefaultDivestOwnershipCb
std::list < DtAcquireOwnershipRequestCbInfo >	myAcquireOwnershipRequestCbList
std::list < DtDivestOwnershipRequestCbInfo >	myDivestOwnershipRequestCbList
Protected Attributes inherited from DtOwnershipHandler
DtHlaObject *	myHlaObj

Additional Inherited Members
Protected Member Functions inherited from DtOwnershipHandler
virtual void	setHlaObject (DtHlaObject *obj)

Detailed Description

This class extends the default ownership handler and adds new callbacks to be activated whenever partial ownership has been transferred Only when full ownership is transferred will the default ownership handlers be called.

Constructor & Destructor Documentation

DtPartialOwnershipHandler::DtPartialOwnershipHandler

(

)

Constructor.

virtual DtPartialOwnershipHandler::~DtPartialOwnershipHandler ( )

virtual

Destructor.

DtPartialOwnershipHandler::DtPartialOwnershipHandler

(

const DtPartialOwnershipHandler &

other

)

Copy constructor.

Member Function Documentation

virtual void DtPartialOwnershipHandler::addPartialAcquireOwnershipCallback ( DtPartialAcquireOwnershipCb  cb, void *  usr, const DtObjClassDesc *  desc = 0  )

virtual

Callback for Acquiring ownership when only part of the object is acquired.

This callback includes a list of attributes acquired but is otherwise the same as the default ownership handler callback.

virtual void DtPartialOwnershipHandler::addPartialAcquireOwnershipRequestCallback ( DtPartialAcquireOwnershipRequestCb  cb, void *  usr  )

virtual

Callbacks for Acquiring ownership.

Allows you to decide if you should accept or reject this ownership request. While there may be many callbacks, this will accept if just a single one returns true. This callback includes a list of attributes acquired but is otherwise the same as the default ownership handler callback.

virtual void DtPartialOwnershipHandler::addPartialDivestOwnershipCallback ( DtPartialDivestOwnershipCb  cb, void *  usr, const DtObjClassDesc *  desc = 0  )

virtual

Callback for divesting ownership when only part of the object is divested.

This callback includes a list of attributes divested but is otherwise the same as the default ownership handler callback.

virtual void DtPartialOwnershipHandler::addPartialDivestOwnershipRequestCallback ( DtPartialDivestOwnershipRequestCb  cb, void *  usr  )

virtual

Callbacks for divesting ownership.

Allows you to decide if you should accept or reject this ownership request. While there may be many callbacks, this will accept if just a single one returns true. This callback includes a list of attributes divested but is otherwise the same as the default ownership handler callback.

virtual DtOwnershipHandler* DtPartialOwnershipHandler::clone ( ) const

virtual

Clone copy.

Reimplemented from DtDefaultOwnershipHandler.

virtual void DtPartialOwnershipHandler::gainOwnership ( const RTI::AttributeHandleSet &  set )

virtual

Called whenever the local federate has acquired ownership of a set of attributes.

This can happen as the result of an attributeOwnershipAcquisitionNotification RTI service call.

Reimplemented from DtDefaultOwnershipHandler.

virtual void DtPartialOwnershipHandler::loseOwnership ( const RTI::AttributeHandleSet &  set )

virtual

Called whenever the local federate has lost ownership of a set of attributes.

This can happen as a result of an explicit or implicit unpublish, an attributeOwnershipDivestitureNotification RTI service call, or a call to DtHlaObject::unconditionalDivest.

Reimplemented from DtDefaultOwnershipHandler.

DtPartialOwnershipHandler& DtPartialOwnershipHandler::operator=

(

const DtPartialOwnershipHandler &

other

)

Assignment operator.

virtual void DtPartialOwnershipHandler::removePartialAcquireOwnershipCallback ( DtPartialAcquireOwnershipCb  cb, void *  usr, const DtObjClassDesc *  desc = 0  )

virtual

virtual void DtPartialOwnershipHandler::removePartialAcquireOwnershipRequestCallback ( DtPartialAcquireOwnershipRequestCb  cb, void *  usr  )

virtual

virtual void DtPartialOwnershipHandler::removePartialDivestOwnershipCallback ( DtPartialDivestOwnershipCb  cb, void *  usr, const DtObjClassDesc *  desc = 0  )

virtual

virtual void DtPartialOwnershipHandler::removePartialDivestOwnershipRequestCallback ( DtPartialDivestOwnershipRequestCb  cb, void *  usr  )

virtual

Member Data Documentation

std::list<DtPartialAcquireOwnershipCbInfo> DtPartialOwnershipHandler::myDefaultPartialAcquireOwnershipCb

protected

std::list<DtPartialDivestOwnershipCbInfo> DtPartialOwnershipHandler::myDefaultPartialDivestOwnershipCb

protected

std::map<RTI::ObjectClassHandle, std::list<DtPartialAcquireOwnershipCbInfo> > DtPartialOwnershipHandler::myPartialAcquireOwnershipCbList

protected

std::list<DtPartialAcquireOwnershipRequestCbInfo> DtPartialOwnershipHandler::myPartialAcquireOwnershipRequestCbList

protected

std::map<RTI::ObjectClassHandle, std::list<DtPartialDivestOwnershipCbInfo> > DtPartialOwnershipHandler::myPartialDivestOwnershipCbList

protected

std::list<DtPartialDivestOwnershipRequestCbInfo> DtPartialOwnershipHandler::myPartialDivestOwnershipRequestCbList

protected

---

The documentation for this class was generated from the following file:

• partialOwnershipHandler.h
