DtRadioReceiverRepository Class Reference

Instances of DtRadioReceiverRepository are used to store state information for radio receiver objects in both HLA and DIS environments. More...

Inheritance diagram for DtRadioReceiverRepository:

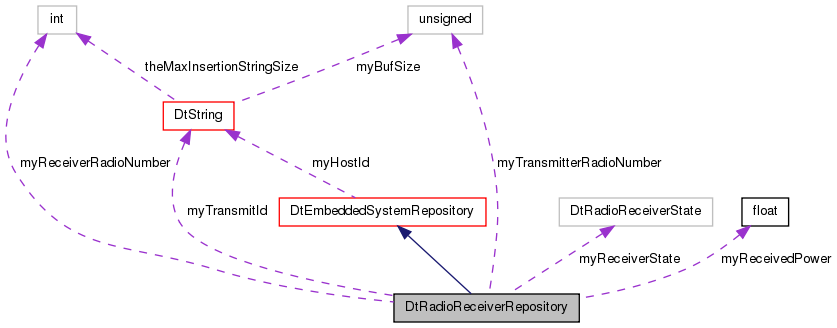

Collaboration diagram for DtRadioReceiverRepository:

Public Member Functions
	DtRadioReceiverRepository ()
	Default constructor.
virtual	~DtRadioReceiverRepository ()
	Destructor.
	DtRadioReceiverRepository (const DtRadioReceiverRepository &orig)
	Copy constructor.
DtRadioReceiverRepository &	operator= (const DtRadioReceiverRepository &orig)
	Assignment operator.
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print the state repository's data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print the state repository to the specified stream.
virtual void	setRadioId (unsigned int number)
	Set/Get the Receiver radio number.
virtual unsigned int	radioId () const
	Set/Get the Receiver radio number.
virtual void	setReceivedPower (DtFloat32 power)
	Set/Get the received power.
virtual DtFloat32	receivedPower () const
	Set/Get the received power.
virtual void	setTransmitRadioId (const DtGlobalObjectDesignator &id)
	Set/Get the received transmitter.
virtual const DtGlobalObjectDesignator &	transmitRadioId () const
	Set/Get the received transmitter.
virtual void	setTransmitterId (const DtGlobalObjectDesignator &id)
	Set/Get the transmitter ID.
virtual const DtGlobalObjectDesignator &	transmitterId () const
	Set/Get the transmitter ID.
virtual void	setTransmitterRadioId (unsigned int num)
	Set/Get the Transmitter Radio ID - this is only used in DIS.
virtual unsigned int	transmitterRadioId () const
	Set/Get the Transmitter Radio ID - this is only used in DIS.
virtual void	setReceiverState (DtRadioReceiverState state)
	Set/Get the receiver state.
virtual DtRadioReceiverState	receiverState () const
	Set/Get the receiver state.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity.
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name.
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle.
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published.
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle.
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle.
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject.
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name.
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it.
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names.
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

Static Public Member Functions
static DtRadioReceiverRepository *	create ()
	Create a DtRadioReceiverRepository.

Protected Attributes
int	myReceiverRadioNumber
unsigned int	myTransmitterRadioNumber
DtFloat32	myReceivedPower
DtGlobalObjectDesignator	myTransmitId
DtRadioReceiverState	myReceiverState
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtGlobalObjectDesignator	myHostId
DtVector32	myRelativePosition

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle.
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtRadioReceiverRepository are used to store state information for radio receiver objects in both HLA and DIS environments.

Constructor & Destructor Documentation

DtRadioReceiverRepository::DtRadioReceiverRepository

(

)

Default constructor.

virtual DtRadioReceiverRepository::~DtRadioReceiverRepository ( )

virtual

Destructor.

DtRadioReceiverRepository::DtRadioReceiverRepository

(

const DtRadioReceiverRepository &

orig

)

Copy constructor.

Member Function Documentation

virtual DtStateRepository* DtRadioReceiverRepository::clone ( bool  copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Parameters

copy	tells the methods whether to copy the state repository.

Reimplemented from DtEmbeddedSystemRepository.

static DtRadioReceiverRepository* DtRadioReceiverRepository::create ( )

static

Create a DtRadioReceiverRepository.

Reimplemented from DtEmbeddedSystemRepository.

DtRadioReceiverRepository& DtRadioReceiverRepository::operator=

(

const DtRadioReceiverRepository &

orig

)

Assignment operator.

virtual void DtRadioReceiverRepository::printData ( ) const

virtual

Print the state repository's data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtRadioReceiverRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print the state repository to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual unsigned int DtRadioReceiverRepository::radioId ( ) const

virtual

Set/Get the Receiver radio number.

virtual DtFloat32 DtRadioReceiverRepository::receivedPower ( ) const

virtual

Set/Get the received power.

virtual DtRadioReceiverState DtRadioReceiverRepository::receiverState ( ) const

virtual

Set/Get the receiver state.

virtual void DtRadioReceiverRepository::setRadioId ( unsigned int  number )

virtual

Set/Get the Receiver radio number.

virtual void DtRadioReceiverRepository::setReceivedPower ( DtFloat32  power )

virtual

Set/Get the received power.

virtual void DtRadioReceiverRepository::setReceiverState ( DtRadioReceiverState  state )

virtual

Set/Get the receiver state.

virtual void DtRadioReceiverRepository::setTransmitRadioId ( const DtGlobalObjectDesignator &  id )

virtual

Set/Get the received transmitter.

This function is used for HLA, but DIS calls in the Transmitter Entity so in DIS the identification is the ENtity + the Radio Number.

Deprecated:

The methods, setTransmitterId() and transmitterId() should be used instead.

virtual void DtRadioReceiverRepository::setTransmitterId ( const DtGlobalObjectDesignator &  id )

virtual

Set/Get the transmitter ID.

virtual void DtRadioReceiverRepository::setTransmitterRadioId ( unsigned int  num )

virtual

Set/Get the Transmitter Radio ID - this is only used in DIS.

virtual const DtGlobalObjectDesignator& DtRadioReceiverRepository::transmitRadioId ( ) const

virtual

Set/Get the received transmitter.

This function is used for HLA, but DIS calls in the Transmitter Entity so in DIS the identification is the ENtity + the Radio Number.

Deprecated:

The methods, setTransmitterId() and transmitterId() should be used instead.

virtual const DtGlobalObjectDesignator& DtRadioReceiverRepository::transmitterId ( ) const

virtual

Set/Get the transmitter ID.

virtual unsigned int DtRadioReceiverRepository::transmitterRadioId ( ) const

virtual

Set/Get the Transmitter Radio ID - this is only used in DIS.

Member Data Documentation

DtFloat32 DtRadioReceiverRepository::myReceivedPower

protected

int DtRadioReceiverRepository::myReceiverRadioNumber

protected

DtRadioReceiverState DtRadioReceiverRepository::myReceiverState

protected

DtGlobalObjectDesignator DtRadioReceiverRepository::myTransmitId

protected

unsigned int DtRadioReceiverRepository::myTransmitterRadioNumber

protected

---

The documentation for this class was generated from the following file:

• radioReceiverRepository.h
