DtSeparationVPRecord Class Reference

A representation of a single Separation part, which is specific to DIS version 7. More...

Inheritance diagram for DtSeparationVPRecord:

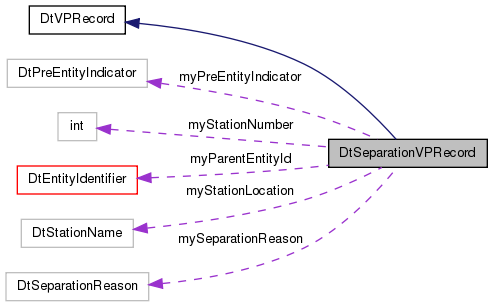

Collaboration diagram for DtSeparationVPRecord:

Public Member Functions
	DtSeparationVPRecord ()
	Constructor.
virtual	~DtSeparationVPRecord ()
	Destructor.
	DtSeparationVPRecord (const DtSeparationVPRecord &orig)
	Copy constructor.
DtSeparationVPRecord &	operator= (const DtSeparationVPRecord &orig)
	Assignment operator.
virtual DtVPRecordKind	vpType () const
	The Variable Parameter Record type.
virtual DtVPRecord *	clone ()
	Clone function.
virtual void	decodeFromNet (DtNetVPRecord *)
	decode this VP Record from a array of 128 bits as defined by the DIS 7 standard.
virtual void	encodeToNet (DtNetVPRecord *) const
	encode this VP Record to a array of 128 bits as defined by the DIS 7 standard.
virtual void	printDataToStream (std::ostream &stream) const
	Print the record to a stream.
virtual bool	operator== (const DtVPRecord &other) const
	Equality/inequality operators.
virtual DtSeparationReason	separationReason () const
	Accessors.
virtual void	setSeparationReason (DtSeparationReason data)
	Accessors.
virtual DtPreEntityIndicator	preEntityIndicator () const
	Accessors.
virtual void	setPreEntityIndicator (DtPreEntityIndicator data)
	Accessors.
virtual const DtEntityIdentifier &	parentEntityIdentifier () const
	Accessors.
virtual void	setParentEntityIdentifier (const DtEntityIdentifier &data)
	Accessors.
virtual DtStationName	stationName () const
	Accessors.
virtual void	setStationName (DtStationName data)
	Accessors.
virtual unsigned int	stationNumber () const
	Accessors.
virtual void	setStationNumber (unsigned int data)
	Accessors.
Public Member Functions inherited from DtVPRecord
	DtVPRecord ()
	Constructor.
virtual	~DtVPRecord ()
	Destructor.
virtual bool	operator!= (const DtVPRecord &other) const
	Equality/inequality operators.

Static Public Member Functions
static DtVPRecord *	create ()
	create function

Protected Attributes
DtSeparationReason	mySeparationReason
DtPreEntityIndicator	myPreEntityIndicator
DtEntityIdentifier	myParentEntityId
DtStationName	myStationLocation
unsigned int	myStationNumber

Detailed Description

A representation of a single Separation part, which is specific to DIS version 7.

The creation/destruction of a DtSeparationVPRecord should be done through the DtSeparationVPRecordColleciton.

Constructor & Destructor Documentation

DtSeparationVPRecord::DtSeparationVPRecord

(

)

Constructor.

Creates a new Separation part with a null entity type.

virtual DtSeparationVPRecord::~DtSeparationVPRecord ( )

virtual

Destructor.

DtSeparationVPRecord::DtSeparationVPRecord

(

const DtSeparationVPRecord &

orig

)

Copy constructor.

Member Function Documentation

virtual DtVPRecord* DtSeparationVPRecord::clone ( )

inlinevirtual

Clone function.

Reimplemented from DtVPRecord.

static DtVPRecord* DtSeparationVPRecord::create ( )

inlinestatic

create function

Reimplemented from DtVPRecord.

virtual void DtSeparationVPRecord::decodeFromNet ( DtNetVPRecord *  )

virtual

decode this VP Record from a array of 128 bits as defined by the DIS 7 standard.

Reimplemented from DtVPRecord.

virtual void DtSeparationVPRecord::encodeToNet ( DtNetVPRecord *  ) const

virtual

encode this VP Record to a array of 128 bits as defined by the DIS 7 standard.

Reimplemented from DtVPRecord.

DtSeparationVPRecord& DtSeparationVPRecord::operator=

(

const DtSeparationVPRecord &

orig

)

Assignment operator.

virtual bool DtSeparationVPRecord::operator== ( const DtVPRecord &  other ) const

virtual

Equality/inequality operators.

Reimplemented from DtVPRecord.

virtual const DtEntityIdentifier& DtSeparationVPRecord::parentEntityIdentifier ( ) const

virtual

Accessors.

virtual DtPreEntityIndicator DtSeparationVPRecord::preEntityIndicator ( ) const

virtual

Accessors.

virtual void DtSeparationVPRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Print the record to a stream.

Reimplemented from DtVPRecord.

virtual DtSeparationReason DtSeparationVPRecord::separationReason ( ) const

virtual

Accessors.

virtual void DtSeparationVPRecord::setParentEntityIdentifier ( const DtEntityIdentifier &  data )

virtual

Accessors.

virtual void DtSeparationVPRecord::setPreEntityIndicator ( DtPreEntityIndicator  data )

virtual

Accessors.

virtual void DtSeparationVPRecord::setSeparationReason ( DtSeparationReason  data )

virtual

Accessors.

virtual void DtSeparationVPRecord::setStationName ( DtStationName  data )

virtual

Accessors.

virtual void DtSeparationVPRecord::setStationNumber ( unsigned int  data )

virtual

Accessors.

virtual DtStationName DtSeparationVPRecord::stationName ( ) const

virtual

Accessors.

virtual unsigned int DtSeparationVPRecord::stationNumber ( ) const

virtual

Accessors.

virtual DtVPRecordKind DtSeparationVPRecord::vpType ( ) const

inlinevirtual

The Variable Parameter Record type.

Reimplemented from DtVPRecord.

References DtSeparationRecordKind.

Member Data Documentation

DtEntityIdentifier DtSeparationVPRecord::myParentEntityId

protected

DtPreEntityIndicator DtSeparationVPRecord::myPreEntityIndicator

protected

DtSeparationReason DtSeparationVPRecord::mySeparationReason

protected

DtStationName DtSeparationVPRecord::myStationLocation

protected

unsigned int DtSeparationVPRecord::myStationNumber

protected

---

The documentation for this class was generated from the following file:

• separationVPRecord.h
