DtAdditionalPassiveActivitiesRepository Class Reference

class DtAdditionalPassiveActivitiesRepository More...

Inheritance diagram for DtAdditionalPassiveActivitiesRepository:

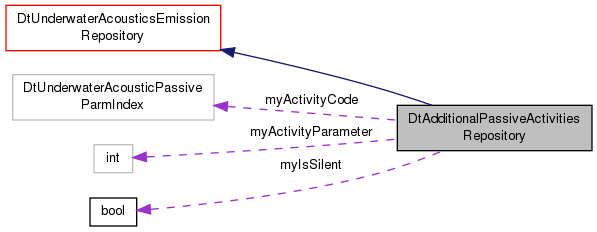

Collaboration diagram for DtAdditionalPassiveActivitiesRepository:

Public Member Functions
	DtAdditionalPassiveActivitiesRepository ()
	Constructor.
virtual	~DtAdditionalPassiveActivitiesRepository ()
	Destructor.
	DtAdditionalPassiveActivitiesRepository (const DtAdditionalPassiveActivitiesRepository &orig)
	Copy Constructor.
DtAdditionalPassiveActivitiesRepository &	operator= (const DtAdditionalPassiveActivitiesRepository &orig)
	Assignment Operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual void	setActivityCode (DtUnderwaterAcousticPassiveParmIndex val)
	Set the ActivityCode.
virtual DtUnderwaterAcousticPassiveParmIndex	activityCode () const
	Get the ActivityCode.
virtual void	setActivityParameter (DtInt16 val)
	Set the ActivityParameter.
virtual DtInt16	activityParameter () const
	Get the ActivityParameter.
virtual void	setIsSilent (bool val)
	In DIS, the silent state depends on bits 14 and 15 of the activity code.
virtual bool	isSilent () const
	Get the IsSilent.
Public Member Functions inherited from DtUnderwaterAcousticsEmissionRepository
	DtUnderwaterAcousticsEmissionRepository ()
	Constructor.
virtual	~DtUnderwaterAcousticsEmissionRepository ()
	Destructor.
	DtUnderwaterAcousticsEmissionRepository (const DtUnderwaterAcousticsEmissionRepository &orig)
	Copy Constructor.
DtUnderwaterAcousticsEmissionRepository &	operator= (const DtUnderwaterAcousticsEmissionRepository &orig)
	Assignment Operator.
virtual void	setEventIdentifier (const DtEventId &val)
	Set the EventIdentifier.
virtual const DtEventId &	eventIdentifier () const
	Get the EventIdentifier.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity.
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name.
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle.
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published.
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle.
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle.
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject.
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name.
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it.
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names.
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

Static Public Member Functions
static DtAdditionalPassiveActivitiesRepository *	create ()
	Create a DtAdditionalPassiveActivitiesStateRepository.

Protected Attributes
DtUnderwaterAcousticPassiveParmIndex	myActivityCode
int	myActivityParameter
bool	myIsSilent
Protected Attributes inherited from DtUnderwaterAcousticsEmissionRepository
DtEventId	myEventIdentifier
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtGlobalObjectDesignator	myHostId
DtVector32	myRelativePosition

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle.
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

class DtAdditionalPassiveActivitiesRepository

Instances of DtAdditionalPassiveActivitiesStateRepository are used to store state data for EmbeddedSystem.UnderwaterAcousticsEmission.AdditionalPassiveActivities objects.

Constructor & Destructor Documentation

DtAdditionalPassiveActivitiesRepository::DtAdditionalPassiveActivitiesRepository

(

)

Constructor.

virtual DtAdditionalPassiveActivitiesRepository::~DtAdditionalPassiveActivitiesRepository ( )

virtual

Destructor.

DtAdditionalPassiveActivitiesRepository::DtAdditionalPassiveActivitiesRepository

(

const DtAdditionalPassiveActivitiesRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtUnderwaterAcousticPassiveParmIndex DtAdditionalPassiveActivitiesRepository::activityCode ( ) const

virtual

Get the ActivityCode.

virtual DtInt16 DtAdditionalPassiveActivitiesRepository::activityParameter ( ) const

virtual

Get the ActivityParameter.

virtual DtStateRepository* DtAdditionalPassiveActivitiesRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

static DtAdditionalPassiveActivitiesRepository* DtAdditionalPassiveActivitiesRepository::create ( )

static

Create a DtAdditionalPassiveActivitiesStateRepository.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual bool DtAdditionalPassiveActivitiesRepository::isSilent ( ) const

virtual

Get the IsSilent.

DtAdditionalPassiveActivitiesRepository& DtAdditionalPassiveActivitiesRepository::operator=

(

const DtAdditionalPassiveActivitiesRepository &

orig

)

Assignment Operator.

virtual void DtAdditionalPassiveActivitiesRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual void DtAdditionalPassiveActivitiesRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual void DtAdditionalPassiveActivitiesRepository::setActivityCode ( DtUnderwaterAcousticPassiveParmIndex  val )

virtual

Set the ActivityCode.

virtual void DtAdditionalPassiveActivitiesRepository::setActivityParameter ( DtInt16  val )

virtual

Set the ActivityParameter.

virtual void DtAdditionalPassiveActivitiesRepository::setIsSilent ( bool  val )

virtual

In DIS, the silent state depends on bits 14 and 15 of the activity code.

In HLA, it is a separate boolean value. Only provide this method in HLA.

Member Data Documentation

DtUnderwaterAcousticPassiveParmIndex DtAdditionalPassiveActivitiesRepository::myActivityCode

protected

int DtAdditionalPassiveActivitiesRepository::myActivityParameter

protected

bool DtAdditionalPassiveActivitiesRepository::myIsSilent

protected

---

The documentation for this class was generated from the following file:

• additionalPassiveActivitiesRepository.h
