com.mak.vrlj.object.Entity Class Reference

A simulation object. More...

Inheritance diagram for com.mak.vrlj.object.Entity:

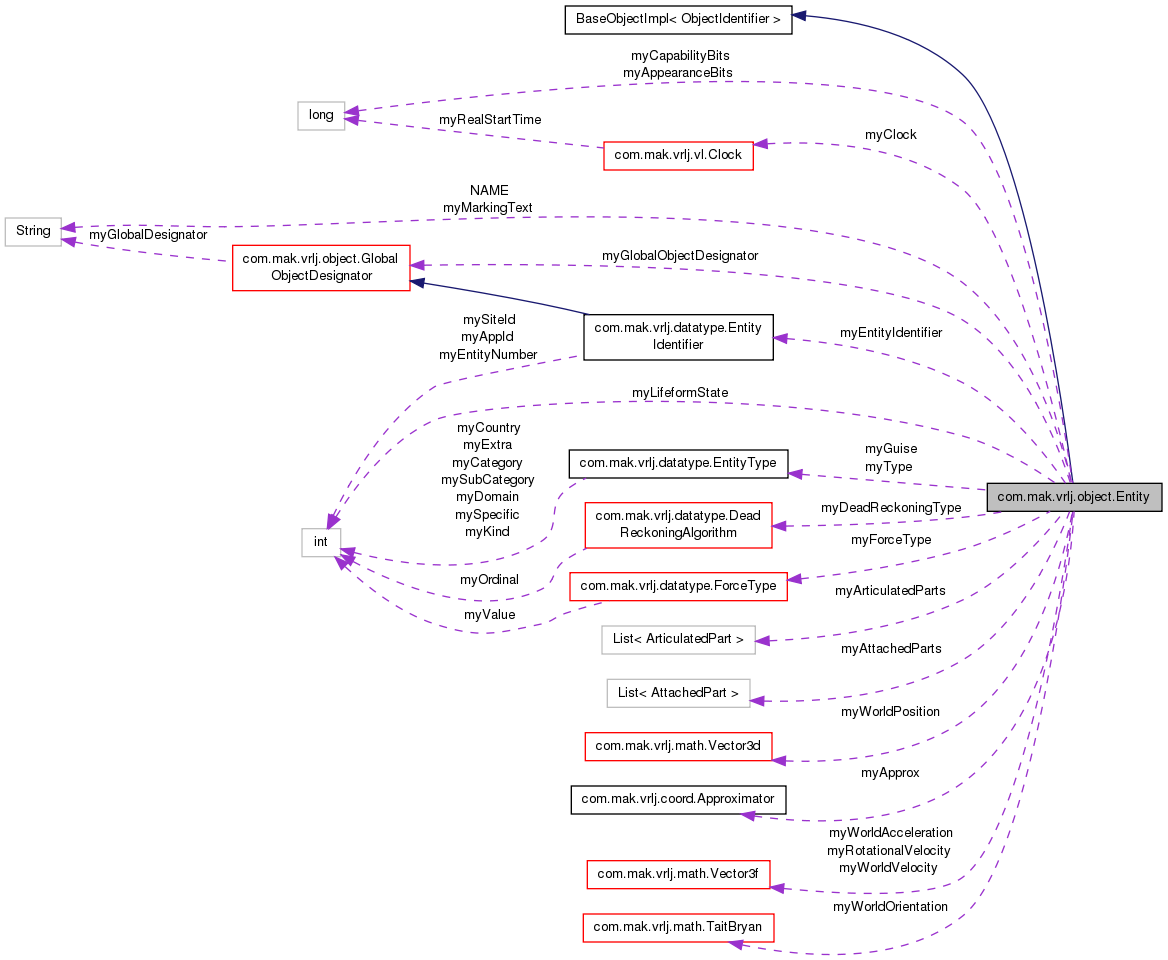

Collaboration diagram for com.mak.vrlj.object.Entity:

Public Member Functions
	Entity (GlobalObjectDesignator name)
	Create a simulation object.
	Entity (GlobalObjectDesignator name, Entity entity)
	Create a new entity by copying an existing entity.
boolean	equals (Object obj)
long	getAppearanceBits ()
	Get the flags which determine the appearance of this entity.
Approximator	getAprox ()
	Get the Approximator which determines the position of this entity over time, e.g.
ArticulatedPart	getArticulatedPart (ArticulatedPartType partType)
	Look up an ArticulatedPart by its type.
List< ArticulatedPart >	getArticulatedParts ()
	Get the list of ArticulatedPart on this entity.
List< AttachedPart >	getAttachedParts ()
	Get the list of AttachedPart on this entity.
long	getCapabilityBits ()
	Get the flags which determine the capabilities of this entity, as a long.
String	getClassName ()
	Get the name of the simulation object class for Entity objects.
Clock	getClock ()
	Get the simulation exercise clock used by this entity (for use by the Approximator, etc.).
DamageState	getDamageState ()
DeadReckoningAlgorithm	getDeadReckoningType ()
FirePower	getFirePower ()
Flaming	getFlaming ()
ForceType	getForceType ()
EntityType	getGuise ()
HatchState	getHatchState ()
EntityIdentifier	getEntityIdentifier ()
GlobalObjectDesignator	getGlobalObjectDesignator ()
LightType	getLights ()
String	getMarkingText ()
Mobility	getMobility ()
PaintScheme	getPaintScheme ()
ConstVector3f	getRotationalVelocity ()
Smoke	getSmoke ()
TrailingEffects	getTrailingEffects ()
EntityType	getType ()
ConstVector3f	getWorldAcceleration ()
ConstTaitBryan	getWorldOrientation ()
ConstVector3d	getWorldPosition ()
ConstVector3f	getWorldVelocity ()
int	hashCode ()
void	setAppearanceBits (long appearanceBits)
void	setArticulatedParts (List< ArticulatedPart > articulatedParts)
void	setAttachedParts (List< AttachedPart > attachedParts)
void	setCapabilityBits (long capabilityBits)
void	setClock (Clock clock)
void	setDamageState (DamageState newVal)
void	setDeadReckoningType (DeadReckoningAlgorithm deadReckoningType)
void	setFirePower (FirePower newVal)
void	setFlaming (Flaming newVal)
void	setForceType (ForceType forceType)
void	setGuise (EntityType guise)
void	setHatchState (HatchState newVal)
void	setId (EntityIdentifier id)
void	setLights (LightType newVal)
void	setMarkingText (String markingText)
void	setMobility (Mobility newVal)
void	setPaintScheme (PaintScheme newVal)
void	setRotationalVelocity (ConstVector3f rotationalVelocity)
void	setSmoke (Smoke newVal)
void	setTrailingEffects (TrailingEffects newVal)
void	setType (EntityType type)
void	setWorldAcceleration (ConstVector3f worldAcceleration)
void	setWorldOrientation (ConstTaitBryan worldOrientation)
void	setWorldPosition (ConstVector3d worldPosition)
void	setWorldVelocity (ConstVector3f worldVelocity)
String	toString ()
Approximator	setAprox (Approximator approx)
	Sets the Approximator used.
int	getLifeformState ()
void	setLifeformState (int lifeformState)

Static Public Member Functions
static void	addListener (ExerciseConnection exConn, ObjectListener< ObjectIdentifier, Entity > listener)
static void	removeListener (ExerciseConnection exConn, ObjectListener< ObjectIdentifier, Entity > listener)

Static Public Attributes
static final String	NAME = ":Entity"
	Simulation object class name.

Private Member Functions
long	getAppearanceBitField (int offset, int len)
void	setAppearanceBitField (int offset, int len, long newVal)

Private Attributes
final GlobalObjectDesignator	myGlobalObjectDesignator
EntityIdentifier	myEntityIdentifier
EntityType	myType
EntityType	myGuise
final Vector3d	myWorldPosition
final Vector3f	myWorldVelocity
final Vector3f	myWorldAcceleration
final TaitBryan	myWorldOrientation
final Vector3f	myRotationalVelocity
DeadReckoningAlgorithm	myDeadReckoningType
ForceType	myForceType
String	myMarkingText
long	myAppearanceBits
long	myCapabilityBits
int	myLifeformState
List< ArticulatedPart >	myArticulatedParts = new ArrayList<ArticulatedPart>()
List< AttachedPart >	myAttachedParts = new ArrayList<AttachedPart>()
Clock	myClock
Approximator	myApprox = null

Detailed Description

A simulation object.

Constructor & Destructor Documentation

com.mak.vrlj.object.Entity.Entity ( GlobalObjectDesignator  name )

inline

Create a simulation object.

Parameters

name	unique name for this simulation object.

References com.mak.vrlj.object.Entity.myDeadReckoningType, com.mak.vrlj.object.Entity.myEntityIdentifier, com.mak.vrlj.object.Entity.myForceType, com.mak.vrlj.object.Entity.myGlobalObjectDesignator, com.mak.vrlj.object.Entity.myGuise, com.mak.vrlj.object.Entity.myMarkingText, com.mak.vrlj.object.Entity.myRotationalVelocity, com.mak.vrlj.object.Entity.myType, com.mak.vrlj.object.Entity.myWorldAcceleration, com.mak.vrlj.object.Entity.myWorldOrientation, com.mak.vrlj.object.Entity.myWorldPosition, com.mak.vrlj.object.Entity.myWorldVelocity, com.mak.vrlj.datatype.DeadReckoningAlgorithm.OTHER, and com.mak.vrlj.datatype.ForceType.OTHER.

Referenced by com.mak.vrlj.object.Entity.equals().

com.mak.vrlj.object.Entity.Entity ( GlobalObjectDesignator  name, Entity  entity  )

inline

Create a new entity by copying an existing entity.

Parameters

name	unique name for this simulation object.
entity	an entity which will be copied into the new entity during initialization.

References com.mak.vrlj.object.Entity.getAppearanceBits(), com.mak.vrlj.object.Entity.getArticulatedParts(), com.mak.vrlj.object.Entity.getAttachedParts(), com.mak.vrlj.object.Entity.getCapabilityBits(), com.mak.vrlj.object.Entity.getDeadReckoningType(), com.mak.vrlj.object.Entity.getForceType(), com.mak.vrlj.object.Entity.getGuise(), com.mak.vrlj.object.Entity.getMarkingText(), com.mak.vrlj.object.Entity.getRotationalVelocity(), com.mak.vrlj.object.Entity.getType(), com.mak.vrlj.object.Entity.getWorldAcceleration(), com.mak.vrlj.object.Entity.getWorldOrientation(), com.mak.vrlj.object.Entity.getWorldPosition(), com.mak.vrlj.object.Entity.getWorldVelocity(), com.mak.vrlj.object.Entity.myAppearanceBits, com.mak.vrlj.object.Entity.myArticulatedParts, com.mak.vrlj.object.Entity.myAttachedParts, com.mak.vrlj.object.Entity.myCapabilityBits, com.mak.vrlj.object.Entity.myDeadReckoningType, com.mak.vrlj.object.Entity.myForceType, com.mak.vrlj.object.Entity.myGlobalObjectDesignator, com.mak.vrlj.object.Entity.myGuise, com.mak.vrlj.object.Entity.myMarkingText, com.mak.vrlj.object.Entity.myRotationalVelocity, com.mak.vrlj.object.Entity.myType, com.mak.vrlj.object.Entity.myWorldAcceleration, com.mak.vrlj.object.Entity.myWorldOrientation, com.mak.vrlj.object.Entity.myWorldPosition, com.mak.vrlj.object.Entity.myWorldVelocity, and com.mak.vrlj.datatype.EntityType.toString().

Member Function Documentation

static void com.mak.vrlj.object.Entity.addListener ( ExerciseConnection  exConn, ObjectListener< ObjectIdentifier, Entity >  listener  )

inlinestatic

References com.mak.vrlj.object.Entity.NAME.

Referenced by com.mak.vrlj.example.listen.Listen.main().

boolean com.mak.vrlj.object.Entity.equals ( Object  obj )

inline

References com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.GlobalObjectDesignator.equals(), com.mak.vrlj.datatype.EntityType.equals(), com.mak.vrlj.math.TaitBryan.equals(), com.mak.vrlj.math.Vector3d.equals(), com.mak.vrlj.math.Vector3f.equals(), com.mak.vrlj.object.Entity.myAppearanceBits, com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myArticulatedParts, com.mak.vrlj.object.Entity.myAttachedParts, com.mak.vrlj.object.Entity.myCapabilityBits, com.mak.vrlj.object.Entity.myDeadReckoningType, com.mak.vrlj.object.Entity.myEntityIdentifier, com.mak.vrlj.object.Entity.myForceType, com.mak.vrlj.object.Entity.myGlobalObjectDesignator, com.mak.vrlj.object.Entity.myGuise, com.mak.vrlj.object.Entity.myMarkingText, com.mak.vrlj.object.Entity.myRotationalVelocity, com.mak.vrlj.object.Entity.myType, com.mak.vrlj.object.Entity.myWorldAcceleration, com.mak.vrlj.object.Entity.myWorldOrientation, com.mak.vrlj.object.Entity.myWorldPosition, and com.mak.vrlj.object.Entity.myWorldVelocity.

long com.mak.vrlj.object.Entity.getAppearanceBitField ( int  offset, int  len  )

inlineprivate

References com.mak.vrlj.object.Entity.getAppearanceBits(), and com.mak.vrlj.vl.BitUtil.getBitField().

Referenced by com.mak.vrlj.object.Entity.getDamageState(), com.mak.vrlj.object.Entity.getFirePower(), com.mak.vrlj.object.Entity.getFlaming(), com.mak.vrlj.object.Entity.getHatchState(), com.mak.vrlj.object.Entity.getLights(), com.mak.vrlj.object.Entity.getMobility(), com.mak.vrlj.object.Entity.getPaintScheme(), com.mak.vrlj.object.Entity.getSmoke(), and com.mak.vrlj.object.Entity.getTrailingEffects().

long com.mak.vrlj.object.Entity.getAppearanceBits ( )

inline

Get the flags which determine the appearance of this entity.

Returns

the appearance bits as a long.

References com.mak.vrlj.object.Entity.myAppearanceBits.

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.object.Entity.setAppearanceBitField().

Approximator com.mak.vrlj.object.Entity.getAprox ( )

inline

Get the Approximator which determines the position of this entity over time, e.g.

dead reckoning and smoothing.

Returns

the Approximator for this entity.

References com.mak.vrlj.object.Entity.myApprox.

ArticulatedPart com.mak.vrlj.object.Entity.getArticulatedPart ( ArticulatedPartType  partType )

inline

Look up an ArticulatedPart by its type.

Parameters

partType

the type of ArticulatedPart to search for.

Returns

the requested ArticulatedPart, or null if not found.

References com.mak.vrlj.object.Entity.myArticulatedParts.

Referenced by com.mak.vrlj.example.f18.VehicleSim.simTick().

List<ArticulatedPart> com.mak.vrlj.object.Entity.getArticulatedParts ( )

inline

Get the list of ArticulatedPart on this entity.

Returns

the list of ArticulatedPart on this entity.

References com.mak.vrlj.object.Entity.myArticulatedParts.

Referenced by com.mak.vrlj.object.Entity.Entity(), and com.mak.vrlj.example.f18.VehicleSim.init().

List<AttachedPart> com.mak.vrlj.object.Entity.getAttachedParts ( )

inline

Get the list of AttachedPart on this entity.

Returns

the list of AttachedPart on this entity.

References com.mak.vrlj.object.Entity.myAttachedParts.

Referenced by com.mak.vrlj.object.Entity.Entity().

long com.mak.vrlj.object.Entity.getCapabilityBits ( )

inline

Get the flags which determine the capabilities of this entity, as a long.

Returns

the flags which determine the capabilities of this entity, as a long.

References com.mak.vrlj.object.Entity.myCapabilityBits.

Referenced by com.mak.vrlj.object.Entity.Entity().

String com.mak.vrlj.object.Entity.getClassName ( )

inline

Get the name of the simulation object class for Entity objects.

References com.mak.vrlj.object.Entity.NAME.

Clock com.mak.vrlj.object.Entity.getClock ( )

inline

Get the simulation exercise clock used by this entity (for use by the Approximator, etc.).

Returns

the entity's simulation exercise clock.

References com.mak.vrlj.object.Entity.myClock.

DamageState com.mak.vrlj.object.Entity.getDamageState ( )

inline

Returns

the DamageState of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.DamageState.valueOf().

DeadReckoningAlgorithm com.mak.vrlj.object.Entity.getDeadReckoningType ( )

inline

Returns

The DeadReckoningAlgorithm used by this entity.

References com.mak.vrlj.object.Entity.myDeadReckoningType.

Referenced by com.mak.vrlj.object.Entity.Entity().

EntityIdentifier com.mak.vrlj.object.Entity.getEntityIdentifier ( )

inline

Returns

the DIS-style EntityIdentifier of this entity.

References com.mak.vrlj.object.Entity.myEntityIdentifier.

Referenced by com.mak.vrlj.example.f18.VehicleSim.detonateMunition(), and com.mak.vrlj.example.f18.VehicleSim.fireMunition().

FirePower com.mak.vrlj.object.Entity.getFirePower ( )

inline

Returns

the FirePower damage status of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.FirePower.valueOf().

Flaming com.mak.vrlj.object.Entity.getFlaming ( )

inline

Returns

the Flaming appearance status of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.Flaming.valueOf().

ForceType com.mak.vrlj.object.Entity.getForceType ( )

inline

Returns

the ForceType of this entity.

References com.mak.vrlj.object.Entity.myForceType.

Referenced by com.mak.vrlj.object.Entity.Entity().

GlobalObjectDesignator com.mak.vrlj.object.Entity.getGlobalObjectDesignator ( )

inline

References com.mak.vrlj.object.Entity.myGlobalObjectDesignator.

Referenced by com.mak.vrlj.example.f18.VehicleSim.checkDetonation(), com.mak.vrlj.example.f18.VehicleSim.fireMunition(), com.mak.vrlj.example.listen.Listen.main(), and com.mak.vrlj.example.f18.VehicleSim.nearestEntity().

EntityType com.mak.vrlj.object.Entity.getGuise ( )

inline

Returns

the guise EntityType for this entity.

References com.mak.vrlj.object.Entity.myGuise.

Referenced by com.mak.vrlj.object.Entity.Entity().

HatchState com.mak.vrlj.object.Entity.getHatchState ( )

inline

Returns

the HatchState appearance of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.HatchState.valueOf().

int com.mak.vrlj.object.Entity.getLifeformState ( )

inline

Returns

the myLifeformState

References com.mak.vrlj.object.Entity.myLifeformState.

LightType com.mak.vrlj.object.Entity.getLights ( )

inline

Returns

the LightType appearance state of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.LightType.valueOf().

String com.mak.vrlj.object.Entity.getMarkingText ( )

inline

Returns

the marking text displayed on this entity.

References com.mak.vrlj.object.Entity.myMarkingText.

Referenced by com.mak.vrlj.object.Entity.Entity().

Mobility com.mak.vrlj.object.Entity.getMobility ( )

inline

Returns

the Mobility damage status and appearance of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.Mobility.valueOf().

PaintScheme com.mak.vrlj.object.Entity.getPaintScheme ( )

inline

Returns

the PaintScheme appearance of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.PaintScheme.valueOf().

ConstVector3f com.mak.vrlj.object.Entity.getRotationalVelocity ( )

inline

Returns

the rotational velocity of this entity as a vector of (psi in radians/second, theta in radians/second, phi in radians/second).

References com.mak.vrlj.coord.Approximator.getRotationalVelocity(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, and com.mak.vrlj.object.Entity.myRotationalVelocity.

Referenced by com.mak.vrlj.object.Entity.Entity().

Smoke com.mak.vrlj.object.Entity.getSmoke ( )

inline

Returns

the Smoke appearance of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.Smoke.valueOf().

TrailingEffects com.mak.vrlj.object.Entity.getTrailingEffects ( )

inline

Returns

the TrailingEffects appearance of this entity.

References com.mak.vrlj.object.Entity.getAppearanceBitField(), and com.mak.vrlj.datatype.TrailingEffects.valueOf().

EntityType com.mak.vrlj.object.Entity.getType ( )

inline

Returns

the EntityType of this entity.

References com.mak.vrlj.object.Entity.myType.

Referenced by com.mak.vrlj.object.Entity.Entity().

ConstVector3f com.mak.vrlj.object.Entity.getWorldAcceleration ( )

inline

Returns

the acceleration of this entity with respect to geocentric coordinates as a vector (x, y, z).

References com.mak.vrlj.coord.Approximator.getAcceleration(), com.mak.vrlj.object.Entity.myApprox, and com.mak.vrlj.object.Entity.myWorldAcceleration.

Referenced by com.mak.vrlj.object.Entity.Entity().

ConstTaitBryan com.mak.vrlj.object.Entity.getWorldOrientation ( )

inline

Returns

the orientation of this entity with respect to geocentric coordinates as Tait-Bryan angles.

References com.mak.vrlj.coord.Approximator.getApproxEuler(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, and com.mak.vrlj.object.Entity.myWorldOrientation.

Referenced by com.mak.vrlj.object.Entity.Entity(), and com.mak.vrlj.example.listen.Listen.main().

ConstVector3d com.mak.vrlj.object.Entity.getWorldPosition ( )

inline

Returns

the position of this entity with respect to geocentric coordinates as a vector (x, y, z).

References com.mak.vrlj.coord.Approximator.getApproxPosition(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, and com.mak.vrlj.object.Entity.myWorldPosition.

Referenced by com.mak.vrlj.example.f18.VehicleSim.detonateMunition(), com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.example.f18.VehicleSim.fireMunition(), and com.mak.vrlj.example.listen.Listen.main().

ConstVector3f com.mak.vrlj.object.Entity.getWorldVelocity ( )

inline

Returns

the velocioty of this entity with respect to geocentric coordinates as a vector (x, y, z).

References com.mak.vrlj.coord.Approximator.getApproxVelocity(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, and com.mak.vrlj.object.Entity.myWorldVelocity.

Referenced by com.mak.vrlj.object.Entity.Entity(), and com.mak.vrlj.example.f18.VehicleSim.fireMunition().

int com.mak.vrlj.object.Entity.hashCode ( )

inline

References com.mak.vrlj.object.Entity.myAppearanceBits, com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myArticulatedParts, com.mak.vrlj.object.Entity.myAttachedParts, com.mak.vrlj.object.Entity.myCapabilityBits, com.mak.vrlj.object.Entity.myDeadReckoningType, com.mak.vrlj.object.Entity.myEntityIdentifier, com.mak.vrlj.object.Entity.myForceType, com.mak.vrlj.object.Entity.myGlobalObjectDesignator, com.mak.vrlj.object.Entity.myGuise, com.mak.vrlj.object.Entity.myMarkingText, com.mak.vrlj.object.Entity.myRotationalVelocity, com.mak.vrlj.object.Entity.myType, com.mak.vrlj.object.Entity.myWorldAcceleration, com.mak.vrlj.object.Entity.myWorldOrientation, com.mak.vrlj.object.Entity.myWorldPosition, and com.mak.vrlj.object.Entity.myWorldVelocity.

static void com.mak.vrlj.object.Entity.removeListener ( ExerciseConnection  exConn, ObjectListener< ObjectIdentifier, Entity >  listener  )

inlinestatic

References com.mak.vrlj.object.Entity.NAME.

void com.mak.vrlj.object.Entity.setAppearanceBitField ( int  offset, int  len, long  newVal  )

inlineprivate

References com.mak.vrlj.object.Entity.getAppearanceBits(), com.mak.vrlj.object.Entity.setAppearanceBits(), and com.mak.vrlj.vl.BitUtil.setBitField().

Referenced by com.mak.vrlj.object.Entity.setDamageState(), com.mak.vrlj.object.Entity.setFirePower(), com.mak.vrlj.object.Entity.setFlaming(), com.mak.vrlj.object.Entity.setHatchState(), com.mak.vrlj.object.Entity.setLights(), com.mak.vrlj.object.Entity.setMobility(), com.mak.vrlj.object.Entity.setPaintScheme(), com.mak.vrlj.object.Entity.setSmoke(), and com.mak.vrlj.object.Entity.setTrailingEffects().

void com.mak.vrlj.object.Entity.setAppearanceBits ( long  appearanceBits )

inline

Parameters

appearanceBits

the flags which determine the appearance of this entity.

References com.mak.vrlj.object.Entity.myAppearanceBits.

Referenced by com.mak.vrlj.object.Entity.setAppearanceBitField().

Approximator com.mak.vrlj.object.Entity.setAprox ( Approximator  approx )

inline

Sets the Approximator used.

This should only be set internally for Reflected Entities. Currently the approximator is not used for published entities.

Parameters

approx

Returns

the previous Approximator, or null if none.

References com.mak.vrlj.coord.Approximator.getOrientationAtTimeOfValidity(), com.mak.vrlj.coord.Approximator.getPositionAtTimeOfValidity(), com.mak.vrlj.coord.Approximator.getTimeOfLastLocationValidity(), com.mak.vrlj.coord.Approximator.getTimeOfLastOrientationValidity(), com.mak.vrlj.coord.Approximator.getVelocityAtTimeOfValidity(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myRotationalVelocity, com.mak.vrlj.object.Entity.myWorldAcceleration, com.mak.vrlj.coord.Approximator.setAcceleration(), com.mak.vrlj.coord.Approximator.setOrientation(), com.mak.vrlj.coord.Approximator.setPosition(), com.mak.vrlj.coord.Approximator.setRotationalVelocity(), and com.mak.vrlj.coord.Approximator.setVelocity().

void com.mak.vrlj.object.Entity.setArticulatedParts ( List< ArticulatedPart >  articulatedParts )

inline

Parameters

articulatedParts

the list of ArticulatedPart on this entity.

References com.mak.vrlj.object.Entity.myArticulatedParts.

void com.mak.vrlj.object.Entity.setAttachedParts ( List< AttachedPart >  attachedParts )

inline

Parameters

attachedParts

the list of AttachedPart on this entity.

References com.mak.vrlj.object.Entity.myAttachedParts.

void com.mak.vrlj.object.Entity.setCapabilityBits ( long  capabilityBits )

inline

Parameters

capabilityBits

the flags which determine the capabilities of this entity, as a long.

References com.mak.vrlj.object.Entity.myCapabilityBits.

void com.mak.vrlj.object.Entity.setClock ( Clock  clock )

inline

Parameters

clock

the simulation exercise clock used by this entity (for use by the Approximator, etc.).

References com.mak.vrlj.object.Entity.myClock.

void com.mak.vrlj.object.Entity.setDamageState ( DamageState  newVal )

inline

Parameters

newVal

the DamageState of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

Referenced by com.mak.vrlj.example.f18.VehicleSim.reactToDamage().

void com.mak.vrlj.object.Entity.setDeadReckoningType ( DeadReckoningAlgorithm  deadReckoningType )

inline

Parameters

deadReckoningType

the DeadReckoningAlgorithm used by this entity.

References com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myDeadReckoningType, and com.mak.vrlj.coord.Approximator.setAlgorithm().

Referenced by com.mak.vrlj.example.talk.Talk.main(), and com.mak.vrlj.example.f18.VehicleSim.VehicleSim().

void com.mak.vrlj.object.Entity.setFirePower ( FirePower  newVal )

inline

Parameters

newVal

the FirePower damage status of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

void com.mak.vrlj.object.Entity.setFlaming ( Flaming  newVal )

inline

Parameters

newVal

the Flaming appearance status of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

Referenced by com.mak.vrlj.example.f18.VehicleSim.reactToDamage().

void com.mak.vrlj.object.Entity.setForceType ( ForceType  forceType )

inline

Parameters

forceType

the ForceType of this entity.

References com.mak.vrlj.object.Entity.myForceType.

Referenced by com.mak.vrlj.example.f18.VehicleSim.VehicleSim().

void com.mak.vrlj.object.Entity.setGuise ( EntityType  guise )

inline

Parameters

guise

the guise EntityType for this entity.

References com.mak.vrlj.object.Entity.myGuise.

Referenced by com.mak.vrlj.example.f18.VehicleSim.VehicleSim().

void com.mak.vrlj.object.Entity.setHatchState ( HatchState  newVal )

inline

Parameters

newVal

the HatchState appearance of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

void com.mak.vrlj.object.Entity.setId ( EntityIdentifier  id )

inline

Parameters

id	the DIS-style EntityIdentifier of this entity.

References com.mak.vrlj.object.Entity.myEntityIdentifier.

void com.mak.vrlj.object.Entity.setLifeformState ( int  lifeformState )

inline

Parameters

myLifeformState

the myLifeformState to set

References com.mak.vrlj.object.Entity.myLifeformState.

void com.mak.vrlj.object.Entity.setLights ( LightType  newVal )

inline

Parameters

newVal

the LightType appearance state of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

void com.mak.vrlj.object.Entity.setMarkingText ( String  markingText )

inline

Parameters

markingText

the marking text displayed on this entity.

References com.mak.vrlj.object.Entity.myMarkingText.

Referenced by com.mak.vrlj.example.talk.Talk.main(), and com.mak.vrlj.example.f18.VehicleSim.VehicleSim().

void com.mak.vrlj.object.Entity.setMobility ( Mobility  newVal )

inline

Parameters

newVal

the Mobility damage status and appearance of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

void com.mak.vrlj.object.Entity.setPaintScheme ( PaintScheme  newVal )

inline

Parameters

newVal

the PaintScheme appearance of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

void com.mak.vrlj.object.Entity.setRotationalVelocity ( ConstVector3f  rotationalVelocity )

inline

Parameters

rotationalVelocity

the rotational velocity of this entity as a vector of (psi in radians/second, theta in radians/second, phi in radians/second).

References com.mak.vrlj.math.Vector3f.assignFrom(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, com.mak.vrlj.object.Entity.myRotationalVelocity, and com.mak.vrlj.coord.Approximator.setRotationalVelocity().

Referenced by com.mak.vrlj.example.f18.VehicleSim.simTick().

void com.mak.vrlj.object.Entity.setSmoke ( Smoke  newVal )

inline

Parameters

newVal

the Smoke appearance of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

Referenced by com.mak.vrlj.example.f18.VehicleSim.reactToDamage().

void com.mak.vrlj.object.Entity.setTrailingEffects ( TrailingEffects  newVal )

inline

Parameters

newVal

the TrailingEffects appearance of this entity.

References com.mak.vrlj.object.Entity.setAppearanceBitField().

void com.mak.vrlj.object.Entity.setType ( EntityType  type )

inline

Parameters

type	the EntityType of this entity.

References com.mak.vrlj.object.Entity.myType.

Referenced by com.mak.vrlj.example.talk.Talk.main(), and com.mak.vrlj.example.f18.VehicleSim.VehicleSim().

void com.mak.vrlj.object.Entity.setWorldAcceleration ( ConstVector3f  worldAcceleration )

inline

Parameters

worldAcceleration

the acceleration of this entity with respect to geocentric coordinates as a vector (x, y, z).

References com.mak.vrlj.math.Vector3f.assignFrom(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, com.mak.vrlj.object.Entity.myWorldAcceleration, and com.mak.vrlj.coord.Approximator.setAcceleration().

Referenced by com.mak.vrlj.example.f18.VehicleSim.simTick().

void com.mak.vrlj.object.Entity.setWorldOrientation ( ConstTaitBryan  worldOrientation )

inline

Parameters

worldOrientation

the orientation of this entity with respect to geocentric coordinates as Tait-Bryan angles.

References com.mak.vrlj.math.TaitBryan.assignFrom(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, com.mak.vrlj.object.Entity.myWorldOrientation, and com.mak.vrlj.coord.Approximator.setOrientation().

Referenced by com.mak.vrlj.example.talk.Talk.main(), and com.mak.vrlj.example.f18.VehicleSim.simTick().

void com.mak.vrlj.object.Entity.setWorldPosition ( ConstVector3d  worldPosition )

inline

Parameters

worldPosition

the position of this entity with respect to geocentric coordinates as a vector (x, y, z).

References com.mak.vrlj.math.Vector3d.assignFrom(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, com.mak.vrlj.object.Entity.myWorldPosition, and com.mak.vrlj.coord.Approximator.setPosition().

Referenced by com.mak.vrlj.example.talk.Talk.main(), and com.mak.vrlj.example.f18.VehicleSim.simTick().

void com.mak.vrlj.object.Entity.setWorldVelocity ( ConstVector3f  worldVelocity )

inline

Parameters

worldVelocity

the velocity of this entity with respect to geocentric coordinates as a vector (x, y, z).

References com.mak.vrlj.math.Vector3f.assignFrom(), com.mak.vrlj.vl.Clock.getSimTime(), com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myClock, com.mak.vrlj.object.Entity.myWorldVelocity, and com.mak.vrlj.coord.Approximator.setVelocity().

Referenced by com.mak.vrlj.example.talk.Talk.main(), and com.mak.vrlj.example.f18.VehicleSim.simTick().

String com.mak.vrlj.object.Entity.toString ( )

inline

References com.mak.vrlj.object.Entity.myAppearanceBits, com.mak.vrlj.object.Entity.myApprox, com.mak.vrlj.object.Entity.myArticulatedParts, com.mak.vrlj.object.Entity.myAttachedParts, com.mak.vrlj.object.Entity.myCapabilityBits, com.mak.vrlj.object.Entity.myDeadReckoningType, com.mak.vrlj.object.Entity.myEntityIdentifier, com.mak.vrlj.object.Entity.myForceType, com.mak.vrlj.object.Entity.myGlobalObjectDesignator, com.mak.vrlj.object.Entity.myGuise, com.mak.vrlj.object.Entity.myMarkingText, com.mak.vrlj.object.Entity.myRotationalVelocity, com.mak.vrlj.object.Entity.myType, com.mak.vrlj.object.Entity.myWorldAcceleration, com.mak.vrlj.object.Entity.myWorldOrientation, com.mak.vrlj.object.Entity.myWorldPosition, and com.mak.vrlj.object.Entity.myWorldVelocity.

Member Data Documentation

long com.mak.vrlj.object.Entity.myAppearanceBits

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getAppearanceBits(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setAppearanceBits(), and com.mak.vrlj.object.Entity.toString().

Approximator com.mak.vrlj.object.Entity.myApprox = null

private

Referenced by com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getAprox(), com.mak.vrlj.object.Entity.getRotationalVelocity(), com.mak.vrlj.object.Entity.getWorldAcceleration(), com.mak.vrlj.object.Entity.getWorldOrientation(), com.mak.vrlj.object.Entity.getWorldPosition(), com.mak.vrlj.object.Entity.getWorldVelocity(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setAprox(), com.mak.vrlj.object.Entity.setDeadReckoningType(), com.mak.vrlj.object.Entity.setRotationalVelocity(), com.mak.vrlj.object.Entity.setWorldAcceleration(), com.mak.vrlj.object.Entity.setWorldOrientation(), com.mak.vrlj.object.Entity.setWorldPosition(), com.mak.vrlj.object.Entity.setWorldVelocity(), and com.mak.vrlj.object.Entity.toString().

List<ArticulatedPart> com.mak.vrlj.object.Entity.myArticulatedParts = new ArrayList<ArticulatedPart>()

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getArticulatedPart(), com.mak.vrlj.object.Entity.getArticulatedParts(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setArticulatedParts(), and com.mak.vrlj.object.Entity.toString().

List<AttachedPart> com.mak.vrlj.object.Entity.myAttachedParts = new ArrayList<AttachedPart>()

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getAttachedParts(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setAttachedParts(), and com.mak.vrlj.object.Entity.toString().

long com.mak.vrlj.object.Entity.myCapabilityBits

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getCapabilityBits(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setCapabilityBits(), and com.mak.vrlj.object.Entity.toString().

Clock com.mak.vrlj.object.Entity.myClock

private

Referenced by com.mak.vrlj.object.Entity.getClock(), com.mak.vrlj.object.Entity.getRotationalVelocity(), com.mak.vrlj.object.Entity.getWorldOrientation(), com.mak.vrlj.object.Entity.getWorldPosition(), com.mak.vrlj.object.Entity.getWorldVelocity(), com.mak.vrlj.object.Entity.setClock(), com.mak.vrlj.object.Entity.setRotationalVelocity(), com.mak.vrlj.object.Entity.setWorldAcceleration(), com.mak.vrlj.object.Entity.setWorldOrientation(), com.mak.vrlj.object.Entity.setWorldPosition(), and com.mak.vrlj.object.Entity.setWorldVelocity().

DeadReckoningAlgorithm com.mak.vrlj.object.Entity.myDeadReckoningType

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getDeadReckoningType(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setDeadReckoningType(), and com.mak.vrlj.object.Entity.toString().

EntityIdentifier com.mak.vrlj.object.Entity.myEntityIdentifier

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getEntityIdentifier(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setId(), and com.mak.vrlj.object.Entity.toString().

ForceType com.mak.vrlj.object.Entity.myForceType

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getForceType(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setForceType(), and com.mak.vrlj.object.Entity.toString().

final GlobalObjectDesignator com.mak.vrlj.object.Entity.myGlobalObjectDesignator

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getGlobalObjectDesignator(), com.mak.vrlj.object.Entity.hashCode(), and com.mak.vrlj.object.Entity.toString().

EntityType com.mak.vrlj.object.Entity.myGuise

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getGuise(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setGuise(), and com.mak.vrlj.object.Entity.toString().

int com.mak.vrlj.object.Entity.myLifeformState

private

Referenced by com.mak.vrlj.object.Entity.getLifeformState(), and com.mak.vrlj.object.Entity.setLifeformState().

String com.mak.vrlj.object.Entity.myMarkingText

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getMarkingText(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setMarkingText(), and com.mak.vrlj.object.Entity.toString().

final Vector3f com.mak.vrlj.object.Entity.myRotationalVelocity

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getRotationalVelocity(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setAprox(), com.mak.vrlj.object.Entity.setRotationalVelocity(), and com.mak.vrlj.object.Entity.toString().

EntityType com.mak.vrlj.object.Entity.myType

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getType(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setType(), and com.mak.vrlj.object.Entity.toString().

final Vector3f com.mak.vrlj.object.Entity.myWorldAcceleration

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getWorldAcceleration(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setAprox(), com.mak.vrlj.object.Entity.setWorldAcceleration(), and com.mak.vrlj.object.Entity.toString().

final TaitBryan com.mak.vrlj.object.Entity.myWorldOrientation

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getWorldOrientation(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setWorldOrientation(), and com.mak.vrlj.object.Entity.toString().

final Vector3d com.mak.vrlj.object.Entity.myWorldPosition

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getWorldPosition(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setWorldPosition(), and com.mak.vrlj.object.Entity.toString().

final Vector3f com.mak.vrlj.object.Entity.myWorldVelocity

private

Referenced by com.mak.vrlj.object.Entity.Entity(), com.mak.vrlj.object.Entity.equals(), com.mak.vrlj.object.Entity.getWorldVelocity(), com.mak.vrlj.object.Entity.hashCode(), com.mak.vrlj.object.Entity.setWorldVelocity(), and com.mak.vrlj.object.Entity.toString().

final String com.mak.vrlj.object.Entity.NAME = ":Entity"

static

Simulation object class name.

Referenced by com.mak.vrlj.object.Entity.addListener(), com.mak.vrlj.object.ReflectedMap< TIdentifier extends ObjectIdentifier, Tobj extends BaseObject< TIdentifier > >.close(), com.mak.vrlj.object.Entity.getClassName(), com.mak.vrlj.example.talk.Talk.main(), com.mak.vrlj.object.ReflectedEntityMap.ReflectedEntityMap(), com.mak.vrlj.object.Entity.removeListener(), and com.mak.vrlj.example.f18.VehicleSim.VehicleSim().

---

The documentation for this class was generated from the following file:

• Entity.java
