Inheritance diagram for DetonateMessage:

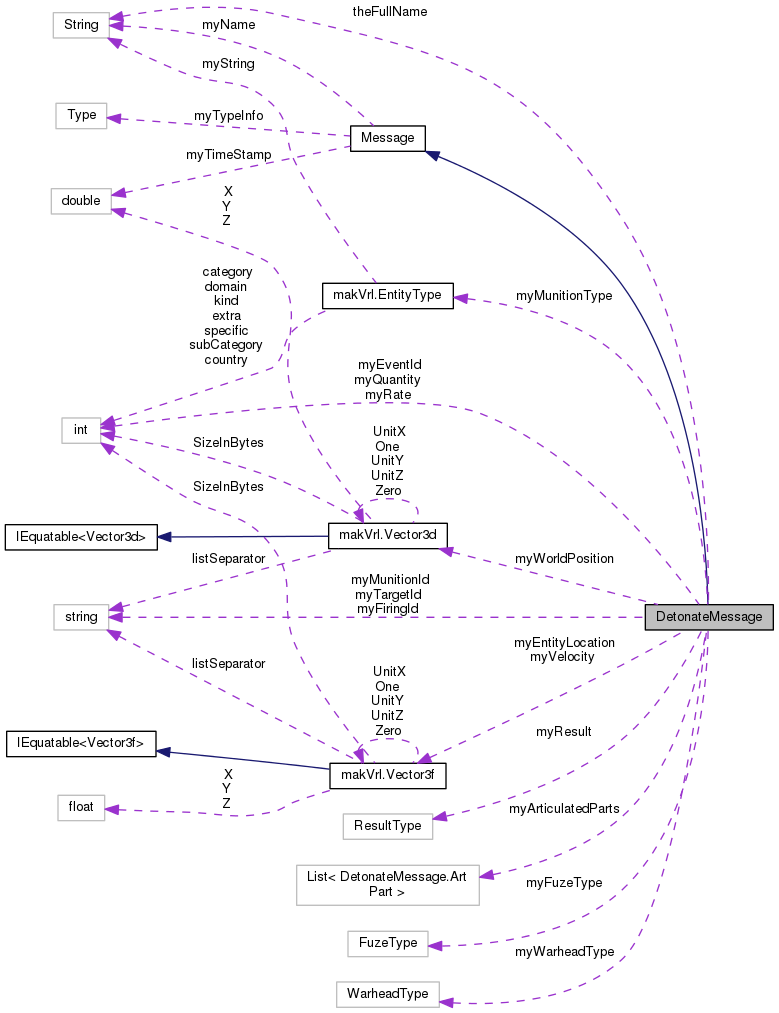

Collaboration diagram for DetonateMessage:

Classes
class	ArtPart

class	Parameter

Public Types
enum	FuzeType { FuzeType.OTHER =0, FuzeType.CONTACT =1000, FuzeType.CONTACTINSTANT =1100, FuzeType.CONTACTDELAYED =1200, FuzeType.TIMED =2000, FuzeType.PROXIMITY =3000, FuzeType.COMMAND =4000, FuzeType.ALTITUDE =5000, FuzeType.DEPTH =6000, FuzeType.ACOUSTIC =7000 }

enum	ResultType { ResultType.OTHER, ResultType.ENTITYIMPACT, ResultType.ENTITYPROXIMATE, ResultType.GROUNDIMPACT, ResultType.GROUNDPROXIMATE, ResultType.DETONATION, ResultType.NONE, ResultType.HE_SMALL, ResultType.HE_MEDIUM, ResultType.HE_LARGE, ResultType.ARMORPEIRCING, ResultType.DIRTBLAST_SMALL, ResultType.DIRTBLAST_MEDIUM, ResultType.DIRTBLAST_LARGE, ResultType.WATERBLAST_SMALL, ResultType.WATERBLAST_MEDIUM, ResultType.WATERBLAST_LARGE, ResultType.CLEARINGLINECHARGE, ResultType.ENVIRONMENTALOBJECTIMPACT, ResultType.ENVIRONMENTALOBJECTPROXIMATE, ResultType.WATERIMPACT, ResultType.AIRBURST }

enum	WarheadType { WarheadType.OTHER =0, WarheadType.HIGHEXPLOSIVE =1000, WarheadType.HIGHEXPLOSIVEPLATIC =1100, WarheadType.HIGHEXPLOSIVEINCENDIARY =1200, WarheadType.HIGHEXPLOSIVEFRAGMENTATION =1300, WarheadType.HIGHEXPLOSIVEANTITANK =1400, WarheadType.HIGHEXPLOSIVEBOMBLETS =1500, WarheadType.HIGHEXPLOSIVESHAPEDCHARGE =1600, WarheadType.SMOKE =2000, WarheadType.ILLUMINATION =3000, WarheadType.PRACTICE =4000, WarheadType.KINETIC =5000, WarheadType.UNUSED =6000, WarheadType.NUCLEAR =7000, WarheadType.CHEMICALGENERAL =8000, WarheadType.CHEMICALBLISTER =8100, WarheadType.CHEMICALBLOOD =8200, WarheadType.CHEMICALNERVE =8300, WarheadType.BIOLOGICALGENERAL =9000 }

enum	ParameterTypes { ParameterTypes.POSITION = 1, ParameterTypes.POSITIONRATE = 2, ParameterTypes.EXTENSION = 3, ParameterTypes.EXTENSIONRATE = 4, ParameterTypes.X = 5, ParameterTypes.XRATE = 6, ParameterTypes.Y = 7, ParameterTypes.YRATE = 8, ParameterTypes.Z = 9, ParameterTypes.ZRATE = 10, ParameterTypes.AZIMUTH = 11, ParameterTypes.AZIMUTHRATE = 12, ParameterTypes.ELEVATION = 13, ParameterTypes.ELEVATIONRATE = 14, ParameterTypes.ROTATION = 15, ParameterTypes.ROTATIONRATE = 16 }

Public Member Functions
	DetonateMessage ()

Public Member Functions inherited from Message
	Message ()

virtual Byte[]	encode ()

Public Attributes
const String	theFullName ="DetonateMessage"

Protected Member Functions
override int	messageSize ()

override void	serialize (ref BinaryWriter writer)

override void	deserialize (ref BinaryReader reader)

Properties
static string	theName `[get]`

string	firingId `[get, set]`

string	targetId `[get, set]`

string	munitionId `[get, set]`

Vector3d	worldPosition `[get, set]`

Vector3f	velocity `[get, set]`

int	eventId `[get, set]`

EntityType	munitionType `[get, set]`

FuzeType	fuzeType `[get, set]`

WarheadType	warheadType `[get, set]`

int	quantity `[get, set]`

int	rate `[get, set]`

Vector3f	entityLocation `[get, set]`

ResultType	result `[get, set]`

List< ArtPart >	ArticulatedParts `[get, set]`

Properties inherited from Message
String	name `[get]`

double	timeStamp `[get, set]`

Static Private Member Functions
static	DetonateMessage ()

Private Attributes
string	myFiringId = ""

string	myTargetId = ""

string	myMunitionId = ""

Vector3d	myWorldPosition

Vector3f	myVelocity

int	myEventId

EntityType	myMunitionType =new EntityType()

FuzeType	myFuzeType

WarheadType	myWarheadType

int	myQuantity

int	myRate

Vector3f	myEntityLocation

ResultType	myResult

List< ArtPart >	myArticulatedParts =new List<ArtPart>()

Additional Inherited Members
Static Public Member Functions inherited from Message
static Message	decode (ref Byte[] bytes)

Static Protected Member Functions inherited from Message
static Message	createMessage (ref byte[] b)

Protected Attributes inherited from Message
String	myName

double	myTimeStamp = -1.0

Type	myTypeInfo

Member Enumeration Documentation

enum DetonateMessage.FuzeType

Enumerator
OTHER
CONTACT
CONTACTINSTANT
CONTACTDELAYED
TIMED
PROXIMITY
COMMAND
ALTITUDE
DEPTH
ACOUSTIC

enum DetonateMessage.ParameterTypes

Enumerator
POSITION
POSITIONRATE
EXTENSION
EXTENSIONRATE
X
XRATE
Y
YRATE
Z
ZRATE
AZIMUTH
AZIMUTHRATE
ELEVATION
ELEVATIONRATE
ROTATION
ROTATIONRATE

enum DetonateMessage.ResultType

Enumerator
OTHER
ENTITYIMPACT
ENTITYPROXIMATE
GROUNDIMPACT
GROUNDPROXIMATE
DETONATION
NONE
HE_SMALL
HE_MEDIUM
HE_LARGE
ARMORPEIRCING
DIRTBLAST_SMALL
DIRTBLAST_MEDIUM
DIRTBLAST_LARGE
WATERBLAST_SMALL
WATERBLAST_MEDIUM
WATERBLAST_LARGE
CLEARINGLINECHARGE
ENVIRONMENTALOBJECTIMPACT
ENVIRONMENTALOBJECTPROXIMATE
WATERIMPACT
AIRBURST

enum DetonateMessage.WarheadType

Enumerator
OTHER
HIGHEXPLOSIVE
HIGHEXPLOSIVEPLATIC
HIGHEXPLOSIVEINCENDIARY
HIGHEXPLOSIVEFRAGMENTATION
HIGHEXPLOSIVEANTITANK
HIGHEXPLOSIVEBOMBLETS
HIGHEXPLOSIVESHAPEDCHARGE
SMOKE
ILLUMINATION
PRACTICE
KINETIC
UNUSED
NUCLEAR
CHEMICALGENERAL
CHEMICALBLISTER
CHEMICALBLOOD
CHEMICALNERVE
BIOLOGICALGENERAL
