DtArealObjectEncoder Class Reference

Provides encoding logic for the DtArealObjectStatePdu class. More...

Inheritance diagram for DtArealObjectEncoder:

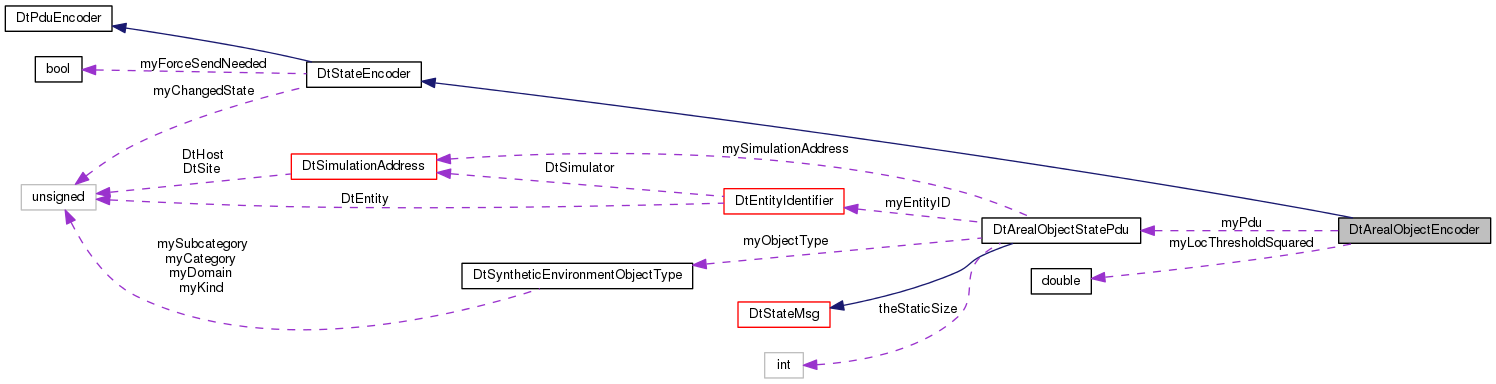

Collaboration diagram for DtArealObjectEncoder:

Public Member Functions
	DtArealObjectEncoder (double locThresh=1.0)
	CTOR. More...
	DtArealObjectEncoder (const DtArealObjectEncoder &orig)
	Copy CTOR. More...
virtual	~DtArealObjectEncoder ()
	Virtual DTOR. More...
DtArealObjectEncoder &	operator= (const DtArealObjectEncoder &orig)
	Assignment operator. More...
virtual DtArealObjectStatePdu *	stateMsg (const DtArealObjectRepository &stateRep, const DtArealObjectRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
	DtCLONE_ENCODER (DtArealObjectEncoder)
virtual void	setLocThreshold (double val)
	Set/Query the value of the Location Update Threshold. More...
virtual double	locThreshold () const
	Set/Query the value of the Location Update Threshold. More...
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtArealObjectRepository &stateRep, const DtArealObjectRepository &asSeenByRemote)
	Determine if a state message needs to be sent. More...
virtual void	updateModifications (const DtArealObjectRepository &lclRep, const DtArealObjectRepository &remRep)
	Update the PDU's modification flags. More...

Protected Attributes
DtArealObjectStatePdu	myPdu
double	myLocThresholdSquared
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Detailed Description

Provides encoding logic for the DtArealObjectStatePdu class.

Constructor & Destructor Documentation

DtArealObjectEncoder::DtArealObjectEncoder

(

double

locThresh = 1.0

)

CTOR.

DtArealObjectEncoder::DtArealObjectEncoder

(

const DtArealObjectEncoder &

orig

)

Copy CTOR.

virtual DtArealObjectEncoder::~DtArealObjectEncoder ( )

virtual

Virtual DTOR.

Member Function Documentation

DtArealObjectEncoder::DtCLONE_ENCODER

(

DtArealObjectEncoder

)

double DtArealObjectEncoder::locThreshold ( ) const

inlinevirtual

Set/Query the value of the Location Update Threshold.

References myLocThresholdSquared.

DtArealObjectEncoder& DtArealObjectEncoder::operator=

(

const DtArealObjectEncoder &

orig

)

Assignment operator.

virtual bool DtArealObjectEncoder::sendNeeded ( const DtArealObjectRepository &  stateRep, const DtArealObjectRepository &  asSeenByRemote  )

protectedvirtual

Determine if a state message needs to be sent.

void DtArealObjectEncoder::setLocThreshold ( double  val )

inlinevirtual

Set/Query the value of the Location Update Threshold.

References myLocThresholdSquared.

virtual DtArealObjectStatePdu* DtArealObjectEncoder::stateMsg ( const DtArealObjectRepository &  stateRep, const DtArealObjectRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

stateMsg determines whether a Designator PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

virtual void DtArealObjectEncoder::updateModifications ( const DtArealObjectRepository &  lclRep, const DtArealObjectRepository &  remRep  )

protectedvirtual

Update the PDU's modification flags.

Member Data Documentation

double DtArealObjectEncoder::myLocThresholdSquared

protected

Referenced by locThreshold(), and setLocThreshold().

DtArealObjectStatePdu DtArealObjectEncoder::myPdu

protected

---

The documentation for this class was generated from the following file:

• arealObjectEncoderDIS.h
