DtBreachableSegmentRecord Class Reference

Instances of DtBreachableSegmentRecord implement the BreachableSegmentStruct used to implement the Breachable Linear Object. More...

Inheritance diagram for DtBreachableSegmentRecord:

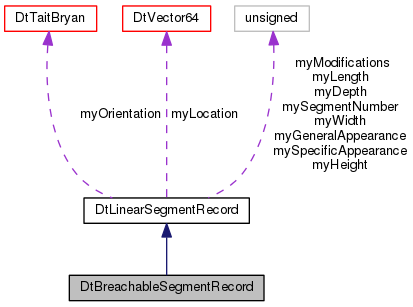

Collaboration diagram for DtBreachableSegmentRecord:

Public Member Functions
	DtBreachableSegmentRecord ()
	Default CTOR. More...
	DtBreachableSegmentRecord (const DtBreachableSegmentRecord &orig)
	Copy CTOR. More...
	DtBreachableSegmentRecord (const DtLinearSegmentRecord &orig)
	Copy CTOR. More...
virtual	~DtBreachableSegmentRecord ()
	Virtual DTOR. More...
DtBreachableSegmentRecord &	operator= (const DtNetBreachableSegmentRecord &orig)
	Assignment Operator (Net Type). More...
virtual void	setBreachLength (DtU32 length)
	Get/Set Breach Length. More...
virtual DtU32	breachLength () const
virtual void	setBreachedState (DtTankDitchBreachStatus state)
	Get/Set Breached State. More...
virtual DtTankDitchBreachStatus	breachedState () const
virtual bool	setSegmentBreached (int index, bool state)
	Get/Set Segment Breached Returns false if the index is out of bounds. More...
virtual bool	segmentBreached (int index, bool &state) const
virtual void	unloadNetRecord (const DtNetBreachableSegmentRecord &record)
virtual void	loadNetRecord (DtNetBreachableSegmentRecord &record) const
virtual void	printData () const
	Print Data. More...
virtual void	printDataToStream (std::ostream &stream) const
Public Member Functions inherited from DtLinearSegmentRecord
	DtLinearSegmentRecord ()
	CTOR. More...
	DtLinearSegmentRecord (const DtLinearSegmentRecord &orig)
	Copy CTOR. More...
virtual	~DtLinearSegmentRecord ()
	Virtual DTOR. More...
virtual void	setSegmentNumber (const DtU32 value)
	Set/Get Segment Number. More...
virtual DtU32	segmentNumber () const
virtual void	setModifications (DtU8 value)
	Set/Get the modifications (by 8-bit integer). More...
virtual DtU8	modifications () const
virtual void	setModificationsField (DtModificationField field, bool value)
	Set/Get the modifications (by field). More...
virtual bool	modificationsField (DtModificationField field) const
virtual void	setLocation (const DtVector &coords)
	Set/Get Location. More...
virtual const DtVector &	location () const
virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/Get Orientation. More...
virtual const DtTaitBryan &	orientation () const
virtual void	setLength (const DtU16 value)
	Set/Get Length. More...
virtual DtU16	length () const
virtual void	setWidth (const DtU16 value)
	Set/Get Width. More...
virtual DtU16	width () const
virtual void	setHeight (const DtU16 value)
	Set/Get Height. More...
virtual DtU16	height () const
virtual void	setDepth (const DtU16 value)
	Set/Get Depth. More...
virtual DtU16	depth () const
virtual void	setGeneralAppearance (DtU16 appearance)
	Set/Get General Appearance. More...
virtual DtU16	generalAppearance () const
virtual void	setSpecificAppearance (DtU32 appearance)
	Set/Get Specific Appearance. More...
virtual DtU32	specificAppearance () const
virtual void	setGeneralAppearanceAttribute (DtAppearAttribute attr, DtAppearAttrVal val)
	Set/Get General Appearance Attribute. More...
virtual DtAppearAttrVal	generalAppearanceAttribute (DtAppearAttribute attr) const
virtual void	setSpecificAppearanceAttribute (DtAppearAttribute attr, DtAppearAttrVal val)
	Set/Get Specific Appearance Attribute. More...
virtual DtU32	specificAppearanceAttribute (DtAppearAttribute attr) const
virtual void	setPercentComplete (const DtU32 value)
	Set/Get Percent Complete. More...
virtual DtU32	percentComplete () const
virtual void	setDamagedState (const DtDamageState state)
	Set/Get Damaged State. More...
virtual DtDamageState	damagedState () const
virtual void	setObjectPreDistributed (bool onOff)
	Set/Get ObjectPreDistributed. More...
virtual bool	objectPreDistributed () const
virtual void	setDeactivated (bool onOff)
	Set/Get Deactivated. More...
virtual bool	deactivated () const
virtual void	setSmoking (bool onOff)
	Set/Get Smoking. More...
virtual bool	smoking () const
virtual void	setFlaming (bool onOff)
	Set/Get Flaming. More...
virtual bool	flaming () const
virtual void	unloadNetRecord (const DtNetLinearSegmentParameter &record)
	Load/Unload data from a DIS packet record. More...
virtual void	loadNetRecord (DtNetLinearSegmentParameter &record) const
virtual void	unloadNetRecord (const DtNetLinearSegmentRecord &record)
	Load/Unload data from an HLA packet record. More...
virtual void	loadNetRecord (DtNetLinearSegmentRecord &record) const
virtual DtLinearSegmentRecord &	operator= (const DtLinearSegmentRecord &orig)
virtual DtLinearSegmentRecord &	operator= (const DtNetLinearSegmentRecord &orig)
virtual DtLinearSegmentRecord &	operator= (const DtNetLinearSegmentParameter &orig)
virtual bool	operator== (const DtLinearSegmentRecord &rec) const
virtual bool	operator!= (const DtLinearSegmentRecord &rec) const

Additional Inherited Members
Protected Attributes inherited from DtLinearSegmentRecord
DtU32	mySegmentNumber
DtU8	myModifications
DtVector	myLocation
DtTaitBryan	myOrientation
DtU16	myLength
DtU16	myWidth
DtU16	myHeight
DtU16	myDepth
DtU16	myGeneralAppearance
DtU32	mySpecificAppearance

Detailed Description

Instances of DtBreachableSegmentRecord implement the BreachableSegmentStruct used to implement the Breachable Linear Object.

Constructor & Destructor Documentation

DtBreachableSegmentRecord::DtBreachableSegmentRecord

(

)

Default CTOR.

DtBreachableSegmentRecord::DtBreachableSegmentRecord

(

const DtBreachableSegmentRecord &

orig

)

Copy CTOR.

DtBreachableSegmentRecord::DtBreachableSegmentRecord

(

const DtLinearSegmentRecord &

orig

)

Copy CTOR.

virtual DtBreachableSegmentRecord::~DtBreachableSegmentRecord ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual DtTankDitchBreachStatus DtBreachableSegmentRecord::breachedState ( ) const

virtual

virtual DtU32 DtBreachableSegmentRecord::breachLength ( ) const

virtual

virtual void DtBreachableSegmentRecord::loadNetRecord ( DtNetBreachableSegmentRecord &  record ) const

virtual

DtBreachableSegmentRecord& DtBreachableSegmentRecord::operator=

(

const DtNetBreachableSegmentRecord &

orig

)

Assignment Operator (Net Type).

virtual void DtBreachableSegmentRecord::printData ( ) const

virtual

Print Data.

Reimplemented from DtLinearSegmentRecord.

virtual void DtBreachableSegmentRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtLinearSegmentRecord.

virtual bool DtBreachableSegmentRecord::segmentBreached ( int  index, bool &  state  ) const

virtual

virtual void DtBreachableSegmentRecord::setBreachedState ( DtTankDitchBreachStatus  state )

virtual

Get/Set Breached State.

virtual void DtBreachableSegmentRecord::setBreachLength ( DtU32  length )

virtual

Get/Set Breach Length.

virtual bool DtBreachableSegmentRecord::setSegmentBreached ( int  index, bool  state  )

virtual

Get/Set Segment Breached Returns false if the index is out of bounds.

There are 8 SegmentBreached records, so a valid index is >= 0 and <=7

virtual void DtBreachableSegmentRecord::unloadNetRecord ( const DtNetBreachableSegmentRecord &  record )

virtual

---

The documentation for this class was generated from the following file:

• breachableSegmentRecord.h
