DtDiGuyAppearanceRecord Class Reference

Inheritance diagram for DtDiGuyAppearanceRecord:

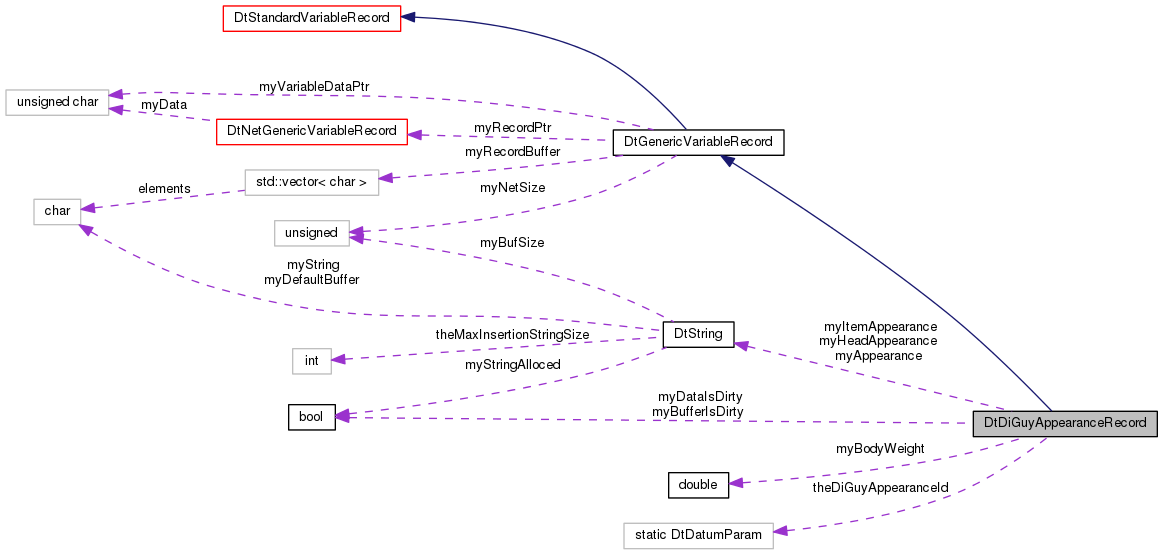

Collaboration diagram for DtDiGuyAppearanceRecord:

Public Member Functions
	DtDiGuyAppearanceRecord ()
	Constructor. More...
	DtDiGuyAppearanceRecord (const DtDiGuyAppearanceRecord &orig)
	Copy Constructor. More...
	DtDiGuyAppearanceRecord (void *netBuffer, unsigned int size)
	Net Constructor. More...
virtual DtDiGuyAppearanceRecord &	operator= (const DtDiGuyAppearanceRecord &record)
	Assignment Operator. More...
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &other)
	Assignment operator. More...
virtual bool	operator== (const DtDiGuyAppearanceRecord &record)
	Equals Operator. More...
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator. More...
virtual const DtString &	appearance () const
	Set/Get appearance. More...
virtual void	setAppearance (const DtString &appearanceValue)
virtual const DtString &	headAppearance () const
	Set/Get head appearance. More...
virtual void	setHeadAppearance (const DtString &appearanceValue)
virtual const DtString &	itemAppearance () const
	Set/Get item appearance. More...
virtual void	setItemAppearance (const DtString &appearanceValue)
virtual double	bodyWeight () const
	Set/Get body weight. More...
virtual void	setBodyWeight (double bw)
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from an address and length. More...
virtual unsigned int	unpaddedNetsize () const
	This is the network size of the record without padding. More...
Public Member Functions inherited from DtGenericVariableRecord
	DtGenericVariableRecord (unsigned int recordType, unsigned int dataLength=0, void *dataPtr=0)
	Construct a record of the given type with optional data length (not including header or padding) and data. More...
	DtGenericVariableRecord (const DtGenericVariableRecord &orig)
	Copy Constructor. More...
	DtGenericVariableRecord (void *ptr, unsigned int size)
	Net Constructor Memory must exist for life of the variable record. More...
virtual	~DtGenericVariableRecord ()
	Destructor. More...
virtual DtGenericVariableRecord &	operator= (const DtGenericVariableRecord &record)
	Assignment Operator. More...
virtual bool	operator== (const DtGenericVariableRecord &record)
	Equals Operator. More...
virtual unsigned int	dataSize () const
	Get the variable data size (will include size of padding bytes if any) More...
virtual const char *	netRep () const
	The net record including the header. More...
virtual unsigned int	recordType () const
	Get/Set Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Get/Set Record Length. More...
virtual void	setRecordLength (unsigned int length)
	Must include size of record header and padding to 8 bytes. More...
virtual const char *	variableData () const
	Get/Set the variable data part of record. More...
virtual char *	variableData ()
	Get/Set the variable data part of record. More...
virtual void	setVariableData (const std::vector< char > &data)
	Get/Set the variable data part of record. More...
virtual void	setVariableData (const char *data, unsigned size)
	Get/Set the variable data part of record. More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Creator of an unknown record for registering in a factory. More...
static unsigned int	recordTypeToUse ()
	Return the DI-Guy Appearance record type. More...
static void	setRecordTypeToUse (unsigned int typeToUse)
	Set the record type to use. More...
Static Public Member Functions inherited from DtGenericVariableRecord
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Creator of an unknown record for registering in a factory. More...

Protected Member Functions
virtual void	updateData ()
virtual void	commitData ()
virtual DtDiGuyAppearanceRecord &	doCopy (const DtDiGuyAppearanceRecord &record)
Protected Member Functions inherited from DtGenericVariableRecord
virtual void	resizeForDataOfSize (int size)
	Resize the buffer for the given data size. More...

Protected Attributes
double	myBodyWeight
DtString	myAppearance
DtString	myHeadAppearance
DtString	myItemAppearance
bool	myDataIsDirty
bool	myBufferIsDirty
Protected Attributes inherited from DtGenericVariableRecord
std::vector< char >	myRecordBuffer
DtNetGenericVariableRecord *	myRecordPtr
DtU8 *	myVariableDataPtr
unsigned int	myNetSize
	Greater than 0 only when record is wrapping around a network buffer. More...
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Static Protected Attributes
static DtDatumParam	theDiGuyAppearanceId

Constructor & Destructor Documentation

DtDiGuyAppearanceRecord::DtDiGuyAppearanceRecord

(

)

Constructor.

DtDiGuyAppearanceRecord::DtDiGuyAppearanceRecord

(

const DtDiGuyAppearanceRecord &

orig

)

Copy Constructor.

DtDiGuyAppearanceRecord::DtDiGuyAppearanceRecord	(	void *	netBuffer,
		unsigned int	size
	)

Net Constructor.

Member Function Documentation

virtual const DtString& DtDiGuyAppearanceRecord::appearance ( ) const

virtual

Set/Get appearance.

virtual double DtDiGuyAppearanceRecord::bodyWeight ( ) const

virtual

Set/Get body weight.

virtual DtStandardVariableRecord* DtDiGuyAppearanceRecord::clone ( ) const

virtual

Clone.

Reimplemented from DtGenericVariableRecord.

virtual void DtDiGuyAppearanceRecord::commitData ( )

protectedvirtual

static DtStandardVariableRecord* DtDiGuyAppearanceRecord::create ( void *  addr, unsigned int  length  )

static

Creator of an unknown record for registering in a factory.

virtual DtDiGuyAppearanceRecord& DtDiGuyAppearanceRecord::doCopy ( const DtDiGuyAppearanceRecord &  record )

protectedvirtual

virtual const DtString& DtDiGuyAppearanceRecord::headAppearance ( ) const

virtual

Set/Get head appearance.

virtual const DtString& DtDiGuyAppearanceRecord::itemAppearance ( ) const

virtual

Set/Get item appearance.

virtual DtDiGuyAppearanceRecord& DtDiGuyAppearanceRecord::operator= ( const DtDiGuyAppearanceRecord &  record )

virtual

Assignment Operator.

virtual DtStandardVariableRecord& DtDiGuyAppearanceRecord::operator= ( const DtStandardVariableRecord &  other )

virtual

Assignment operator.

Reimplemented from DtGenericVariableRecord.

virtual bool DtDiGuyAppearanceRecord::operator== ( const DtDiGuyAppearanceRecord &  record )

virtual

Equals Operator.

virtual bool DtDiGuyAppearanceRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Reimplemented from DtGenericVariableRecord.

virtual void DtDiGuyAppearanceRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Reimplemented from DtGenericVariableRecord.

static unsigned int DtDiGuyAppearanceRecord::recordTypeToUse ( )

static

Return the DI-Guy Appearance record type.

virtual void DtDiGuyAppearanceRecord::setAppearance ( const DtString &  appearanceValue )

virtual

virtual void DtDiGuyAppearanceRecord::setBodyWeight ( double  bw )

virtual

virtual void DtDiGuyAppearanceRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from an address and length.

Return code will be Valid if all goes well. Memory must exist for life of the variable record

Reimplemented from DtGenericVariableRecord.

virtual void DtDiGuyAppearanceRecord::setHeadAppearance ( const DtString &  appearanceValue )

virtual

virtual void DtDiGuyAppearanceRecord::setItemAppearance ( const DtString &  appearanceValue )

virtual

static void DtDiGuyAppearanceRecord::setRecordTypeToUse ( unsigned int  typeToUse )

static

Set the record type to use.

virtual unsigned int DtDiGuyAppearanceRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Reimplemented from DtGenericVariableRecord.

virtual void DtDiGuyAppearanceRecord::updateData ( )

protectedvirtual

virtual void DtDiGuyAppearanceRecord::writeRecord ( void *  addr ) const

virtual

Reimplemented from DtGenericVariableRecord.

Member Data Documentation

DtString DtDiGuyAppearanceRecord::myAppearance

protected

double DtDiGuyAppearanceRecord::myBodyWeight

protected

bool DtDiGuyAppearanceRecord::myBufferIsDirty

protected

bool DtDiGuyAppearanceRecord::myDataIsDirty

protected

DtString DtDiGuyAppearanceRecord::myHeadAppearance

protected

DtString DtDiGuyAppearanceRecord::myItemAppearance

protected

DtDatumParam DtDiGuyAppearanceRecord::theDiGuyAppearanceId

staticprotected

---

The documentation for this class was generated from the following file:

• diGuyAppearanceRecord.h
