DtEnvironmentalSphereRecord Class Reference

DtEnvironmentalSphereRecord implements the Environmental geometry record type "Sphere Record 1" See Enumerated Bit Values document, section 12.3.4.5. More...

Inheritance diagram for DtEnvironmentalSphereRecord:

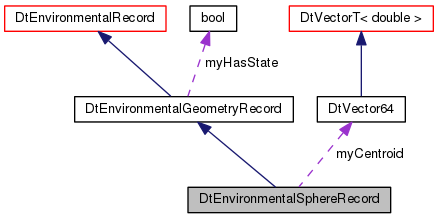

Collaboration diagram for DtEnvironmentalSphereRecord:

Public Member Functions
	DtEnvironmentalSphereRecord ()
	DtEnvironmentalSphereRecord (const DtEnvironmentalSphereRecord &orig)
	Copy constructor. More...
const DtEnvironmentalSphereRecord &	operator= (const DtEnvironmentalSphereRecord &orig)
virtual	~DtEnvironmentalSphereRecord ()
virtual DtEnvironmentalRecord *	clone () const
	Clone. More...
virtual void	setLocation (const DtVector &location)
virtual const DtVector &	location () const
virtual void	setRadius (DtFloat32 radius)
virtual DtFloat32	radius () const
virtual bool	createNetworkRepresentation ()
	This doesn't need to be called explicitly. More...
const DtNetEnvironmentalSphereRecord *	sphereNetRep () const
	returns the network representation of the environmental record More...
DtNetEnvironmentalSphereRecord *	sphereNetRep ()
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer, int protocolVersion)
	used by the PDU class to fill in the network representation More...
virtual int	netRepSize () const
	Returns the size of the network representation. More...
Public Member Functions inherited from DtEnvironmentalGeometryRecord
	DtEnvironmentalGeometryRecord ()
	Constructor. More...
	DtEnvironmentalGeometryRecord (const DtEnvironmentalGeometryRecord &orig)
	Copy constructor. More...
const DtEnvironmentalGeometryRecord &	operator= (const DtEnvironmentalGeometryRecord &orig)
	Assignment Operator. More...
virtual	~DtEnvironmentalGeometryRecord ()
	Destructor. More...
virtual void	setHasState (bool hasState)
	Set/get a flag to indicate whether or not a state record is associated with this geometry record. More...
virtual bool	hasState () const
Public Member Functions inherited from DtEnvironmentalRecord
	DtEnvironmentalRecord ()
	Constructor. More...
	DtEnvironmentalRecord (const DtEnvironmentalRecord &orig)
	Copy constructor. More...
const DtEnvironmentalRecord &	operator= (const DtEnvironmentalRecord &orig)
	Assignment operator. More...
virtual	~DtEnvironmentalRecord ()
	Destructor. More...
virtual void	setType (DtU32 type)
virtual DtU32	type () const
virtual void	setLength (DtU16 length)
virtual DtU16	length () const
virtual void	setIndex (DtU8 index)
virtual DtU8	index () const
const DtNetEnvironmentalRecord *	netRep () const
	returns the network representation of the environmental record More...
DtNetEnvironmentalRecord *	netRep ()

Protected Member Functions
DtEnvironmentalSphereRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...
Protected Member Functions inherited from DtEnvironmentalRecord
virtual bool	checkAndCreate ()
	Checks to see if we need a representation, and creates it if we do Returns false, if the create fails, true otherwise. More...
virtual bool	resizeNetRep (int newSize)
	Resizes the network representation. More...
DtEnvironmentalRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

Protected Attributes
DtVector	myCentroid
Protected Attributes inherited from DtEnvironmentalGeometryRecord
bool	myHasState
Protected Attributes inherited from DtEnvironmentalRecord
DtNetEnvironmentalRecord *	myNetRep

Detailed Description

DtEnvironmentalSphereRecord implements the Environmental geometry record type "Sphere Record 1" See Enumerated Bit Values document, section 12.3.4.5.

Constructor & Destructor Documentation

DtEnvironmentalSphereRecord::DtEnvironmentalSphereRecord

(

)

DtEnvironmentalSphereRecord::DtEnvironmentalSphereRecord

(

const DtEnvironmentalSphereRecord &

orig

)

Copy constructor.

virtual DtEnvironmentalSphereRecord::~DtEnvironmentalSphereRecord ( )

virtual

Member Function Documentation

virtual DtEnvironmentalRecord* DtEnvironmentalSphereRecord::clone ( ) const

virtual

Clone.

Reimplemented from DtEnvironmentalGeometryRecord.

Reimplemented in DtEnvironmentalBoundingSphereRecord.

virtual bool DtEnvironmentalSphereRecord::createNetworkRepresentation ( )

virtual

This doesn't need to be called explicitly.

If any routine that needs the repository finds that it hasn't been created yet, it calls this method.

Reimplemented from DtEnvironmentalRecord.

Reimplemented in DtEnvironmentalBoundingSphereRecord.

virtual const DtVector& DtEnvironmentalSphereRecord::location ( ) const

virtual

virtual int DtEnvironmentalSphereRecord::netRepSize ( ) const

virtual

Returns the size of the network representation.

Reimplemented from DtEnvironmentalRecord.

const DtEnvironmentalSphereRecord& DtEnvironmentalSphereRecord::operator=

(

const DtEnvironmentalSphereRecord &

orig

)

virtual DtFloat32 DtEnvironmentalSphereRecord::radius ( ) const

virtual

DtEnvironmentalSphereRecord* DtEnvironmentalSphereRecord::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

virtual void DtEnvironmentalSphereRecord::setFromNet ( const DtNetEnvironmentalRecord &  buffer, int  protocolVersion  )

virtual

used by the PDU class to fill in the network representation

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalSphereRecord::setLocation ( const DtVector &  location )

virtual

virtual void DtEnvironmentalSphereRecord::setRadius ( DtFloat32  radius )

virtual

const DtNetEnvironmentalSphereRecord* DtEnvironmentalSphereRecord::sphereNetRep

(

)

const

returns the network representation of the environmental record

DtNetEnvironmentalSphereRecord* DtEnvironmentalSphereRecord::sphereNetRep

(

)

Member Data Documentation

DtVector DtEnvironmentalSphereRecord::myCentroid

protected

---

The documentation for this class was generated from the following file:

• environmentalSphereRecord.h
