DtGlobalObjectDesignatorList Class Reference

Instances of DtGlobalObjectDesignatorList are list of globally significant object identifiers. More...

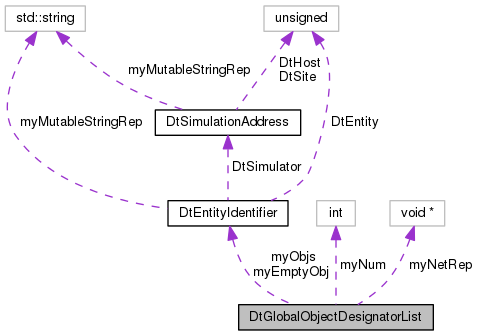

Collaboration diagram for DtGlobalObjectDesignatorList:

Public Member Functions
	DtGlobalObjectDesignatorList ()
	default constructor More...
virtual	~DtGlobalObjectDesignatorList ()
	destructor More...
	DtGlobalObjectDesignatorList (const DtGlobalObjectDesignatorList &orig)
	copy constructor More...
DtGlobalObjectDesignatorList &	operator= (const DtGlobalObjectDesignatorList &orig)
	assignment operator More...
int	operator== (const DtGlobalObjectDesignatorList &other) const
	equivalence operators More...
int	operator!= (const DtGlobalObjectDesignatorList &other) const
virtual void	setNumObjects (int num)
	Set/Get number of objects. More...
virtual int	numObjects () const
virtual bool	setObject (int index, const DtGlobalObjectDesignator &des)
	Set index'th object designator. More...
virtual const DtGlobalObjectDesignator &	object (int index, bool *valid=0) const
	Get index'th object designator. More...
virtual void	printData () const
	Print data. More...
virtual void	printDataToStream (std::ostream &stream) const
virtual void	setFromNet (const void *netRep, int length)
	Set from network representation. More...
virtual const void *	netRep (int *size=0) const
	Returns network representation, fills size with size of netRep. More...
virtual int	netSize () const
	Returns size of network representation. More...

Protected Attributes
int	myNum
DtGlobalObjectDesignator *	myObjs
DtGlobalObjectDesignator	myEmptyObj
void *	myNetRep

Detailed Description

Instances of DtGlobalObjectDesignatorList are list of globally significant object identifiers.

Constructor & Destructor Documentation

DtGlobalObjectDesignatorList::DtGlobalObjectDesignatorList

(

)

default constructor

virtual DtGlobalObjectDesignatorList::~DtGlobalObjectDesignatorList ( )

virtual

destructor

DtGlobalObjectDesignatorList::DtGlobalObjectDesignatorList

(

const DtGlobalObjectDesignatorList &

orig

)

copy constructor

Member Function Documentation

virtual const void* DtGlobalObjectDesignatorList::netRep ( int *  size = 0 ) const

virtual

Returns network representation, fills size with size of netRep.

Return value is pointer to internal object with same lifetime as this. Do not delete.

virtual int DtGlobalObjectDesignatorList::netSize ( ) const

virtual

Returns size of network representation.

virtual int DtGlobalObjectDesignatorList::numObjects ( ) const

virtual

virtual const DtGlobalObjectDesignator& DtGlobalObjectDesignatorList::object ( int  index, bool *  valid = 0  ) const

virtual

Get index'th object designator.

Set valid to false if bad index, true otherwise.

int DtGlobalObjectDesignatorList::operator!=

(

const DtGlobalObjectDesignatorList &

other

)

const

DtGlobalObjectDesignatorList& DtGlobalObjectDesignatorList::operator=

(

const DtGlobalObjectDesignatorList &

orig

)

assignment operator

int DtGlobalObjectDesignatorList::operator==

(

const DtGlobalObjectDesignatorList &

other

)

const

equivalence operators

virtual void DtGlobalObjectDesignatorList::printData ( ) const

virtual

Print data.

virtual void DtGlobalObjectDesignatorList::printDataToStream ( std::ostream &  stream ) const

virtual

virtual void DtGlobalObjectDesignatorList::setFromNet ( const void *  netRep, int  length  )

virtual

Set from network representation.

virtual void DtGlobalObjectDesignatorList::setNumObjects ( int  num )

virtual

Set/Get number of objects.

Setting to a number lower than the current number will remove trailing objects from the list.

virtual bool DtGlobalObjectDesignatorList::setObject ( int  index, const DtGlobalObjectDesignator &  des  )

virtual

Set index'th object designator.

Member Data Documentation

DtGlobalObjectDesignator DtGlobalObjectDesignatorList::myEmptyObj

protected

void* DtGlobalObjectDesignatorList::myNetRep

protected

int DtGlobalObjectDesignatorList::myNum

protected

DtGlobalObjectDesignator* DtGlobalObjectDesignatorList::myObjs

protected

---

The documentation for this class was generated from the following file:

• globalObjectDesignatorList.h
