DtIffBasicInteractiveRecord Class Reference

Inheritance diagram for DtIffBasicInteractiveRecord:

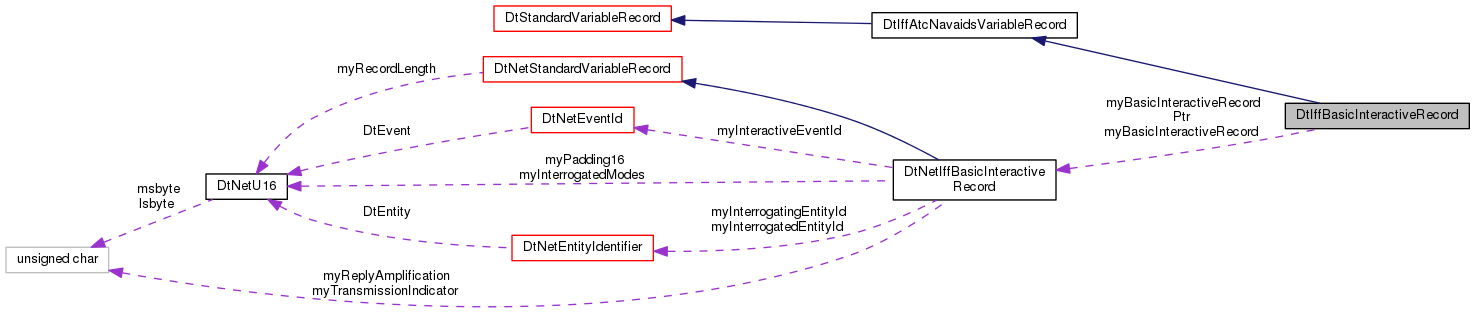

Collaboration diagram for DtIffBasicInteractiveRecord:

Public Member Functions
	DtIffBasicInteractiveRecord ()
	Constructor. More...
	DtIffBasicInteractiveRecord (const DtIffBasicInteractiveRecord &orig)
	Copy Constructor. More...
	DtIffBasicInteractiveRecord (void *ptr, unsigned int size)
	Net Constructor. More...
	DtIffBasicInteractiveRecord (DtNetIffBasicInteractiveRecord netRecord)
	NetType Constructor. More...
virtual DtIffBasicInteractiveRecord &	operator= (const DtIffBasicInteractiveRecord &record)
	Assignment Operator. More...
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &other)
	Assignment operator. More...
virtual bool	operator== (const DtIffBasicInteractiveRecord &record)
	Equals Operator. More...
virtual bool	operator== (const DtStandardVariableRecord &record)
	Equals Operator. More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual unsigned int	recordType () const
	Setters and Getters for Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Setters and Getters for Record Length. More...
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from Network Representation from the given location. More...
virtual unsigned	unpaddedNetsize () const
	This is the network size of the record without padding. More...
virtual void	setInterrogatingEntityId (DtEntityIdentifier)
	Accessors. More...
virtual DtEntityIdentifier	interrogatingEntityId () const
virtual void	setInterrogatedEntityId (DtEntityIdentifier)
virtual DtEntityIdentifier	interrogatedEntityId () const
virtual void	setInteractiveEventId (DtEventId)
virtual DtEventId	interactiveEventId () const
virtual void	setInterrogatedModes (DtU16)
virtual DtU16	interrogatedModes () const
virtual void	setTransmissionIndicator (DtTransmissionIndicator)
virtual DtTransmissionIndicator	transmissionIndicator () const
virtual void	setReplyAmplification (DtReplyAmplification)
virtual DtReplyAmplification	replyAmplification () const
Public Member Functions inherited from DtIffAtcNavaidsVariableRecord
	DtIffAtcNavaidsVariableRecord ()
	Constructor. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Create function used by Standard Variable Record Factory. More...

Protected Attributes
DtNetIffBasicInteractiveRecord	myBasicInteractiveRecord
DtNetIffBasicInteractiveRecord *	myBasicInteractiveRecordPtr
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Constructor & Destructor Documentation

DtIffBasicInteractiveRecord::DtIffBasicInteractiveRecord

(

)

Constructor.

DtIffBasicInteractiveRecord::DtIffBasicInteractiveRecord

(

const DtIffBasicInteractiveRecord &

orig

)

Copy Constructor.

DtIffBasicInteractiveRecord::DtIffBasicInteractiveRecord	(	void *	ptr,
		unsigned int	size
	)

Net Constructor.

DtIffBasicInteractiveRecord::DtIffBasicInteractiveRecord

(

DtNetIffBasicInteractiveRecord

netRecord

)

NetType Constructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtIffBasicInteractiveRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtIffBasicInteractiveRecord::create ( void *  addr, unsigned int  length  )

static

Create function used by Standard Variable Record Factory.

virtual DtEventId DtIffBasicInteractiveRecord::interactiveEventId ( ) const

virtual

virtual DtEntityIdentifier DtIffBasicInteractiveRecord::interrogatedEntityId ( ) const

virtual

virtual DtU16 DtIffBasicInteractiveRecord::interrogatedModes ( ) const

virtual

virtual DtEntityIdentifier DtIffBasicInteractiveRecord::interrogatingEntityId ( ) const

virtual

virtual DtIffBasicInteractiveRecord& DtIffBasicInteractiveRecord::operator= ( const DtIffBasicInteractiveRecord &  record )

virtual

Assignment Operator.

virtual DtStandardVariableRecord& DtIffBasicInteractiveRecord::operator= ( const DtStandardVariableRecord &  other )

virtual

Assignment operator.

virtual bool DtIffBasicInteractiveRecord::operator== ( const DtIffBasicInteractiveRecord &  record )

virtual

Equals Operator.

virtual bool DtIffBasicInteractiveRecord::operator== ( const DtStandardVariableRecord &  record )

virtual

Equals Operator.

Implements DtStandardVariableRecord.

virtual void DtIffBasicInteractiveRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtIffBasicInteractiveRecord::recordLength ( ) const

virtual

Setters and Getters for Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtIffBasicInteractiveRecord::recordType ( ) const

virtual

Setters and Getters for Record Type.

Implements DtStandardVariableRecord.

virtual DtReplyAmplification DtIffBasicInteractiveRecord::replyAmplification ( ) const

virtual

virtual void DtIffBasicInteractiveRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from Network Representation from the given location.

Implements DtStandardVariableRecord.

virtual void DtIffBasicInteractiveRecord::setInteractiveEventId ( DtEventId  )

virtual

virtual void DtIffBasicInteractiveRecord::setInterrogatedEntityId ( DtEntityIdentifier  )

virtual

virtual void DtIffBasicInteractiveRecord::setInterrogatedModes ( DtU16  )

virtual

virtual void DtIffBasicInteractiveRecord::setInterrogatingEntityId ( DtEntityIdentifier  )

virtual

Accessors.

virtual void DtIffBasicInteractiveRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtIffBasicInteractiveRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

virtual void DtIffBasicInteractiveRecord::setReplyAmplification ( DtReplyAmplification  )

virtual

virtual void DtIffBasicInteractiveRecord::setTransmissionIndicator ( DtTransmissionIndicator  )

virtual

virtual DtTransmissionIndicator DtIffBasicInteractiveRecord::transmissionIndicator ( ) const

virtual

virtual unsigned DtIffBasicInteractiveRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Implements DtStandardVariableRecord.

virtual void DtIffBasicInteractiveRecord::writeRecord ( void *  addr ) const

virtual

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetIffBasicInteractiveRecord DtIffBasicInteractiveRecord::myBasicInteractiveRecord

protected

DtNetIffBasicInteractiveRecord* DtIffBasicInteractiveRecord::myBasicInteractiveRecordPtr

protected

---

The documentation for this class was generated from the following file:

• iffBasicInteractiveRecord.h
